PRODUCT DESCRIPTION

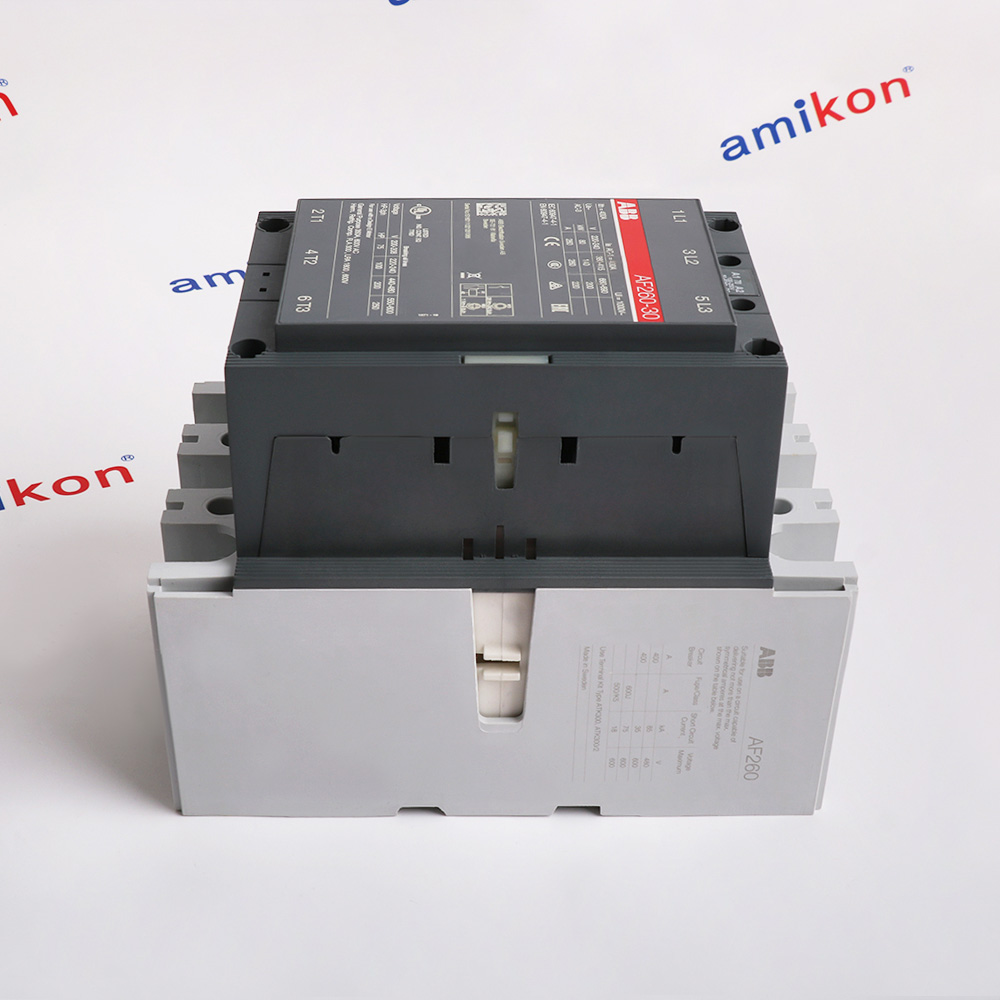

AF260-30-11 1SFL537001R7011 3-pole AF contactor
ABB AF260-30-11 1SFL537001R7011 is a 3-pole AF contactor in the ABB AF contactors. It is used to switch and control the specified electrical load from the automation circuit.
Its documented configuration includes main poles of 3, auxiliary contacts of 1 NO + 1 NC, rated current ac-1 of 400 A at 40 °C, and rated current ac-3 of 265 A at 400 V. During operation, the 3-pole AF contactor performs its assigned 3-pole AF contactor function through the documented power, signal and communication interfaces.
Its documented configuration includes main poles of 3, auxiliary contacts of 1 NO + 1 NC, rated current ac-1 of 400 A at 40 °C, and rated current ac-3 of 265 A at 400 V. During operation, the 3-pole AF contactor performs its assigned 3-pole AF contactor function through the documented power, signal and communication interfaces.
BEFORE YOU BUY
Confirm the complete 3-pole AF contactor
ACTUAL APPLICATIONS
Where AF260-30-11 1SFL537001R7011 supports industrial control systems
Official documentation supports these system applications when ABB AF contactors are correctly configured.
-
01 · POWER GENERATION
Boiler and Turbine Auxiliary Systems
Plant Control SystemsBoiler feedwater control cabinetsTurbine auxiliary monitoring panels -
02 · WATER & WASTEWATER
Pumping and Filtration Process Areas
Utility Automation SystemsBooster pump control stationsFilter backwash equipment panels -
03 · OIL & GAS
Compression and Pipeline Process Stations
Station Control SystemsGas compressor control racksPipeline metering equipment panels
Technical specifications for AF260-30-11 1SFL537001R7011
-
Product ModelAF260-30-11 1SFL537001R7011
-
Product Parameters3-pole AF contactor
-
In stock1 unit
-
ManufacturerABB
-
Main Poles3
-
Auxiliary Contacts1 NO + 1 NC
-
Rated Current AC-1400 A at 40 °C
-
Rated Current AC-3265 A at 400 V
-
Insulation Voltage1000 V
-
Impulse Voltage8 kV
-
Mechanical Durability5 million cycles
-
Switching Frequency300 cycles/hour
-
Coil Range100 to 250 V AC/DC
-
Coil Limits0.85 to 1.1 x Uc
-
Coil TerminalsIP20
-
Main TerminalsIP00
View all additional
Alternative Names
AF260 30 11 1SFL537001R7011
ABB AF contactors 3-pole AF contactor
ABB 3-pole AF contactor
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match AF260-30-11 1SFL537001R7011 to the installed ABB AF contactors
ABB AF260-30-11 1SFL537001R7011 is a 3-pole AF contactor for the ABB AF contactors. Its exact article suffix determines the supported interface, signal or communication function and the approved companion equipment.
Engineering should compare rated current ac-3 (265 A at 400 V), insulation voltage (1000 V) and impulse voltage (8 kV) with the installed system design. Confirm connector keying, addressing and configuration-tool support before connection.
Use the manufacturer documentation for the complete wiring and configuration sequence. Validate communication, signal conversion or control response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact identity: AF260-30-11 1SFL537001R7011
- Product class: 3-pole AF contactor
- Family: ABB AF contactors
The ABB AF260-30-11 1SFL537001R7011 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete AF260-30-11 1SFL537001R7011 identity before exchange
Replace AF260-30-11 1SFL537001R7011 only after matching the complete article code, 3-pole AF contactor, installed ABB AF contactors role and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive or network configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Exact identity: AF260-30-11 1SFL537001R7011
- Product class: 3-pole AF contactor
- Family check: ABB AF contactors
The ABB AF260-30-11 1SFL537001R7011 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for AF260-30-11 1SFL537001R7011
- ABB ABB AF contactors references reviewed
- Exact ABB identity required before service
Documentation for ABB AF260-30-11 1SFL537001R7011 must match the installed equipment; confirm document applicability before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size20.0 x 15.0 x 8.0 cm
-
Shipping weight0.80 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginSwitzerland
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about AF260-30-11 1SFL537001R7011
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which identity checks confirm the exact AF260-30-11 1SFL537001R7011?
Match the complete AF260-30-11 1SFL537001R7011 nameplate, 3-pole AF contactor, hardware revision and documented ABB AF contactors position. -
What should engineering verify before connecting AF260-30-11 1SFL537001R7011?
Compare the documented supply, signal or network interface, connector keying, addresses and companion equipment for AF260-30-11 1SFL537001R7011. -
Can a similar family article directly replace AF260-30-11 1SFL537001R7011?
No automatic substitution is established; compare the complete article code, ratings, interface set, firmware and physical arrangement. -
What records should be captured before removing AF260-30-11 1SFL537001R7011?
Photograph labels, terminals, plugs, shields, earth conductors and adjacent modules, then back up the applicable configuration. -
How should AF260-30-11 1SFL537001R7011 be inspected on arrival?
Check the exact label, housing or board condition, connectors, supplied accessories and transport protection before installation. -
Which commissioning checks apply after fitting AF260-30-11 1SFL537001R7011?
Verify supply and wiring, restore the approved configuration, inspect diagnostics and test the affected system function safely. -
What quotation details are required for AF260-30-11 1SFL537001R7011?
Provide the complete model, quantity, nameplate photographs, installed system, required interface and destination. -
Which service evidence should be retained for AF260-30-11 1SFL537001R7011?
Retain the receiving inspection, connection record, configuration backup, measurements, diagnostic results and acceptance record.
