- CAO10-P 3BDH000723R1
In Stock
Ships by Wednesday, July 1
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for CAO10-P 3BDH000723R1
-
Product ModelCAO10-P 3BDH000723R1
-
Spare ModelCAO10-P
-
Product ParametersAnalog output module
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock3 units
-
Estimated Shipping Size4x19.2x30.5cm
-
ManufacturerABB
-
Weight0.9 kg
-
Nominal range0 ... 20 mA
-
Max. signal size0 ... 21.5 mA
-
Load voltage0 ... 15 V
-
Load impedanceR <= 700 Ohm
-
HART communicationWith I >= 3 mA
-
Update rate of output signal< 40 ms, typ. 10 ms
-
Zero deviation<= ± 30 µA
-
Range deviation<= ± 0.2 % with 300 Ohm
-
Residual ripple< 50 mVpp with Imax
-
IsolationChannel by channel
-
Rated voltage50 Veff (to VDE 0110)
Description

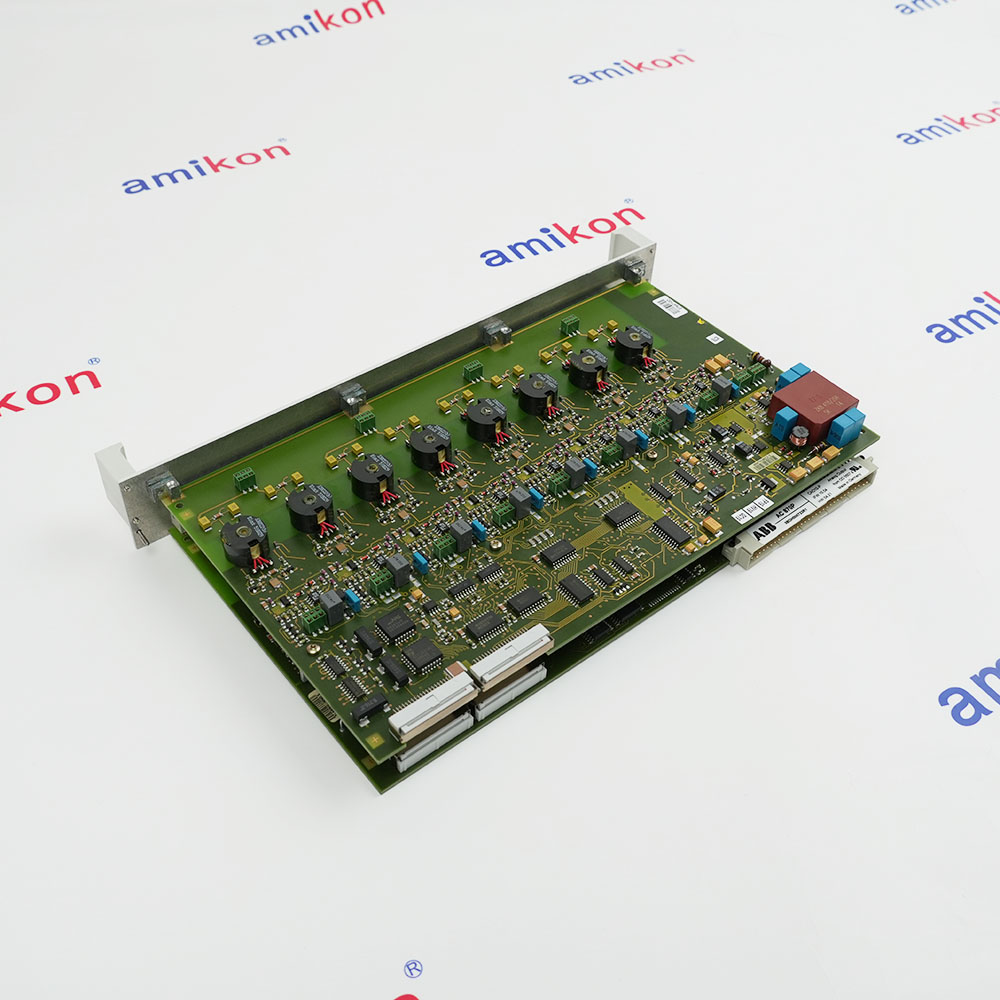

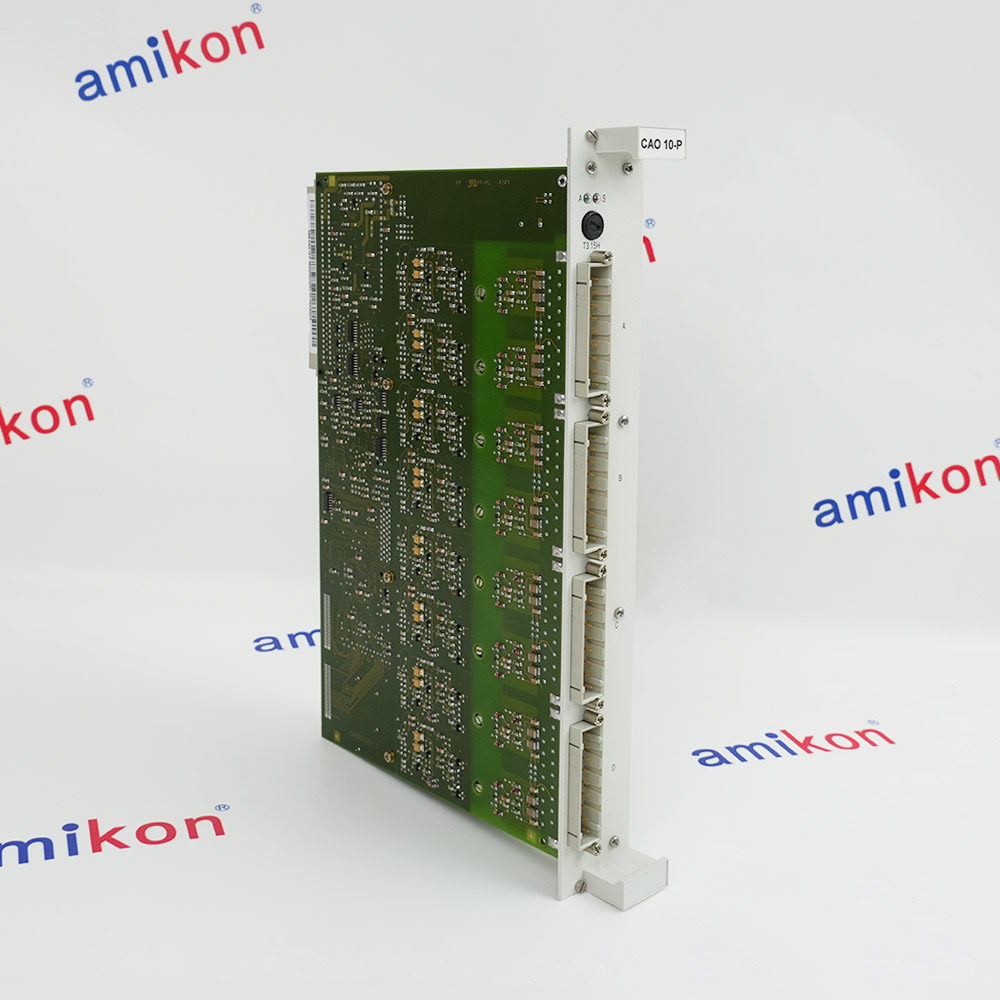

CAO10-P
3BDH000723R1
Analog output module
16 analog outputs
output signal 0/4 ... 20 mA
channel-by-channel configuration
3BDH000723R1
Analog output module
16 analog outputs
output signal 0/4 ... 20 mA
channel-by-channel configuration
Information
Overview
Manuals
Technical notes
Product Applications
Pre-Installation Inspections
Features:
- Load: max. 700 Ohm
- Channel-by-channel isolation of outputs
- Module is capable of redundant operation
- Monitoring of modules
- Digital communication with field devices according to HART protocol
- 16 analog outputs, output signal 0/4 ... 20 mA, channel-by-channel configuration
The CAO10-P 3BDH000723R1 ABB Analog output module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB CAO10-P 3BDH000723R1 Analog output module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The CAO 10-P module provides up to 16 analog output channels that are channel-wisegalvanically isolated. The module is protected against overload (short-circuit proof).CAO 10-P communicates digitally with the transmitter via the HART protocol.
- Thermal Power Stations:Fuel, feed-water & air damper control
- Hydropower Facilities:Hydraulic governor for turbine/penstock positioning
- Green Energy Utilities:Heliostat/steam control for solar/biomass
- Desalination & Water Treatment Plants:Dosing pumps for pH/chlorine balance
- Municipal Sewage Utilities:VFD lift pumps & discharge gate positioning
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Verify Firmware: Ensure the module firmware version matches the existing system controller baseline (typically IFW 10.05 or higher).Check Hardware Address: Locate the module's onboard addressing switches or jumpers before insertion to prevent network collisions.Inspect Backplane: Confirm the targeted slot in the subrack/mounting unit is clean, dry, and free of bent pins.
FAQs
-
What is the CAO10-P 3BDH000723R1 ？
+The ABB CAO10-P (3BDH000723R1) is a 16-channel analog output module, part of the Melody/Symphony Plus system, designed for industrial control, featuring 0/4...20 mA channel-by-channel configurable outputs, HART communication, and support for redundant operation, often used for intelligent actuators and recorders. -
What is the CAO10-P used for?
+It is an analog output module that activates actuators, pneumatic actuators, recorders, and display instruments. -
Does the CAO10-P support HART?
+Yes, it enables digital communication with field devices via the HART protocol (Version 5.0 / 5.1). -
Can the CAO10-P operate in a redundant configuration?
+Yes, the CAO 10 is designed for redundant operation, offering a bumpless switchover to ensure process stability.
