PRODUCT DESCRIPTION

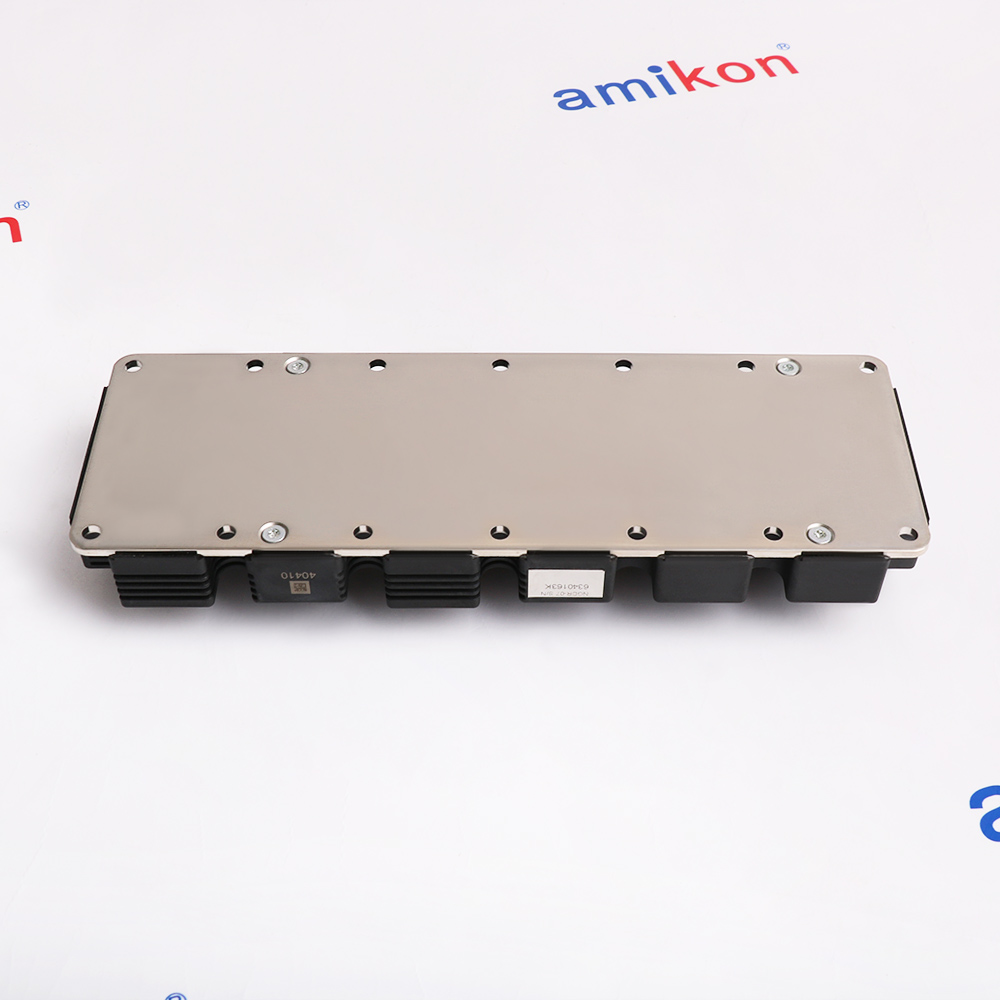

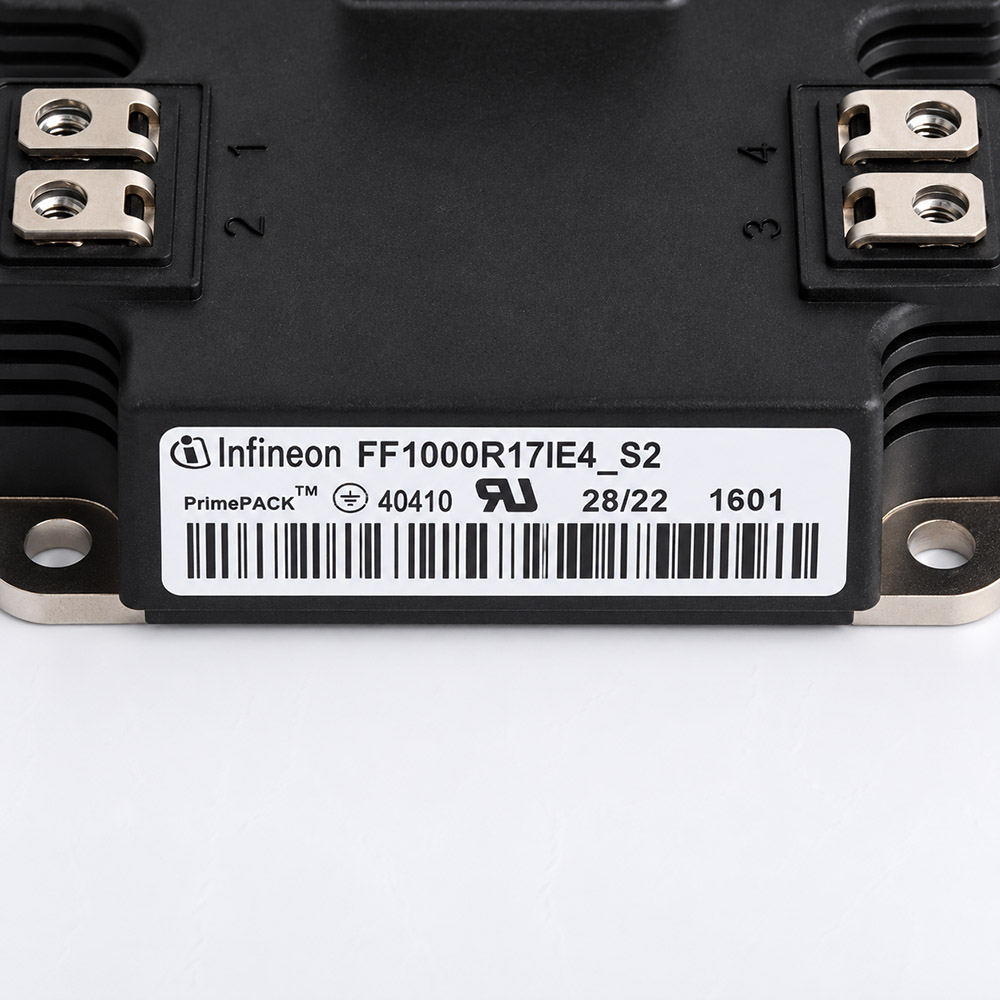

FF1000R17IE4-S2 IGBT power module
ABB FF1000R17IE4-S2 is a IGBT power module in the ABB converter power stages. It is used to supply the specified operating power to the connected automation hardware.
Its documented configuration includes collector-emitter voltage of 1700 V, nominal collector current of 1000 A, repetitive peak current of 2000 A, and total power dissipation of 6.25 kW. During operation, the IGBT power module converts and distributes the specified supply voltage to the connected hardware.
Its documented configuration includes collector-emitter voltage of 1700 V, nominal collector current of 1000 A, repetitive peak current of 2000 A, and total power dissipation of 6.25 kW. During operation, the IGBT power module converts and distributes the specified supply voltage to the connected hardware.
BEFORE YOU BUY
Confirm the complete IGBT power module
ACTUAL APPLICATIONS
Application context for FF1000R17IE4-S2
Official manufacturer documentation supports these system uses when the complete ABB converter power stages configuration is verified.
-
01 · POWER GENERATION
Wind converter power stages
Power Conversion SystemsGenerator inverter switchingDC-link power conversion -
02 · MINING & METALS
High-power mill drives
Drive Power SystemsMotor inverter switchingRegenerative converter operation -
03 · MARINE & PORTS
Propulsion converter cabinets
Propulsion Drive SystemsMotor phase power switchingAuxiliary inverter conversion
Technical specifications for FF1000R17IE4-S2
-
Product ModelFF1000R17IE4-S2
-
Product ParametersIGBT power module
-
In stock1 unit
-
ManufacturerABB
-
Collector-emitter Voltage1700 V
-
Nominal Collector Current1000 A
-
Repetitive Peak Current2000 A
-
Total Power Dissipation6.25 kW
-
Gate-emitter Voltage±20 V
-
Gate Charge10 µC
-
Internal Gate Resistance1.5 Ω
-
Input Capacitance81 nF
-
Isolation Test Voltage4 kV
-
Tracking IndexCTI greater than 400
View all additional
Alternative Names
FF1000R17IE4 S2
ABB converter power stages IGBT power module
ABB IGBT power module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match FF1000R17IE4-S2 to the installed ABB converter power stages
ABB FF1000R17IE4-S2 is a IGBT power module for the ABB converter power stages. Its exact article suffix determines the supported interface, signal or communication function and the approved companion equipment.
Engineering should compare total power dissipation (6.25 kW), gate-emitter voltage (±20 V) and gate charge (10 µC) with the installed system design. Confirm connector keying, addressing and configuration-tool support before connection.
Use the manufacturer documentation for the complete wiring and configuration sequence. Validate communication, signal conversion or control response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact identity: FF1000R17IE4-S2
- Product class: IGBT power module
- Family: ABB converter power stages
The ABB FF1000R17IE4-S2 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete FF1000R17IE4-S2 identity before exchange
Replace FF1000R17IE4-S2 only after matching the complete article code, IGBT power module, installed ABB converter power stages role and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive or network configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Exact identity: FF1000R17IE4-S2
- Product class: IGBT power module
- Family check: ABB converter power stages
The ABB FF1000R17IE4-S2 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for FF1000R17IE4-S2
- ABB ABB converter power stages references reviewed
- Exact ABB identity required before service
Documentation for ABB FF1000R17IE4-S2 must match the installed equipment; confirm document applicability before service.
