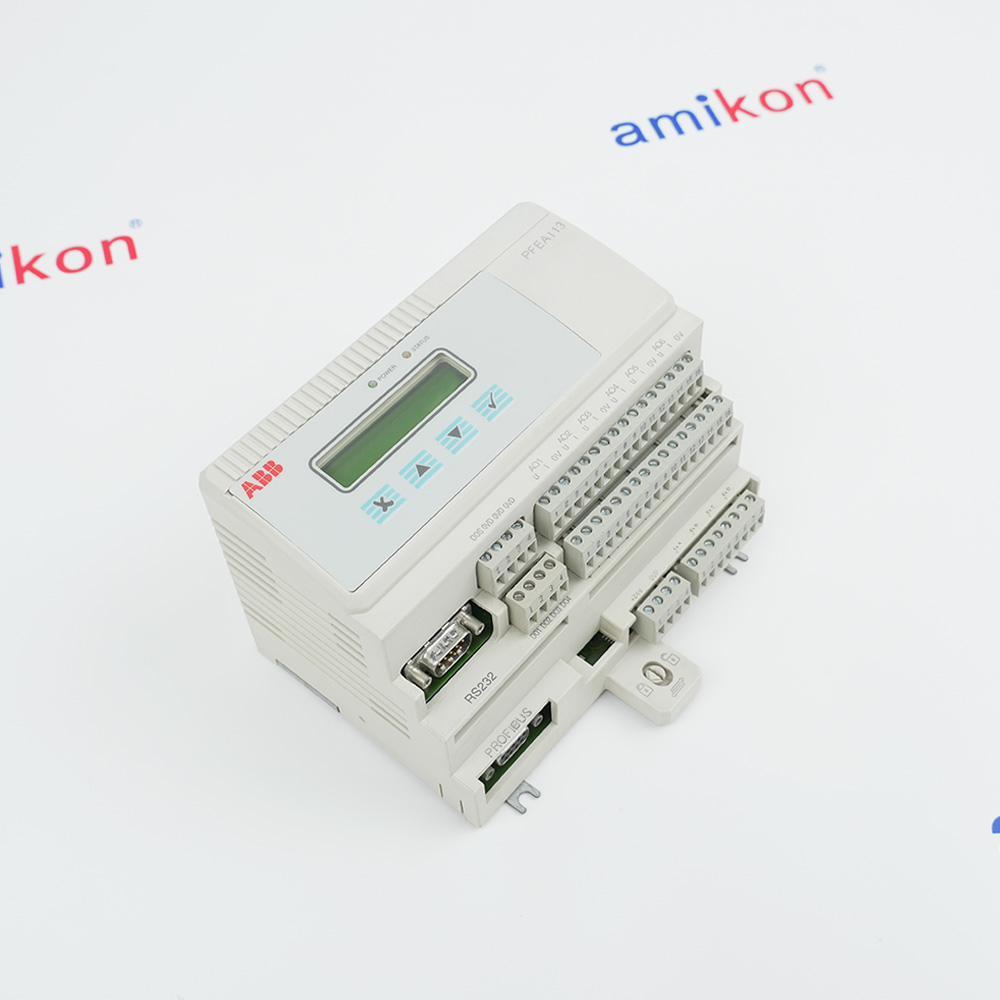

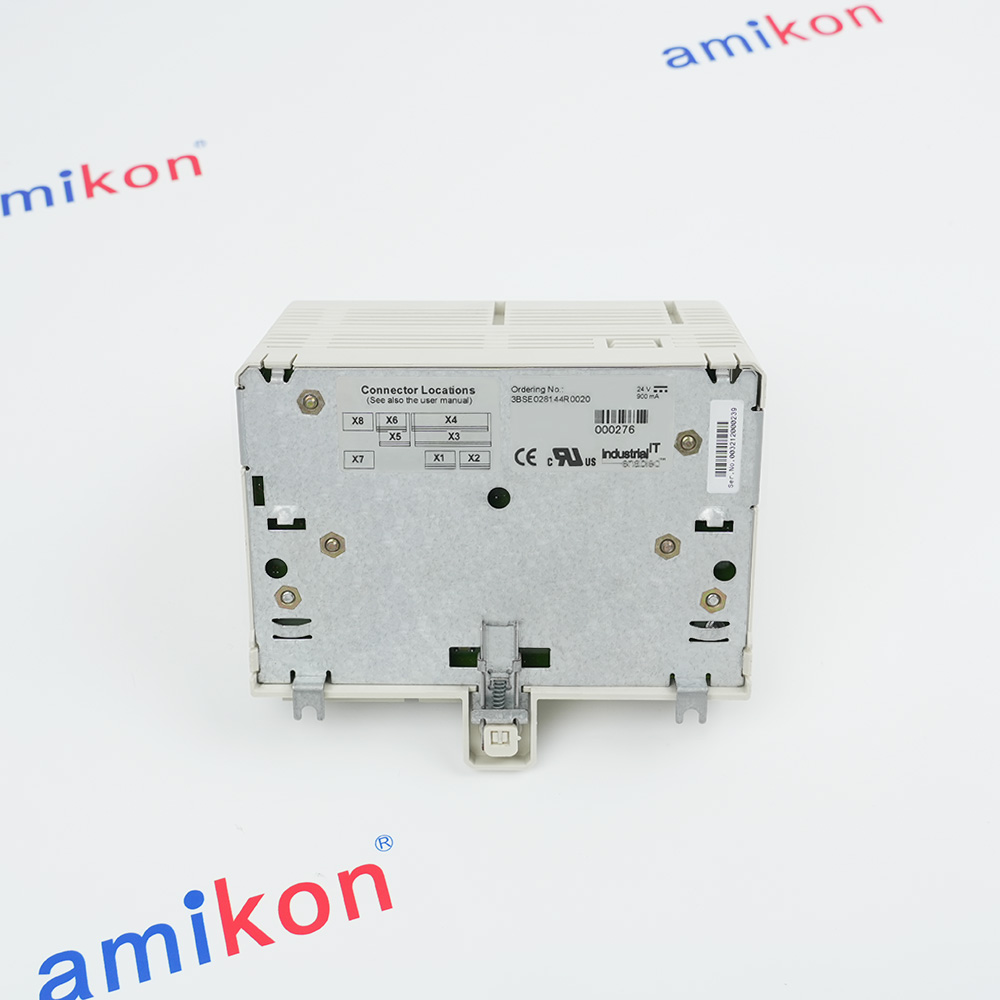

- PFEA113 3BSE028144R0020
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for PFEA113 3BSE028144R0020
-
Product ModelPFEA113 3BSE028144R0020
-
Product ParametersWEB TENSION CONTROL
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size16.1x13.5x11cm
-
ManufacturerABB
-
Weight0.75 kg
-
IP20 voltageDC 24 V (18 - 36 V）
-
Power requirement12 W
-
IP65 main voltageDC 24 V (18 - 36 V) 100 (-15%) - 240 (+10%) V AC
-
Frequency45 - 65 Hz
-
Number of load cells4
-
Current0.5 A rms, 330 Hz
-
Max. load4 load cells plus 10 Ω cable resistance
Description
PFEA11365
WEB TENSION CONTROL
100-240 VAC
50/60 HZ
165-300MA
WEB TENSION CONTROL
100-240 VAC
50/60 HZ
165-300MA
Information
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- Interactive menu
- Built-in self diagnostics
- Multi-language display
- Load memory
- Analog outputs
- PROFIBUS-DP, PROFINET and EtherNet/IP
Covering a wide range of applications the Tension Electronics comes in four versions, with different levels of performance and functionality. All four versions have multi-language digital display and configuration keys. The configuration keys being used for setting different parameters and to check the status of the tension system. The 2 x 16 character display can present sum, difference or individual load cell signals. All four versions are available in both DIN-rail.
The PFEA113 3BSE028144R0020 ABB WEB TENSION CONTROL may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB PFEA113 3BSE028144R0020 WEB TENSION CONTROL Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Pressductor Technology: Utilizes ABB’s Pressductor technology for robust performance, high overload capacity (up to 300% of nominal load), and immunity to environmental stress like dust, fluids, and EMI.
Interactive Display: Features a multi-language, menu-driven display for simplified commissioning.
Self-Diagnostics: Continuously monitors system parameters, providing error messages for maintenance.
Load Memory: Features a resettable memory that stores maximum tension load values.
User Defined Scaling: The PROFIBUS measuring range can be adjusted, with the PFEA113 calculating the load division for accurate digital readings.
- Plastic & Converting:Coating and converting lines
- Metal Processing:Suitable for metal strip processing lines
- Textile Manufacturing:Monitors & controls yarn/fiber tension
- Winder Applications:Up to 3 units + 12 load cells for segmented rolls
- Printing & Packaging:Precise tension regulation for screens & materials
- Paper Industry:Paper machines, calenders, coaters & winders; mill-duty for dryer tension
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The ABB PFEA113 is a high-performance tension electronics unit, part of the PFEA111/112/113 series for web tension measurement in industries like paper, printing, and converting. It is distinguished from related models by its advanced communication capabilities, notably PROFIBUS-DP, and enhanced flexibility to handle complex applications such as multi-load cell systems.
PFEA111: Basic functionality for standard applications.
PFEA112: Mid-level performance with a subset of PFEA113 features.
PFEA113: Top-tier functionality, offering Profibus-DP communication, support for up to 12 load cells (by combining up to three PFEA113 units), and the ability to switch gains for two different web paths.
FAQs
-
What is the main purpose of the PFEA113?
+The PFEA113 is a tension electronics unit that amplifies signals from load cells and calculates web tension, providing a 2x16 character display for user feedback. -
What is the difference between PFEA111, 112, and PFEA113?
+These are different versions within the same family with varying levels of performance and functionality. PFEA113 is designed for more advanced or larger-scale applications compared to the 111/112. -
Does the unit have self-diagnostics?
+Yes, the PFEA113 continuously supervises important parameters and provides error messages if problems occur. -
Is commissioning difficult?
+No. The PFEA113 features an interactive, multi-language display that guides the user through the commissioning process step-by-step, reducing startup time. -
How do I adjust the resolution (Load Division)?
+The resolution can be improved (increased) by reducing the Measuring Range in the Miscellaneous Menu, ensuring that the 0-15500 N range (for example) is divided into smaller, more precise increments.
