SPA-ZC21
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe

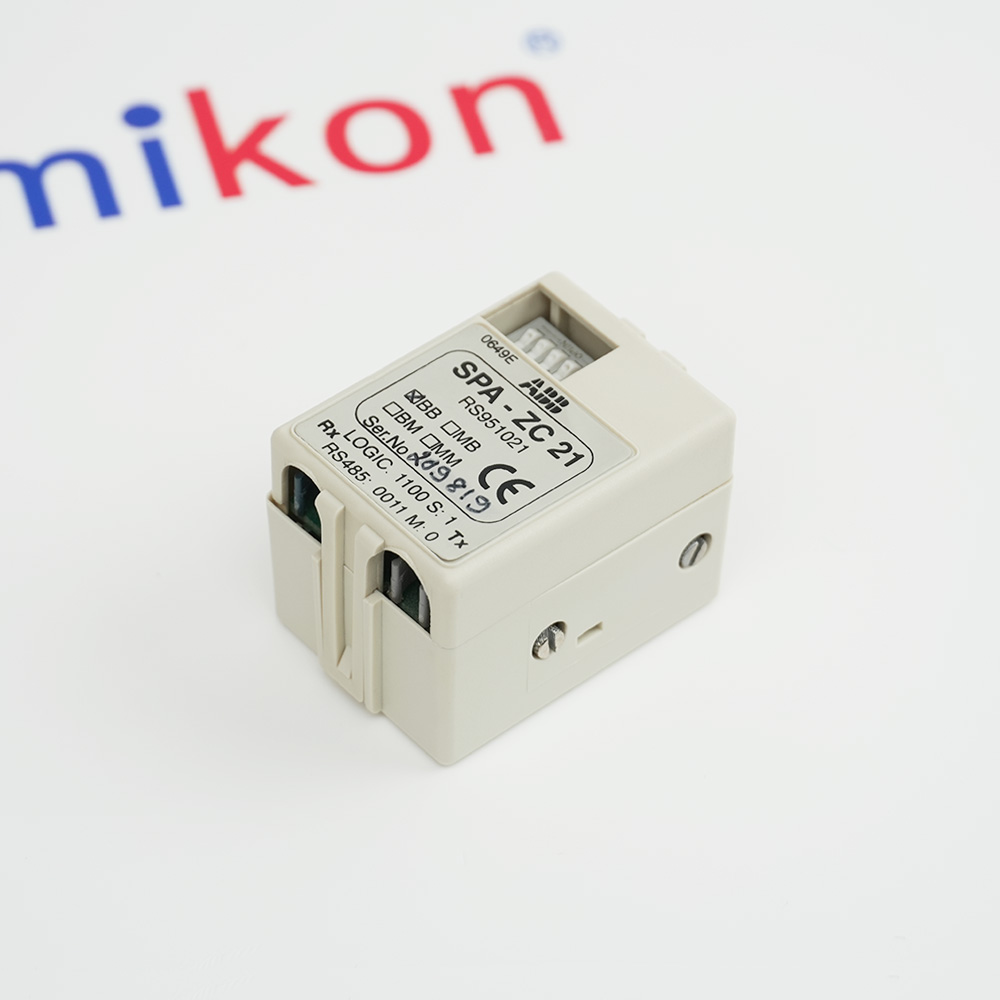

SPAZC21
CONNECTION BUS MODULE LOGIC 1100
Electrical-to-optical converter for the SPAbus
Connects the substation secondary
devices to the fibre-optic SPA bus
CONNECTION BUS MODULE LOGIC 1100
Electrical-to-optical converter for the SPAbus
Connects the substation secondary
devices to the fibre-optic SPA bus
Technical specifications for SPA-ZC21
-
Product ModelSPA-ZC21
-
Product ParametersBus connection module
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.2x5.2x3.4cm
-
ManufacturerABB
-
Weight0.05 kg
-

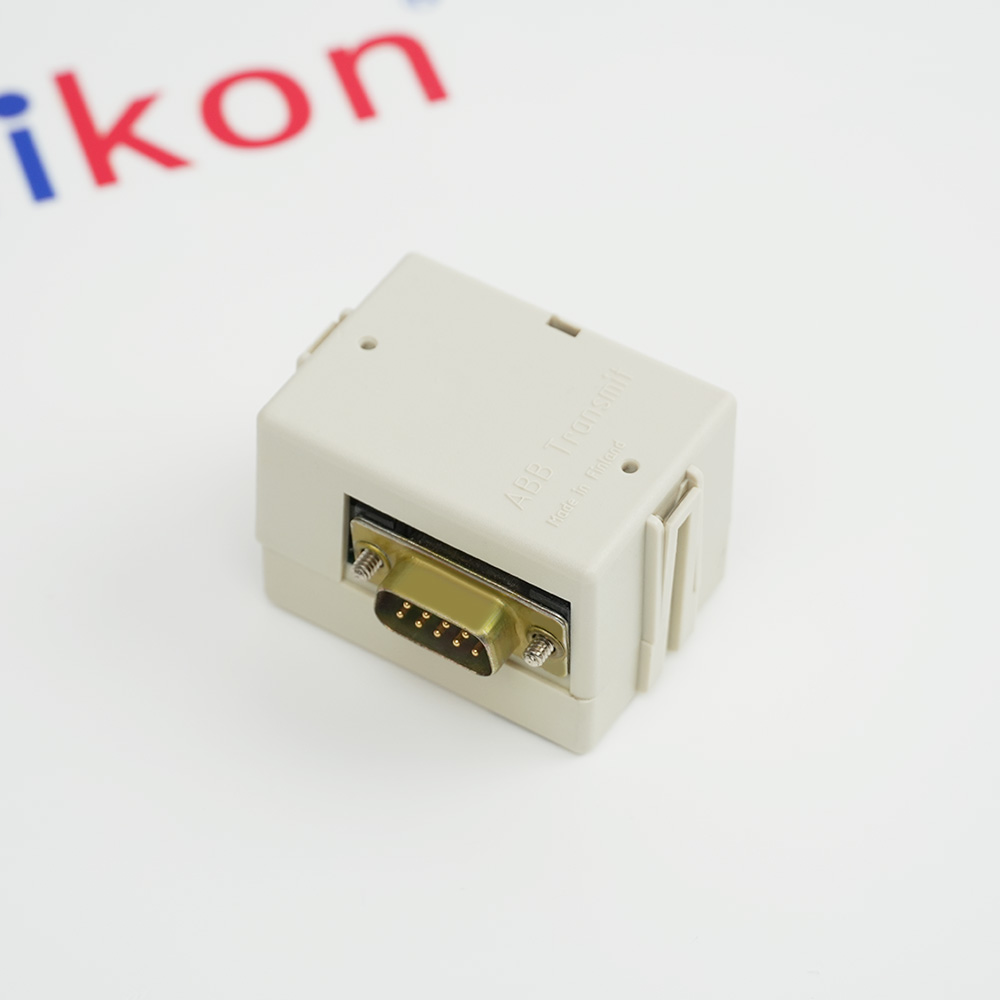

Host side9-pin D-sub male
-
Baud Rate300 – 19 200 bit/s
-
Isolation1500 V DC
-
Operating Temperature–25 °C … +70 °C
-
Storage Temperature–40 °C … +85 °C
-
Humidity5 – 95 % RH non-condensing
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the primary function of the SPA-ZC 21?+It connects substation secondary devices (such as relays) to a fiber-optic SPA bus system, allowing communication between the device and a higher-level system
-
What is the ABB SPA-ZC 21?+ABB SPA-ZC 21 is a bus connection module designed to interface SPACOM secondary devices with a fiber-optic SPA bus. It converts incoming optical signals to electrical RS485 or SPA (+5 V) signals for the host device, and vice versa.
-
Does the module require configuration?+Yes, the upper PCB may need to be oriented to match the required transmitter/receiver type (plastic or glass), and the module allows for selection between master/slave modes.
-
What devices is it compatible with?+The module can be used with any SPACOM device provided with a 9-pin D-type connector.
Get a quick price fo SPA-ZC21
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Optical/electricalconnection
Features:
- Standardized SPA to RS-485 Conversion
- Support for Multiple Relays
- Flexible Optical Interfaces
- Selectable Data Transfer Rates
The SPA-ZC21 ABB Bus connection module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SPA-ZC21 Bus connection module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The bus connection module is powered fromthe D-type connector of the host device.The required data communication mode is selected with DIP switches on the front panel.When the SPA mode of communication is to beused switches 1 and 2 must be set in position 1and switches 3 and 4 in position 0. To select theRS485 mode of communication switches 1 and2 have to be set in position 0 and switches 3 and4 in position 1. Echo checking in the communication is selectedwith switch 5 (SLAVE/MASTER). When theconnection module is connected to a slave device switch 5 should be set in position 1 (echochecking on). When the bus connection module is connected to a master device, for instance,a SACO unit, switch 5 should be set in position0 (echo checking off).
- Material Handling:Limit switch/sensor inputs for conveyors, sorters & AGVs
- Food & Beverage:Mixers, grinders & packaging: speed control & HMI integration
- Textiles & Rubber:Constant torque & real-time serial monitoring
- Lifting & Hoisting:Auxiliary signal management; active loads need BTAC-02 encoder
- Woodworking & Metalworking:Analog inputs adjust motor speed based on material pressure/load
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The bus connection module can be providedwith connectors for two plastic fibre cables, twoglass fibre cables or one of each. The SPA orRS485 communication mode is used be-tweenthe SPACOM device and the bus connectionmodule. Between two SPACOM devices information is transmitted through the optical fibre.The optical fibres are provided with opto-connectors fitting into the corresponding connectors of the bus connection module. The opticalfibres can be routed to the bus connectionmodule from below or from above, see Fig.5,and the bus connection module is matchedaccordingly as described in the following:Unwind the two cross-slotted screws,disassemblethe cover, pull out the upper PCB carefully andturn it 180°. Push it carefully back into the pinconnector, so that the pins of the connector stripfit into the female terminals. Also turn the cover180°, refit it and fix it with the two cross-slottedscrews.
