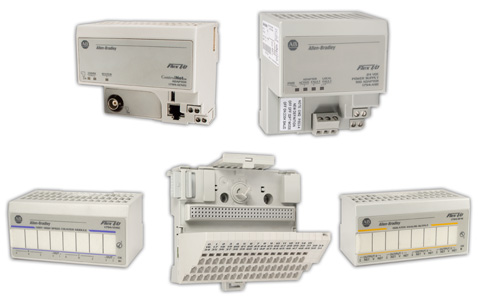

Allen-Bradley Input/Output (I/O) Modules

Overload Relay

COMMUNICATION MODULE
E300 OVERLOAD RELAYS
IEC
DEVICENET
193/592 IEC/NEMA

Current/Ground Fault Sensing Module

Current/Ground Fault Sensing Module
for E300 Overload Relays,
0.5-30A
DIN Rail / Panel Mount,
with Line- and Load-Side Power Conductor Terminals,
Directly Replaces 193-ECPM2
Series A

ControlNet Adaptor

Flex 16 Point Digital Input Module

Number of inputs:16, nonisolated
On-state voltage, min:159V AC
On-state voltage, nom:240V AC
On-state voltage, max:264V AC
On-state current, min:5.30 mA
On-state current, max:13.29 mA
Nominal input impedance:22.2 kΩ
Nominal input current:11 mA @ 240V AC
Flexbus current:32 mA @ 5V DC
Power dissipation, max:6 W @ 264V AC

Flex 16 Point Digital Output Module

Number of I/O channels:16, nonisolated
On-state current:50 mA min per output
Surge current:7 A for 40 ms each
Off-state leakage, max:2.5 mA
Field Bus current:116 mA
Power dissipation, max:6 W @ 264V AC
Thermal dissipation, max:20.47 BTU/hr @ 264V AC

ControlNet Fiber Ring Ex Long Repeater

Flex 8 Point Relay Output Module

1794OW8
OUTPUT MODULE
8 POINT
ISOLATED RELAY CONTACTS
5.5 W
2 AMP
230 VAC
125 VDC
FLEX I/O
Tariff Code: 8538907080
Country of Origin: United States

Flex 32 Point Digital Input Module

INPUT MODULE
32 POINT
FLEX I/O
24 VDC SINK

Flex I/O communication adapter

1794ACN15
ADAPTER
COMMUNICATION/NETWORK
FLEX I/O TO CONTROLNET
24 VDC
OPEN STYLE
DIN MOUNT
IP20

ControlNet Modular Repeater Adaptor

ControlNet Fiber Ring Medium Repeater

Fiber Operating Wavelength:1300 nm
Attenuation Levels:13.3 dB
Input Power:5V DC
Typical Repeater Distance:0-3km
Backplane Current Draw:400 mA
Mounting:Panel Mount / DIN Rail
Mounting orientation:Vertical / Horizontal
Supported Topologies:Star, Linear, Ring, Point to Point
Voltage and current ratings:Backplane: 400 mA @ 5V DC max
Power Consumption, max:2 W, max

ControlNet 1 m Coaxial Straight T-Tap

ControlNet 1m Coaxial Right Angle T-Tap

ControlNet Programming Cable

Stratix 2000 5 port unmanaged switch

Stratix 8000 10 Port Managed Switch

Stratix 6000 8 port Managed Switch

Transmission speed:10/100 Mbps
No. of Ports:Eight (8)
Series:Stratix 5700
Part Number:1783-EMS08T
Product type:Managed Ethernet switch
Copper ports:8
Fiber port:1
Input voltage:12 to 48 Volts DC
Peak power dissipation:5.8 Watts
Peak thermal dissipation:24.6 BTU / hour

1715 EtherNet/IP Comms Adaptor Module

Product Line Bulletin:1715 Redundant I/O module
Communication Module:Ethernet/IP Adapter
Module Type:EtherNet/IP Adapter
Modules supported:24 per Adapter Pair
Wire Size:12 AWG
Power Dissipation:8 Watts

Flex 8 Thermocouple Input Module

Power Dissipation:3W maximum @ 31.2V
Resolution:16 bits (2.384 microvolts typical)
Product Type:Thermocouple / milivolt Input Module
Product Family:Flex I/O Modules
millivolt signal: +/- 76. 5mV
Data Format:16-bit 2’s complement or offset binary (unipolar)
Indicator:1 red/green power status indicator
CJC unit:A-B Part Number 969424–0

ControlNet Media BNC Terminator

ControlNet Media Coaxial BNC Connector

1786BNC
CABLE CONNECTOR
CONTROLNET
MEDIA COAXIAL
BNC PLUG
RG-6QS
IP20
PRICED/EACH

Data Highway Plus Cable

Stratix 2000 Unmanaged Switch

 1783US8T
SWITCH
STRATIX 2000
UNMANAGED
8 RJ45 COPPER PORTS
250 MA AT 12-48 VDC
500 MA AT 18-30 VAC
50/60 HZ
1.31 AMPS INRUSH CURRENT
4.6 WATTS
Tariff Code: 8517620050
Country of Origin: China

Stratix 8000 6 Port Managed Switch

Series:Stratix Managed Switches
Part Number:1783-MS06T
Number of ports:6
Number of copper ports:4
Number of Combo ports:2
Expansion Ports:Copper, Fiber, SFP, and Power over Ethernet (PoE)

3 Port EtherNet/IP Tap

EMBEDDED SWITCH
20.4-27.6 VDC
4.8 WATT
200 MA ETHERNET/IP TAP
3 COPPER PORT
SAME AS: PN-23911
