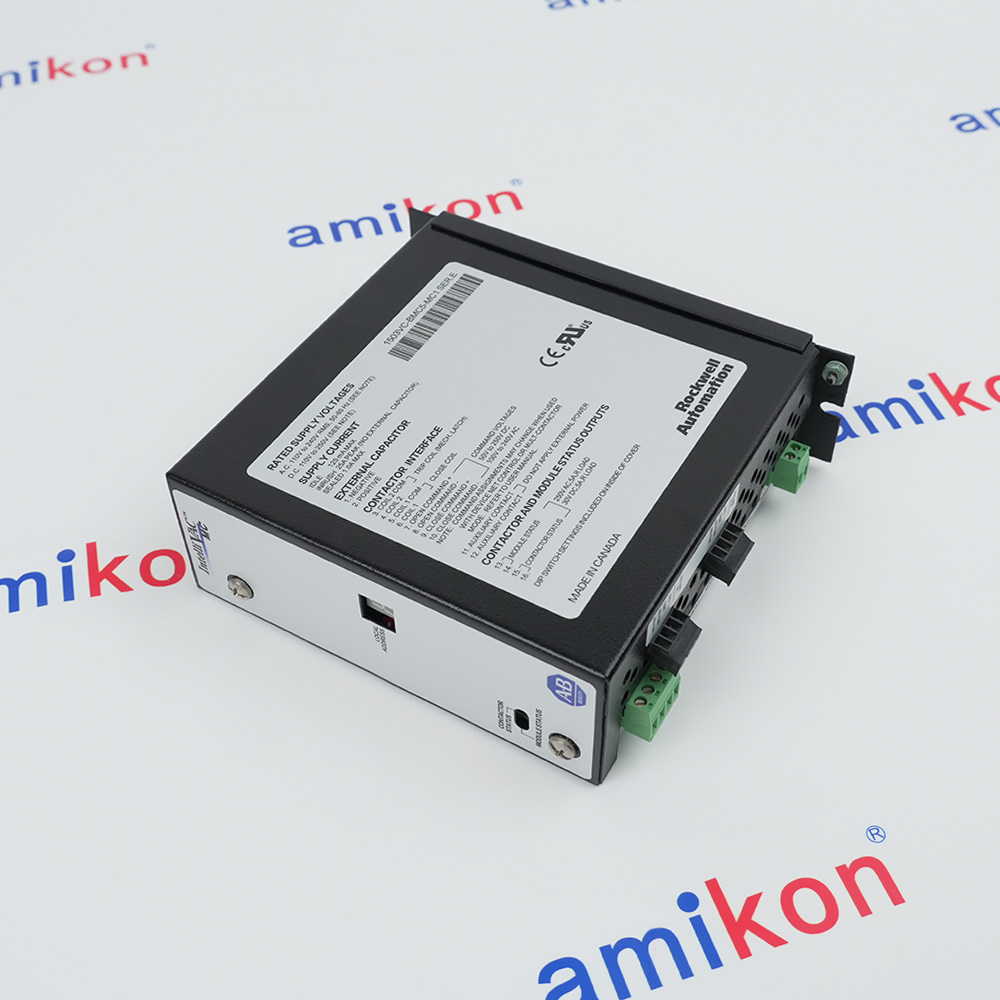

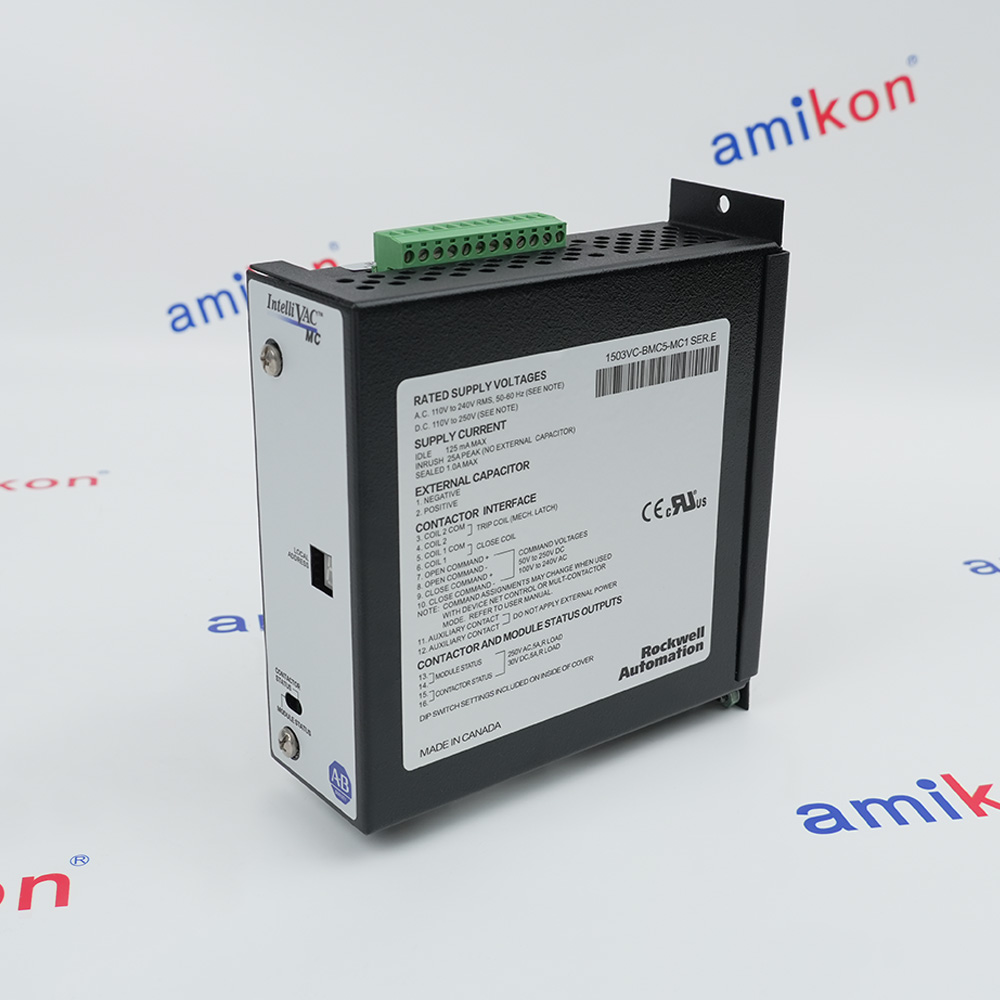

- 1503VC-BMC5-MC1
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 1503VC-BMC5-MC1
-
Product Model1503VC-BMC5-MC1
-
Product ParametersMULTI-CONTACTOR MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6x17x18.8cm
-
ManufacturerAllen-Bradley
-
Weight1.2 kg
-
SeriesSeries E
-
Contactor Ratings400A or 800A
-
Voltage Range110–240V rms
-
Inrush Current (1/12 cycle)25A peak
-
Hold Current (max)30 mA
-
AC Input Range70–240V rms
-
DC Input Range70–250V
-
AC Resistive250V rms, 5A
-
DC Resistive30V, 5A
-
Operating Temperature30V, 2A
-
Storage Temperature–40°C to 85°C
Description
1503VCBMC5MC1
MULTI-CONTACTOR MODULE
INTELLIVAC
110-240 VAC @ 50/60 HZ
MOUNTABLE
MULTI-CONTACTOR MODULE
INTELLIVAC
110-240 VAC @ 50/60 HZ
MOUNTABLE
Information
Overview
Manuals
Technical notes
Product Applications
Wiring and Connections
Features:
- Auxiliary Switching Control
- Multi-Contact Configuration
- Medium Voltage System Compatibility
- High Dielectric Strength
The 1503VC-BMC5-MC1 Allen-Bradley Multi-Contact Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1503VC-BMC5-MC1 Multi-Contact Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A range of supply voltage (110 – 240V AC 50/60 Hz, 110 - 250V DC)allows implementation in multiple applications.
Consistent vacuum contactor pick-up time (at a given supply voltage)ensures repeatable performance.
Selectable vacuum contactor drop-out time improves coordination withupstream power fuses.
Electronic altitude compensation (Bulletin 1502 400 A only) eliminatesmechanical compensation required for altitudes above 1000 meters(Bulletin 1502 800 A contactors include a user-friendly mechanicalaltitude adjustment)
- Fluid & Gas Handling:Centrifugal pumps, sewage pumps & large compressors for water/oil/gas
- Material Processing:Grinding mills, crushers & kilns for cement/minings
- Air Movement:Industrial fans, blowers & chillers for utility/climate control
- Bulk Handling:Long-distance conveyors for mining & logistics
- Specialized Electrical Loads:Arc furnace transformers, power capacitors & large resistive heaters
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Wire Harness: A compatible wire harness (typically 1503-WHxxx) is required to bridge the module and the vacuum contactor.
Interface: Connection is made via "quick" connectors at both the module and the contactor.
Contactor Link: Connect the harness to the receptacle located on the left side of the Bulletin 1502 contactor, ensuring number codes match for correct orientation.
Grounding: Ensure the system is properly grounded according to applicable safety codes to prevent equipment impairment.
FAQs
-
What is the 1503VC-BMC5-MC1?
+The 1503VC-BMC5-MC1 is an Allen-Bradley IntelliVAC contactor control module designed to manage and protect vacuum contactors. It is primarily used with Bulletin 1502 contactors -
What are the functions of this module?
+It provides precise control, monitoring, and protection for vacuum contactors. Key features include protection against accidental contact and suction, selectable disconnect time, and electronic altitude compensation for a 400A unit. -
What are the power requirements?
+The module supports a wide range of supply voltages: 110–240V AC (50/60 Hz) or 110–250V DC. -
What do the DIP switches control?
+The module (Series E) features 12 DIP switches for configuring parameters like undervoltage protection and drop-out times.
