PRODUCT DESCRIPTION

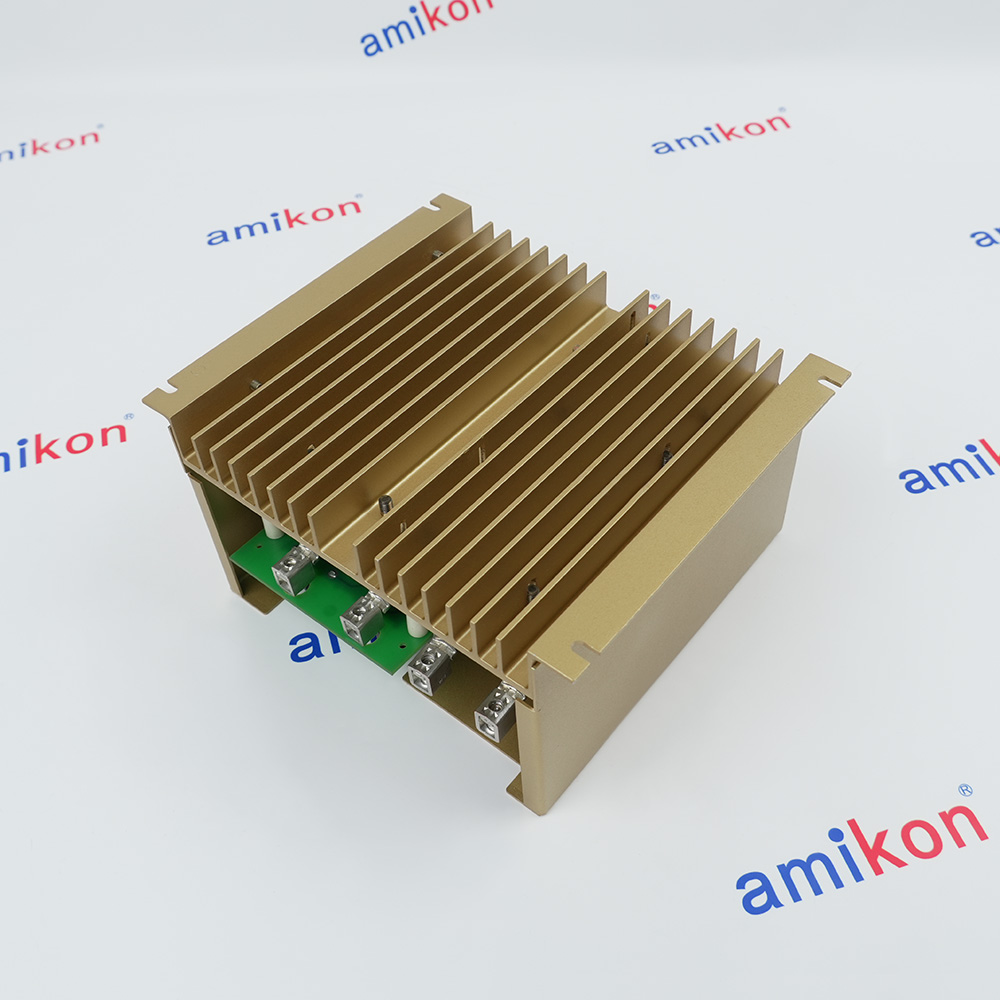

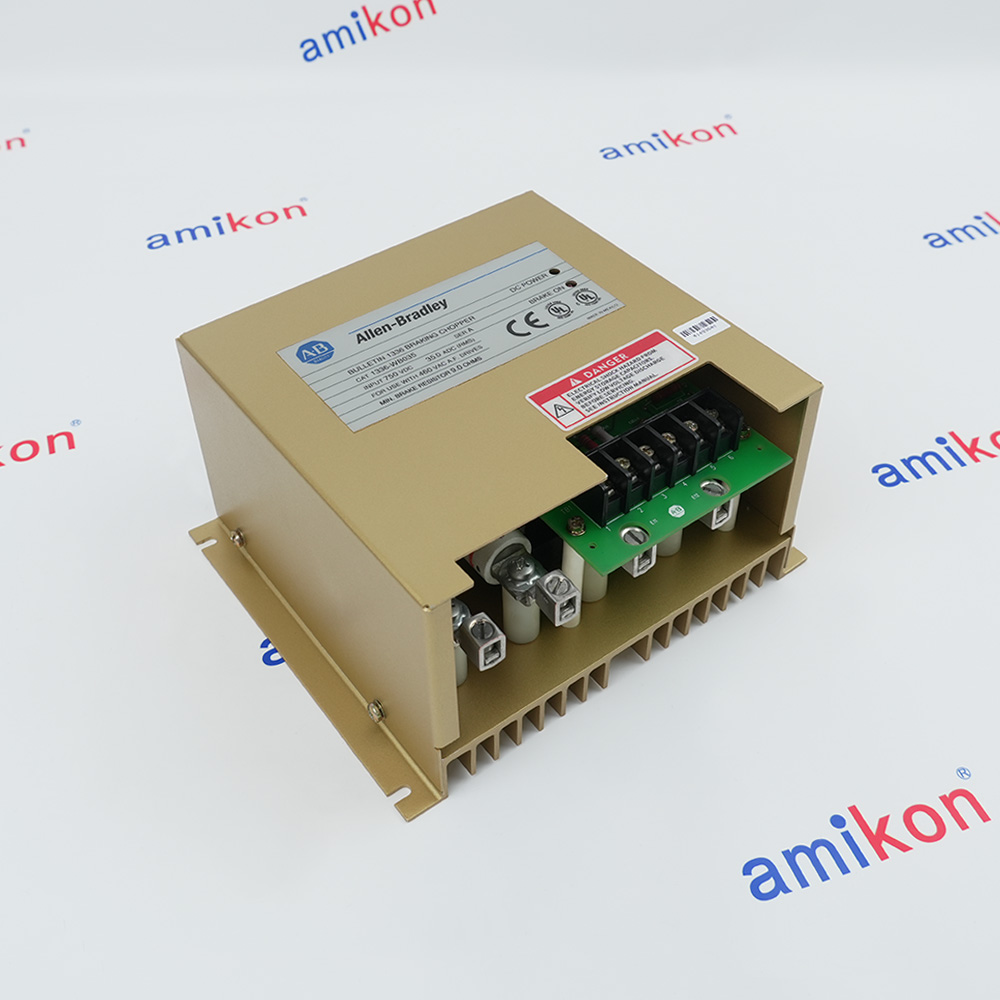

Regenerative-energy braking for compatible Bulletin 1336 drives
Allen-Bradley 1336-WB035 is a brake chopper module for compatible Bulletin 1336 drive installations in the 380, 415 and 460 V AC voltage class. It switches an external braking resistor across the drive DC bus to dissipate regenerative energy.
Select the chopper and resistor together using the motor, load inertia, braking torque and duty cycle. Installation requires the specified enclosure, ventilation, wiring and fault monitoring; this module is not a standalone motor drive or a mechanical holding brake.
Select the chopper and resistor together using the motor, load inertia, braking torque and duty cycle. Installation requires the specified enclosure, ventilation, wiring and fault monitoring; this module is not a standalone motor drive or a mechanical holding brake.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Application context for 1336-WB035
1336-WB035 is a Dynamic braking chopper module for compatible Allen-Bradley ControlLogix systems. Its application context includes food and beverage, water and wastewater, automotive. Compatibility depends on the full model, revision, interfaces and configuration.
-
01 · FOOD & BEVERAGE
Food Manufacturing and Beverage Processing
Industrial Food ProductionBeverage Processing and Packaging -
02 · WATER & WASTEWATER
Drinking Water Production and Sewage Treatment
Municipal Drinking Water SupplyWastewater Collection and Treatment -
03 · AUTOMOTIVE
Vehicle Production and Automotive Part Manufacturing
Vehicle Body ProductionAutomotive Component Manufacturing
Technical specifications for 1336-WB035
-
Product Model1336-WB035
-
Product ParametersDynamic braking chopper module
-
In stock1 unit
-
ManufacturerAllen-Bradley
-
Drive voltage class380, 415 or 460 V AC; input-voltage jumper selection required
-
Continuous chopper rating35 A RMS at 750 V DC catalog rating
-
Turn-on voltage750 V DC for the 460 V AC setting
-
Peak transistor current100 A
-
Minimum brake resistance9 ohms
-
Chopper heat dissipation115 W at 100 percent duty cycle
-
Chopper operating temperature-10 to +40 degrees C
-
Storage temperature-40 to +70 degrees C
-
Relative humidity5 to 95 percent; noncondensing
-
Enclosure typeIP00 open assembly
-
Altitude without deratingUp to 1000 m
-
Fault contact behaviorClosed with applied power; opens on brake fault or loss of power
-
Internal brake fusesF1 and F2: 60 A, 700 V; Ferraz Shawmut A70QS or equivalent specified type
-
Mounting and clearanceVertical only; at least 152.4 mm from other equipment
-
Resistor location limitWithin 30 m of the chopper; external noncombustible mounting surface
View all additional
Alternative Names
Allen-Bradley 1336-WB035 chopper
1336-WB035 dynamic brake module
1336 WB035 braking chopper
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
BULLETIN 1336 BRAKING
Match the drive DC bus and calculated braking duty
Identify the exact drive family and voltage rating before choosing a wiring diagram. The official instructions cover several 1336 families and voltage-specific choppers; the WB035 ratings cannot be replaced with WA or WC values.
Calculate resistor resistance, peak power and thermal duty from the motor and load. Mount the chopper vertically with the required clearance and keep resistor banks outside the enclosure on a noncombustible surface.
Provide the documented protective earth, brake-fault monitoring, fuse types and master/follower settings. Isolate power and verify the DC bus is discharged before installation or maintenance.
Features:
- Voltage-specific selection
- Calculated resistor duty
- Safe bus and fault connections
The Allen-Bradley 1336-WB035 requires an engineered braking assessment before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
No exact-model discontinuation date or manufacturer-approved successor has been confirmed in the reviewed material. Do not describe another brake chopper or a newer drive as a verified drop-in replacement.
A proposed replacement requires comparison of drive compatibility, bus voltage, continuous and peak current, resistor limits and fault monitoring. Preserve the required mounting orientation, ventilation and protection.
Review the complete drive installation with qualified personnel before changing the braking arrangement. Confirm the installed module revision and order-specific supply details from the actual equipment identification.
Features:
- No unverified successor claim
- Electrical and thermal comparison
- Installation-specific approval
The Allen-Bradley 1336-WB035 requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon is an independent supplier. Consult the applicable Rockwell Automation documentation and installed configuration before selection, installation or replacement.Features:
- Exact-model reference documents
- Hardware and system compatibility checks
- Accessories are supplied only when listed in the quotation
Documentation for the Allen-Bradley 1336-WB035 supports document applicability checks before installation or replacement.
