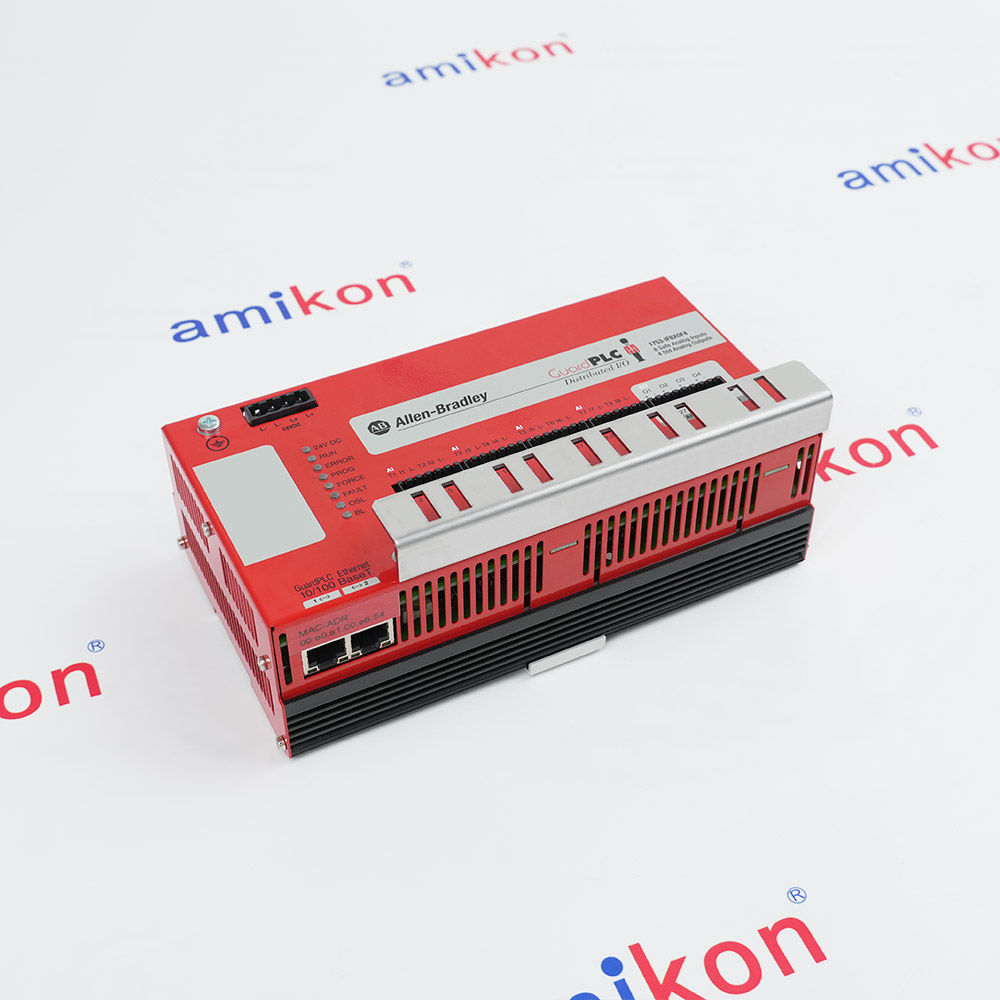

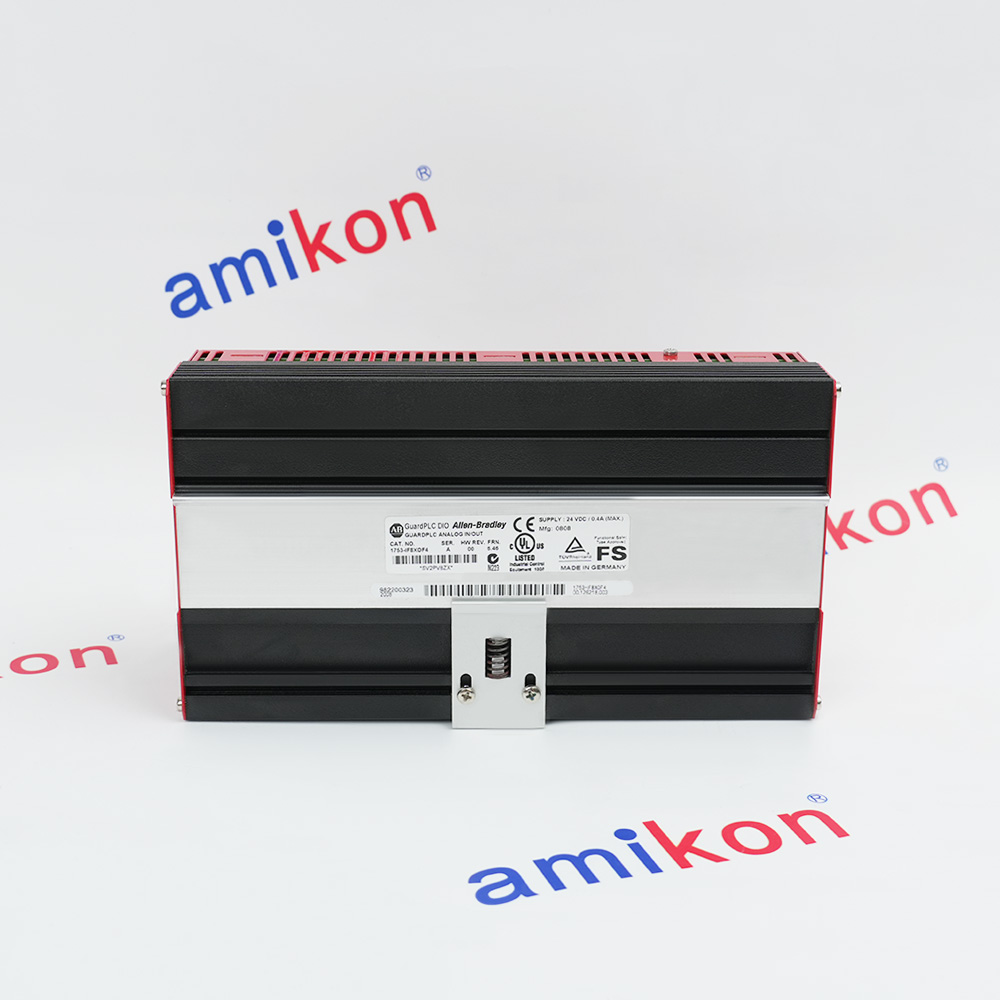

1753-IF8XOF4
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
1753IF8XOF4
ANALOG COMBINATION MODULE
GUARDPLC
8 INPUTS / 4 OUTPUTS
24 VDC
MOUNTABLE
ANALOG COMBINATION MODULE
GUARDPLC
8 INPUTS / 4 OUTPUTS
24 VDC
MOUNTABLE
Specifications
-
Product Model1753-IF8XOF4
-
Product ParametersAnalog Combination Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6.2x5.3x9.8cm
-
ManufacturerAllen-Bradley
-
Weight0.2 kg
-
Number of Inputs8
-
Shunt Resistor, External500 Ω
-
Impedance, Analog Input>2 MΩ
-
Input Resolution12 bits
-
Interfaces2 x RJ-45, 10/100BaseT (with 100 Mbps)
-
Operating Voltage24V dc
-
Response Time≥ 20 ms
-
Current Consumptionmax. 0.8 A
-
Isolation VoltageNo isolation between circuits
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 1753-IF8XOF4 module?+It is a specialized GuardPLC analog I/O module from Allen-Bradley/Rockwell Automation used for safety applications.
-
What are its input/output capabilities?+The module typically features 8 analog inputs and 4 analog outputs (0...20 mA or similar) designed to meet safety loop requirements
-
What is the function of the 1753-IF8XOF4?+It is a safety-rated analog input/output module for the GuardPLC system, used to manage safe inputs (0...20 mA) and outputs in industrial safety loops.
-
How to operate the 1753-IF8XOF4 during installation?+This module is highly sensitive to electrostatic discharge (ESD). Please wear a grounded wrist strap, operate it in an anti-static workstation, and avoid touching the pins or circuit components.
-
What power requirements are needed?+It requires a 24V DC power supply, specifically a NEC Class 2, SELV, or PELV supply to comply with CE Low Voltage Directives (LVD)
Get a quick price fo 1753-IF8XOF4
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
- Product Applications
- Monitor robot workstations, stamping lines and large assembly equipment.
- Used in fire and gas monitoring systems.
- Monitor the pressure, temperature and flow of reaction vessels.
- Used in wind turbines or small steam turbines.
- Monitor the load sensors of large cranes and stackers.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Electrical & Environmental Protection
Features:
- 8 analog inputs, 4 outputs
- Dual RJ45 Ethernet switch
- IEC 61508, 99.776% SFF
- 20ms response time
The 1753-IF8XOF4 Allen-Bradley Analog Combination Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1753-IF8XOF4 Analog Combination Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1753-IF8XOF4 is an Allen-Bradley/Rockwell Automation GuardPLC analog I/O module. This industrial-grade module is designed with both efficiency and safety in mind. The GuardPLC I/O module from Allen-Bradley fulfills all of the safety requirements through its safety functions/safety loop. The 1753-IF8XOF4 module is tested in accordance with the IEC 61508 standards and based on a 10-year functional verification test, its probability of failure on demand (PFD) value is 8.575442E-05 and its probability of failure per hour (PFH) value is 5.159597E-09. Besides that, the GuardPLC module has a mean time to failure (MTTF) value of 35.01 years and a mean time to dangerous failure (MTTDF) value of 117.75 years. Its safe failure fraction is at a stunning 99.776%.
Supply Voltage Protection: It is mandatory to connect the module to PELV (Protective Extra Low Voltage) or SELV (Safety-separated Extra Low Voltage) 24V DC power sources to ensure safe electrical isolation.
Enclosure Rating: Provides IP20 degree of protection. It is an "open type" device and must be mounted in an enclosure that prevents access to live parts and protects against environmental contaminants (Pollution Degree 2).
