What is the 1756-OW16I?

Here are frequently asked questions regarding the Allen-Bradley 1756-OW16I ControlLogix Isolated Contact Output Module.

What are the voltage and current ratings?

The module operates on 5–125V DC and 10–240V AC. Current ratings depend on the load: 1A at 30V DC, 0.5A at 48V DC, and 1.5A at 120V AC.

Which Removable Terminal Blocks (RTB) should I use?

Standard compatible RTBs include the 1756-TBCH (36-pin cage clamp) or 1756-TBS6H (36-pin spring clamp). These must be ordered separately.

Get Parts Quote

Name

Company *

Phone *

Email *

Address

City

State / Province / Region

Zipcode

Country

Quantity *

Part Number *

Manufacturer

Preferred Condition

Additional Information

Cancel

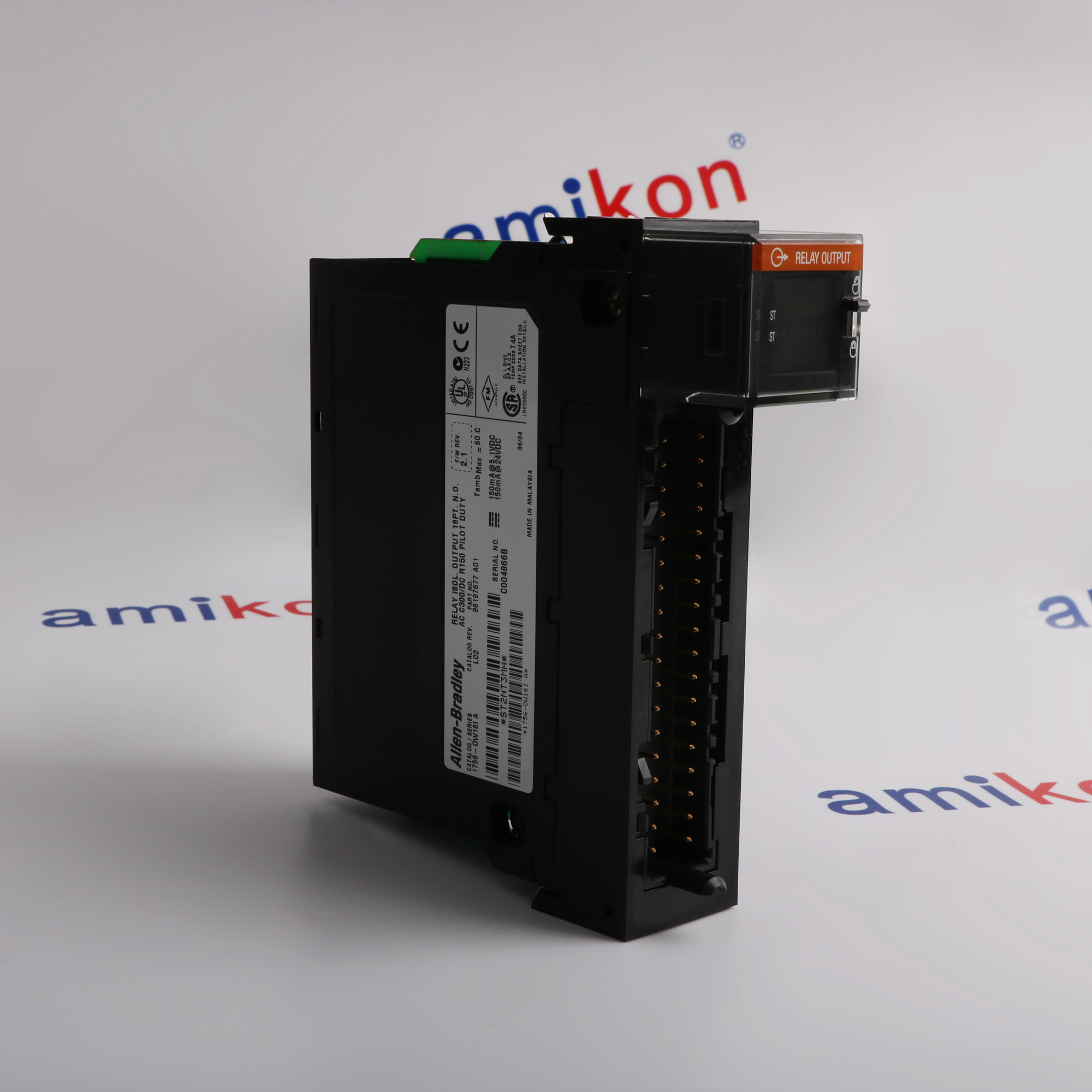

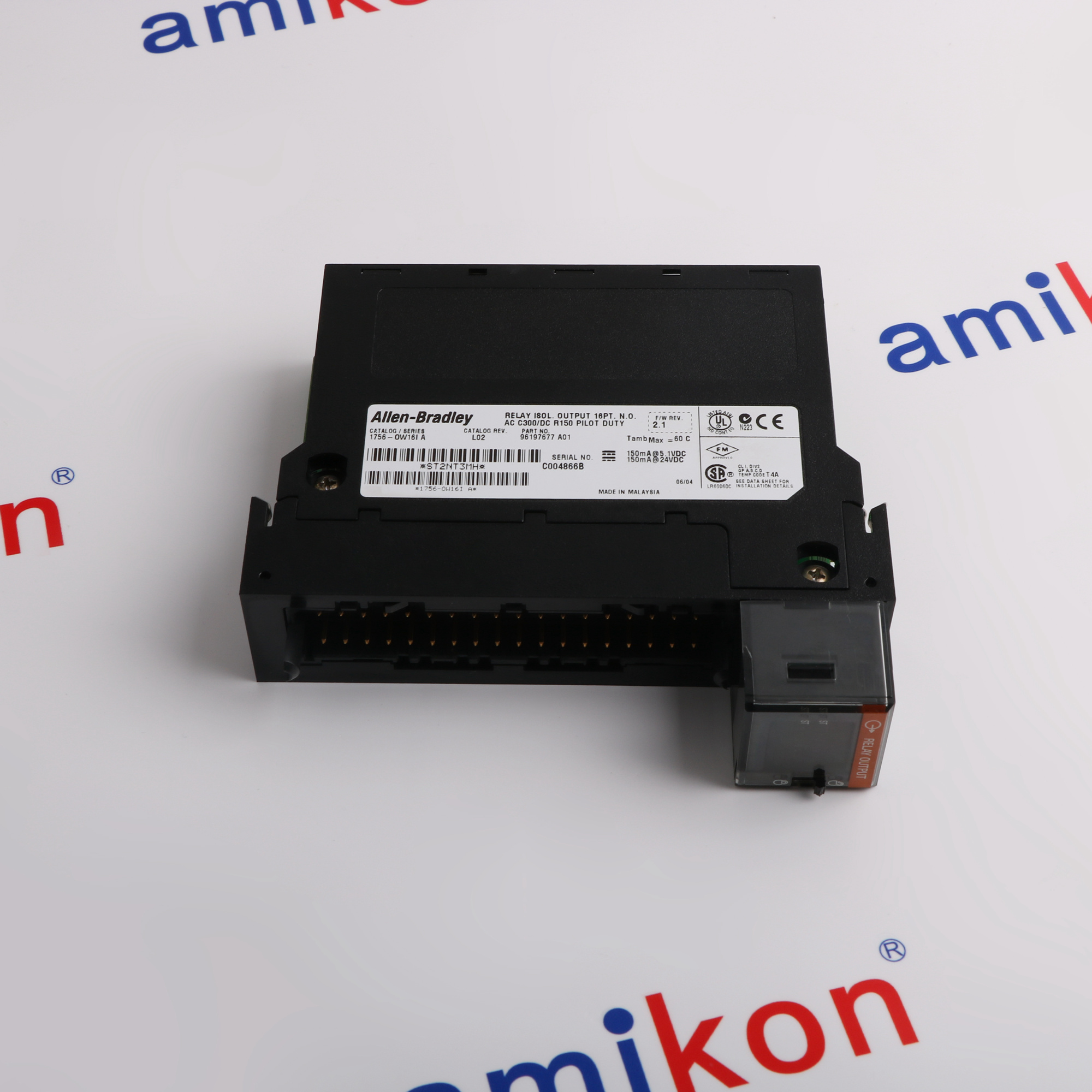

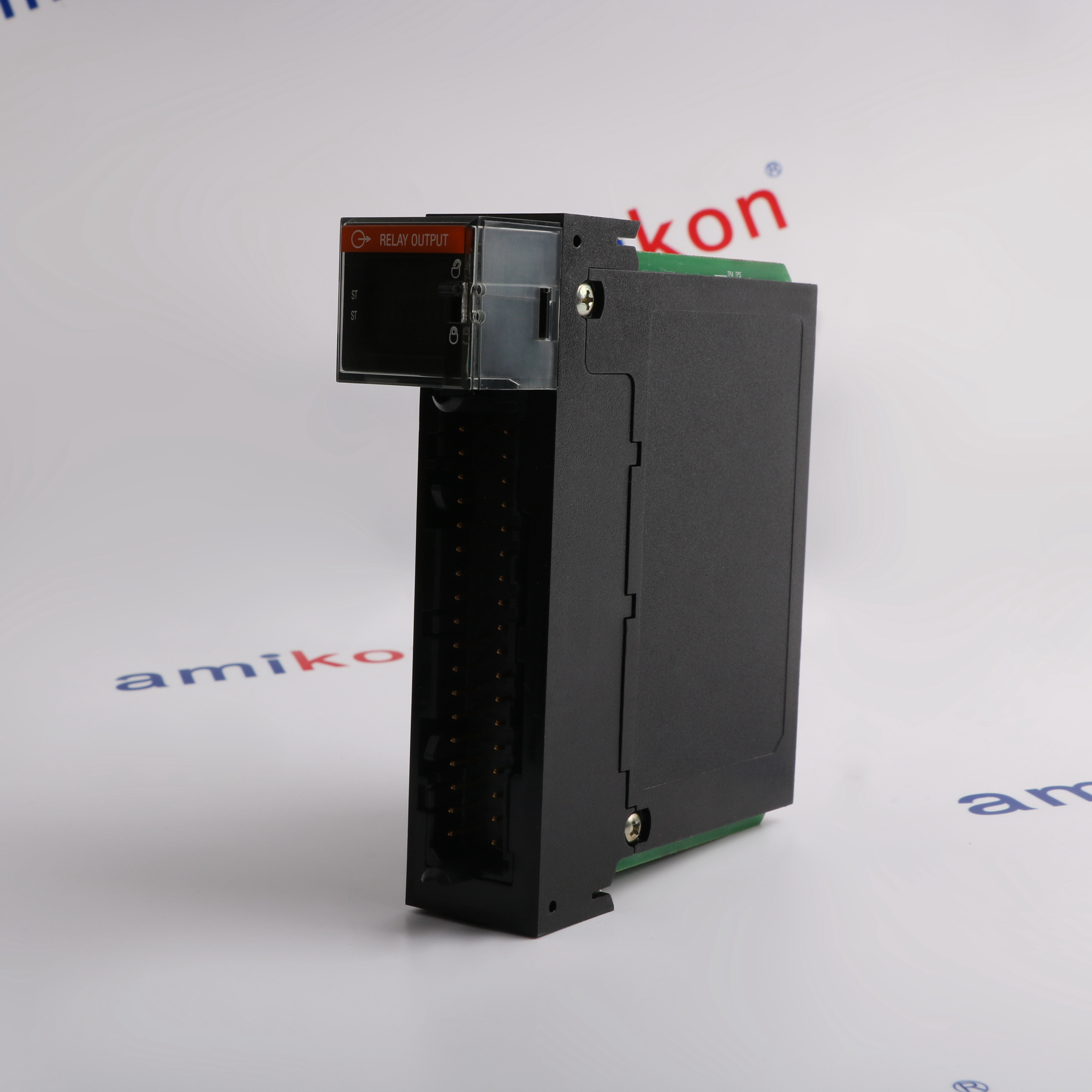

1756-OW16I

Name: 1756-OW16I
Brand: Allen-Bradley
SKU: 1756OW16I
Price: 999.00 USD
Availability: InStock

Call us: +86-18020776786

Delivery time
Please indicate your delivery time

This image is for reference only product style, specific date of manufacture and product version, please refer to the actual product delivery!

Product Information

Product Describe

1756OW16I
I/O MODULE
16 CHANNEL
2 AMP
125/240 VAC
10 MA PER POINT
Tariff Code: 8538903000
Country of Origin: United States

Specifications

Product Model

1756-OW16I
Spare Model

1756OW16I
Product Parameters

ControlLogix 16 Pt Digital Relay Module
Tariff Code

8537101190
Country of origin

USA
Place of shipment

Xiamen, China
Estimated Shipping Size

3.5x14x14.5cm
Manufacturer

Allen-Bradley
weight

0.28 kg
Outputs

16 N.O. individually isolated
Pilot duty

C300/R150
Current draw @ 5.1V

150 mA
Total backplane power

4.4 W
Power dissipation, max

4.5 W @ 60 °C (140 °F)
Thermal dissipation

15.35 BTU/hr
Off-state leakage current per point, max

1.5 mA per point
Minimum load current

10 mA per point
Initial contact resistance, max

100 mΩ @ 6V 1 A
Bounce time, mean

1.2 ms

Warranty Period & Disclaimer

Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

FAQs

What is the 1756-OW16I?+

Here are frequently asked questions regarding the Allen-Bradley 1756-OW16I ControlLogix Isolated Contact Output Module.
What are the voltage and current ratings?+

The module operates on 5–125V DC and 10–240V AC. Current ratings depend on the load: 1A at 30V DC, 0.5A at 48V DC, and 1.5A at 120V AC.
Which Removable Terminal Blocks (RTB) should I use?+

Standard compatible RTBs include the 1756-TBCH (36-pin cage clamp) or 1756-TBS6H (36-pin spring clamp). These must be ordered separately.
