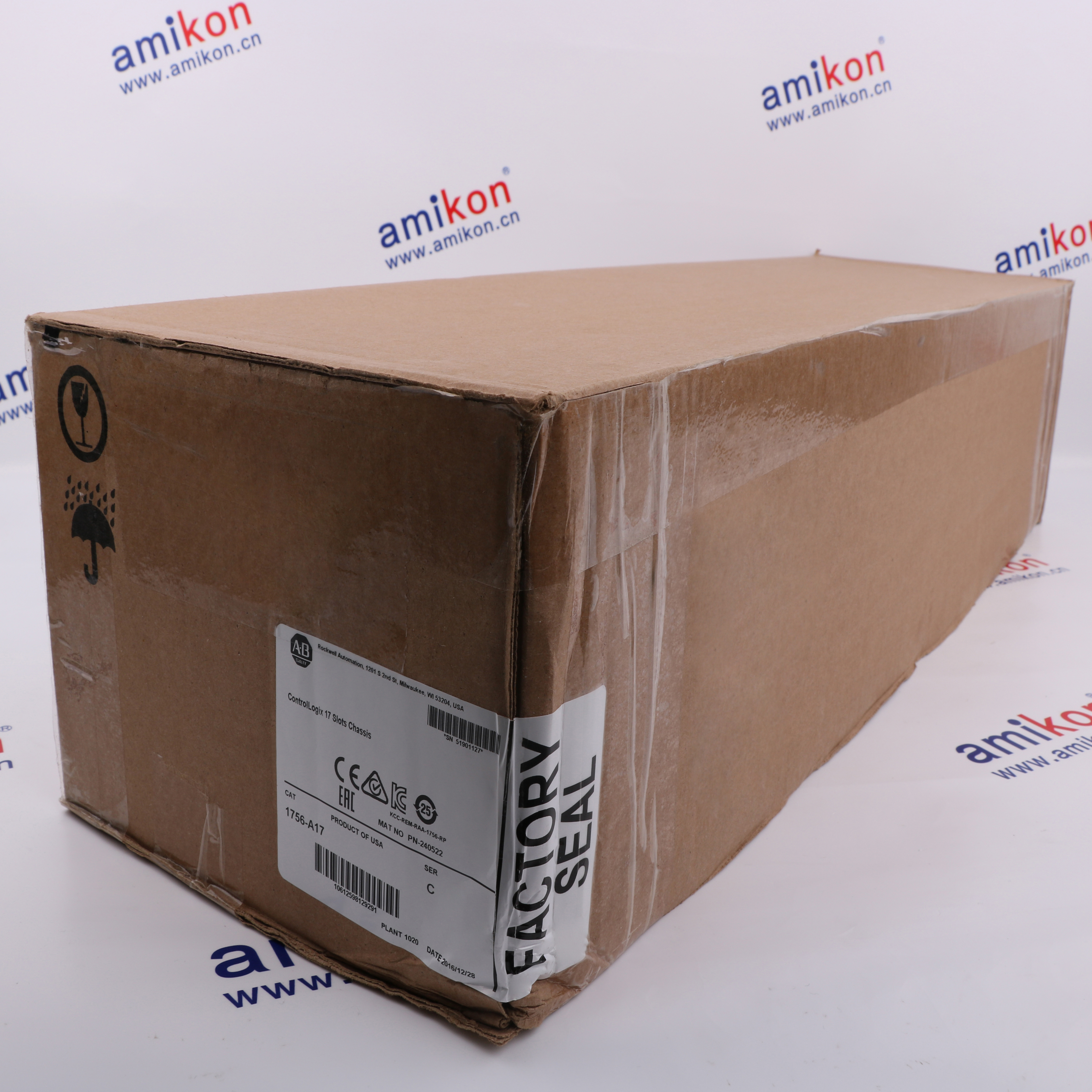

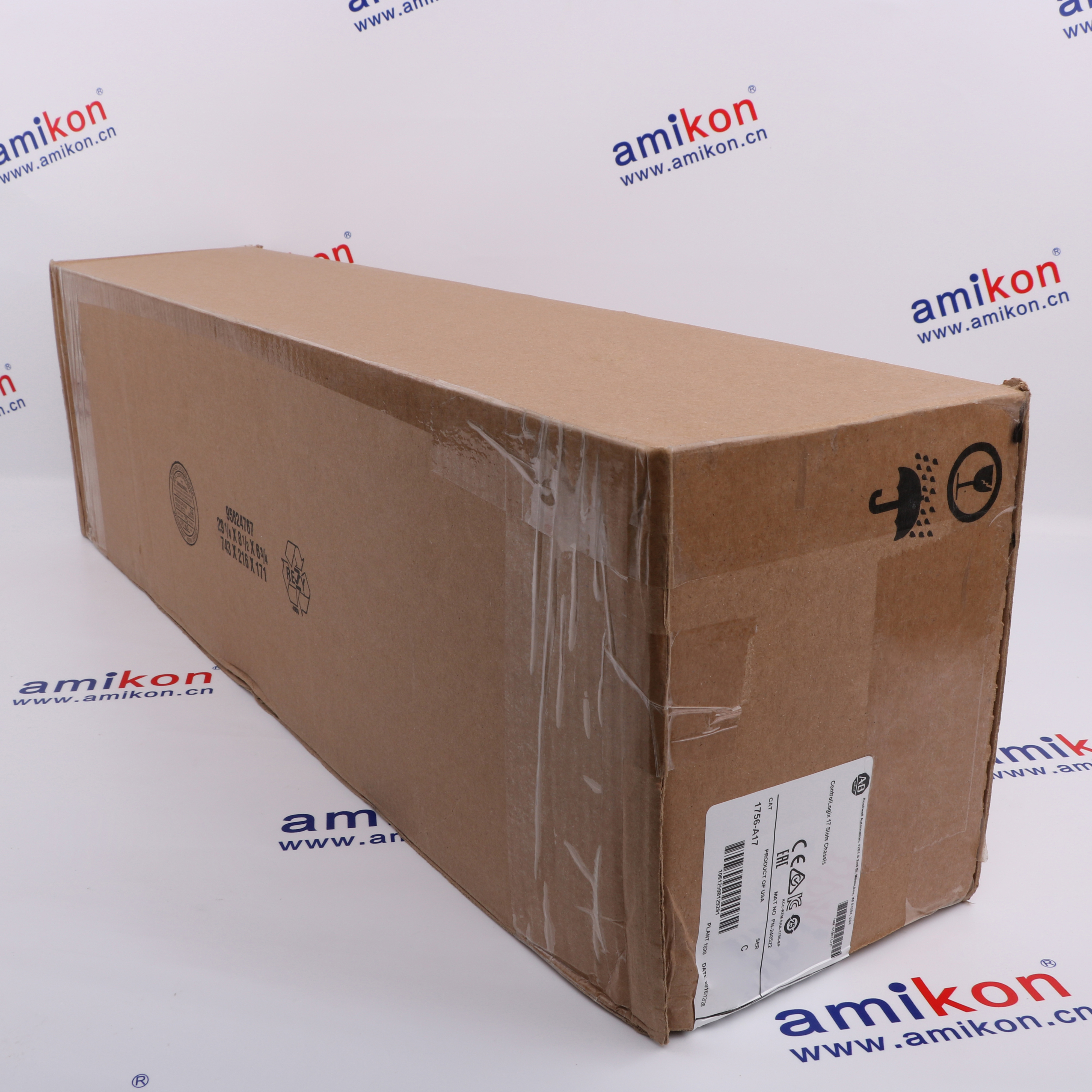

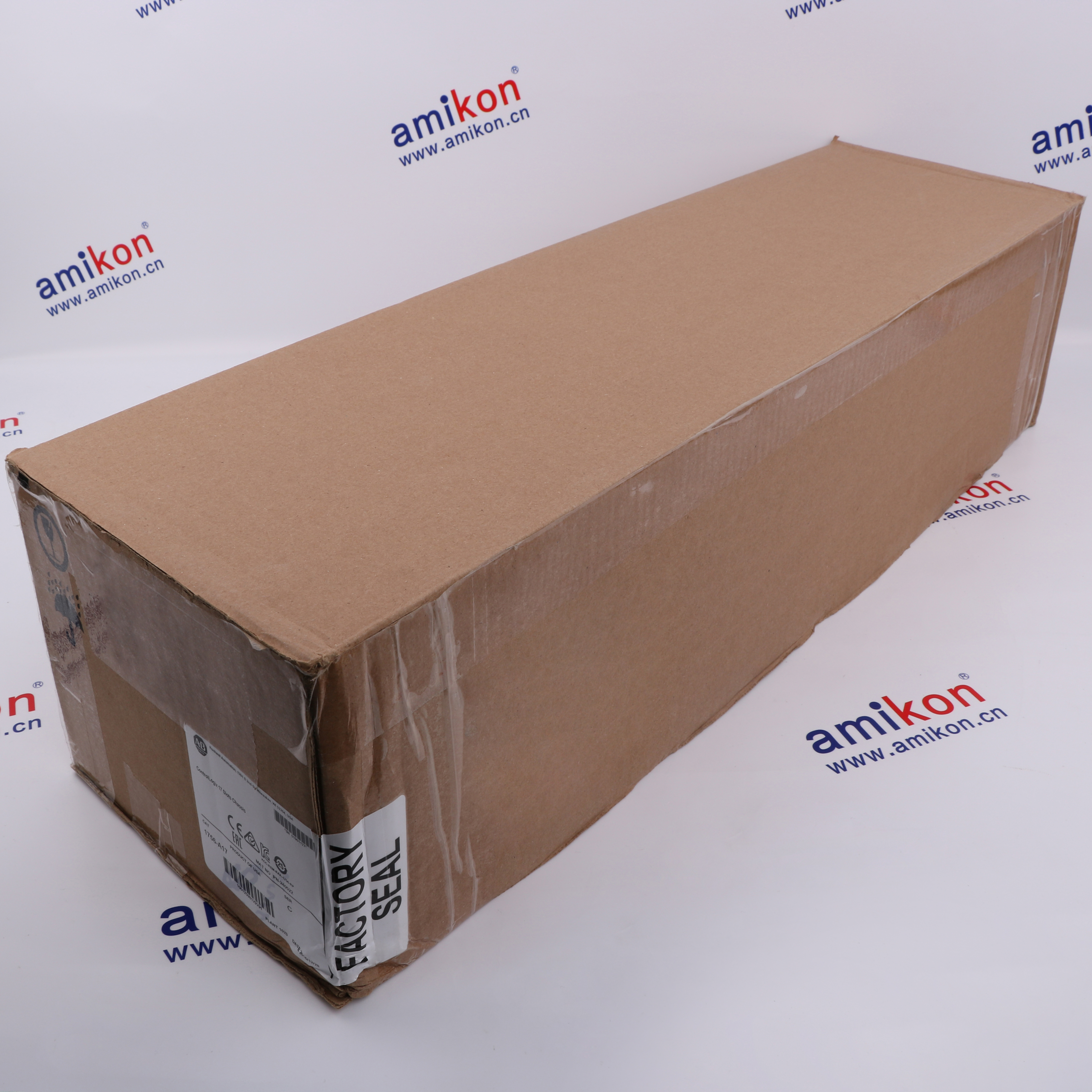

      Allen-Bradley 1756-A17
      i
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      Product Information

      Product Describe
      1756A17
      PLC CHASSIS RACK
      17 SLOT
      2.8 AMP
      24 VDC
      CONTROLLOGIX
      17-SLOT EXPANSION RACK
      MOUNTABLE

      Technical specifications for 1756-A17

      • Product Model
        1756-A17
      • Spare Model
        1756A17
      • Product Parameters
        17 SLOT CHASSIS RACK
      • Tariff Code
        8537101190
      • Country of origin
        usa
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        21.2x74.5x16.8cm
      • Manufacturer
        Allen-Bradley
      • Weight
        2.9 kg
      • Slots
        17
      • Power Dissipation (Max)
        6 Watts
      • Enclosure
        Open
      • Backplane Current (5 Volts DC)
        10 amps
      • Backplane Current (24 Volts DC)
        2.8 Amps

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.

      Warranty Period & Disclaimer

      Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

      FAQs

      • What is the 1756-A17?+
        The Allen-Bradley 1756-A17 is a 17-slot ControlLogix chassis designed for horizontal, panel-mounted industrial applications, providing high-speed communication and power distribution for ControlLogix modules.
      • Can the 1756-A17 be mounted vertically?+
        No, it is designed for horizontal mounting only.
      • What is the power dissipation of the 1756-A17?+
        The chassis has a maximum power dissipation of 6 W.
      • Can this chassis be used for redundancy?+
        Yes, it can be used in ControlLogix redundancy systems, commonly used as a large remote I/O rack.
      • Does the 1756-A17 support hot-swapping?+
        Yes, ControlLogix modules are hot-swappable, allowing them to be removed and installed while the chassis is powered.
      Get a quick price fo 1756-A17
      *Quantity
      *E-mail
      Company
      *Mobile
      *Content
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.
      whatsapp
      Inquiry

      Control system parts

      Required delivery time
      ask

      Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

      Revisions

      Revision Part #

      Also known as

      1756-A17/A
      1756-A17-A Rev A
      Get Parts Quote >>
      1756-A17/B
      1756-A17-B Rev B
      Get Parts Quote >>
      1756-A17/C
      1756-A17-C Rev C
      Get Parts Quote >>
      Product

      MORE INFORMATION

      Overview Manuals Technical notes Product Applications Electrical and Functional Safety

      Features:

      • 17 SLOT CHASSIS RACK
      • Backplane power distribution
      • Electronic keying for RIUP
      • SOE timestamping capability
      The 1756-A17 chassis is a ControlLogix series chassis from Allen-Bradley/Rockwell Automation. It has 5 mounting tabs on the top and 5 additional mounting tabs on the bottom. The 1756-A17 ControlLogix chassis can be used with or without SEM screws, but the presence or absence of SEM screws will determine how much and what kinds of other hardware that the chassis needs. With SEM screws, the 1756-A17 chassis needs 5 Phillips screws, 5 flat washers, 5 split-lock washers, and 5 SEM screws, and without SEM screws, the chassis needs 10 Phillips screws, 5 flat washers, 5 split-lock washers, and 5 star washers. The 1756-A17 ControlLogix chassis can operate safely at 32 to 140 degrees Fahrenheit and it has no enclosure.

      The 1756-A17 Allen-Bradley 17 SLOT CHASSIS RACK may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Allen-Bradley 1756-A17 17 SLOT CHASSIS RACK Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The 1756-A17 supports horizontal mounting only and requires a minimum cabinet size or available space of 76.2 x 91.4 x 20.3 cm (30 x 36 x 8 in.). The provided 10 mounting tabs permit direct panel mounting to the enclosure subpanel for convenient and fast installation. This chassis weighs 2.20 kg (4.8 lb).

      When mounting 1756-A17 chassis with nearby ControlLogix chassis, specific space requirements are 10.2 cm (4.0 in.) plus the width of the power supply (left side), 7.7 cm (3.0 in.) plus the width of the power supply (right side), 15.3 cm (6.0 in.) Top clearance and 5.1 cm (2.0 in.) bottom clearance.

      The 1756-A17 Standard Chassis includes inherent time-stamping capabilities for SOE applications. The chassis backplane distributes power to each of the modules within the chassis by providing a high-speed communication path between modules. It requires a Bulletin 1492 wiring IFM or an RTB to connect all the field-side wiring. The 1756-A17 Standard Chassis provides easy maintenance with the RIUP feature. For preventing replacement errors, it also offers electronic keying. In case of any system or field side failure, its comprehensive diagnostic feature helps identify the fault. It is compact, cost-effective, and easily compatible with items such as PanelView operator.
      • Automobile manufacturing: Managing complex vehicle assembly lines
      • Food and beverages: Integrating multiple controllers and communication gateways
      • Water treatment and municipal: Central control stations of sewage treatment plants or water supply systems
      • Warehousing and logistics: Sorting logic, barcode communication, and variable frequency drive control
      This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
      Grounding: The chassis requires proper Functional Earth (8.3 mm² / 8 AWG) and Protective Earth (2.1 mm² / 14 AWG) grounding to ensure electrical safety and noise immunity.

      Isolation Voltage: The isolation is determined by the specific 1756 power supply and modules installed.

      Electronic Fusing: Certain I/O modules installed in the chassis (identified by an "E" suffix) include internal electronic fusing to prevent overcurrent damage.
