Technical specifications for 1756-L72
-
Product Model1756-L72
-
Spare Model1756L72
-
Product ParametersControlLogix 4 MB Controller
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x14.3x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.26 kg
-
User memory4 MB
-
I/O memory0.98 MB
-
Nonvolatile memory storage1 GB Secure Digital (SD) card (1784-SD1)
-
Digital I/O max128,000
-
Analog I/O max4000
-
Total I/O max128,000
-
Current draw @ 1.2V DC5 mA
-
Current draw @ 5.1V DC800 mA
-
Power dissipation2.5 W
-
Thermal dissipation8.5 BTU/hr
Description

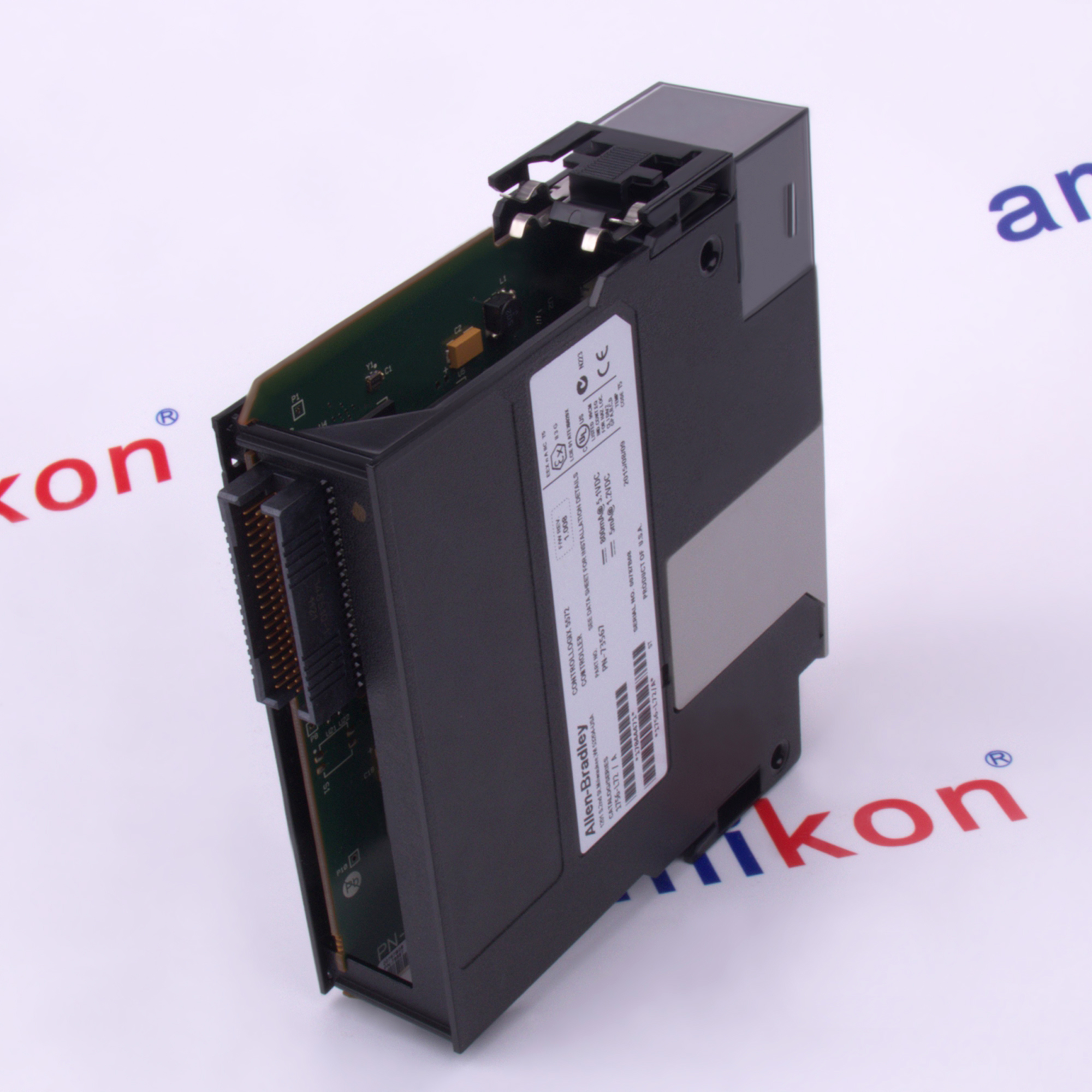

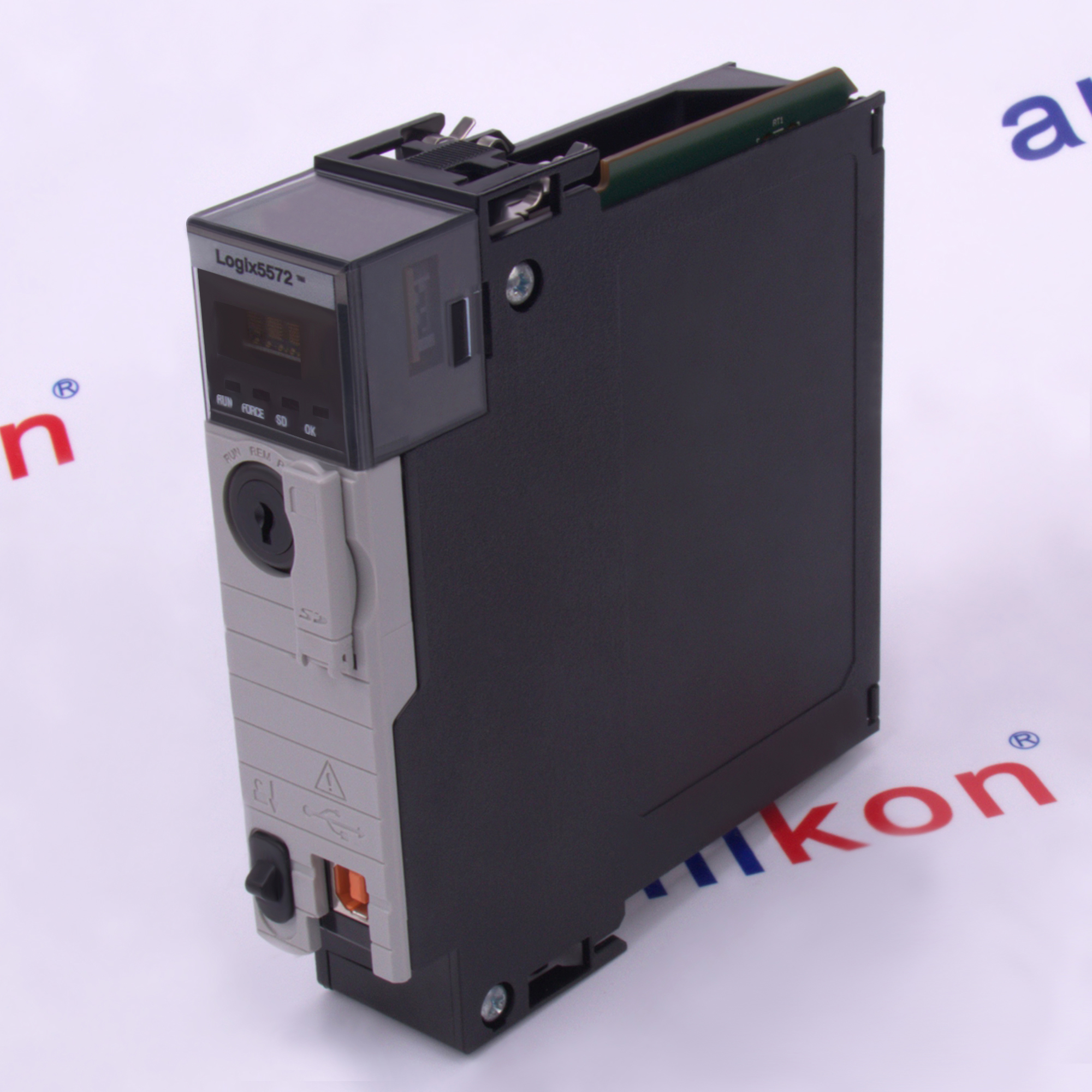

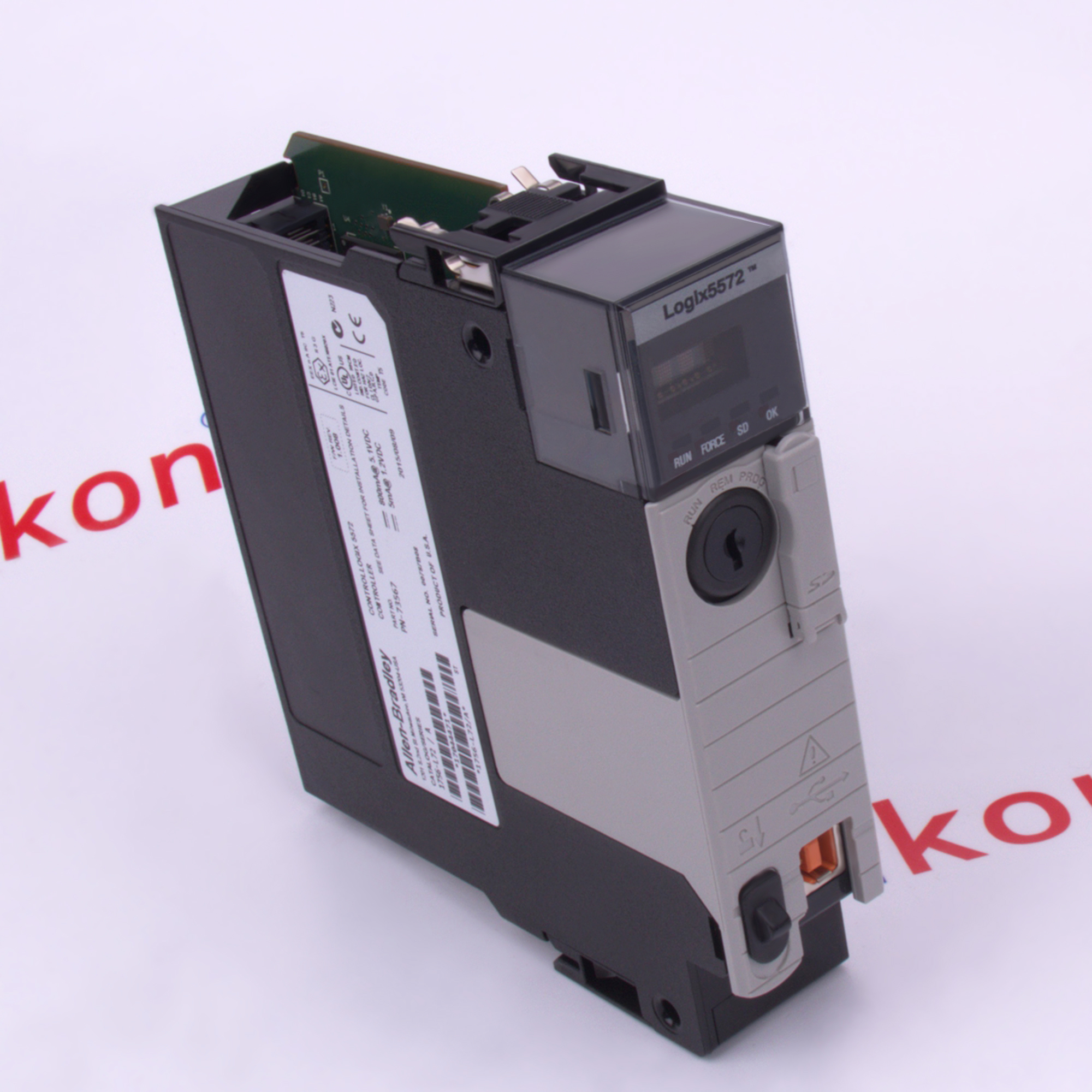

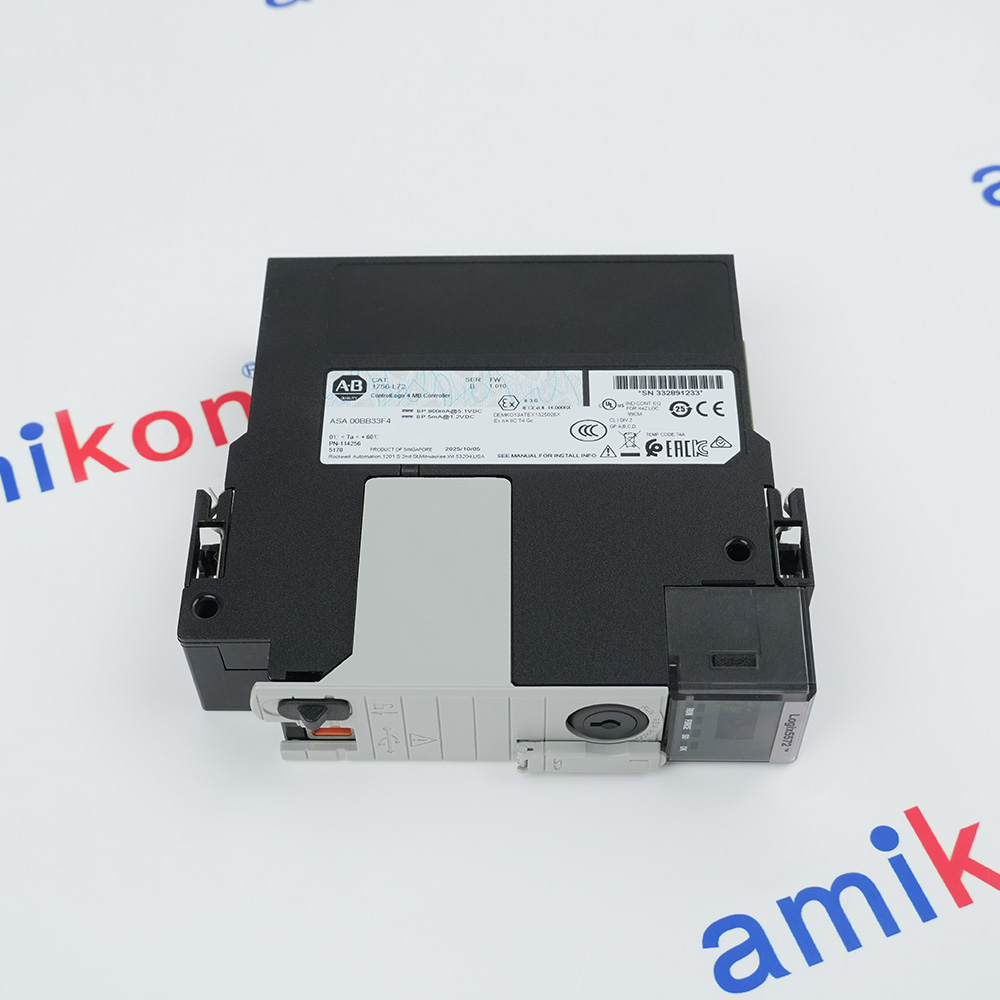

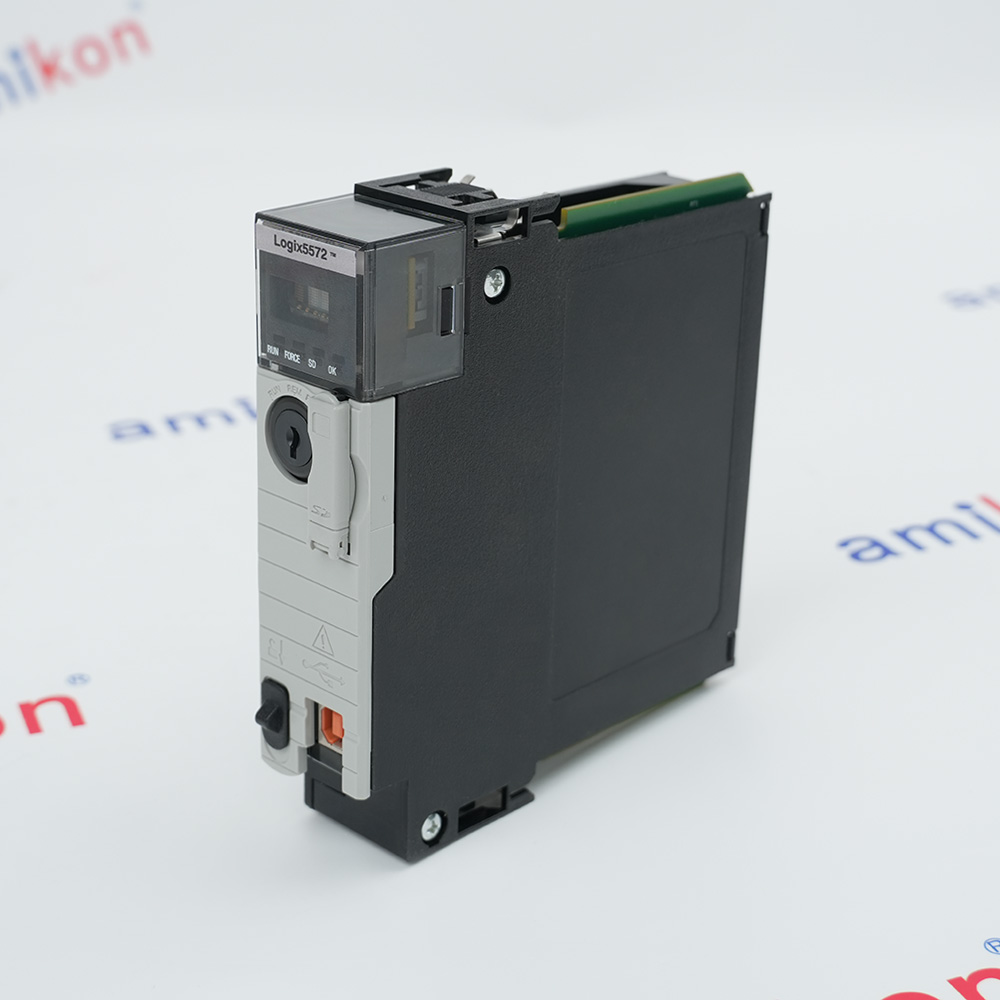

The Allen Bradley 1756-L72 is classified as a standard controller within the ControlLogix series. Designed for reliability and versatility, this controller can manage a maximum of 32 independent tasks, which can be executed simultaneously. Each task can run up to 100 individual programs, providing significant flexibility for complex applications.
Its capability to support 500 connections allows for extensive interfacing with various devices. Communication options are diverse, as it supports Ethernet/IP, ControlNet, DeviceNet, and Data Highway Plus, along with remote I/O and SynchLink communications. This broad compatibility enhances integration into existing systems. The inclusion of one USB port simplifies setup and data transfer, improving efficiency.
Its capability to support 500 connections allows for extensive interfacing with various devices. Communication options are diverse, as it supports Ethernet/IP, ControlNet, DeviceNet, and Data Highway Plus, along with remote I/O and SynchLink communications. This broad compatibility enhances integration into existing systems. The inclusion of one USB port simplifies setup and data transfer, improving efficiency.
Revisions
Revision Part #
Also known as
Alternative Names
1756L72
I756-L72
I756L72
Information
Overview
Manuals
Power & Grounding Rules
Product Applications
Features:
- 4 MB user memory and 0.98 MB I/O memory
- Scalable I/O capacity
- Capacitor-based energy storage modules
- Low backplane power consumption
- Wide environmental tolerance
The controller provides 4 MB of user memory for data and logic, along with 0.98 MB of pre-allocated I/O memory. Nonvolatile memory is handled via a Secure Digital card; the unit ships with a 1 GB 1784-SD1 card, with an upgrade path to 2 GB via the 1784-SD2. The SD card stores diagnostic data written automatically during faults.
The 1756-L72 Allen Bradley ControlLogix Standard Controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 1756-L72 ControlLogix Standard Controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Backplane Power Balancing: Ensure the sum current draw of all modules across the 1.2V, 5.1V, and 24V backplane rails does not exceed the continuous current limits of the selected power supply (e.g., 1756-PA72 or 1756-PB75).
Inductive Suppression: Never connect field device wiring directly to backplane terminal connections without physical line filtering or external isolation. Use external suppression blocks (diodes for DC circuits, MOV/RC snubbers for AC circuits) on all interposing relays and solenoid coils to block destructive electrical noise.
- Automotive Assembly Lines:Part tracking, serialization & robotics
- Warehouse & Material Handling:Baggage, sorting gates & ASRS
- Water & Wastewater Treatment:PID loops for dosing, pacing, leveling & telemetry
- Oil, Gas, & Petrochemical:Custody transfer, gas compression & separator skids
- Power Generation & Utilities:BoP, cooling towers & fuel networks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Technical notes
The 1756-L72 by Allen Bradley is a robust standard controller designed for high-performance automation tasks. With the capability of handling up to 32 tasks, this controller can execute an impressive 100 programs for each task, enabling complex processes.
FAQs
-
What is the 1756-L72 ？
+The Allen-Bradley 1756-L72 is a standard, high-performance ControlLogix 5570 controller. -
Does the 1756-L72 require a physical battery for memory retention?
+No. The 1756-L72 uses built-in, maintenance-free supercapacitors to retain power and maintain the Real-Time Clock (RTC) during brief power outages or system shutdowns -
What type of storage media does it use?
+It utilizes removable SD cards. Every 1756-L72 controller ships with a 1 GB SD card (part number 1784-SD1) for non-volatile storage, firmware backups, and program loading. -
What is the power consumption and dissipation of this module
+The controller draws 5 mA at 1.2V DC and 800 mA at 5.1V DC from the backplane. Its total power dissipation is around 2.5 Watts.
