Technical specifications for 1756-BA2
-
Product Model1756-BA2
-
Spare Model1756-BA2/A
-
Product ParametersBattery Assembly
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x1.8x1.8cm
-
ManufacturerAllen-Bradley
-
Weight0.02 kg
-
Part TypeLithium Battery
-
Slots7
-
Power Dissipation (Max)4.5 Watts
-
MountingHorizontal
Description

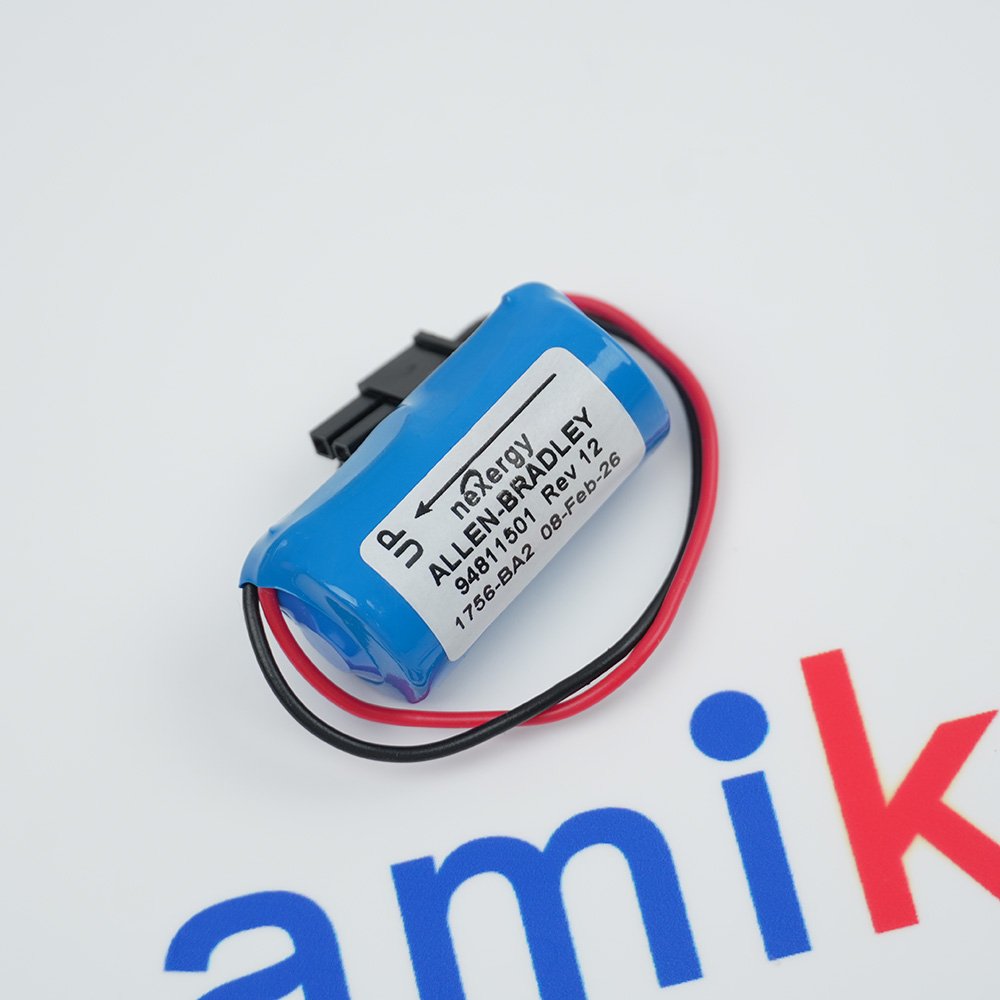

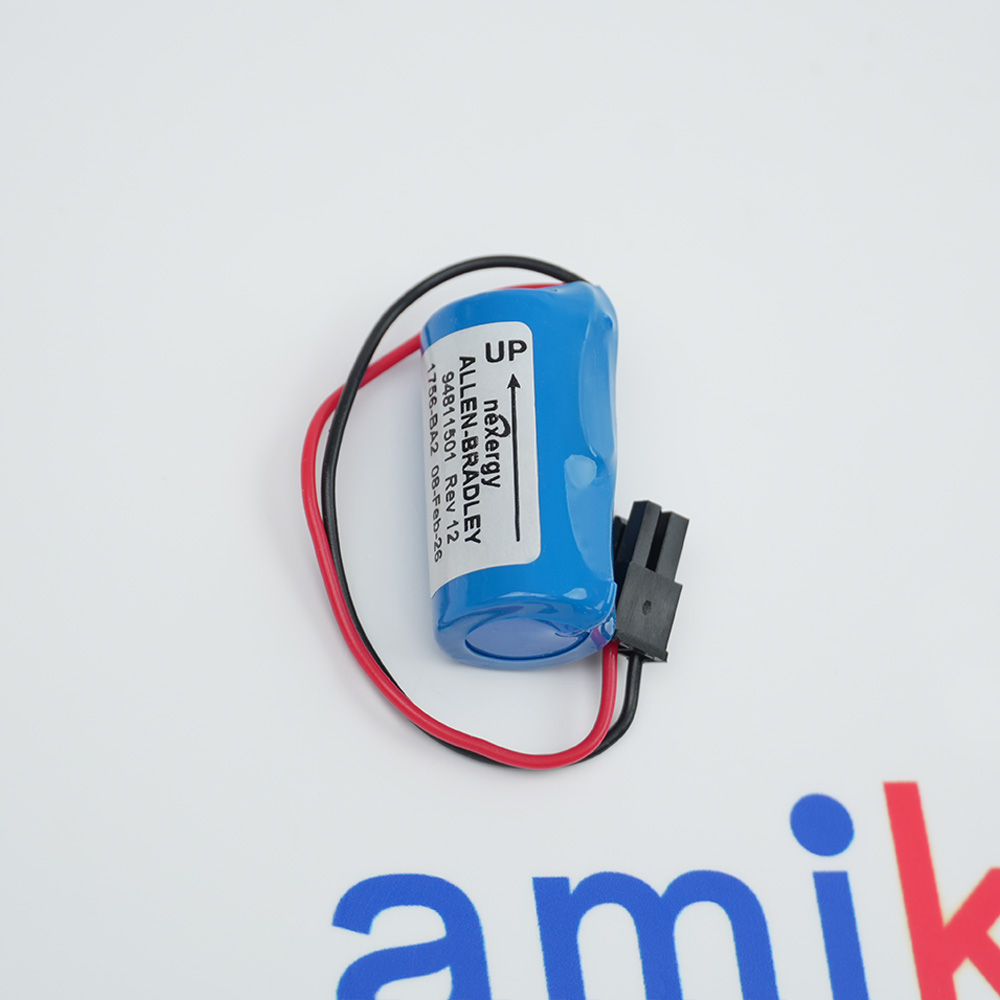

The 1756-BA2 battery assembly from Allen Bradley is specifically for the Series B ControlLogix 5560 controllers. Operating on a voltage rating of 3V DC, this lithium battery has a capacity of 1200 mAh, providing reliable power for essential applications.
This assembly has a capacity of 1200 milliamp hours (mAh), which allows for dependable power supply in control environments. Constructed to withstand a variety of conditions, the operating temperature range for this battery assembly spans from 32 to 140 degrees Fahrenheit. Additionally, it can be stored within the same temperature range to maintain functionality and performance.
The 1756-BA2 battery is capable of withstanding a maximum relative humidity of 80%, provided it remains non-condensing. This ensures that moisture does not compromise its performance. Furthermore, the battery assembly can operate effectively at elevations of up to 1000 meters above sea level, accommodating various installation setups in different environments.
This assembly has a capacity of 1200 milliamp hours (mAh), which allows for dependable power supply in control environments. Constructed to withstand a variety of conditions, the operating temperature range for this battery assembly spans from 32 to 140 degrees Fahrenheit. Additionally, it can be stored within the same temperature range to maintain functionality and performance.
The 1756-BA2 battery is capable of withstanding a maximum relative humidity of 80%, provided it remains non-condensing. This ensures that moisture does not compromise its performance. Furthermore, the battery assembly can operate effectively at elevations of up to 1000 meters above sea level, accommodating various installation setups in different environments.
Revisions
Revision Part #
Also known as
Alternative Names
1756-8A2
I756-BA2
17568A2
I7568A2
1756BA2
I756BA2
I756-8A2
Information
Overview
Manuals
Application Notes
Product Applications
Essential Safety & Handling Protocol
Features:
- Lithium Battery for Series B 1756-L6x Controllers
- 3V DC Output with 1200 mAh Capacity
- Compact Design with Wire Leads and Connector
- Wide Operating Temperature Range
The 1756-BA2 provides 3V DC output with a capacity of 1200 mAh, ensuring sufficient backup power to maintain controller memory and real-time clock functions during power outages. The 1756-BA2 features a compact design with pre-attached wire leads and a connector, making installation simple and secure within the ControlLogix chassis.
The 1756-BA2 Allen-Bradley Battery assembly may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-BA2 Battery assembly Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
1756-L6x Series B controllers, the battery assembly installs directly into the controller chassis using a prewired connector. With a nominal output of 3 VDC and a capacity of 1200 mAh, the unit provides long-term backup capability and typically delivers a service life of at least three years under recommended environmental conditions.
The 1756-BA2 is widely used in manufacturing plants, power generation facilities, water treatment systems, oil and gas installations, and other industrial automation environments where uninterrupted retention of PLC memory is critical for operational continuity.
- Factory Automation: Protects PLC logic routines in control panels from sudden grid failures
- Continuous Process: Prevents costly reprogramming and product loss in chemical, refining, and food plants
- CNC Machining: Safeguards calibrated axis positions and cutting routines during power fluctuations
- Data Logging: Preserves runtime metrics and alarm history until power is safely restored
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Explosion Hazard Warning: Do not connect or disconnect the battery unless the surrounding environment is completely non-hazardous. Breaking connections under power can cause an electrical arc, risking an explosion in Class I, Division 2 environments.Electrostatic Discharge (ESD): Wear an approved, grounded wrist strap. Do not touch the circuit boards, pins, or exposed connectors inside the chassis housing.Chassis Power Status: Keep the chassis backplane power turned ON during a live preventative maintenance swap. The main backplane powers the controller's memory. This keeps the user program intact while the battery is removed.Backup Reminder: Always verify that a current copy of the PLC program is saved offline before performing maintenance.
Technical notes
The battery features a nominal voltage of 3 V with a capacity of 1200 mAh. Shelf life is rated at 10 years at 25°C. The battery plugs directly into the designated battery slot on the controller and is monitored by the controller for low battery status, with alarm indication provided through the controller status indicators.
FAQs
-
Which controllers are compatible with the 1756-BA2?
+It is designed exclusively for Series B ControlLogix 5560 (1756-L6x) controllers. This includes specific models like the 1756-L61, 1756-L62, 1756-L63, and 1756-L64. It is not interchangeable with Series A controllers which often utilize the 1756-BA1 battery assembly. -
Can I use a 1756-BA1 instead of a 1756-BA2?
+No. Allen-Bradley explicitly prevents swapping these batteries. They feature different connector types and the 1756-BA2 provides specific current and circuit management features required only by Series B processors. Attempting to modify or force an incorrect battery can lead to equipment failure. -
Is the 1756-BA2 battery rechargeable?
+No. Attempting to recharge this lithium pack creates an extreme risk of thermal runaway, fire, or explosion. Never connect it to a charger. -
What is the 1756-BA2？
+The Allen-Bradley 1756-BA2 is a 3-volt lithium backup battery designed for Series B ControlLogix 5560 (1756-L6x) programmable logic controllers
