Technical specifications for 1756-ENBT/A
-
Product Model1756-ENBT/A
-
Spare Model1756-ENBT Series A
-

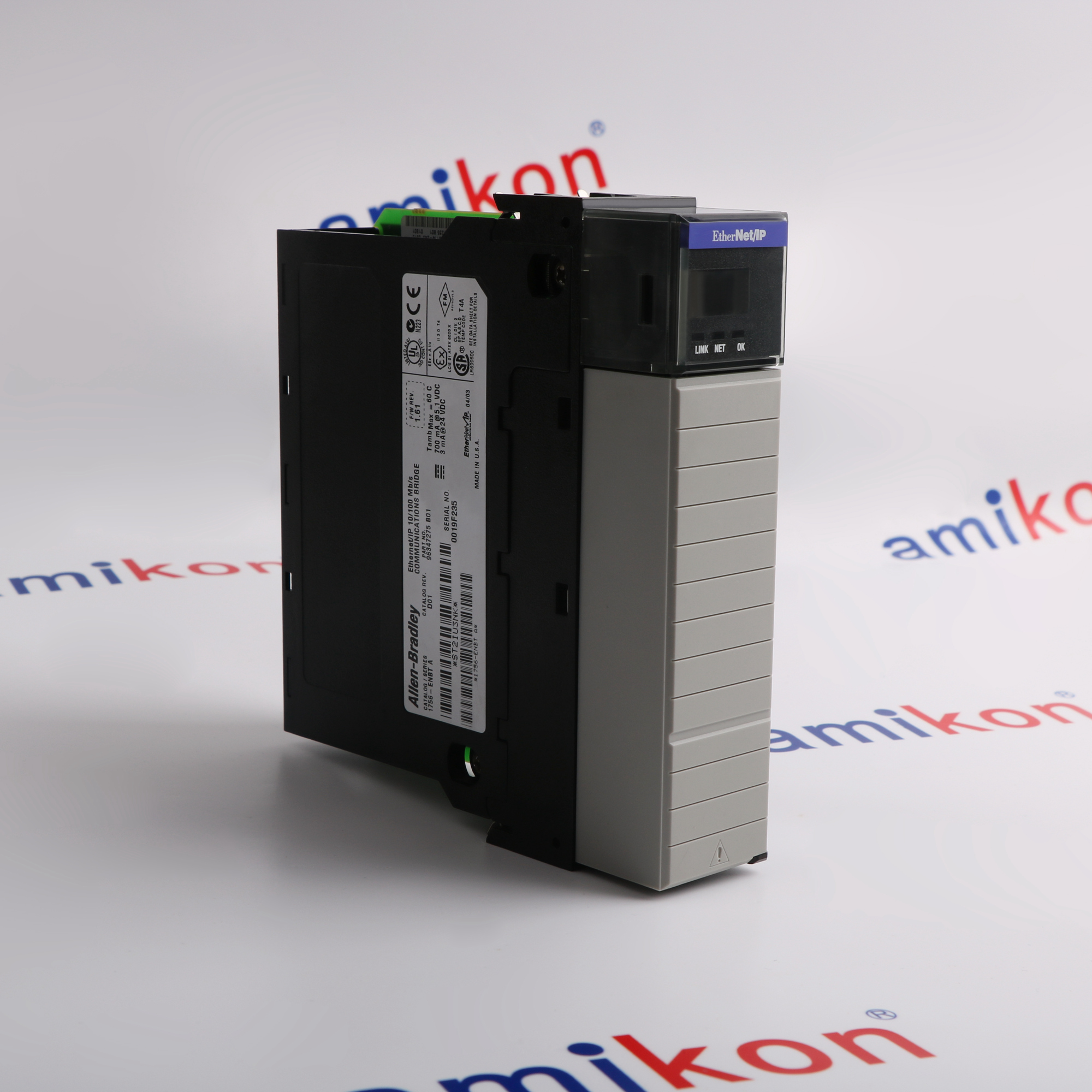

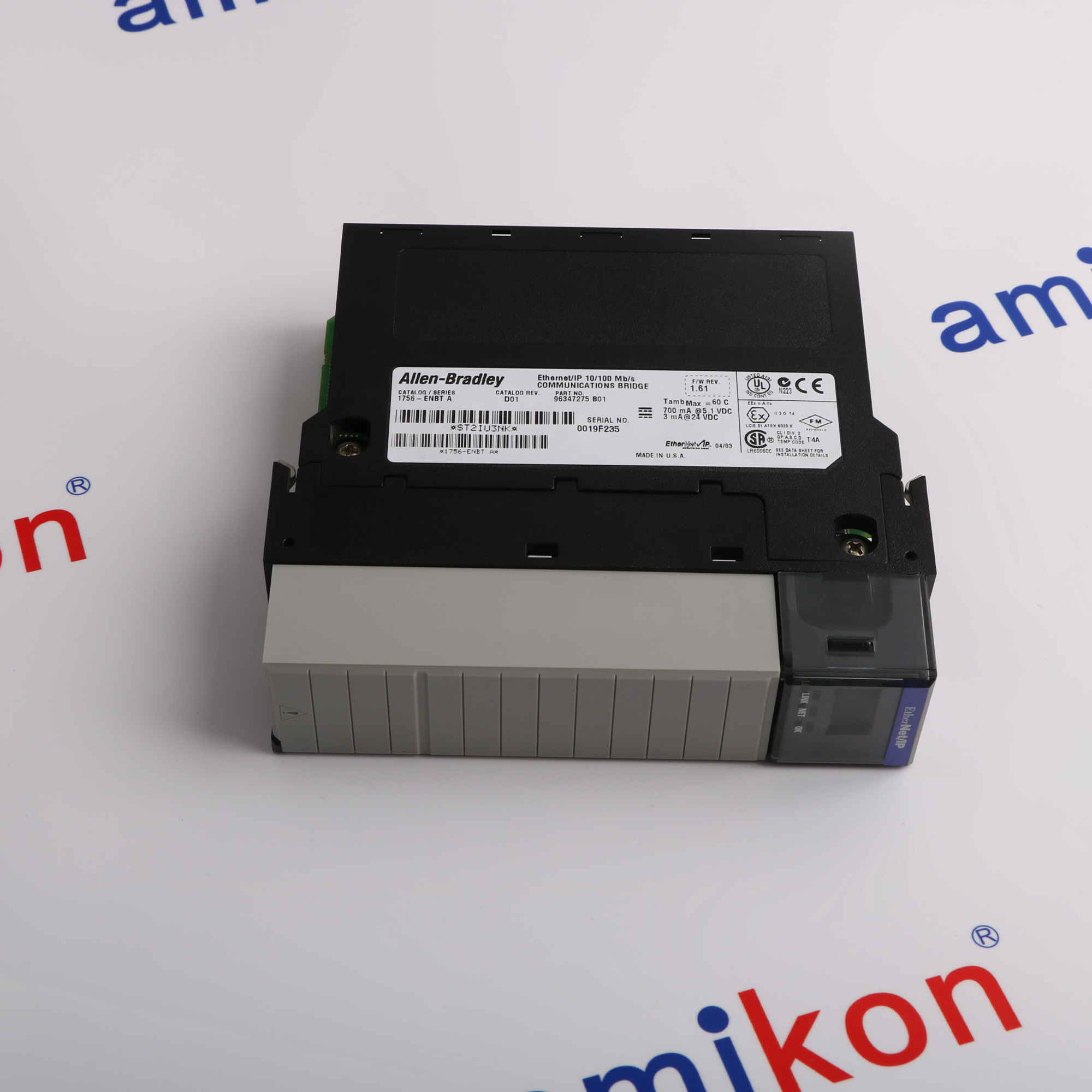

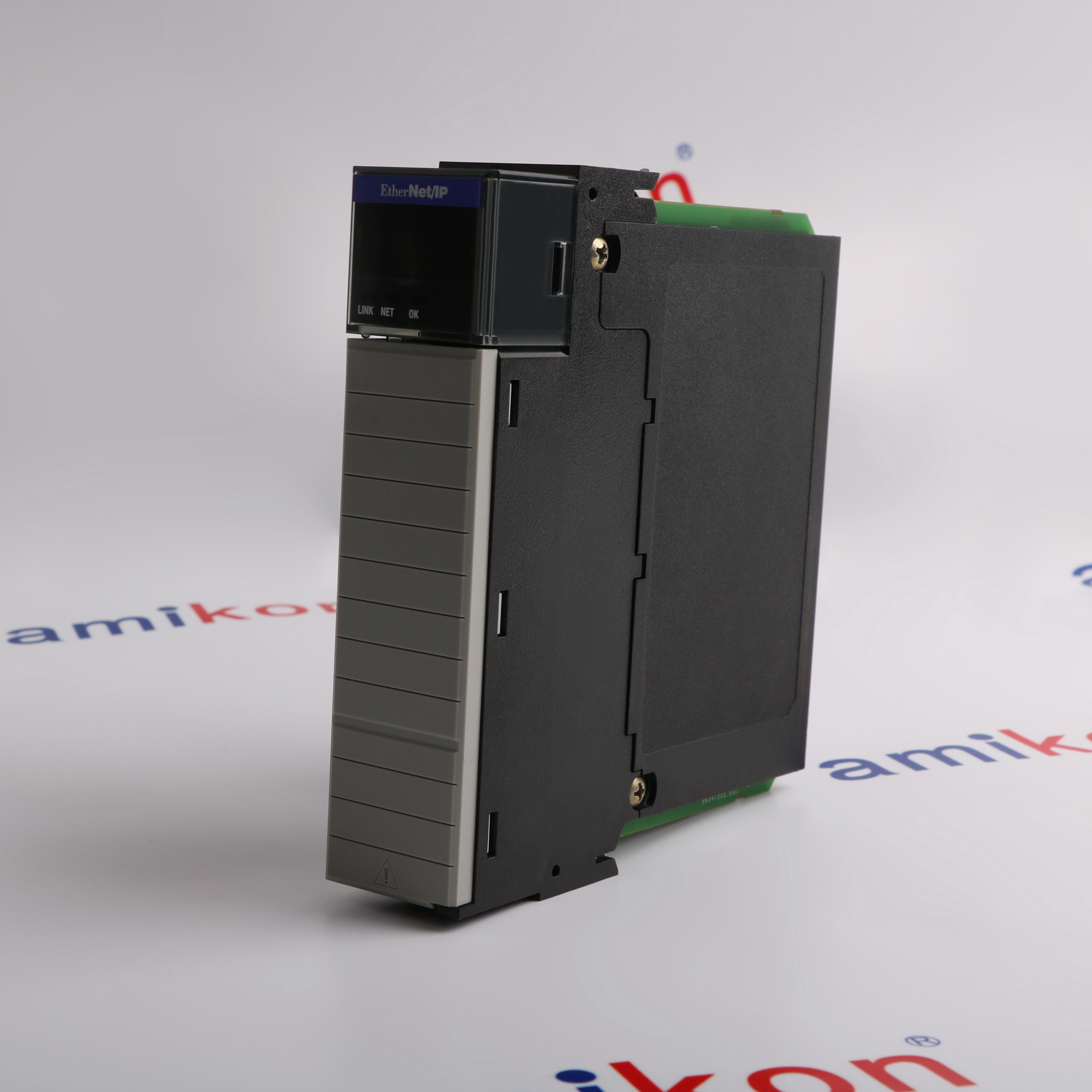

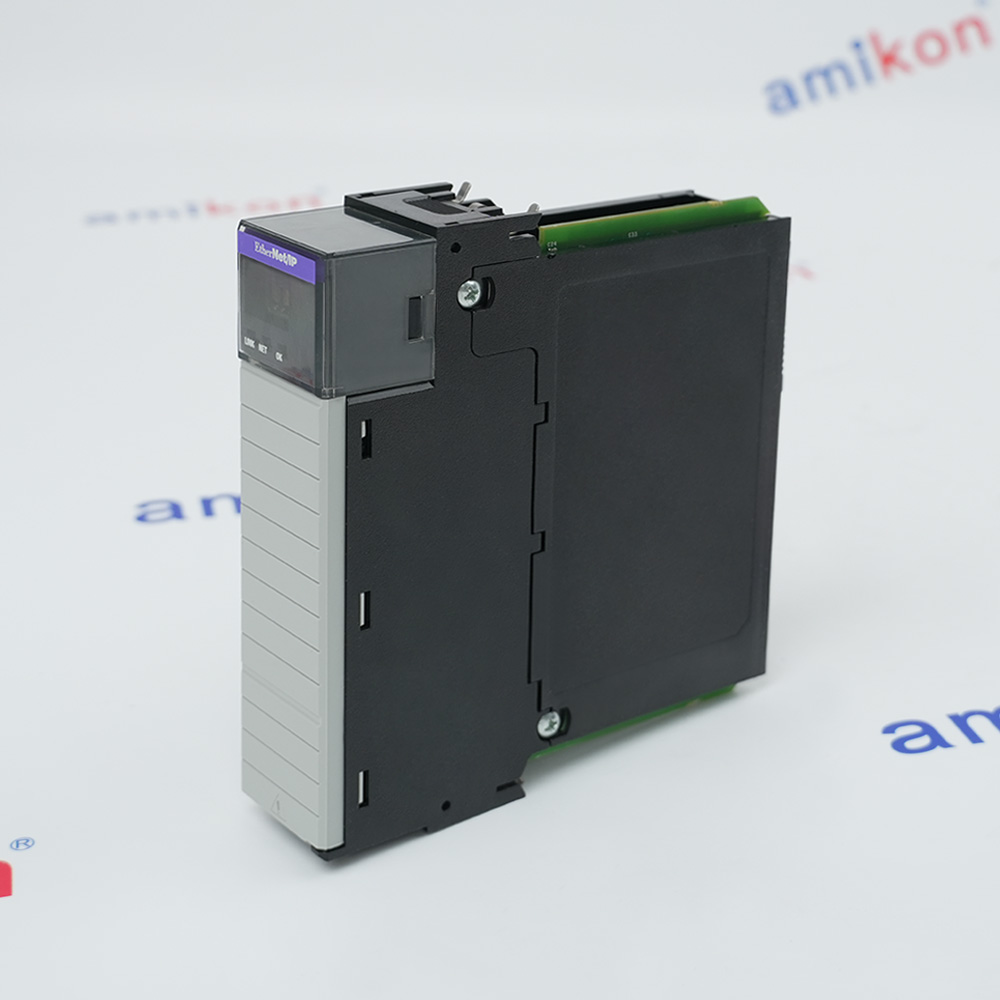

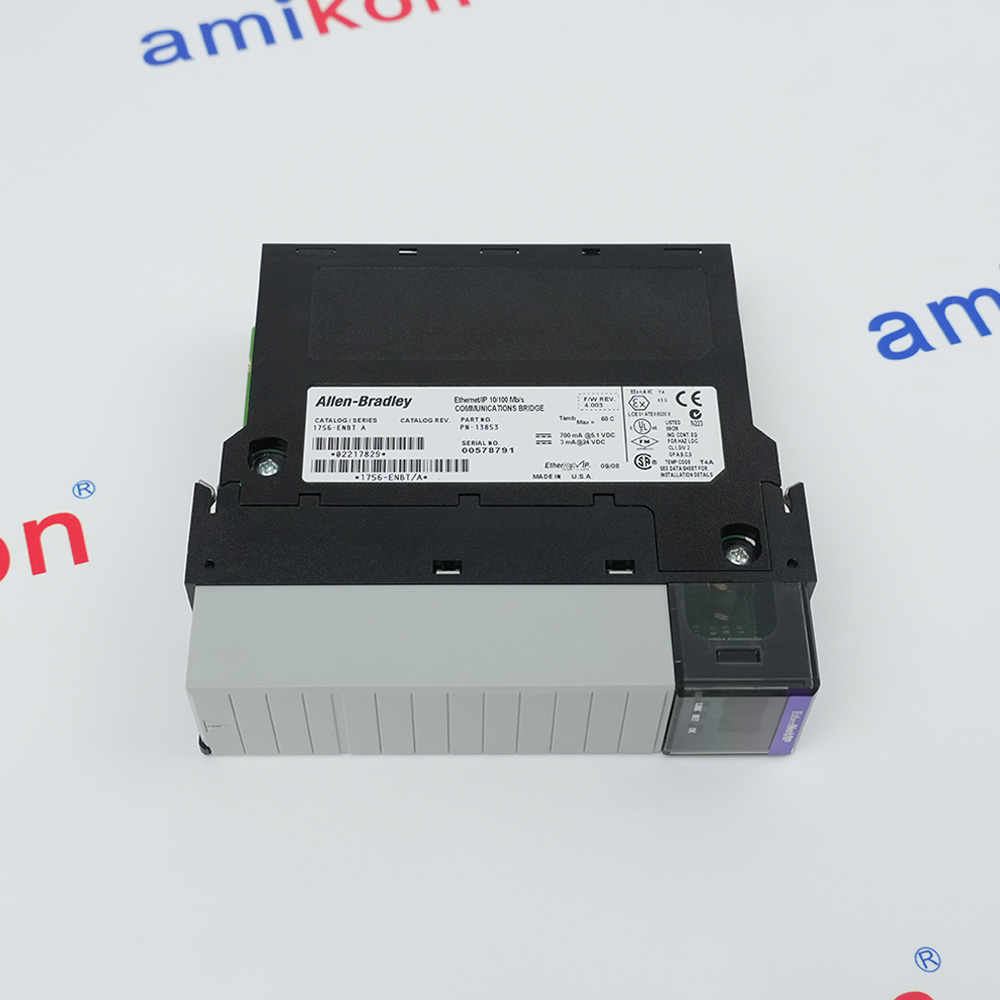

Product ParametersControlLogix EtherNet/IP 10/100 Bridge Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x14x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.2 kg
-
FirmwareRevisionAny
-
RSLogix 5000Software Version8.02.00 or later
-
RSLinx®Software Version2.30 or later
-
I/O5000
-
HMI/MSG900
-
Communication Rate10 or 100 Mbps
-
TCP Connections64 Connections
-
Multicast Tags32 tags max
Description
The 1756-ENBT is an Allen-Bradley ControlLogix EtherNet/IP bridge module to facilitate high-speed data transfer between Logix 5000 controllers and remote I/O modules over an EtherNet/IP network. The 1756-ENBT connects to multiple EtherNet/IP network devices and supports real-time I/O messaging, information exchange, and general messaging using the Common Industrial Protocol (CIP).
The 1756-ENBT provides a single Ethernet RJ45 Category 5 port that supports 10/100 Mbps communication rates with auto-negotiating functions in both half and full duplex modes. The 1756-ENBT is compatible with 802.3 compliant shielded or unshielded twisted pair Ethernet cables, offering flexibility in network cabling infrastructure for industrial environments.
With a maximum capacity of 64 TCP connections and 128 CIP connections, the 1756-ENBT enables extensive communication between controllers, I/O modules, HMIs, and other EtherNet/IP devices. The CIP connections on the 1756-ENBT can be used for any combination of implicit (I/O) and explicit (messaging) applications, allowing versatile integration into complex automation networks.
The 1756-ENBT provides a single Ethernet RJ45 Category 5 port that supports 10/100 Mbps communication rates with auto-negotiating functions in both half and full duplex modes. The 1756-ENBT is compatible with 802.3 compliant shielded or unshielded twisted pair Ethernet cables, offering flexibility in network cabling infrastructure for industrial environments.
With a maximum capacity of 64 TCP connections and 128 CIP connections, the 1756-ENBT enables extensive communication between controllers, I/O modules, HMIs, and other EtherNet/IP devices. The CIP connections on the 1756-ENBT can be used for any combination of implicit (I/O) and explicit (messaging) applications, allowing versatile integration into complex automation networks.
Information
Overview
Manuals
Application Notes
Product Applications
Network Connection
Features:
- EtherNet/IP Bridge with 10/100 Mbps Auto-Negotiation
- Single Ethernet RJ45 Category 5 Port
- Up to 64 TCP and 128 CIP Connections
- 30V Isolation Voltage with Basic Insulation
The 1756-ENBT/A supports 64 TCP connections and up to 128 CIP connections, allowing simultaneous communication with multiple devices. The available CIP connections can be allocated for explicit messaging, implicit I/O communication, or a combination of both, making the module suitable for a wide variety of ControlLogix applications.
The 1756-ENBT/A Allen-Bradley ControlLogix EtherNet/IP Bridge may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-ENBT/A ControlLogix EtherNet/IP BridgeManuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module operates at 10/100 Mbps with auto-negotiation through a single RJ45 Ethernet port. It supports a maximum of 64 TCP/IP connections and 128 Logix connections for I/O and information exchange. The module handles 64 CIP unconnected messages on the backplane and 64 on the Ethernet network. Up to 32 multicast tags are supported. Unicast connections are available when using RSLogix 5000 software version 16.03.00 or later. The module supports socket services and SNMP with password protection. Duplicate IP address detection is included starting at firmware revision 3.3.
Packet rate capacity is rated at 500 packets per second for I/O traffic and 900 packets per second for HMI and MSG traffic. The module includes an integrated web server accessible through a standard web browser for viewing diagnostics, configuration parameters, and network statistics including IP traffic, TCP, UDP, collision histograms, and connection management data.
- Automotive Assembly: Coordinates paint shops/robotic lines, bridges controller data, and connects distributed I/O blocks
- Water/Wastewater: Links main treatment plants to remote pumping stations and connects SCADA to local controllers
- Food/Beverage: Controls packaging/sorting/bottling lines and enables explicit messaging with PanelView operator terminals
- Oil/Gas Refining: Implemented in dual-chassis redundancy systems with automatic IP switching to maintain monitoring uptime
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Locate the RJ45 Ethernet port positioned on the bottom-front edge of the module face.
Connect a Category 5 (or better) straight-through patch cable from the port to your network switch.
Set network switches to autonegotiate speed and duplex configurations to prevent communication mismatches with the 10/100 Mbps module.
Alternative Names
1756-EN8T/A
I756-ENBT/A
1756EN8T/A
I756EN8T/A
1756ENBT/A
I756ENBT/A
I756-EN8T/A
Technical notes
The 1756-ENBT draws 700 mA at 5.1 Volts DC and 3 mA at 24 Volts DC from the backplane, with a power dissipation of 3.7 Watts and a thermal dissipation of 12.6 BTU per hour. The 1756-ENBT features 30 Volts continuous basic insulation isolation between the Ethernet network and the backplane, ensuring safe operation in industrial control cabinets.
FAQs
-
How do I set the IP address on a new or factory reset 1756-ENBT/A?
+The module ships with BOOTP enabled. You can assign a temporary IP using a BOOTP/DHCP Server, then connect via RSLinx Classic to configure and save a static IP address. -
Does changing the IP address in the RSLogix/Studio 5000 I/O tree change the physical module's IP?
+No. Entering an IP address in the software project properties does not program the physical hardware. The IP must be configured directly via RSLinx or a BOOTP utility -
What are its network and connection limits?
+It supports 10/100 Mbps communication speeds, up to 64 TCP/IP connections, and up to 128 Logix (CIP) connections. -
Can I change the IP address through RSLinx?
+Yes. In RSLinx Classic, find the module under RSWho, right-click, select Module Configuration, go to Port Configuration, change the settings, and click Apply.
