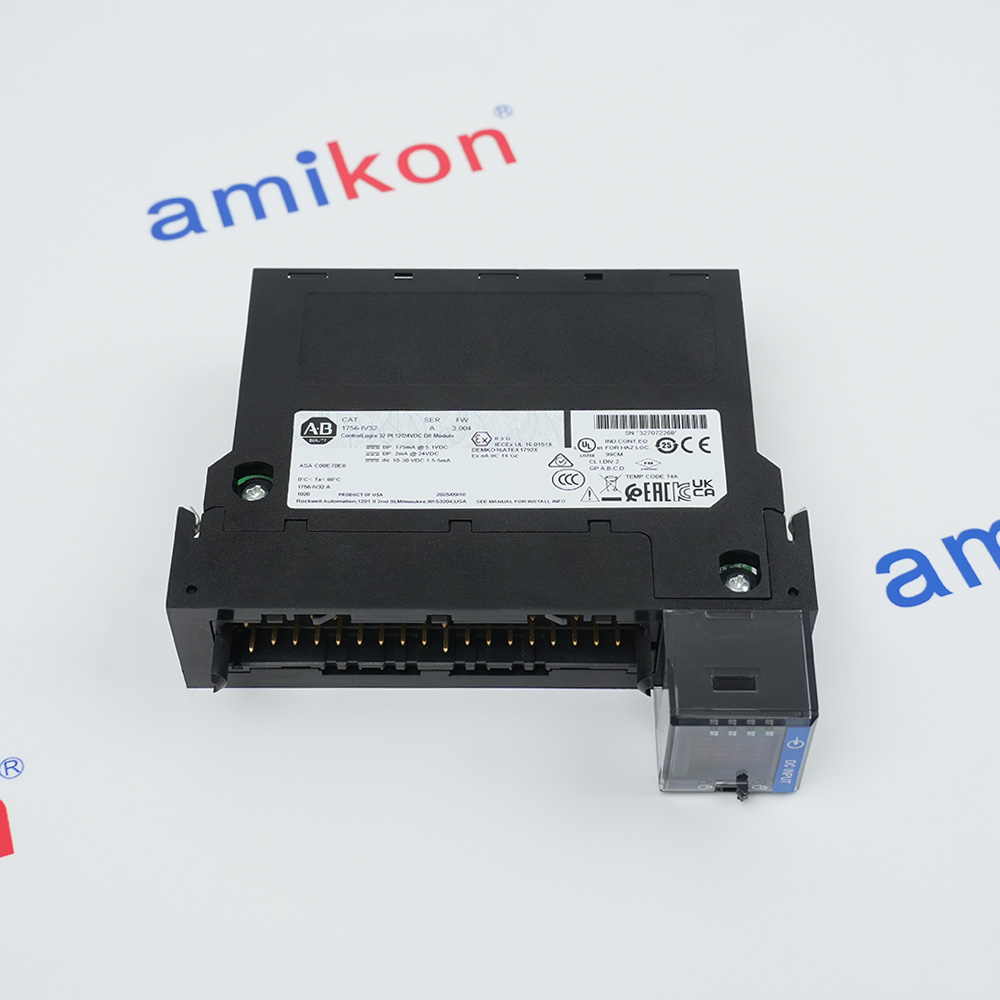

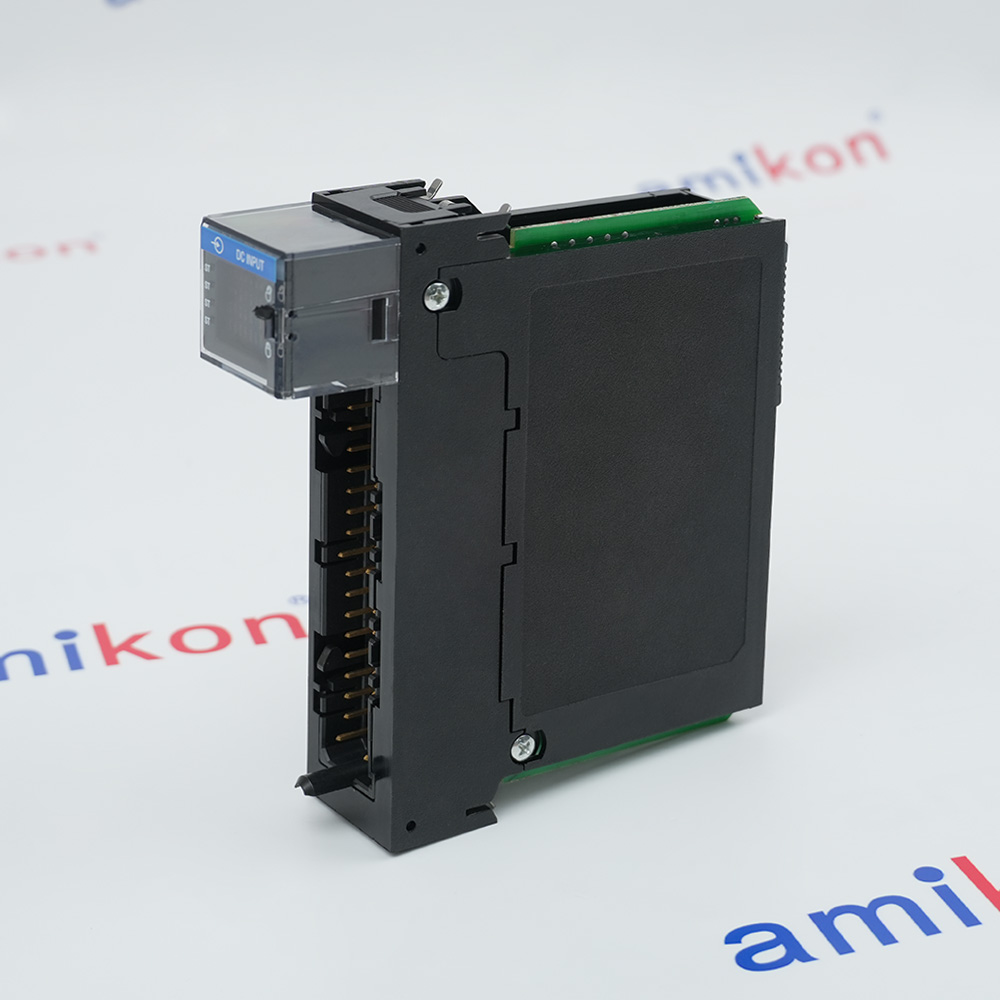

Technical specifications for 1756-IV32
-
Product Model1756-IV32
-
Spare Model1756IV32 1756-IV32/A
-
Product ParametersControlLogix Digital DC Input Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.8x14.6x14.0cm
-
ManufacturerAllen-Bradley
-
Weight0.2 kg
-
Inputs32 (16 points/group)
-
Voltage category12/24V DC source
-
Operating voltage range10…30V DC
-
Input voltage, nom24V DC
-
Current draw @ 5.1V120 mA
-
Current draw @ 24V2 mA
-
Total backplane power0.66 W
-
Power dissipation, max4.1 W @ 60 °C (140 °F)
-
Thermal dissipation14 BTU/hr @ 60 °C (140 °F)
-
Off-state voltage, max5V
-
Off-state current, max1.5 mA
-
On-state current, min2 mA @ 10V DC
-
On-state current, max3.5 mA @ 30V DC
-
Input impedance, max8.6 kΩ @ 30V DC
-
Cyclic update time200 µs…750 ms
-
Temperature, operating0…60 °C (32…140 °F)
-
Temperature, nonoperating-40…+85 °C (-40…+185 °F)
-
Relative humidity5…95% noncondensing
Description
The Allen-Bradley 1756-IV32 provides 32 discrete DC input channels for monitoring field devices and digital control signals within a ControlLogix automation system. Its input voltage range of 10–30 V DC makes it suitable for common industrial DC control circuits, including nominal 24 V DC applications.
The Allen-Bradley 1756-IV32 is configured as a sourcing input module and provides 250 V continuous isolation between groups of 16 inputs. This two-group isolation arrangement helps separate input groups within the ControlLogix I/O architecture.
The Allen-Bradley 1756-IV32 is configured as a sourcing input module and provides 250 V continuous isolation between groups of 16 inputs. This two-group isolation arrangement helps separate input groups within the ControlLogix I/O architecture.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Terminal Block and Wiring Connection
Features:
- 32-Point Digital DC Sourcing Input Module
- 10-30V DC Operating Voltage Range
- User-Configurable Input Delay with Hardware Filtering
- Change of State and Timestamp Functionalit
- Electronic Software-Configurable Module Keying
- CReverse Polarity Protection
The 1756-IV32 draws 120mA at 5.1V and 2mA at 24V from the backplane. The 1756-IV32 has a total backplane power of 0.66W. The 1756-IV32 has a maximum power dissipation of 4.1W at 60°C and thermal dissipation of 14 BTU/hr at 60°C.
The 1756-IV32 Allen-Bradley ControlLogix Digital DC Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-IV32 ControlLogix Digital DC Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The screw to backplane input delay times of the 1756-IV32 are as follows: from 'on' to 'off', it is the hardware delay of a nominal of 540 microseconds up to a maximum of 2 milliseconds plus the user-configurable filter time of either 0 milliseconds, 1 milliseconds, 2 milliseconds, 9 milliseconds, or 18 milliseconds. From 'off' to 'on', it is the hardware delay of a nominal of 350 microseconds up to a maximum of 1 milliseconds plus the user-configurable filter time of either 0 milliseconds, 1 milliseconds, or 2 milliseconds. When the 1756-IV32 module is on an off-state, it has a maximum current of 1.5 mA and a maximum voltage of 5 Volts. But when it is on an on-state, the module has a minimum current of 2 milliamps at 10 Volts DC and a maximum current of 3.5 milliamps at 30 Volts DC.
- Automotive Assembly: Tracks digital checkpoints on robotic arms, safety gates, and component fixtures
- Food/Beverage/Packaging: Processes high-speed sensor inputs from filling lines, cap checks, and sorting gates
- Material Handling/Logistics: Monitors photo-eyes, presence detectors, and sorting switches on multi-lane conveyors
- Power/Energy Utilities: Aggregates status signals from auxiliary contactors, breakers, and protection relays
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Select termination: Use a compatible 36-pin Removable Terminal Block (RTB like 1756-TBNH or 1756-TBSH) or a Bulletin 1492 Interface Module (IFM).
Apply keying: Insert the U-shaped keying bands on the module and wedge-shaped tabs on the RTB to prevent wrong connections.
Connect DC power: Wire the 12/24V DC sourcing inputs starting from the bottom terminals and move up. Note that DC+ power common connections go to designated DC power terminals (such as DC-0 and DC-1 group terminals) per the module layout.
Mount the RTB: Cover the wired terminals with the removable housing, swing the RTB up against the front of the 1756-IV32 module, and push it until it clicks and locks into place.
Alternative Names
1756-1V32
I756-IV32
17561V32
I7561V32
1756IV32
I756IV32
I756-1V32
Technical notes
The Allen-Bradley 1756-IV32 is a digital input module having 32 inputs with 16 points per group. The 1756-IV32 module is compatible with the ControlLogix 1756 chassis but before you can connect the module to the chassis, you will need an RTB, or removable terminal housing, for the module. For the 1756-IV32 module, you can only use the 1756-TBCH or 1756-TBS6H RTB.
FAQs
-
What are the voltage and current ranges?
+The operating voltage range spans 10 to 30V DC. Maximum current draw reaches 3.5 mA at 30V DC per point. -
What are the compatible Removable Terminal Blocks (RTB)?
+It requires either the 1756-TBNH (cage clamp) or 1756-TBSH (spring clamp) block. Terminal blocks must be purchased separately. -
Does it support input timestamps?
+Yes, it features a software-configurable change of state (COS) that logs timestamps within a window of ±200 µs. -
Can multiple controllers connect to this module simultaneously?
+Yes, any standard standard ControlLogix digital input module accommodates multiple owners or listener connections
