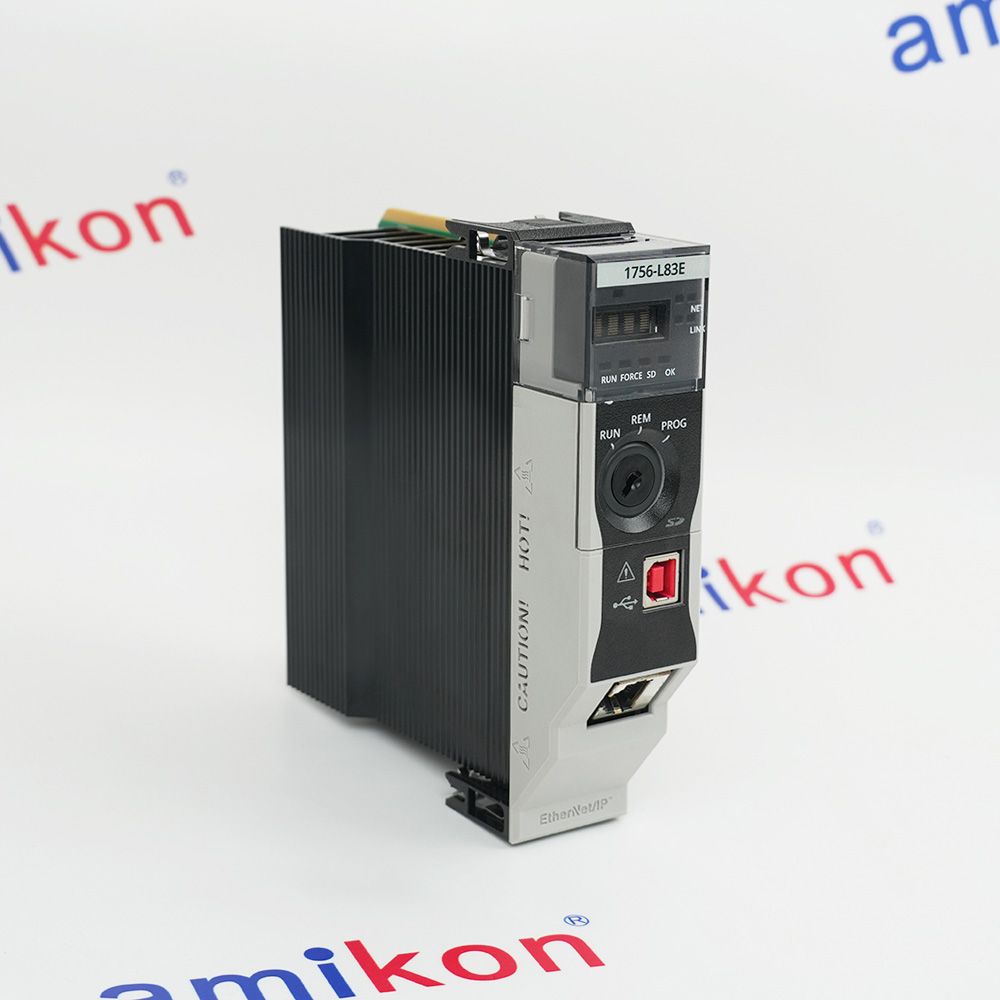

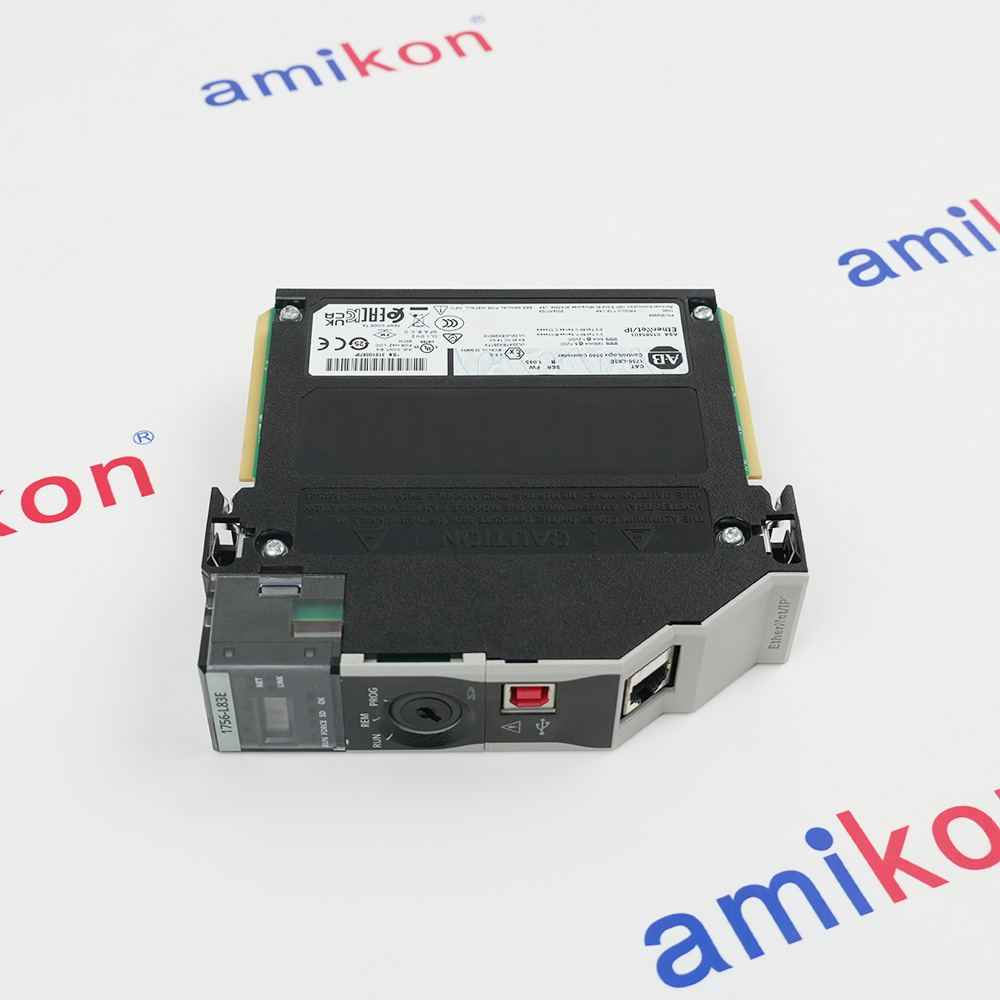

Technical specifications for 1756-L83E
-
Product Model1756-L83E
-
Spare Model1756L83E
-
Product ParametersControlLogix 10MB controller
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x14x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.4 kg
-
Current Draw (1.2 Volts DC)5 milliamps
-
USB Communication Speed:12 Mbps
-
Current Draw (5.1 Volts)1.2 amps
-
Discrete I/O128,000
-
Power Dissipation6.2 Watts
-
User Memory4MB
Description
1756L83E
CONTROLLER
CONTROLLOGIX
10 MB USER MEMORY
USB PORT
1 GB ETHERNET PORT
250 ETHERNET/IP DEVICES
4 CHARACTER ALPHA/NUMERIC DISPLAY
CONTROLLER
CONTROLLOGIX
10 MB USER MEMORY
USB PORT
1 GB ETHERNET PORT
250 ETHERNET/IP DEVICES
4 CHARACTER ALPHA/NUMERIC DISPLAY
Information
Overview
Manuals
Technical notes
Product Applications
Core Instruction Categories
Features:
- ControlLogix 5580 controller
- Conformal Coated Controllers
- 4 CHARACTER ALPHA/NUMERIC DISPLAY
- 1 GB ETHERNET PORT
This controller is also designed with an embedded Ethernet communication port which support auto-negotiation with support for 10/100/100 Mbps transmission rate. Only linear topology may be implemented through this embedded port however, this controller module support addition of communication modules such as EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink and Third-party process and device networks for implementing a more sophisticated communication topology.
The 1756-L83E Allen-Bradley CONTROLLER may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-L83E CONTROLLER Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This controller supports redundancy architecture for increasing the availability of this controller. It enables the system to operate when the primary controller is faulted by automatically switching to the secondary processor. It is also capable of implementing Remote I/O systems with the use of native ControlLogix modules or I/O system such as Flex I/O or POINT I/O. It can also communicate to other Allen-Bradley Programmable Logic Controllers (PLC) such as PLC 5, SLC 500, MicroLogix, and CompactLogix controller through mesaging instructions.
The Allen-Bradley 1756-L83E is a ControlLogix 5580 controller centered on EtherNet/IP communication. It supports 32 tasks where up to 1000 programs/task including event tasks with all event triggers being implemented. The controller has an available user memory for data and logic of 10 MB and an optional non-volatile storage memory. It ships with a 2 GB Secure Digital (SD) card, the 1784-SD2, that is already preinstalled with the controller. The controller also has a non-removable energy storage module that is already embedded in the controller. 2 communication ports are available with the 1756-L83E controller, a Type-B USB port and an embedded EtherNet port.
- High-Speed Packaging Machines:Pharma/food filling, capping & labeling with HMI integration
- Complex Assembly Lines:Manages conveyors & distributed ArmorBlock I/O across long lines
- Skid-Mounted Systems:Compact chemical dosing, water treatment & fuel-filtering skids
- Multi-Axis Motion Systems:Coordinates up to 256 axes for CNC cutting or robotic palletizing
- Process Skids in Hazardous Areas:K/XT versions for oil/gas/chemical harsh environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Relay Ladder Logic (RLL): Standard bit-level instructions (XIC, XIO, OTE) and timers/counters (TON, CTU).
Math & Data Handling: Advanced floating-point math, compute (CPT), and array handling (FAL, COP) for complex algorithms.
Integrated Motion: Specialized instructions like MAG (Motion Axis Gear), MAM (Motion Axis Move), and MAS (Motion Axis Stop) for coordinating up to 256 axes.
Process Control: Built-in Function Block Diagram (FBD) and Structured Text (ST) instructions for PID loops and complex sequencing.
Communication: MSG (Message) instructions for peer-to-peer data exchange across the 1 Gbps Ethernet port.
FAQs
-
What is the 1756-L83E?
+It is a high-performance ControlLogix 5580 programmable automation controller (PAC) designed to execute logic, control I/O, and manage communications for large-scale industrial systems. -
What communication ports are included?
+It has a built-in 1 Gb Ethernet port (supports up to 250 nodes depending on firmware) and a USB port for temporary local programming. -
Does 1756-L83E support motion control?
+Yes, it supports integrated motion over EtherNet/IP for up to 256 axes. -
What 1756-L83E is the power consumption?
+The unit has a current draw of 5 mA at 1.2V DC and 1.2 Amps at 5.1V DC, with a heat dissipation of 21.2 BTU/hr. -
Is this product brand new?
+Yes, AB 1756-L83E is brand new, original, unused, and factory sealed
