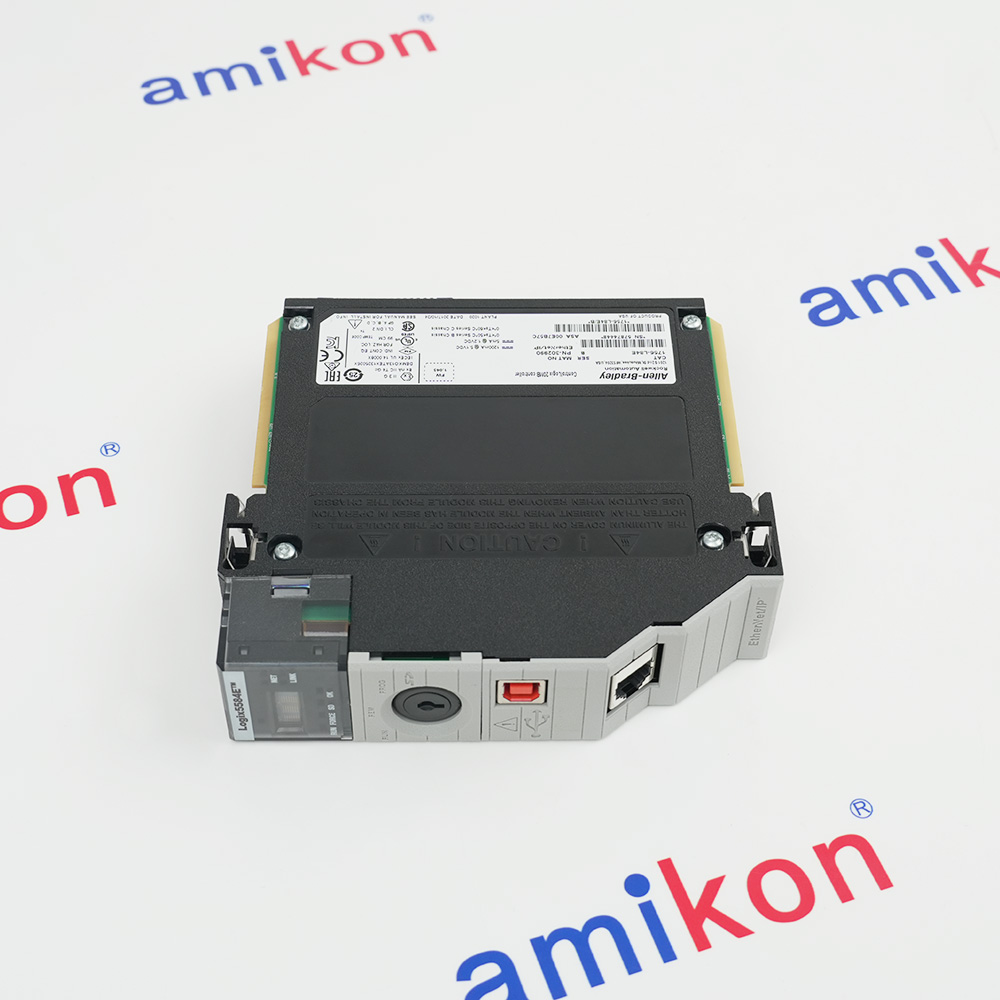

Technical specifications for 1756-L84E
-
Product Model1756-L84E
-
Spare Model1756L84E
-
Product ParametersControlLogix 20MB controller
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x14x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.4 kg
-
SeriesControlLogix 5580
-
User Memory40 MB
-
Max I/O CapacityUp to 256 module
-
Power Supply5ma @ 1.2V DC, 1.20A @ 5.1V DC
-
Power Consumption8W (typical)
-
Operating Temp0°C to 60°C (32°F to 140°F)
Description
CONTROLLER
CONTROLLOGIX
20 MB USER MEMORY
USB PORT
1 GB ETHERNET PORT
250 ETHERNET/IP DEVICES
4 CHARACTER ALPHA/NUMERIC DISPLAY
CONTROLLOGIX
20 MB USER MEMORY
USB PORT
1 GB ETHERNET PORT
250 ETHERNET/IP DEVICES
4 CHARACTER ALPHA/NUMERIC DISPLAY
Information
Overview
Manuals
Technical notes
Product Applications
Software Requirements
Features:
- 128K DI/4K AI
- Ethernet & USB
- Local & Dist I/O
- 20MB + SD
- No battery needed
It supports local I/O control as well as implementation of distributed I/O architecture utilizing one or more communication protocols such as EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink, and Third-party process and device networks
The 1756-L84E Allen-Bradley ControlLogix controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-L84E ControlLogix controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1756-L84E comes with integrated communication port such as One (1) Ethernet I/P. This embedded port supports 10/100/1000 Mbps transmission speed and may be used to communicate with Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA) and other controllers through messaging instructions within the same Ethernet network. The USB port is a USB 2.0 that supports 12 Mbps communication speed.
The 1756-L84E has a built-in user memory amounting to 20MB. An expansion non-volatile memory may be installed with the use of 1784-SD2 which is a 2GB Secure Digital (SD) card. This controller does not require a battery to retain the contents of the volatile memory as it comes with the modern energy storage solution, eliminating the need for use of batteries, making the controller user and environmentally friendly.
- Automotive & Heavy Industry: Massive I/O for assembly lines
- Food & Beverage: High-speed packaging control
- Oil, Gas & Chemical: Process & safety control (SIL)
- Water & Wastewater:Distributed I/O, plant-wide mgmt
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Studio 5000 Logix Designer: You generally need Version 28 or higher to support the 5580 family features.
Firmware: New controllers ship with "boot" firmware. Use the ControlFlash or ControlFlash Plus utility to flash the latest firmware revision via the USB port or Ethernet.
FAQs
-
What is the 1756-L84E?
+It is a high-performance Programmable Automation Controller (PAC) from the ControlLogix 5580 family, designed for large-scale industrial systems, real-time processing, motion control, and safety, with an integrated 1 Gb Ethernet port. -
How many I/O points does it support?
+It supports a maximum of 128,000 discrete I/O points and 4,000 analog I/O points. -
What is 1756-L84E the power draw?
+The controller draws 5 mA at 1.2 VDC and 1.2 A at 5.1 VDC. -
1756-L84E vs 1756-L81E?
+The main difference is memory capacity; the 1756-L84E has 20 MB, while the 1756-L81E has 3 MB.
