1756-L85E
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

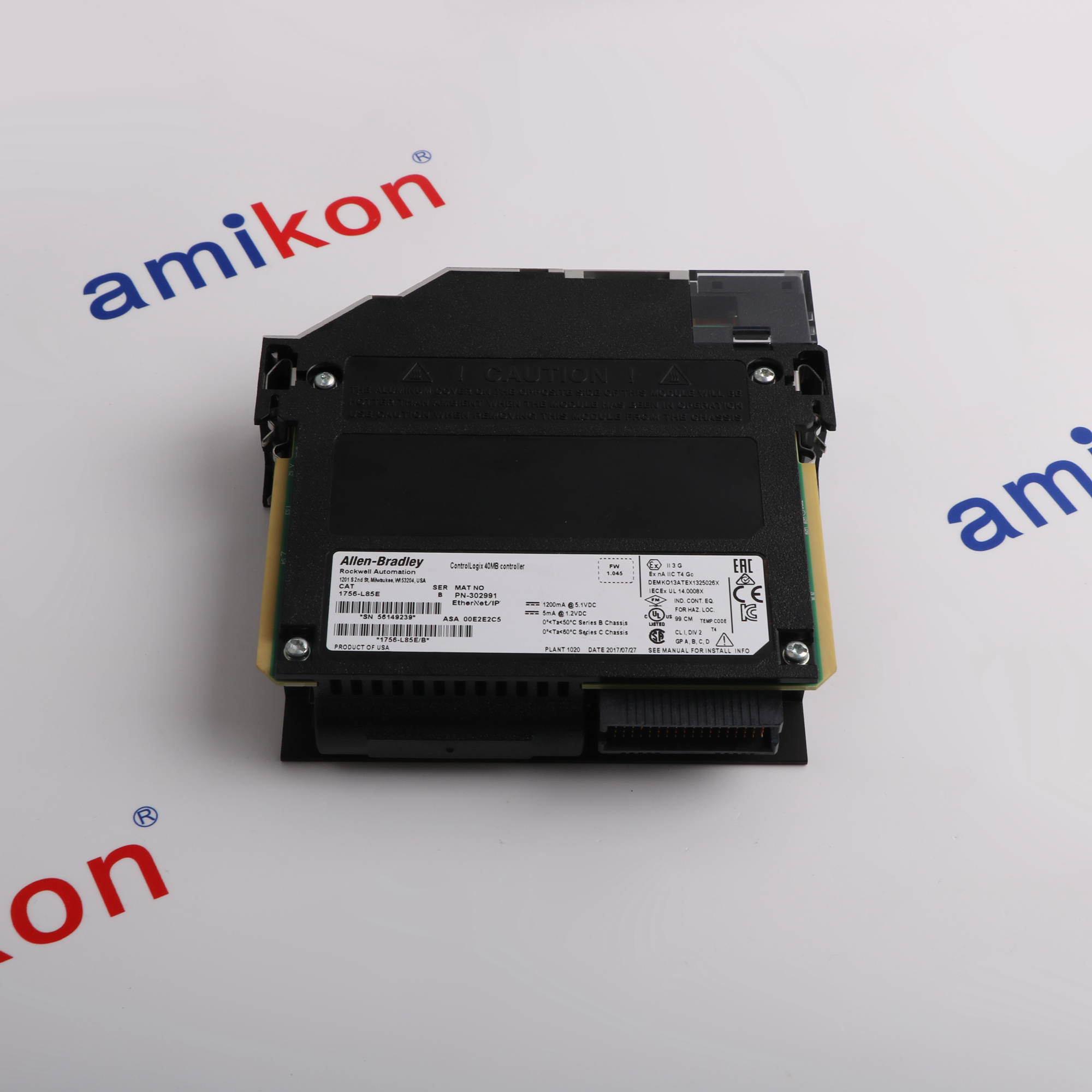

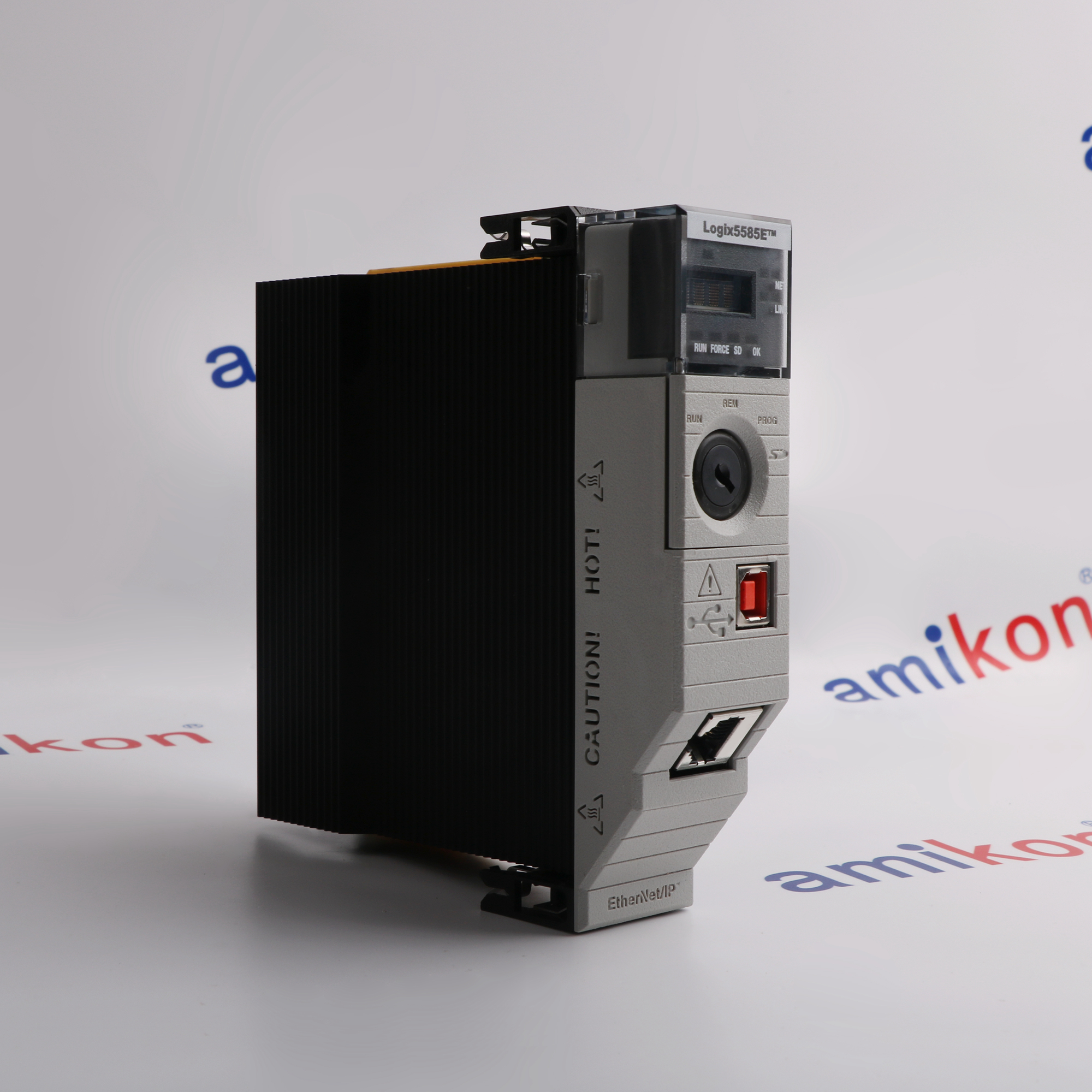

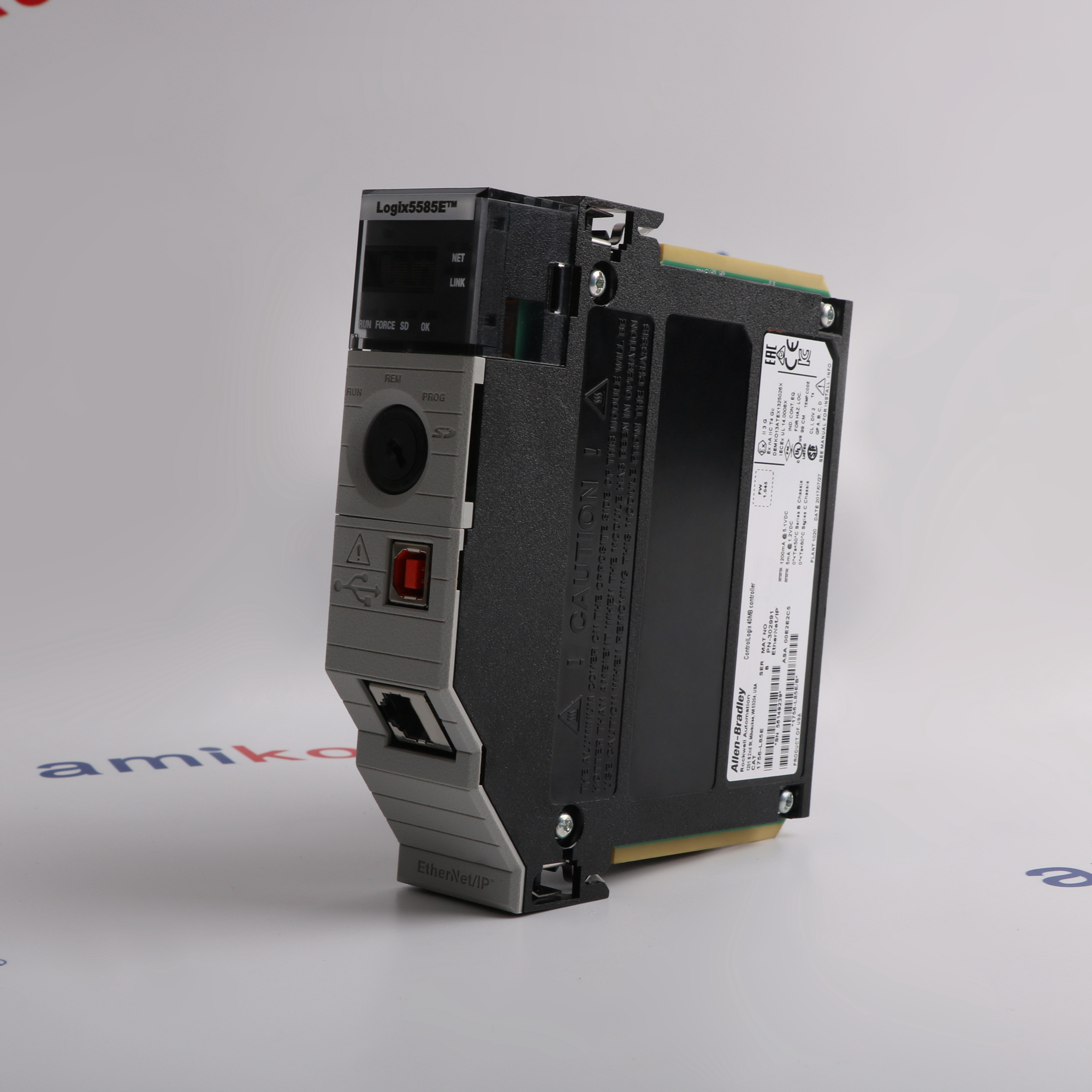

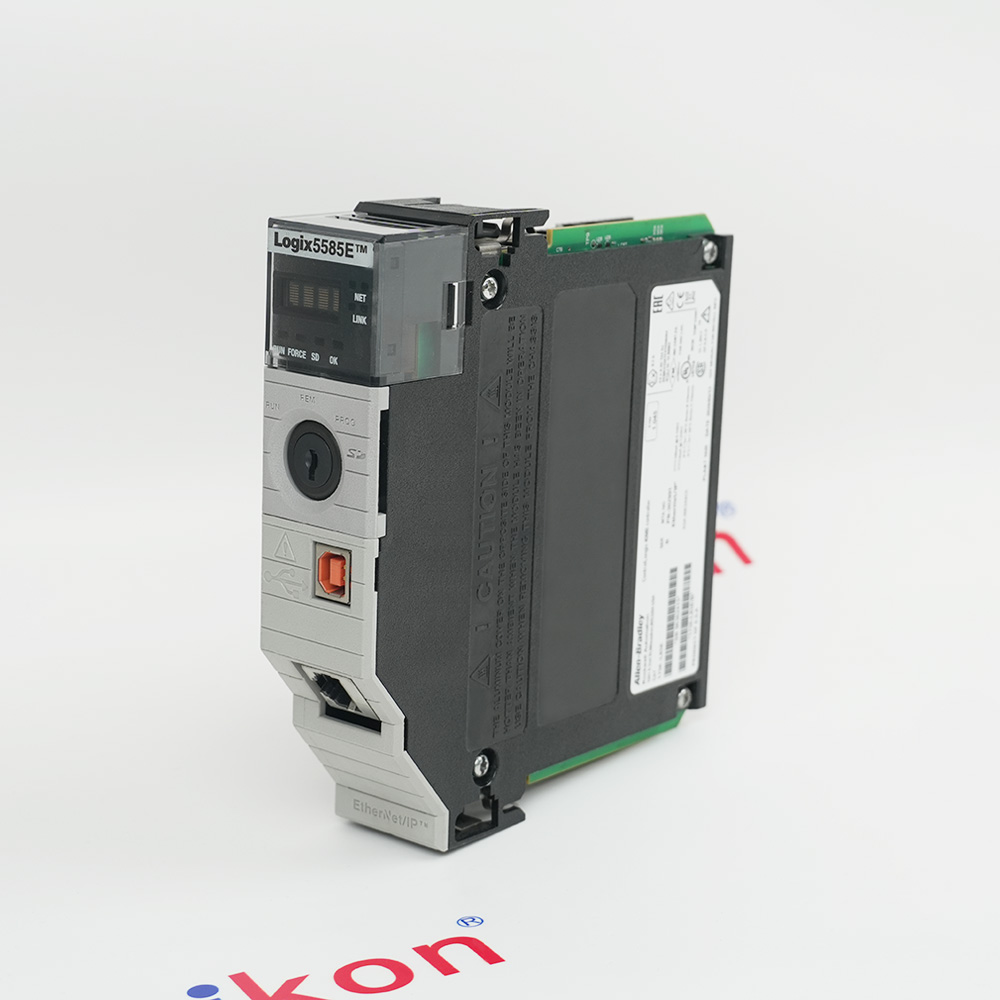

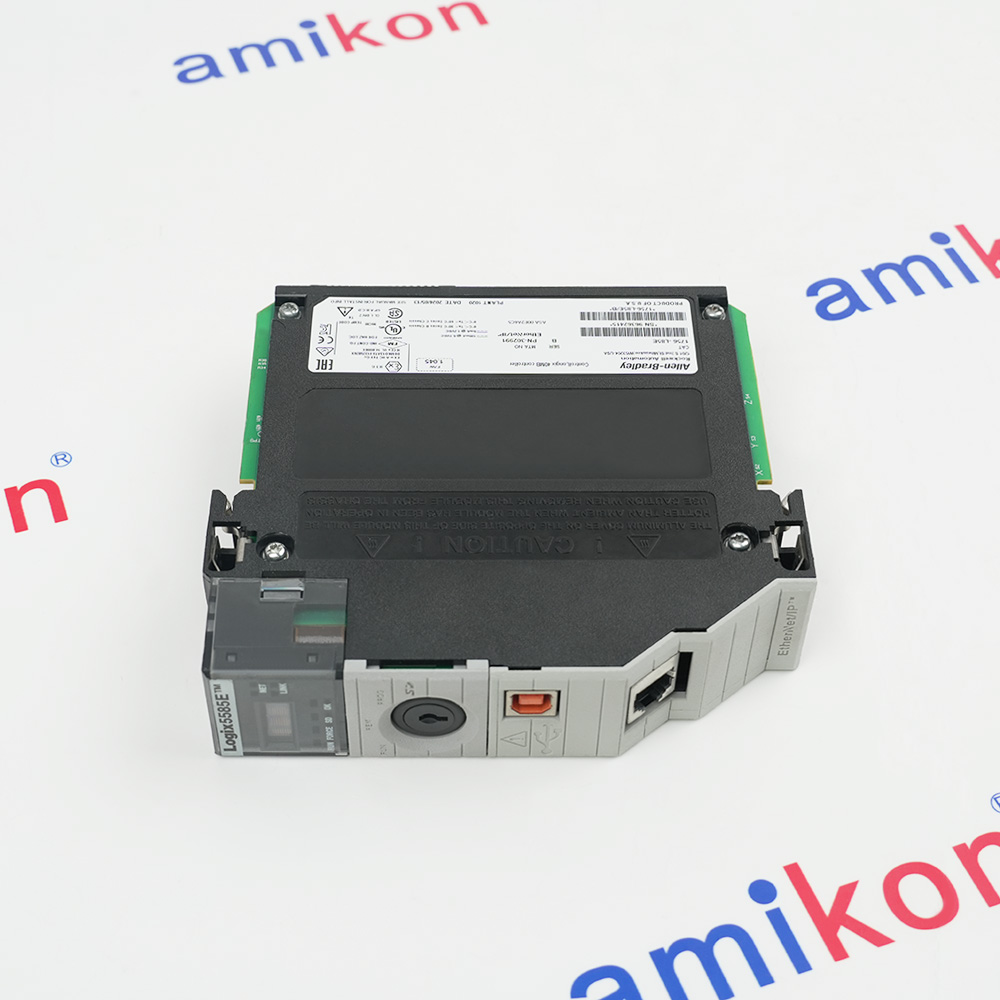

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
Series:ControlLogix
Tasks:32
Module Type:Processor Module
Communications:USB, Ethernet
User Memory:4MB
Analog I/O:4,000
Discrete I/O:128,000
Power Dissipation:6.2 Watts
Thermal Dissipation:21.2 BTU-hour
Isolation Voltage:50 Volts Continuous
Backplane Current (1.2 Volts DC):5 mA
Tasks:32
Module Type:Processor Module
Communications:USB, Ethernet
User Memory:4MB
Analog I/O:4,000
Discrete I/O:128,000
Power Dissipation:6.2 Watts
Thermal Dissipation:21.2 BTU-hour
Isolation Voltage:50 Volts Continuous
Backplane Current (1.2 Volts DC):5 mA
Technical specifications for 1756-L85E
-
Product Model1756-L85E
-
Spare Model1756L85E
-
Product ParametersControlLogix 40MB controller
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x14x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.4 kg
-
Backplane Current (5.1 Volts DC)1.2 mA
-
Nonvolatile Memory2 GB (1784-SD2 ships with every controller)
-
Communication Speed12 MB-Second
-
USB Port CommunicationProgramming, configuration, and on-line edits
-
Ethernet Communication Speed10/100/1000 Mbps
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 1756-L85E?+It is a ControlLogix 5580 controller featuring 40 MB of user memory, a USB port, and a 1 GB embedded Ethernet port. It is designed for high-performance applications, offering superior speed and memory compared to the 5570 series.
-
What software is required?+The 1756-L85E is programmed using Studio 5000 Logix Designer application (version 28 or later is recommended).
-
What 1756-L85E communication protocols are supported?+It supports EtherNet/IP, DeviceNet, SynchLink, and Data Highway Plus.
-
What are the power requirements?+The controller draws 5.0 mA @ 1.2V DC and 1.20 A @ 5.1V DC.
Get a quick price fo 1756-L85E
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Instruction
Features:
- ControlLogix 5580 Processor 40Mb
- ControlLogix 1756
- support up to 300 EtherNet/IP nodes
- 1 USB port and an embedded Ethernet port
The processing speed of the 1756-L85E controller is superior to other controllers in the series, and its built-in communication ports consist of 1 USB 2.0 port and 1 RJ-45 10/100/1000 Mbps Gigabit EtherNet port. It can support up to 300 EtherNet/IP nodes, 4,000 analog I/O, and 128,000 digital I/O.
The 1756-L85E Allen-Bradley Processor Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-L85E Processor Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1756-L85E can withstand an operating vibration of 2g at 10-500 Hz, an operating shock of 30g, and a nonoperating shock of 30g. It is UL-listed for use in the US and Canada, UL-marked for Class I, Division 2 Group A, B, C, and D hazardous locations, and CE-certified for use in the EU. The 1756-L85E has no enclosure.
The Allen-Bradley 1756-L85E is the top of the line ControlLogix controller from the latest controller release. It features a 40MB user memory, with Discrete I/O capacity maintained at 128,000 and Analog I/O of 4000. This controller can implement a total of 32 tasks where up to 1000 programs per task may be embedded. By defining tasks, user program can be effectively segmented and prioritized depending of the intended sequence of execution.
This embedded Ethernet communication port of this controller support up to 1GB ethernet communication with auto-negotiation feature and may be configured using BOOTP-DHCP and assigned as dynamic or static IP address.
- Water/Wastewater:Automates pumping stations & monitors flow, pH, and turbidity
- Food & Beverage:Filling lines & batching systems with strict regulatory adherence
- Life Sciences:Precise process control in pharma manufacturing where data integrity is critical
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Align the circuit board with the top and bottom chassis guides. Slide the module into the slot and press firmly until it seats into the backplane.
SD Card Installation: Open the door on the controller’s front panel. Insert the SD card with the contact end first (contacts on the right, label on the left) and press until it clicks.
ESD Precautions: Always touch a grounded object or wear a grounded wrist strap to prevent electrostatic discharge when handling the controller.
