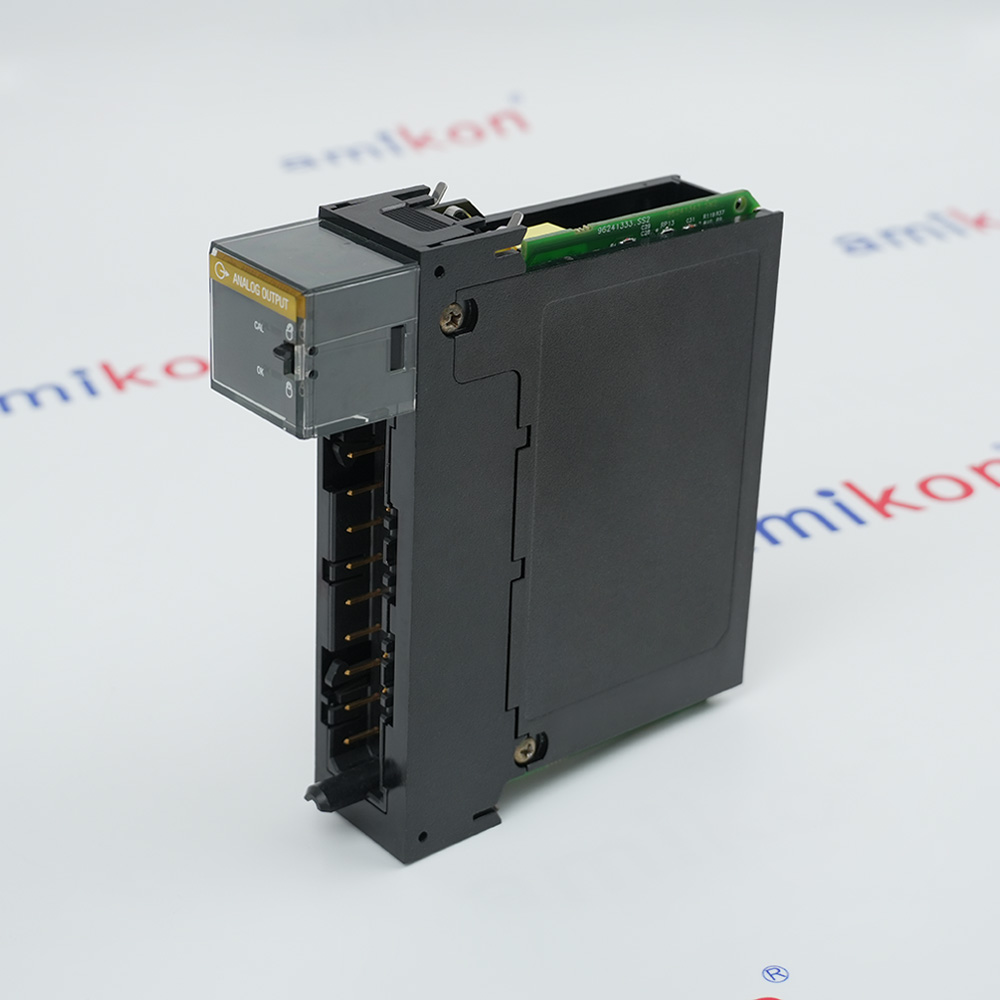

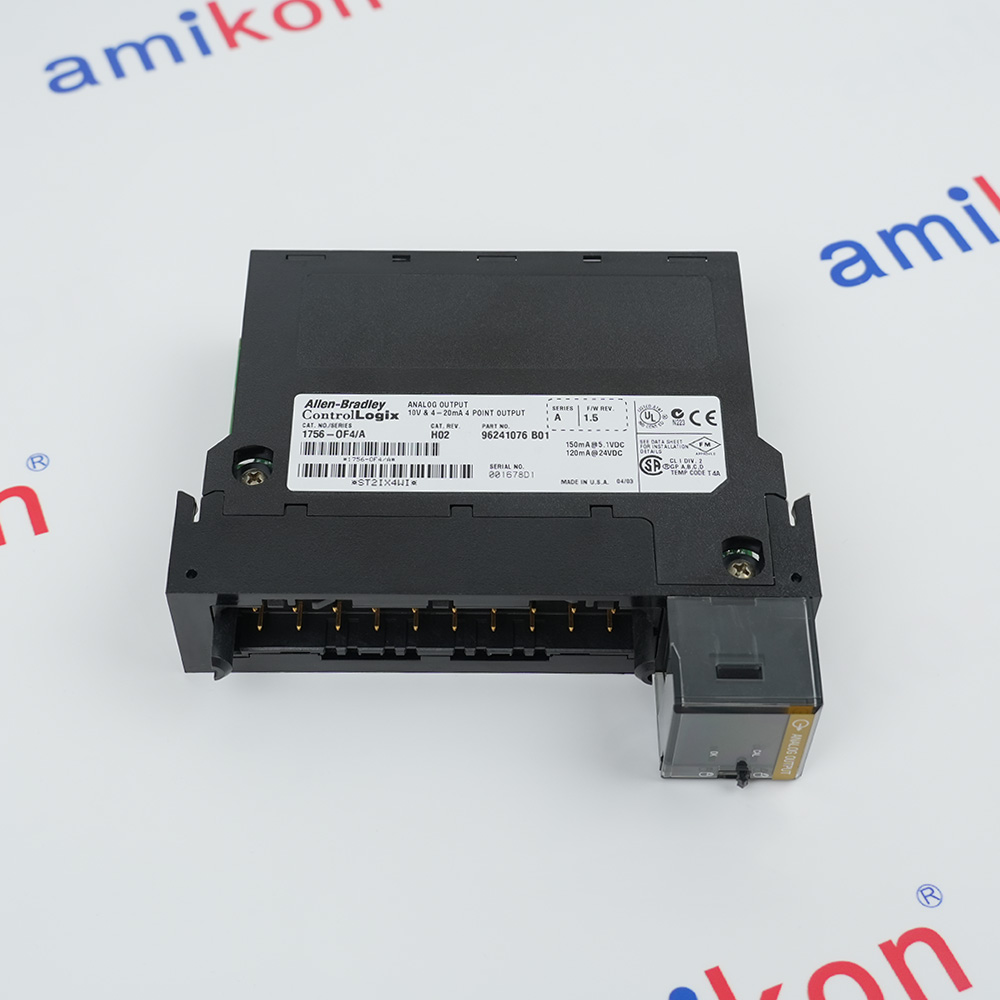

Technical specifications for 1756-OF4
-
Product Model1756-OF4
-
Spare Model1756OF4 1756-OF4/A
-
Product ParametersControlLogix Analog Output Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x14.3x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.25 kg
-
Backplane5.1V DC, 200 mAmax, 24V DC, 155 mA max
-
Output Voltage-10…+10V
-
Output Current0…20 mA
-
Temperature, operating0 °C< Ta < 60 °C (32 °F< Ta < 140 °F)
-
Temperature, surrounding air, max60 °C (140 °F)
-
Isolation voltage250V (continuous)
-
Temperature codeT4
Description
The 1756-OF4 output module manufactured by Allen Bradley is a key component of the ControlLogix series. This module is equipped with four outputs capable of producing voltage or current. It can function across a range of output voltage from -10 to 10 volts and supports an output current range of 4 to 20 mA, making it suitable for various applications.
This module complies with specific backplane ratings, supporting either 5.1V DC at 150 mA or 24V DC at a maximum of 210 mA. It requires a total backplane power of 5.8 watts, with the backplane power consumption recorded at 3.7 watts. In terms of thermal management, the output module has a thermal dissipation of 10.91 BTU per hour, which speaks to its efficiency under load.
This module complies with specific backplane ratings, supporting either 5.1V DC at 150 mA or 24V DC at a maximum of 210 mA. It requires a total backplane power of 5.8 watts, with the backplane power consumption recorded at 3.7 watts. In terms of thermal management, the output module has a thermal dissipation of 10.91 BTU per hour, which speaks to its efficiency under load.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Module Insertion
Features:
- Four single-ended analog output channels
- Supports ±10 VDC and 0–20 mA output ranges
- 15-bit output resolution
- IEEE 32-bit floating-point and 16-bit integer data formats
The 1756-OF4 features 15-bit resolution with 320 µV/bit voltage resolution and 650 nA/bit current resolution. Output accuracy is better than 0.05% of range for calibrated units, with module error of 0.15% for voltage and 0.3% for current. Offset drift is 50 µV/°C (voltage) and 100 nA/°C (current); gain drift is 25 ppm/°C (voltage) and 50 ppm/°C (current). Settling time to 95% of final value is less than 2 ms.
The module draws 150 mA from the 5.1V DC backplane and 120 mA from the 24V DC backplane, for a total backplane power of 5.8 W. Maximum power dissipation is 3.25 W for 4-channel current output or 4.9 W at 60°C. Thermal dissipation is rated at 10.91 BTU/hr.
The 1756-OF4 Allen-Bradley ControlLogix Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-OF4 ControlLogix Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module provides four independently configurable single-ended output channels, each capable of generating either ±10 VDC or 0–20 mA signals. The output type for each channel is configured within Studio 5000 Logix Designer (formerly RSLogix 5000), allowing the module to support a wide range of industrial analog control applications.
The 1756-OF4 supports both IEEE 32-bit floating-point and 16-bit integer data formats for seamless integration with ControlLogix controllers. Real-time channel sampling ensures timely updates of output values, while onboard diagnostics continuously monitor module operation and report status information to the controller for simplified troubleshooting and maintenance.
- Water/Wastewater: Regulates chemical dosing pump speeds and effluent valve positioning
- Oil/Gas/Petrochemical: Manages pressure loops and controls burner gas-feed systems precisely
- Food/Beverage: Adjusts cooking/mixing temperatures via steam control valves with PID logic
- Power Generation: Drives steam governor actuators and integrates cooling tower fan speed systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Align the Module: Align the circuit board of the 1756-OF4 with the top and bottom card guides in the ControlLogix chassis.
Slide In: Slide the module back until the module's edge connector fully engages with the chassis backplane connector.
Lock: Push and click the top and bottom locking tabs to secure the module in place.
Alternative Names
1756-0F4
1756OFA
I756OF4
1756-OFA
I756-0FA
17560F4
I756-OF4
1756OF4
I7560FA
Technical notes
Drive capability is > 2000 Ω for voltage outputs and 0–750 Ω for current outputs. Isolation voltage is 250V continuous (reinforced insulation type) between output channels and backplane, with no isolation between individual output channels. The module is routinely tested at 1350 V AC for 2 seconds.
Data formats include integer mode (left justified, 2's complement) and IEEE 32-bit floating point. The R-Ladder DAC conversion method ensures monotonicity with no missing codes. Module scan time is 12 ms in floating point mode and 8 ms in integer mode.
FAQs
-
What is the 1756-OF4?
+The Allen-Bradley 1756-OF4 is a ControlLogix 4-channel analog output module. It provides individually configurable voltage (± 10V) or current (4...20mA) signals to control devices like valves and motor drives. -
Why is my current output stuck or failing to reach full scale?
+This is typically caused by channel limit settings. Check the Configuration and Limits tabs for the channel in RSLogix/Studio 5000. The low and high signal limits (clamping limits) might be set to a low default value instead of the required 0 and 20mA or 4mA and 20mA. -
What are the module's resolution specifications?
+The 1756-OF4 features 15-bit resolution. For voltage, this is 15 bits across 10.5V (320 μV/bit); for current, it is 15 bits across 21mA (650nA/bit). -
Why might the module show spurious Channel 0-3 faults on rev B?
+Some 1756-OF4/B units exhibit false channel faults. During this condition, the outputs freeze at their last commanded output (not hold last state). Recovery requires power cycling the module (RIUP) or performing a reset via Logix Designer.
