Technical specifications for 1756-PA75
-
Product Model1756-PA75
-
Spare Model1756PA75
-
Product ParametersControlLogix AC Power Supply
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size11x14.3x14cm
-
ManufacturerAllen-Bradley
-
Weight0.9 kg
-
Input voltage range85…265V AC
-
Input voltage, nom120V/240V AC
-
Input frequency range47…63 Hz
-
Input power, max100VA/100 W
-
Output power, max75 W @ 0…60 °C (32…140 °F)
-
Current capacity @ 1.2V DC1.5 A
-
Current capacity @ 3.3V DC4 A
-
Current capacity @ 5.1V DC13 A
Description

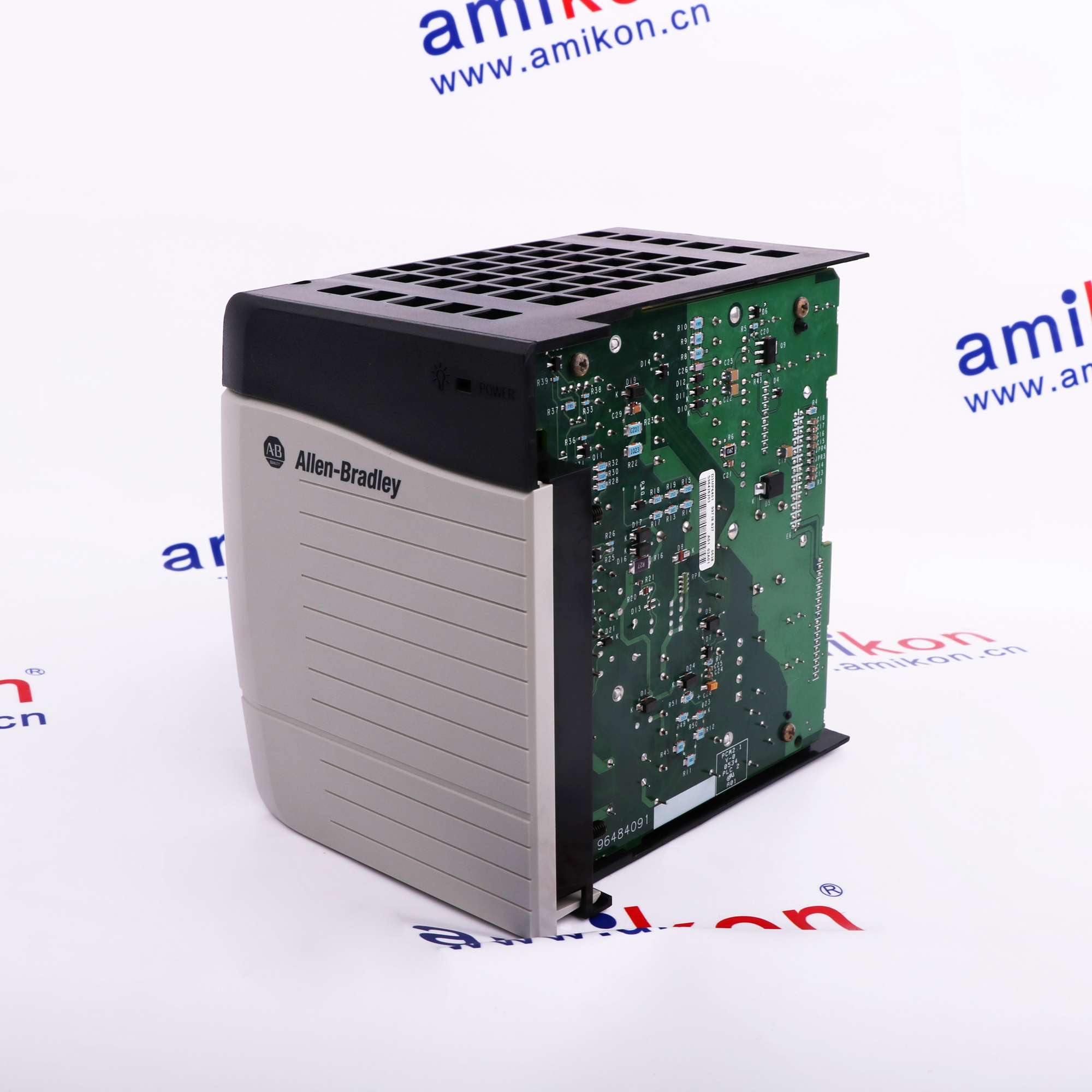

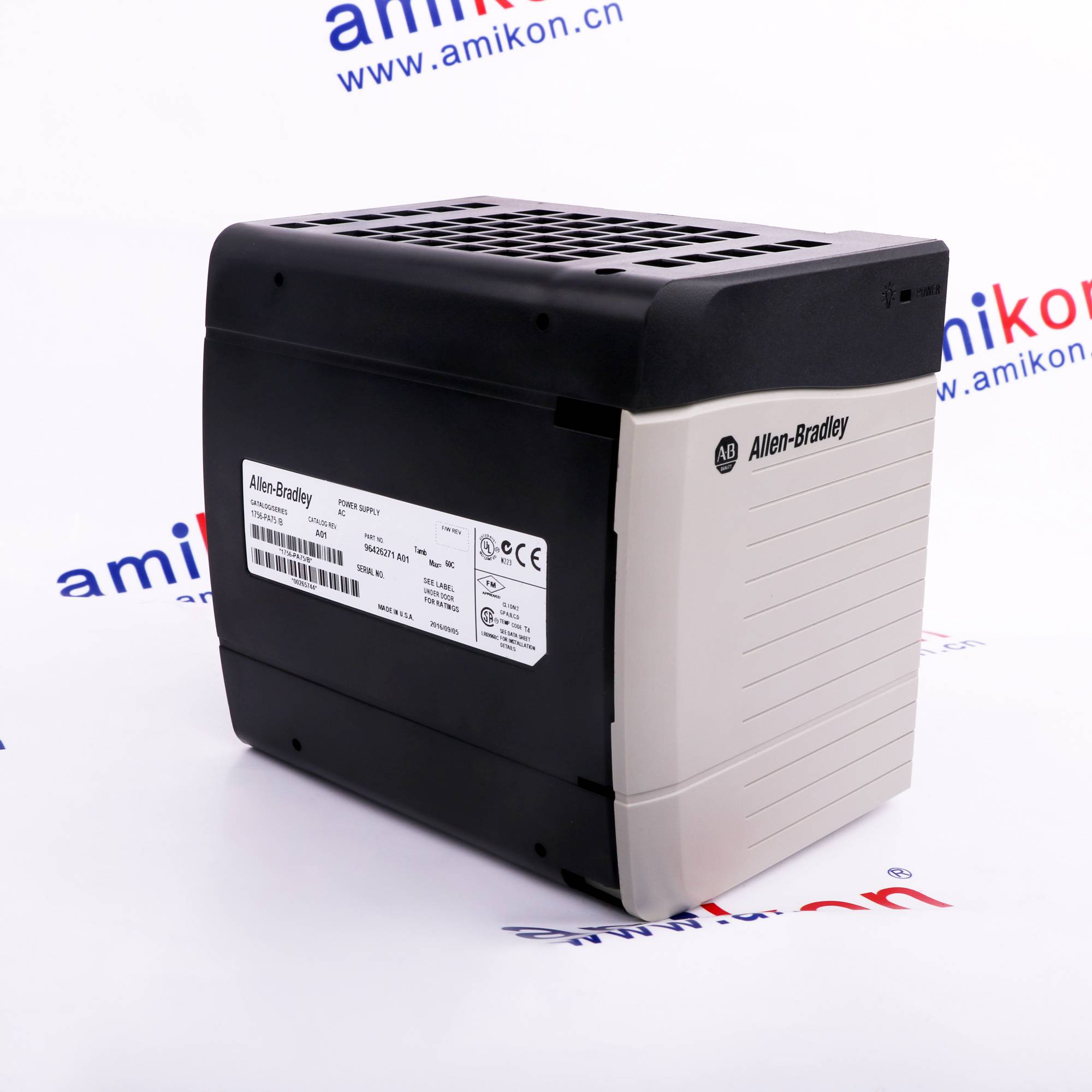

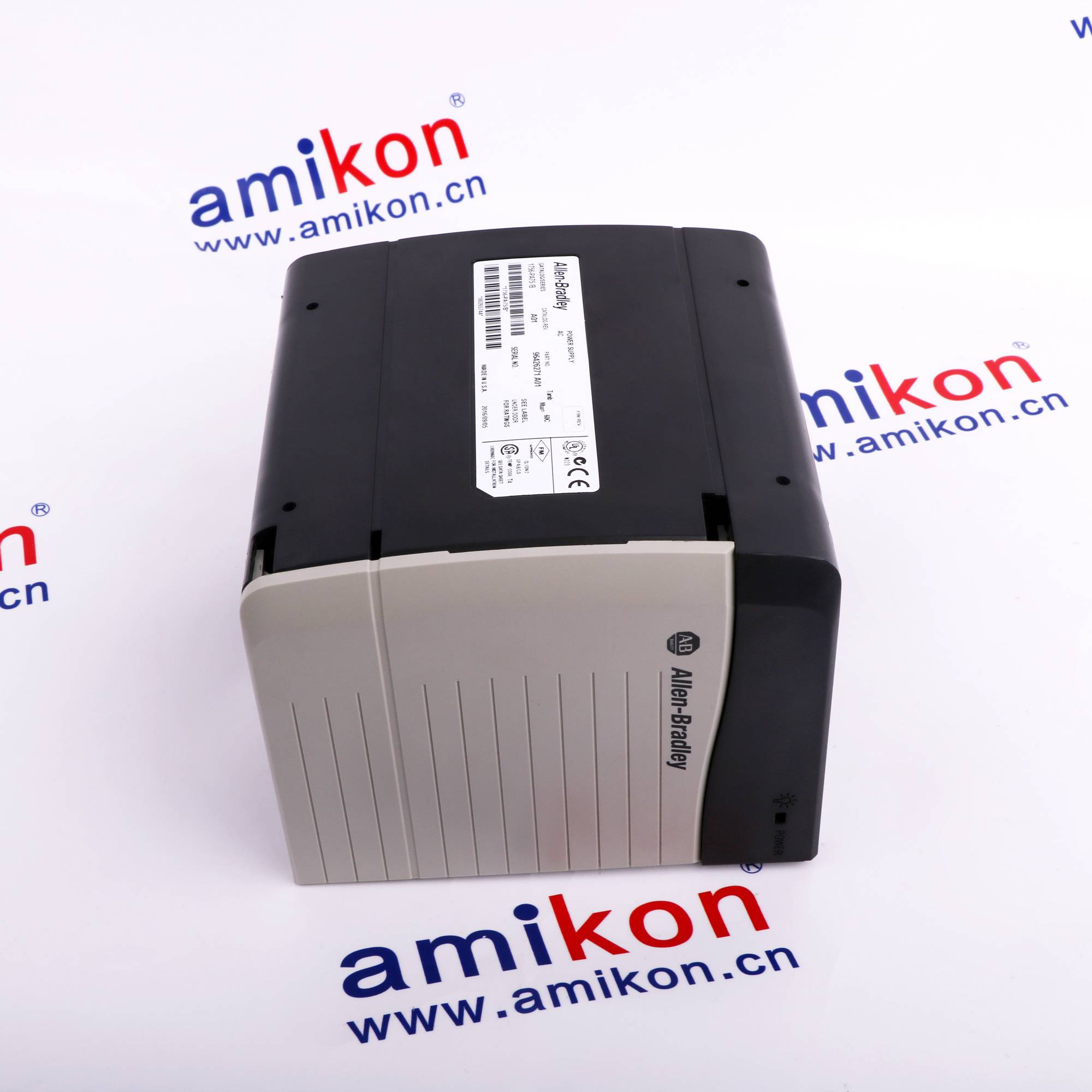

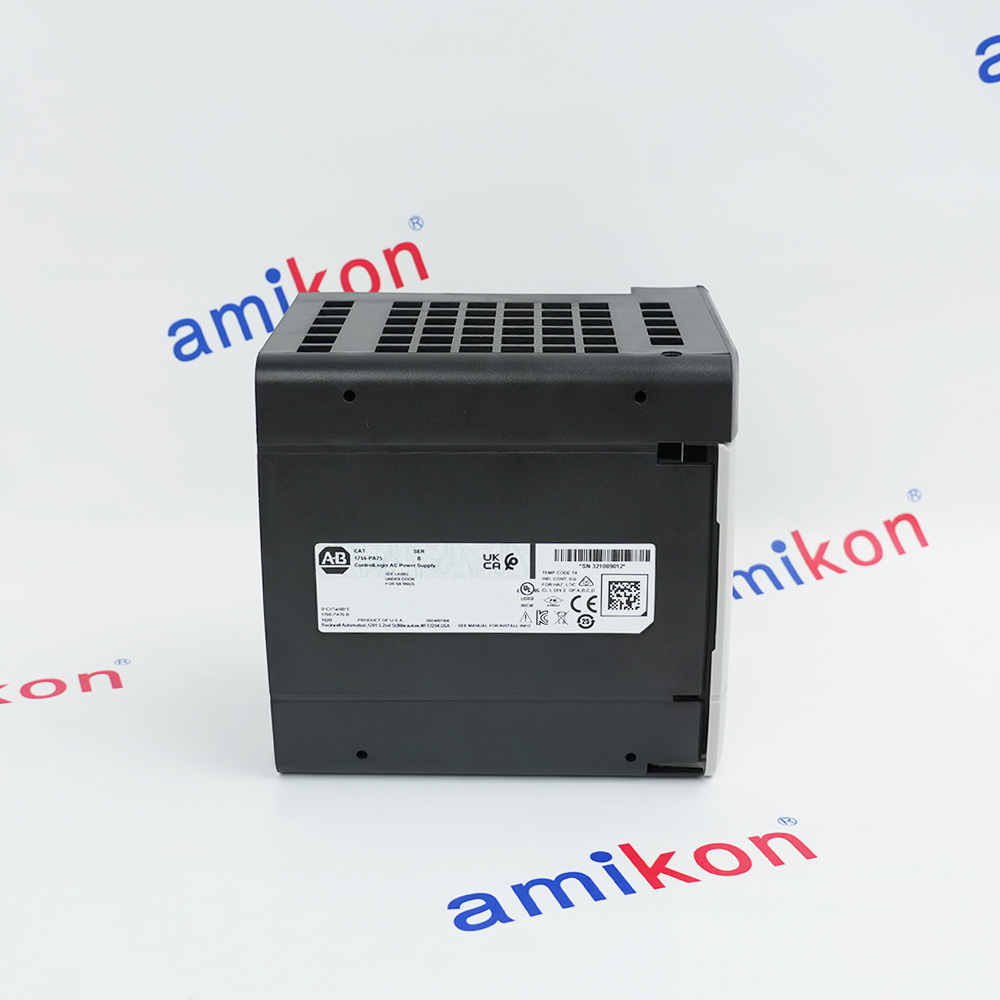

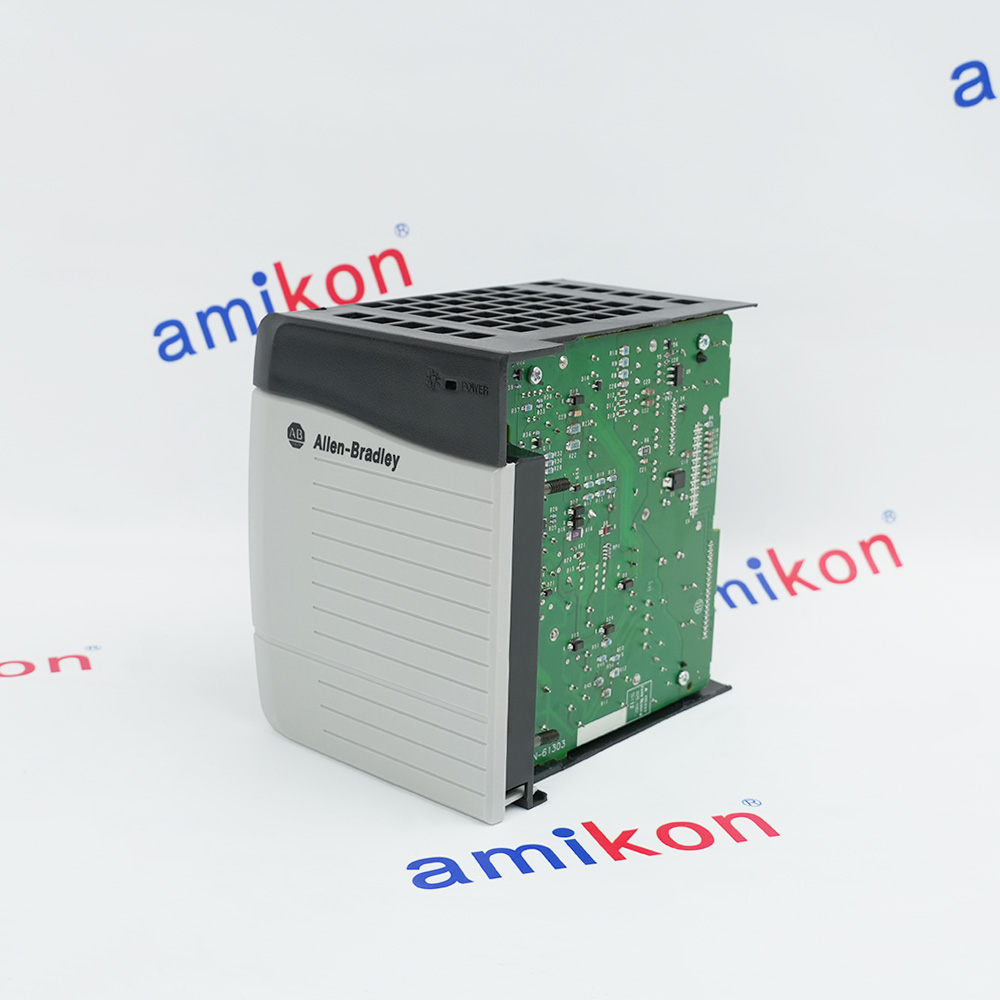

The 1756-PA75 is a ControlLogix standard AC power supply from Allen-Bradley (Rockwell Automation), designed to deliver reliable power to the backplane of a 1756 chassis. The 1756-PA75 is externally powered by an input voltage range of 85-265V AC at 47-63 Hz, with nominal input voltages of 120V/240V AC, making it suitable for global industrial applications across various power grid standards.
The 1756-PA75 provides all regulated voltages necessary for any ControlLogix module to operate in the chassis, supplying four DC output voltages directly to the backplane: 1.2V DC at 1.5A, 3.3V DC at 4A, 5.1V DC at 13A, and 24V DC at 2.8A. The 1756-PA75 delivers a maximum output power of 75W when operated at 0…+60°C (+32…+140°F), making it the default choice for medium and larger ControlLogix systems requiring higher current capacity.
The 1756-PA75 provides all regulated voltages necessary for any ControlLogix module to operate in the chassis, supplying four DC output voltages directly to the backplane: 1.2V DC at 1.5A, 3.3V DC at 4A, 5.1V DC at 13A, and 24V DC at 2.8A. The 1756-PA75 delivers a maximum output power of 75W when operated at 0…+60°C (+32…+140°F), making it the default choice for medium and larger ControlLogix systems requiring higher current capacity.
Revisions
Revision Part #
Also known as
Alternative Names
1756 PA75
I756-PA75
Information
Overview
Manuals
Technical notes
Product Applications
Key Protection & Safety Functions
Features:
- 75W output power rating
- 3.3V/5.1V/24V DC outputs
- 85-264VAC input range
The 1756-PA75 Allen-Bradley ControlLogix Power Supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-PA75 ControlLogix Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1756-PA75 is compatible with a variety of ControlLogix chassis such as 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 and of chassis series, particularly Series B and Series C. if operating input supply to the 1756-PA75 is suddenly interrupted, this standard power supply provides a hold-up time of 2 cycles @ 85V AC, 60 Hz 6 cycles @ 120V AC, 60 Hz 20 cycles @ 220V AC, 60 Hz. Additionally, it has an isolation voltage of rating of 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested at 3500V DC for 60 s.
The Allen-Bradley 1756-PA75 comes with a current capacity at 5.1V of 13 A. This power supply must be mounted on the left side of 1756 chassis and it has a non-replaceable fuse that intended to guard against fire hazards from short circuits. The 1756-PA75 is intended for use in Pollution Level 2 Industry Environments and in excessive Category II applications (as defined in the publication of IEC 60664-1). Note that the 1756-PA75 power supply can operate at an altitude of up to 2000 meters without derating.
- Automotive Industry: Supporting complex assembly lines and robotic workstations
- Oil & Gas: Pump station monitoring and pipeline control
- Food & Beverage Processing: Automated packaging lines and filling systems
- Power & Water Treatment: Key logic control such as pump switching and remote monitoring
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Electronic Crowbar Circuit: Protects against over/under voltage and current conditions by activating a short circuit/low resistance path, forcing output to zero volts to prevent damage.
Power Cycling Reset: If the crowbar circuit engages, the power supply must be cycled to reset protection.
Hold-Up Time: Maintains power during short interruptions: 2 cycles @ 85V AC, 6 cycles @ 120V AC, and 20 cycles @ 220V AC (60 Hz).
Technical notes
The 1756-PA75 mounts on the left side of the 1756 chassis and is compatible with Series B and Series C chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 configurations. The 1756-PA75 has an open-style enclosure (none) with convection cooling, and operates in an ambient temperature range of 0…60°C (32…140°F) with storage temperatures from -40…85°C (-40…185°F).
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
FAQs
-
What is the 1756-PA75?
+The Allen-Bradley 1756-PA75 is a standard AC power supply module for the ControlLogix system, providing regulated DC power to the chassis backplane. -
What is the difference between 1756-PA75 and 1756-PB75?
+The PA75 is AC-powered (85–264V AC), whereas the PB75 requires an external DC supply (18–32V DC) -
What is the input voltage range of the 1756-PA75?
+The 1756-PA75 has a wide input voltage range of 85–265V AC (nominal 120/240V AC) and a frequency range of 47–63 Hz. -
What is the maximum output power of the 1756-PA75?
+The module can provide a maximum power of 75 W in a temperature range of 0–60 °C (32–140 °F). -
Does it require an external fuse?
+Yes. It is recommended to use a 15 A time-delay type fuse in all ungrounded power connections for external overcurrent protection.
