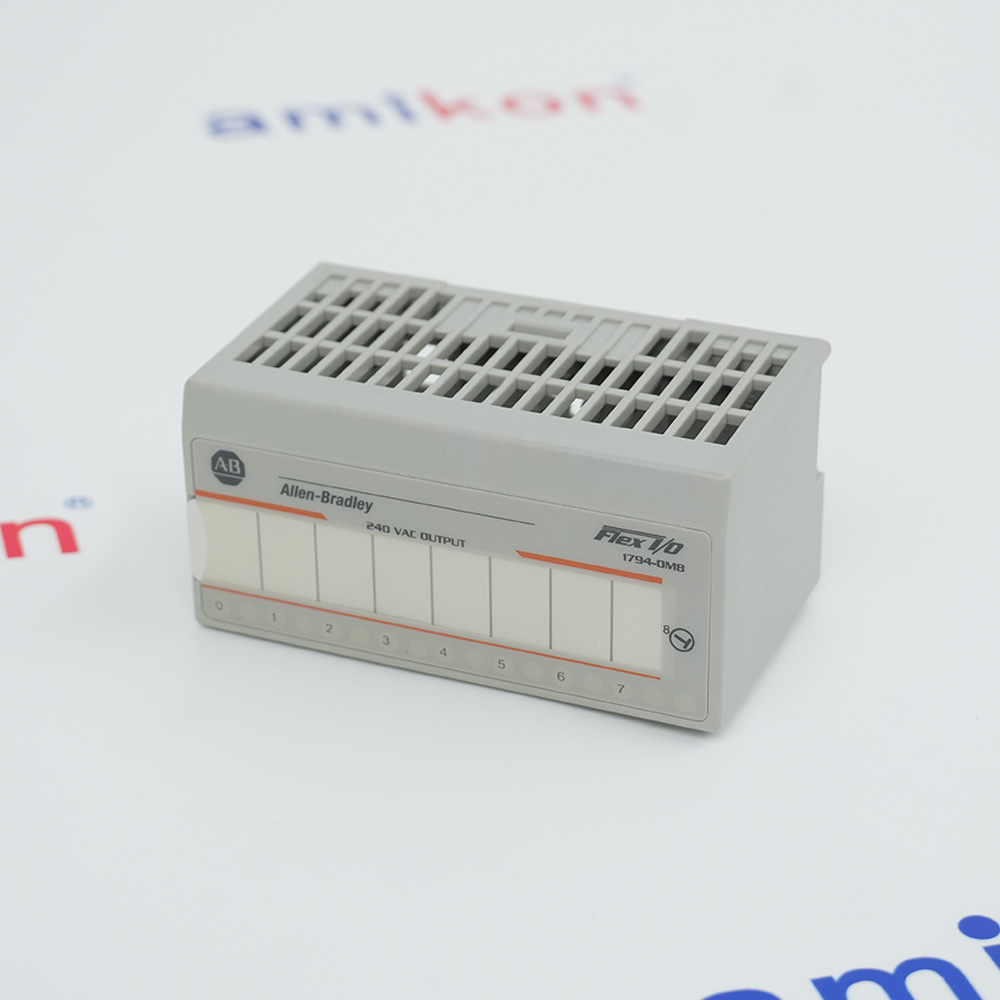

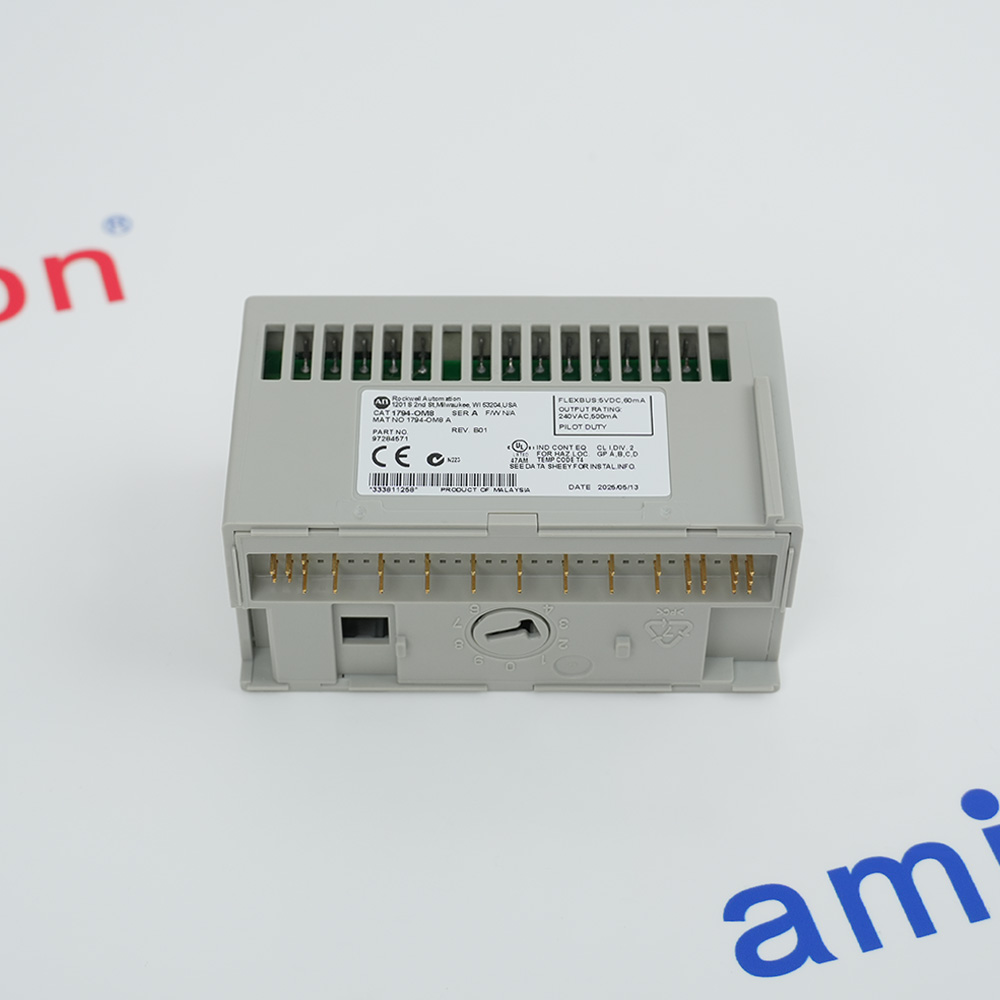

Technical specifications for 1794-OM8
-
Product Model1794-OM8
-
Spare Model1794-OM8/A
-
Product ParametersDigital Output Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6.7x8.6x6.8cm
-
ManufacturerAllen-Bradley
-
Weight0.22 kg
-
Number of outputs8, nonisolated
-
Output voltage Min159V AC
-
Output voltage Nom240V AC
-
Output voltage Max264V AC
-
Output current rating4.0 A (8 outputs @ 500 mA)
-
On-state voltage drop, max1.5V AC @ 0.5 A
-
Surge current7 A for 40 ms each
-
Off-state leakage, max2.5 mA
-
Flexbus current60 mA @ 5V DC
-
Power dissipation, max5.0 W @ 0.5 A
-
Thermal dissipation, max17.1 BTU/hr @ 0.5 A
Description
1794OM8
OUTPUT MODULE
FLEX I/O
DISCRETE
AC
16 POINTS
220VAC OUTPUT
OPEN STYLE
DIN MOUNT
OUTPUT MODULE
FLEX I/O
DISCRETE
AC
16 POINTS
220VAC OUTPUT
OPEN STYLE
DIN MOUNT
Information
Overview
Manuals
Technical notes
Product Applications
Installation Steps
Features:
- 8-Point Discrete Configuration
- High-Voltage AC Output
- Modular FLEX I/O Architecture
- Zero-Cross Switching Technology
- Flexible Terminal Base Support
The Allen Bradley 1794-IE12 module is a reliable input component from the Flex I/O 1794 series. It operates within a nominal power supply voltage range of 10.5 to 31.2 volts DC, with a typical rating of 24 volts DC and a FLEXBus current requirement of 80 mA.
The 1794-OM8 Allen-Bradley Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1794-OM8 Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A key technical advantage of the 1794-OM8 is its integration into the FLEX™ I/O platform, which prioritizes space efficiency and ease of maintenance. The module is designed to mount onto a terminal base that remains permanently wired, allowing the electronic module itself to be swapped out quickly in the event of a failure without disturbing the field wiring. This "Hot-Swap" capability is critical for reducing downtime in continuous process industries such as food and beverage, pharmaceuticals, and manufacturing.
- Packaging & Bottling Lines:Flow meters for filling; temp sensors for sealing
- Assembly Automation Systems:Torque/vibration/temp data for auto/electronics assembly
- Fluid Handling & Chemical Dosing Systems:pH & flow monitoring for water/pharma plants
- Remote Wellhead Equipment:Pressure & flow analog signals from remote oil/gas sites
- Industrial HVAC Units:Analog inputs for large-scale climate control machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mount the Terminal Base: Position the terminal base on a 35 x 7.5mm DIN rail and rotate it to lock onto the rail.
Configure Keyswitch: Set the keyswitch (1) on the terminal base to position 8 to match the 1794-OM8 module.
Attach Module: Align the 1794-OM8 module with the terminal base, ensuring the pins are straight, and press down until you hear a click, indicating the latching mechanism is secure.
FAQs
-
What is 1794-OM8?
+The Allen-Bradley 1794-OM8 is a 1794 FLEX I/O 8-point digital AC output module. It is primarily used to control 220V AC field devices in industrial environments. -
What are its primary voltage and output specifications?
+It is a 220V AC nominal module with an operating range of 159–264V AC. It provides 8 non-isolated outputs. -
What is the rated current for each output of the 1794-OM8?
+At 55°C, the maximum current per output is 500 mA, and the minimum load requirement is 5 mA. The total module current must not exceed 4.0 A. -
What communication networks are supported?
+The module communicates via a FLEX I/O adapter, supporting networks such as EtherNet/IP, ControlNet, DeviceNet, and Universal Remote I/O.
