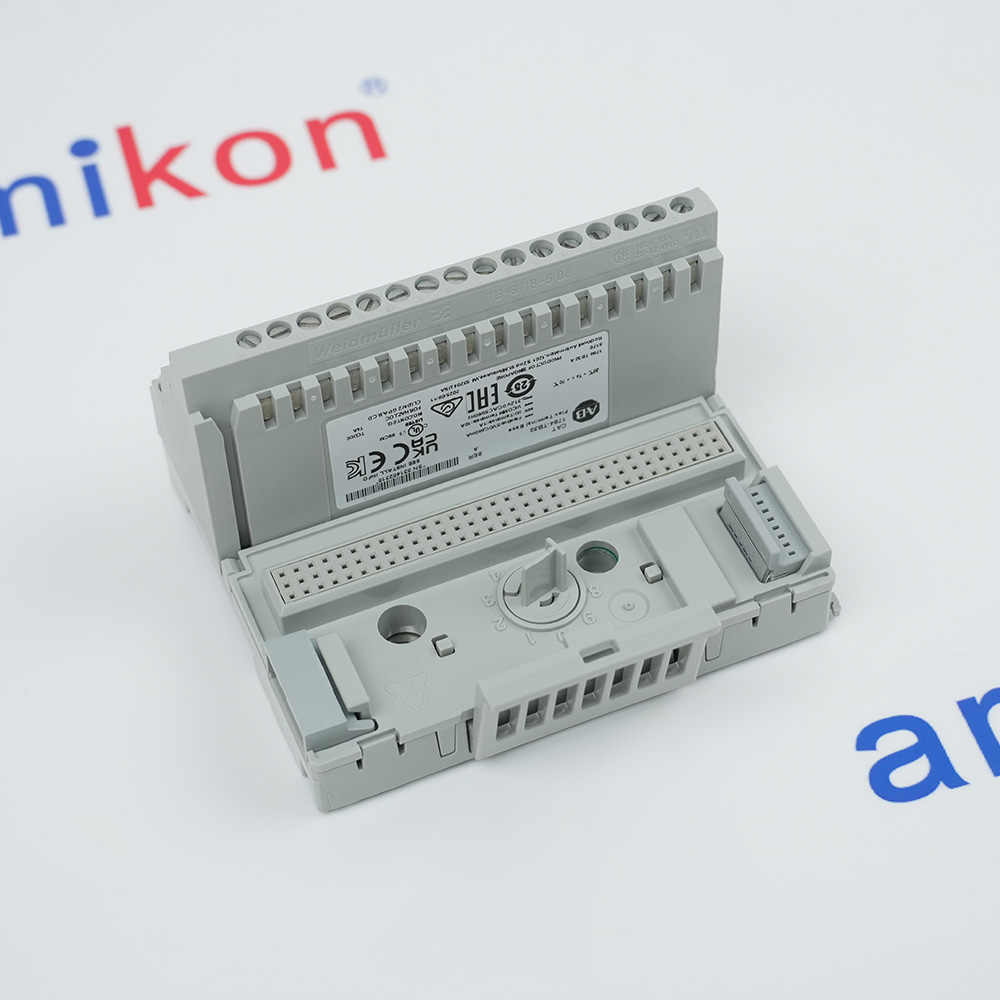

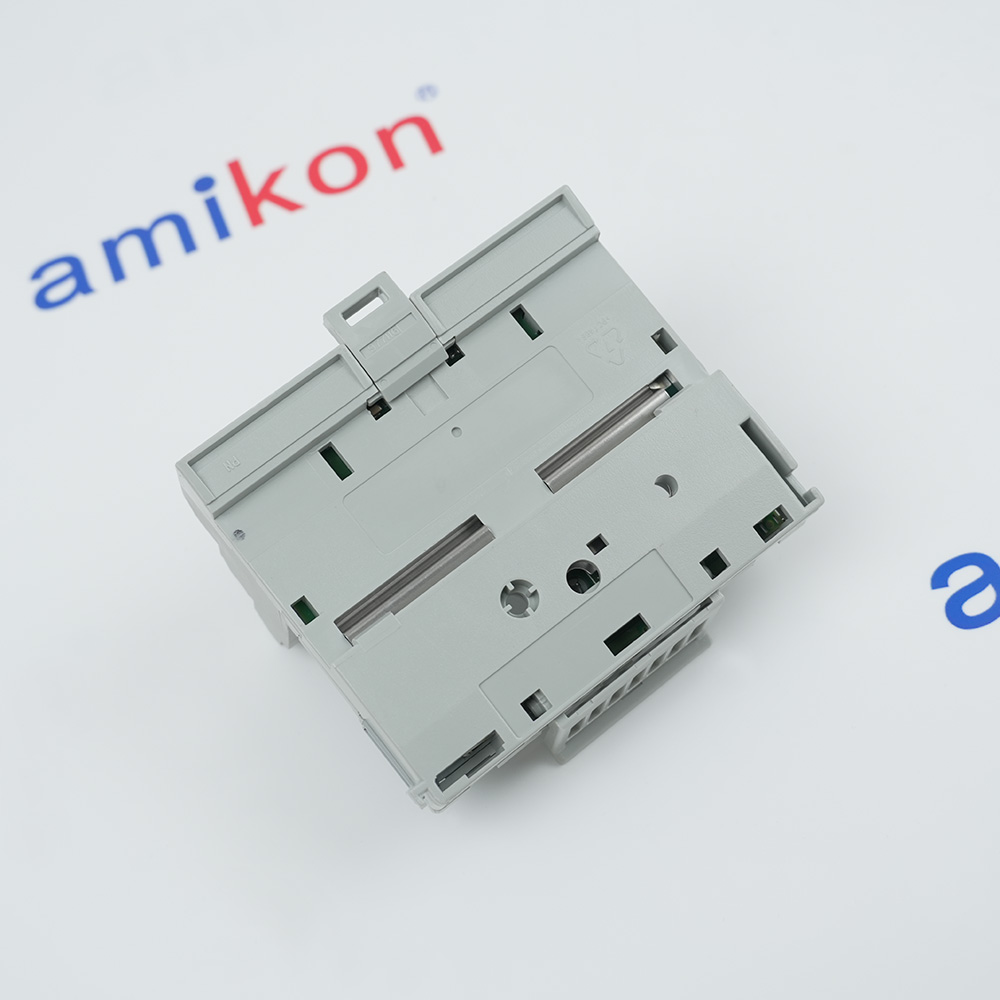

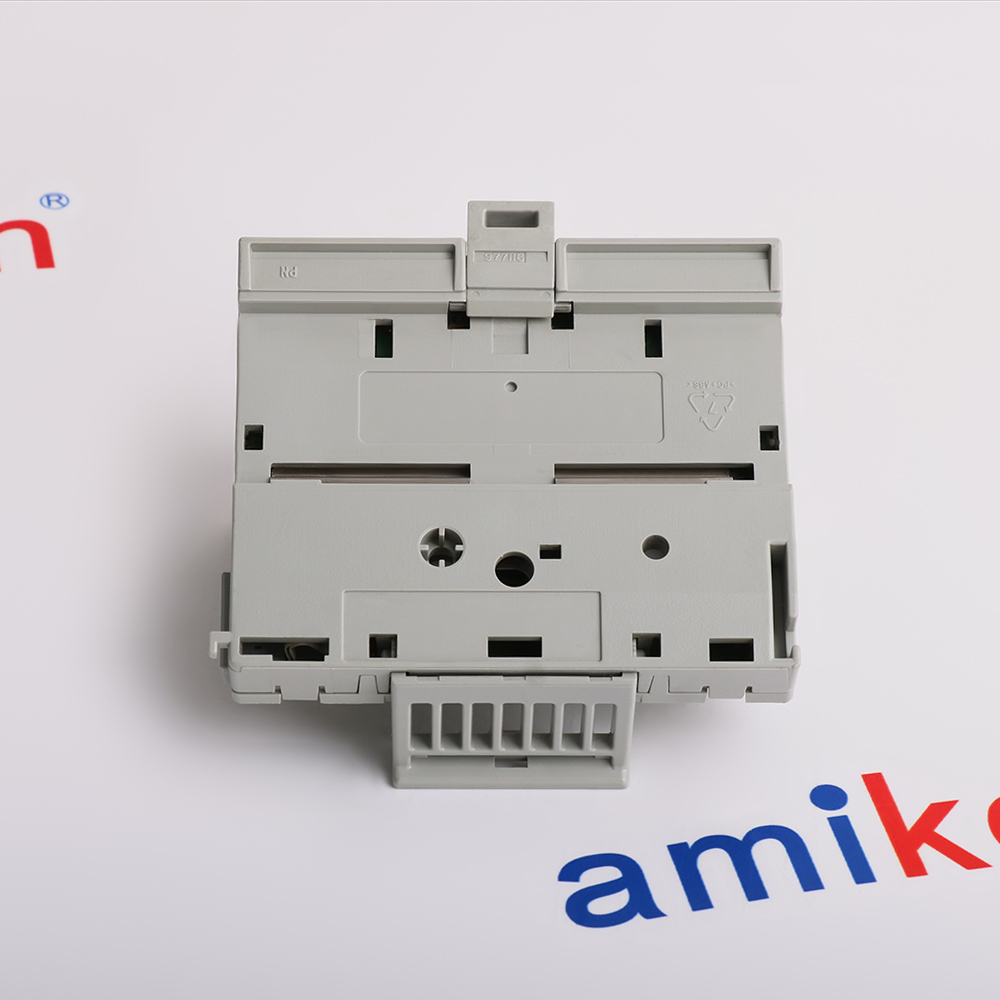

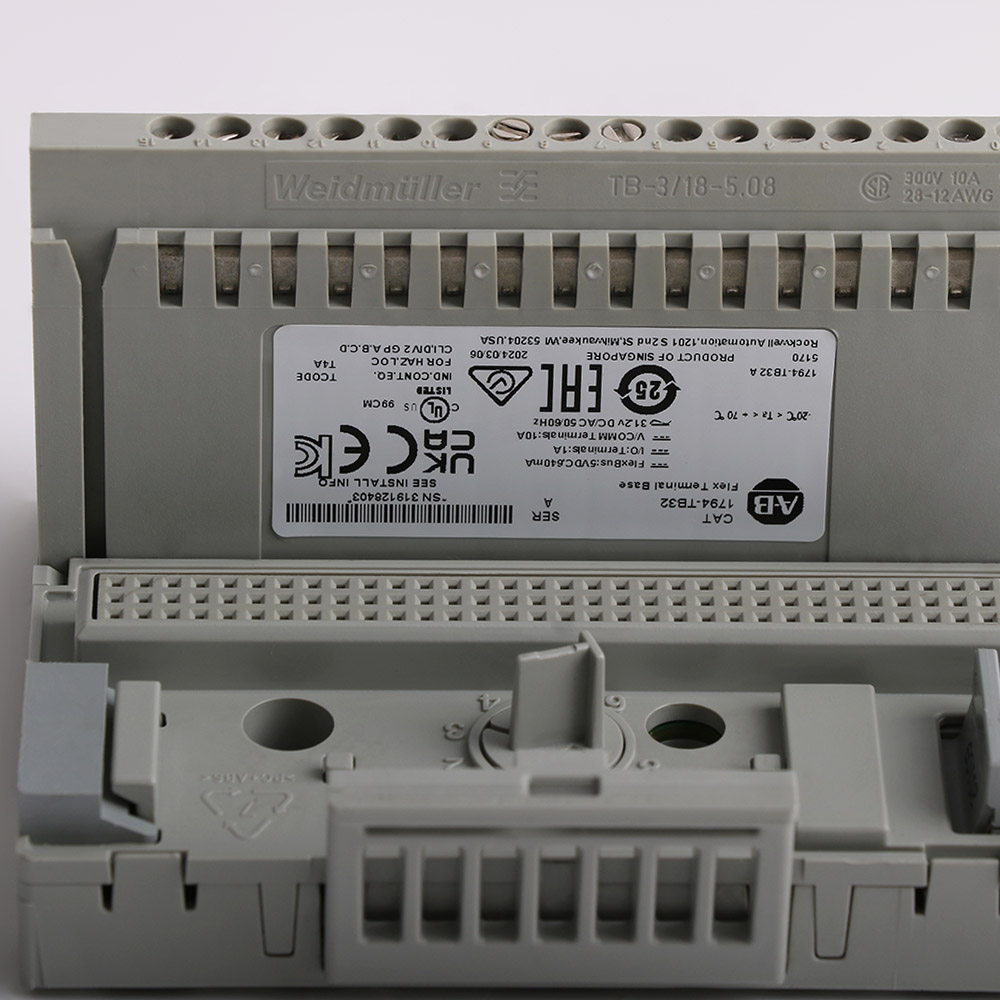

1794-TB32 32-point Screw-terminal Base
Allen-Bradley 1794-TB32 is a screw-terminal base for compatible 32-point FLEX I/O modules. It provides the field-wiring and backplane connection arrangement required by the selected module and adapter.
The passive base has 52 numbered terminal positions, including signal and supply/common groups. Its removable wiring arrangement and module keying must match the approved I/O module; the base does not independently perform digital input or output processing.
The passive base has 52 numbered terminal positions, including signal and supply/common groups. Its removable wiring arrangement and module keying must match the approved I/O module; the base does not independently perform digital input or output processing.
BEFORE YOU BUY
Confirm the complete 32-point screw-terminal base
ACTUAL APPLICATIONS
Application context for 1794-TB32
1794-TB32 provides the wiring base for compatible FLEX I/O configurations in manufacturing and process production. Relevant fields include food and beverage processing, packaging and industrial assembly. Suitability depends on the selected I/O module, adapter, keying position, field-circuit ratings and documented terminal allocation.
-
01 · FOOD & BEVERAGE
Food Manufacturing and Beverage Production
Industrial Food Processing ProductionBeverage Preparation and Bottling -
02 · PACKAGING
Packaging Production and Product Handling
Industrial Product Packaging ProcessesAutomated Package Sorting Processes -
03 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Assembly Production
Automated Component Assembly ProductionManufacturing Process Material Handling
Technical specifications for 1794-TB32
-
Product Model1794-TB32
-
Spare Model1794TB32
-
Product Parameters32-point Screw-terminal Base
-
In stock1 unit
-
ManufacturerAllen-Bradley
-
Field terminal positions52, numbered 0-51
-
I/O connection positions32
-
V/COM maximum voltage31.2 V AC/DC
-
V/COM maximum current10 A
-
AC supply frequency50/60 Hz
-
Field-to-Flexbus working insulation50 V continuous, basic insulation
-
Field-to-Flexbus dielectric test2500 V DC for 1 s
-
Terminal tightening torque0.56 to 0.79 Nm
-
Stranded copper conductor size24 to 16 AWG, 0.21 to 1.3 mm²
-
Minimum conductor temperature rating105 ℃
-
Operating temperature-20 to +70 ℃
-
Storage temperature-40 to +85 ℃
-
Relative humidity5-95%, noncondensing
-
Vibration resistance5 g at 10-500 Hz
-
Operating shock resistance30 g
