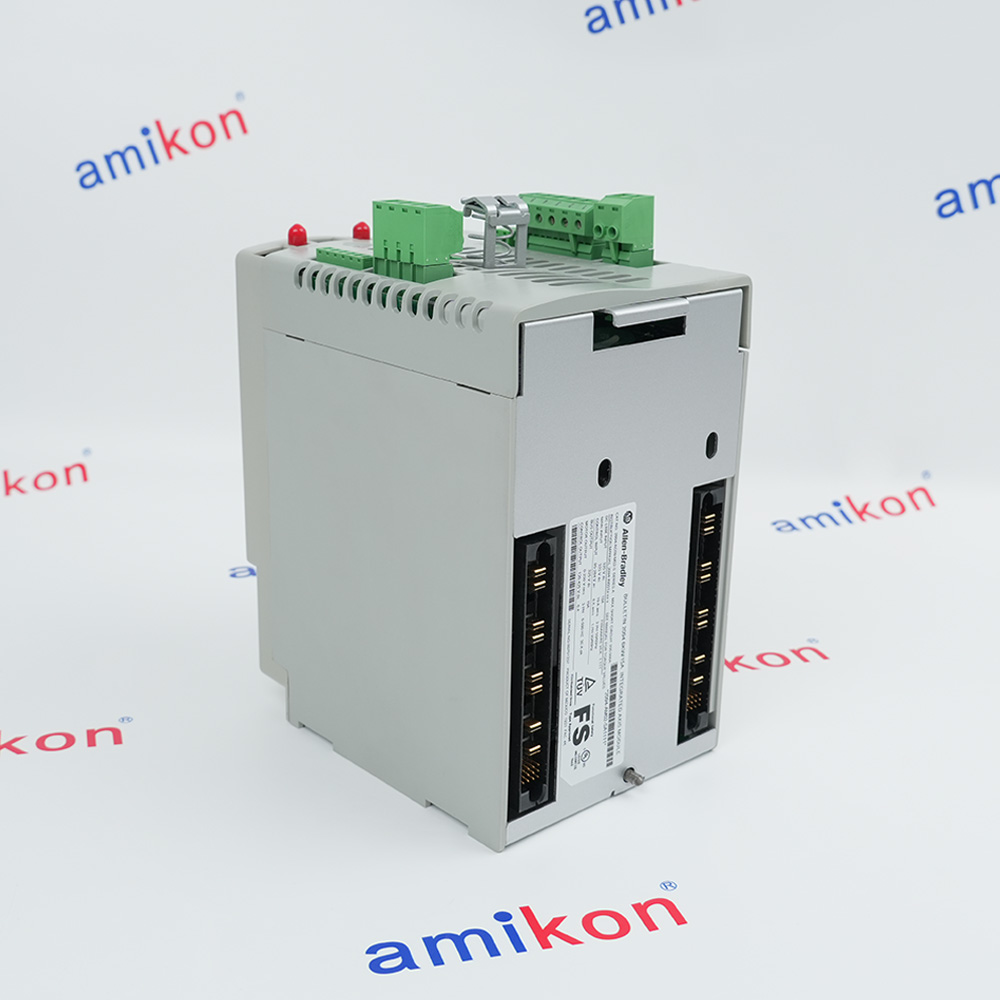

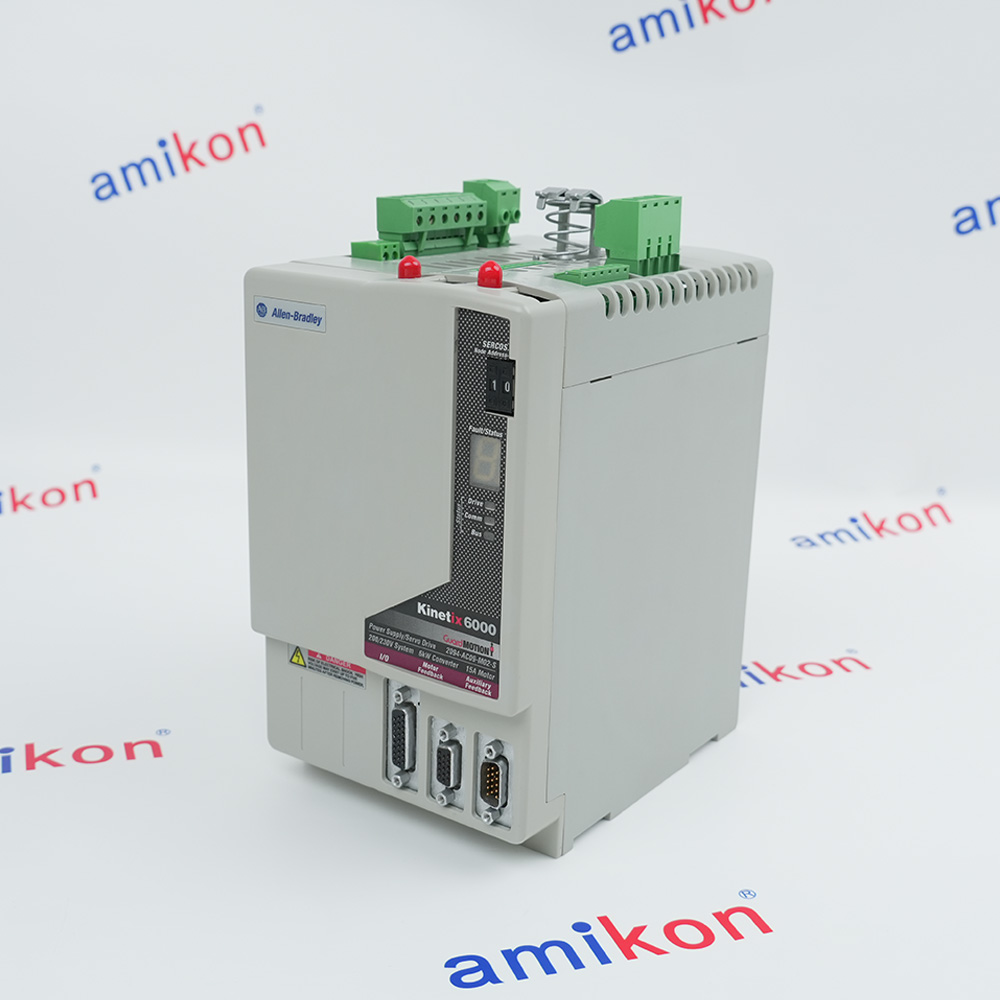

Technical specifications for 2094-AC09-M02-S
-
Product Model2094-AC09-M02-S
-
Spare ModelKinetix6000 2094-AC09-M02-S/A,2094-AC09-M02-S/C
-
Product ParametersIntegrated Axis Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12.5x18x23.5cm
-
ManufacturerAllen-Bradley
-
Weight2.6 kg
-
AC input voltage195…264V rmsthree-phase (230V nom)
-
DC input voltage275…375V DC
-
Control power AC input voltage95…264V rmssingle-phase (230V nom)
-
Continuous output currentto bus (Adc)19 A
-
Continuous power output to bus6 kW
-
Continuous current (rms)10.6 A
-
Continuous current (0-pk)15.0 A
-
Continuous power out (nom)3.4 kW
Description
2094AC09M02S
INTEGRATED AXIS MODULE
KINETIX 6000
200 / 230 VAC
6 KW / 19 AMP CONVERTER
3.4 KW / 15 AMP INVERTER
WITH SAFE TORQUE-OFF FEATURE
INTEGRATED AXIS MODULE
KINETIX 6000
200 / 230 VAC
6 KW / 19 AMP CONVERTER
3.4 KW / 15 AMP INVERTER
WITH SAFE TORQUE-OFF FEATURE
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Motor Overload Protection
Features:
- Kinetix 6000
- 195…264V rmsthree-phase (230V nom)
- Kinetix 6000 Integrated Axis Module
- 3-Phase rated IAM with input frequency range of 47-63 Hz
3-Phase rated IAM with input frequency range of 47-63 Hz The 2094-AC09-M02-S is a Kinetix 6000 Integrated Axis Module (IAM). This module is a 230VAC, 3-Phase rated IAM with input frequency range of 47-63 Hz. This module has a Bus output voltage of 325 VDC with continuous output power to bus of 6.0 kW; Peak output power to bus of 12.0 kW and Continuous output current to bus of 19 A. It supports velocity loop bandwidth of 500 Hz and Current loop bandwidth of 1300 Hz and PWM frequency of 4 kHz. This IAM has an integrated Safe-Torque Off (STO) functionality.
The 2094-AC09-M02-S Allen-Bradley INTEGRATED AXIS MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 2094-AC09-M02-S INTEGRATED AXIS MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Allen-Bradley 2094-AC09-M02-S is a 200 to 230 Volt AC Bulletin 2094 Integrated Axis Module with a 6 kW converter, three-phase input power, and 15 A inverter. It has a frequency of 47 to 63 Hertz, an AC input voltage of 195 to 264 Volts RMS, 20 milliseconds line loss ride through, and a 325 Volt DC nominal bus output voltage. On common-bus follower, the DC input current is 19 A and DC input voltage is 275 to 375 Volts DC. It has a main AC input current ranging from a nominal 19 Amperes RMS to a maximum inrush of 37 A (0 to pk). This results in enhanced machine operating efficiency, minimized downtime, and a cut down on energy and production wastage. The connector sets include a replacement STO header with a jumper. To meet the Category 3 EN954-1 standard, an external safety relay is required. For applications that do not make use of the STO feature, bypass the safe torque-off circuit by installing jumper wires. The 2094-AC09-M02-S Module uses solid-state motor overload protection. A copper power wire should be used with a minimum rating of 75 degrees Celsius (167 degrees Fahrenheit), recommended wire size of 6 to 4 millimeters squared (10 to 12 AWG), and a 10 millimeter (0.38 inch) strip length. For proper operation and safety, earth ground connection is required
- Packaging and Printing Machinery:High-speed sync for cutting, labeling & filling
- Material Handling Systems:High-precision positioning for conveyors & sorters
- Robotics and Pick-and-Place:Multi-axis robotic arms for high-speed precision handling
- CNC and Motion Platforms:Synchronized multi-axis for cutting, woodworking & machining
- Web Handling:Controls tension & speed in continuous production lines
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
This servo drive uses solid-state motor overload protection that operates in accordance with UL requirements. Motor overload protection is provided by algorithms (thermal memory) that predict actual motor temperaturebased on operating conditions as long as control power is continuously applied. However, when control power is removed, thermal memory is not retained.In addition to thermal memory protection, this drive provides an input for an external temperature sensor/thermistor device, embedded in the motor, to support the UL requirement for motor overload protection.Some motors supported by this drive do not contain temperature sensors/thermistors; therefore, motor overload protection against excessive consecutive motor-overloads with power cycling is not supported.This servo drive meets the following UL requirements for solid-state overload protection.
FAQs
-
What is the 2094-AC09-M02-S？
+The Allen-Bradley 2094-AC09-M02-S is a Kinetix 6000 Integrated Axis Module (IAM) that combines a 230V converter and an inverter axis with safe-torque-off (STO) functionality. -
What model is this 2094-AC09-M02-S?
+It is a Kinetix 6000 Integrated Axis Module (IAM) equipped with a 200/230V AC converter and a 6kW peak inverter. -
What is the input power of 2094-AC09-M02-S?
+The input voltage range of this module is 195 to 264 volts AC. -
Does this module include Safe-Torque Off (STO)?
+Yes, the -
What is the power output of 2094-AC09-M02-S?
+Its continuous output power to the bus is 6 kW, and its peak output power is 12 kW.
