Technical specifications for 2094-BM01-M
-
Product Model2094-BM01-M
-
Product ParametersAXIS MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size28.8x24x7cm
-
ManufacturerAllen-Bradley
-
Weight2.9 kg
-
Drive Voltage360…480V
-
FusesKTK-R-20 (20 A)Class CC
-
AC input voltage324…528V rmsthree-phase (360…480V nom)
-
DC input voltage458…747V DC
-
Control power AC input voltage95…264V rmssingle-phase
-
Continuous output currentto bus9.0 A
-
Continuous power output to bus6 kW
Description

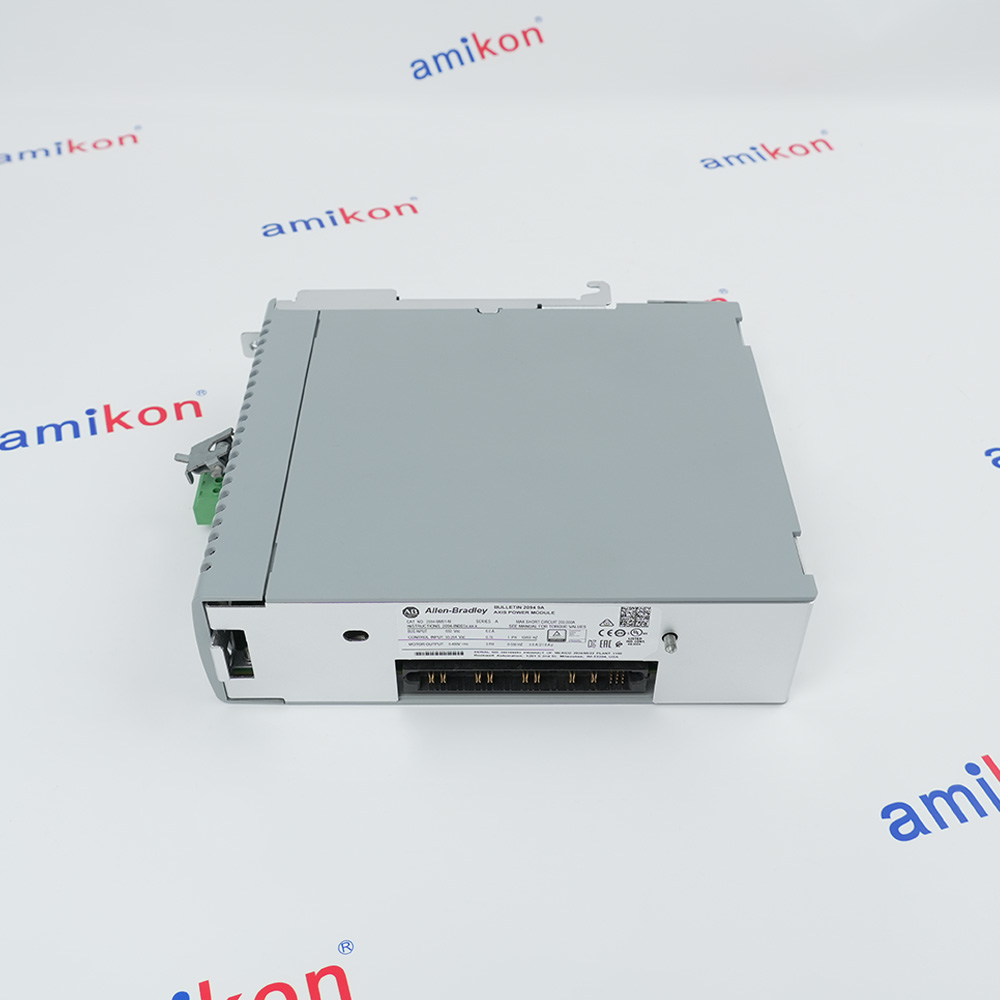

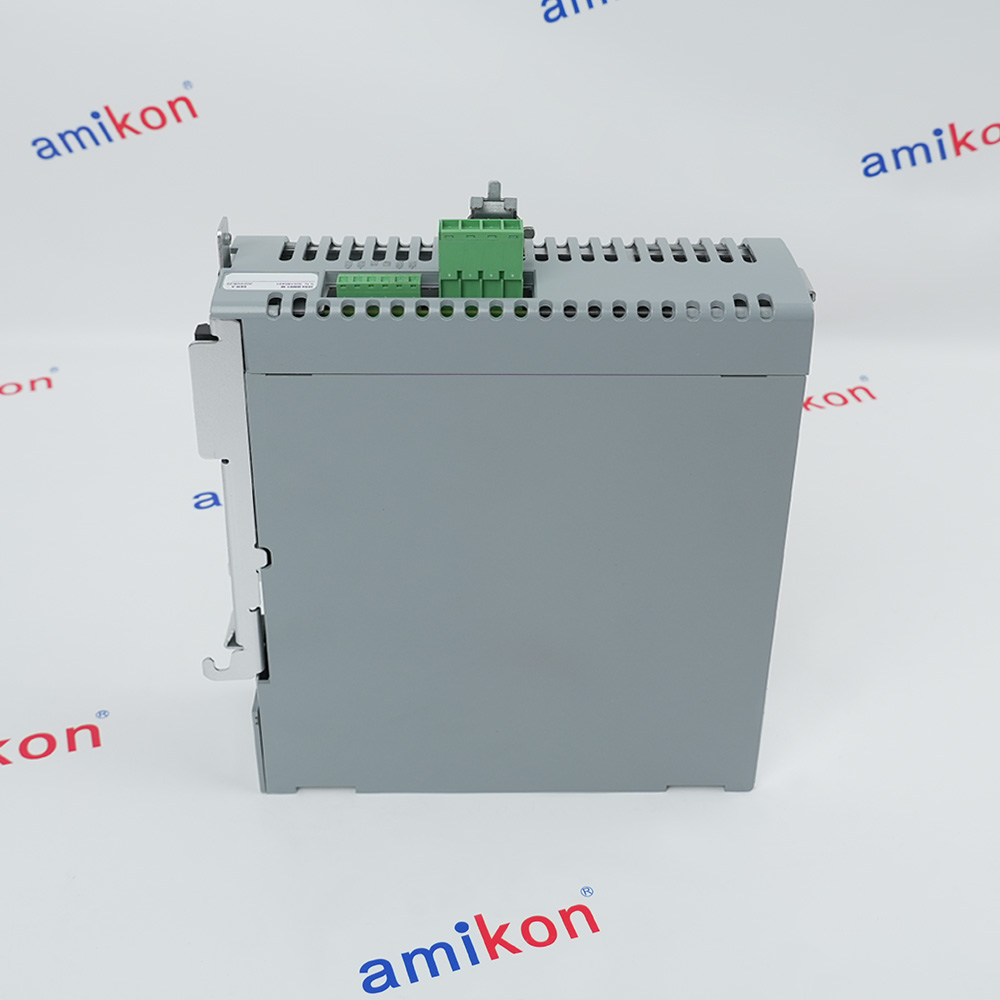

The 2094-BM01-M Axis (power) Modules are shared DC-bus inverters rated for 400V-class input power, designed as integral components of the Kinetix 6200 and Kinetix 6500 modular multi-axis servo drive systems. The 2094-BM01-M series provides flexible and scalable axis power solutions, with each module requiring one control module and mandatory use with an IAM (Integrated Axis Module) power module to form a complete drive system.
The 2094-BMxx-M family includes five catalog numbers spanning a wide power range: the 2094-BMP5-M delivers 1.8 kW continuous output power with 2.8 A rms continuous current; the 2094-BM01-M provides 3.9 kW with 6.1 A rms; the 2094-BM02-M offers 6.6 kW with 10.3 A rms; the 2094-BM03-M delivers 13.5 kW with 21.2 A rms; and the 2094-BM05-M achieves 22.0 kW with 34.6 A rms continuous current. All models in the 2094-BM01-M series operate from a nominal 650V DC bus voltage and achieve up to 98% efficiency, ensuring minimal energy loss during power conversion.
Each 2094-BM01-M module incorporates an integrated internal shunt circuit for regenerative energy dissipation. The lower power 2094-BM01-M models (BMP5, BM01, BM02) utilize a 115 Ω internal shunt resistor with 50 W continuous and 5.6 kW peak power capability, while the higher power 2094-BM01-M models (BM03, BM05) employ a 28.75 Ω resistor with 200 W continuous and 22.5 kW peak power capability. The shunt activation threshold for the 2094-BMxx-M is set at 805V DC with deactivation at 765V DC, automatically managing excess DC bus energy during deceleration.
The 2094-BMxx-M family includes five catalog numbers spanning a wide power range: the 2094-BMP5-M delivers 1.8 kW continuous output power with 2.8 A rms continuous current; the 2094-BM01-M provides 3.9 kW with 6.1 A rms; the 2094-BM02-M offers 6.6 kW with 10.3 A rms; the 2094-BM03-M delivers 13.5 kW with 21.2 A rms; and the 2094-BM05-M achieves 22.0 kW with 34.6 A rms continuous current. All models in the 2094-BM01-M series operate from a nominal 650V DC bus voltage and achieve up to 98% efficiency, ensuring minimal energy loss during power conversion.
Each 2094-BM01-M module incorporates an integrated internal shunt circuit for regenerative energy dissipation. The lower power 2094-BM01-M models (BMP5, BM01, BM02) utilize a 115 Ω internal shunt resistor with 50 W continuous and 5.6 kW peak power capability, while the higher power 2094-BM01-M models (BM03, BM05) employ a 28.75 Ω resistor with 200 W continuous and 22.5 kW peak power capability. The shunt activation threshold for the 2094-BMxx-M is set at 805V DC with deactivation at 765V DC, automatically managing excess DC bus energy during deceleration.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Module Physical Mounting
Features:
- Modular Multi-Axis Servo Drive Architecture
- Dual Communication Options (Sercos & EtherNet/IP)
- Safe Speed Monitor & Safe Torque Off Safety Features
- Wide Motor & Actuator Compatibility
- DC Common Bus & Shunt Module Support
The 2094-BM01-M Allen-Bradley Kinetix 6200/6000 Multi-Axis Servo Drive Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 2094-BM01-M Kinetix 6200/6000 Multi-Axis Servo Drive Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Kinetix 6200 series uses Sercos fiber-optic communication for high-speed deterministic motion control, while the Kinetix 6500 series uses EtherNet/IP communication for integrated motion over standard Ethernet infrastructure. The system supports a wide range of motion devices including Kinetix MPL Rotary Motors, Kinetix RDB Direct Drive Motors, Kinetix MPAR and MPAI Electric Cylinders, Kinetix MPAS Integrated Linear Stages, Kinetix LDC Linear Motors, and the Kinetix 6000M Integrated Drive-Motor (IDM) System with IPIM module. The drives feature Safe Speed Monitor and Safe Torque Off safety functions for machine safeguarding.
- Packaging Factories: Form-fill-seal machines, cartoning, labeling, and high-speed sorting
- Material Handling: Conveyor coordination, multi-axis pick-and-place robots, and automated warehousing systems
- Converting & Printing: Web-handling equipment, paper/film tensioning lines, and rotary cutters
- Assembly Lines: Multi-axis synchronization fields, electronic component placement, and automotive part riveting or welding cells
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Inspect Connections: Verify that all power rail pins and module slot receptacles are completely free of dirt or debris.Hang the Module: Guide the module over the power rail, aligning the top mounting bracket with the rail slot.Engage the Pins: Pivot the bottom of the module down flat against the rail until the pins snap-fit securely into place.Secure Fasteners: Tighten the captive mounting screw located on the front wall of the power module to fully lock it to the rail structure.
Alternative Names
2094-8M01-M
2094BM01M
209ABM01M
2O94BMO1M
2094-BM0I-M
2094BM0IM
2O94-BM01-M
2O9A-8MOI-M
2094-BMO1-M
2094BMO1M
2O94-BMO1-M
2O9A8MOIM
20948M01M
209A-BM01-M
209A-BM01-M
Technical notes
The 2094-BCxx-Mxx-M and 2094-BMxx-M power modules contain the samepower structure as the 2094-BCxx-Mxx-S and 2094-BMxx-S drive modules.Because of this, the 2094-BSP2 shunt module, 2094-PRF slot-filler module, and2094-PRSx power rails are supported by both drive families.In addition, 2094-BMxx-M AM power modules with Sercos interface aresupported on power rails with a 2094-BCxx-Mxx-S IAM drive module.Conversely, 2094-BMxx-S AM drive modules are supported on power rails witha 2094-BCxx-Mxx-M IAM power module with Sercos interface
FAQs
-
What is the Allen-Bradley 2094-BM01-M？
+The Allen-Bradley 2094-BM01-M is a Kinetix 6200/6000 multi-axis servo drive module -
What is the rated output power range of the 2094-BM01-M?
+Power output depends directly on the system load threshold. It outputs 57 watts at 20% load, 75 watts at 40% load, 90 watts at 60% load, 108 watts at 80% load, and up to 126 watts at 100% load. -
What is the difference between Series A, B, and C revisions?
+The hardware revision level dictates the drive's output capabilities. For example, Series A units deliver a peak current of 9.2 Amps (RMS), while Series B and C upgrades push this to 15.3 Amps (RMS), affecting the continuous wattage and power handling. -
Does the module have an internal shunt resistor?
+Yes, the 2094-BM01-M comes with an internal shunt resistor, providing dynamic braking capabilities without immediately needing an external shunt module.
