Technical specifications for 1762-IQ16
-
Product Model1762-IQ16
-
Spare Model1762IQ16
-
Product ParametersINPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size17x11x5.3cm
-
ManufacturerAllen-Bradley
-
Weight0.25 kg
-
Voltage category24V DC
-
Operating voltage range10…30V DC
-
Number of inputs16
-
Bus current draw, max70 mA at 5V DC (0.35 W)
-
Off-State voltage, max5V DC
-
Off-State current, max1.5 mA
-
On-State voltage, min10V DC
-
Nominal impedance3K ohm
Description
1762IQ16
INPUT MODULE
MICROLOGIX
16 DIGITAL INPUTS
8 MS DELAY AT SIGNAL EXCHANGE
SINK/SOURCE INPUT
24 VDC
1 MA
10-30 VDC
SCREW TERMINALS
DIN RAIL MOUNT
INPUT MODULE
MICROLOGIX
16 DIGITAL INPUTS
8 MS DELAY AT SIGNAL EXCHANGE
SINK/SOURCE INPUT
24 VDC
1 MA
10-30 VDC
SCREW TERMINALS
DIN RAIL MOUNT
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Core Protection Features
Features:
- MicroLogix 1200
- Sixteen (16) 24VDC channel input module
- MicroLogix 1100 / 1200 / 1400 Programmable Logic Controllers (PLC)
The 1762-IQ16 Allen-Bradley DIGITAL INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1762-IQ16 DIGITAL INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

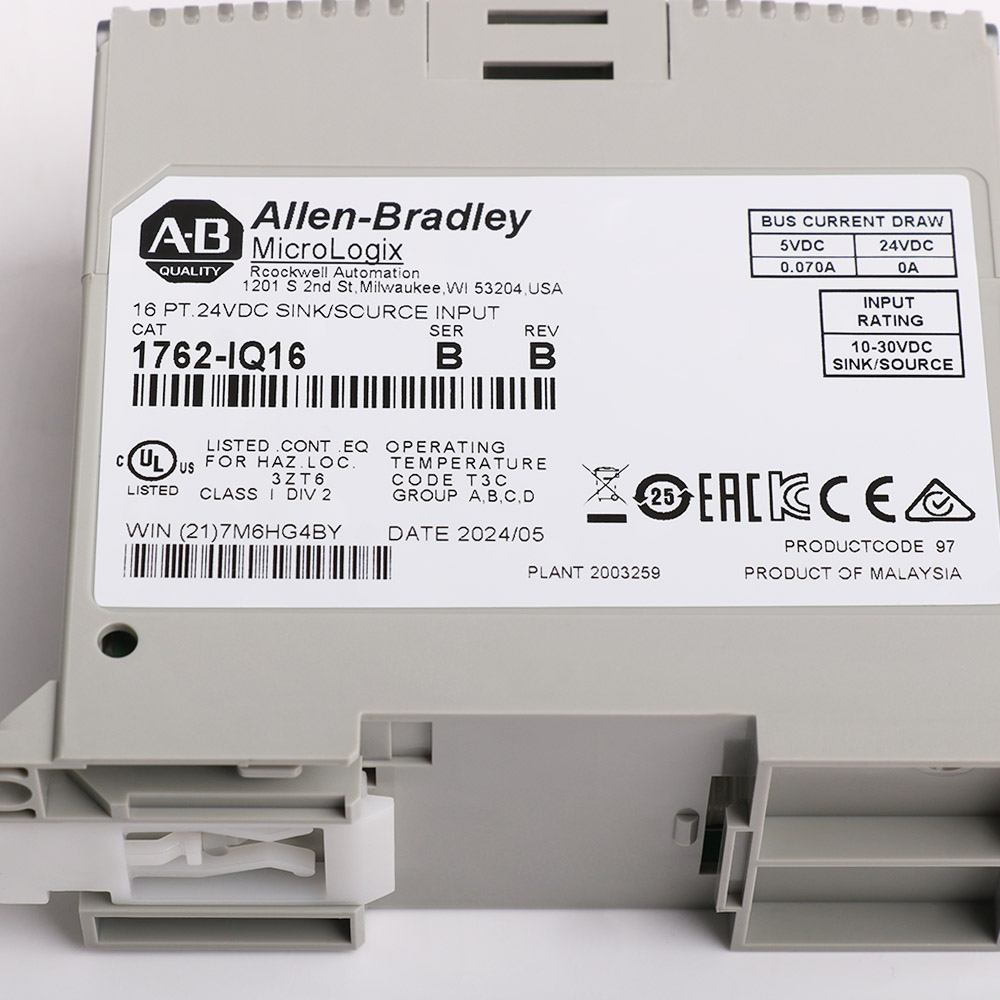

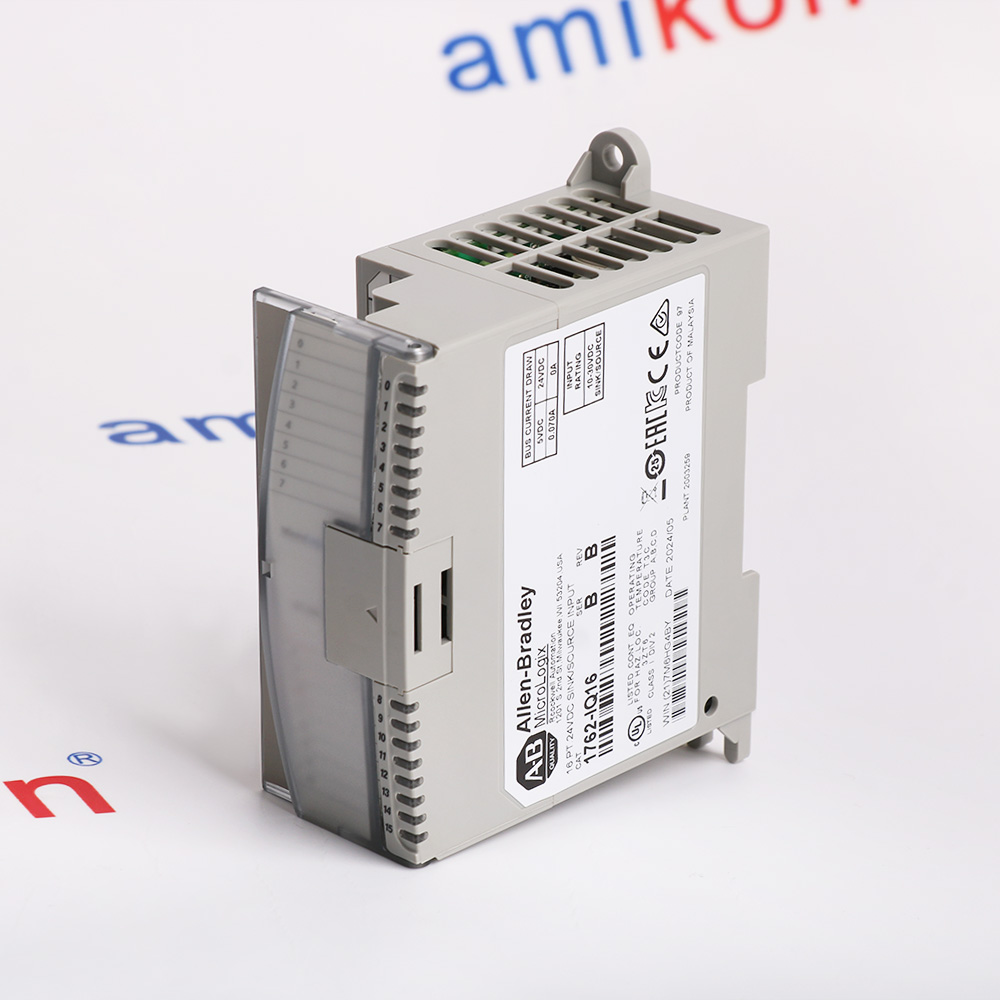

The module communicates and receives 10, 24, and 30 Volts of DC power via the 1762 bus interface. For wiring the input terminal blocks, a finger-safe cover is included. The 1762-IQ16 uses bit positions 0 to 15 of word 0 for the input terminals. The operation details of the module must be configured for each channel after installation. While troubleshooting, always keep a safe distance away from the equipment and always check for any changes in the program. The safety circuits should always be wired to the master relay in series. The 1762-IQ16 module should be installed in non-hazardous, dry, and clean environments with circuits that do not exceed Overvoltage Category II Standards. To avoid damaging the 1762-IQ16, take precautions to avoid electrostatic discharge and remove all power before performing any maintenance tasks. The 1762-IQ16 is an Allen-Bradley MicroLogix DC Input Module. The 1762-IQ16 is a 16-point sink/source input module with an input voltage rating of 24 Volts DC. This module has both DIN rail and Panel mounting options.
- Automobile manufacturing factory: Robot welding line and final assembly conveyor line.
- Food and beverage packaging factory: High-speed filling and labeling equipment.
- Water treatment and environmental protection factory: Remote pumping stations and filter monitoring.
- Logistics and warehousing center: Integrated into conveyor belts and automatic sorting systems.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Opto-Isolation: The module provides high-quality optical isolation between the field-side 24V DC circuits and the sensitive 5V backplane logic of the controller. This prevents electrical transients and noise from disrupting the PLC's internal operations.
Voltage Surge and Reverse Polarity: It includes built-in, continuously active protection against voltage surges and reverse polarity.
Overvoltage Category II: The module is rated for Overvoltage Category II (IEC 60664-1), meaning it can withstand transient voltages typical of the load level section of an electrical distribution system.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
FAQs
-
What is 1762-IQ16?
+The Allen-Bradley 1762-IQ16 is a 16-point, 24V DC digital input module designed for the MicroLogix 1100, 1200, and 1400 controller families. -
What type of inputs does the 1762-IQ16 have?
+It features 16 sink/source inputs, meaning it can be wired to accommodate either current flow direction depending on your field device configuration. -
What is the 1762-IQ16 operating voltage range?
+While rated for 24V DC, it typically operates within a range of 10–30V DC to guarantee the ON-state recognition. -
Can it be used in hazardous environments?
+It is rated for use in Pollution Degree 2 industrial environments and is generally suitable for Class I Division 2 areas, provided safety protocols are followed and power is removed before handling. -
What is the 1762-IQ16 power consumption?
+It has a maximum heat dissipation of 5.4 W at 30V DC and a 70mA current draw at 5V DC from the bus.
