Technical specifications for 1492-AIFM6S-3
-

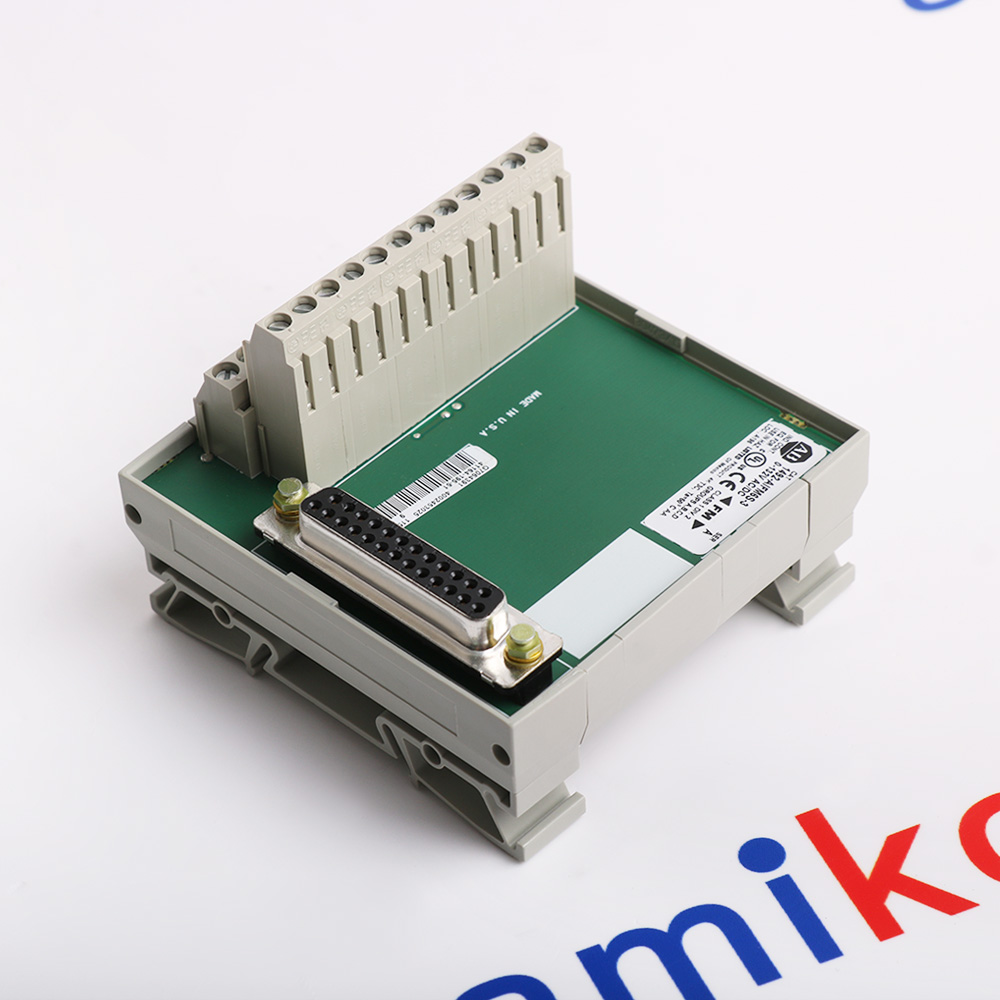

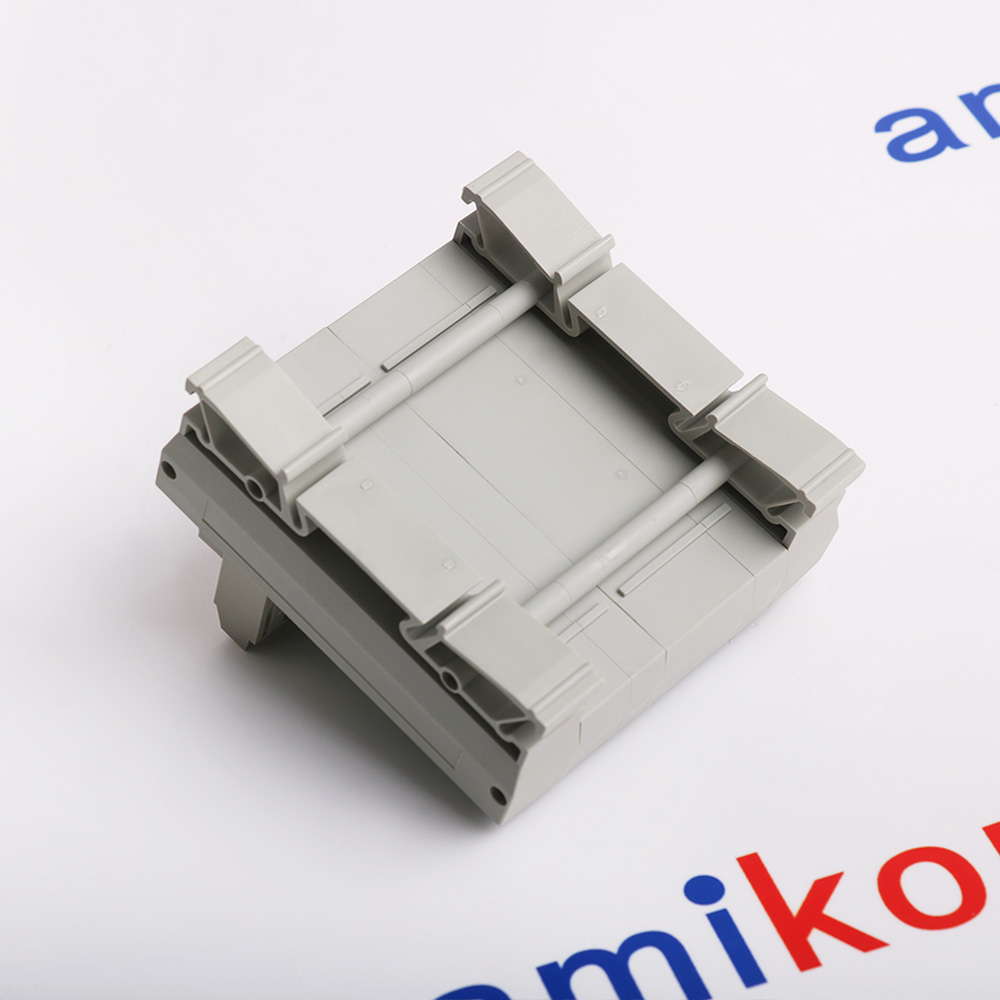

Product Model1492-AIFM6S-3
-
Product ParametersANALOG INTERFACE MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size8x8.2x6cm
-
ManufacturerAllen-Bradley
-
Weight0.1 kg
-
Analog I/O Channels6 Channels
-
Signal TypeIsolated Analog Input or Output
-
Field-Side Terminals3–4 Screw Terminals per Channel
-
Control-Side Connection25-pin D-Sub (D-Shell) Connector
-
Rated Operating Voltage0–132 VAC / 0–132 VDC
-
Rated Current per Circuit2 A Maximum
-
Rated Current per Module12 A Maximum
-
Mounting Method35 mm DIN Rail
-
Operating Temperature0°C to +60°C
-
Storage Temperature-40°C to +85°C
-
Relative Humidity5–95% RH, Non-condensing
Description
The ALLEN BRADLEY 1492-AIFM6S-3 is a 6-Channel Analog Interface Module for interfacing PLC analog I/O modules with field devices in industrial automation applications. The 1492-AIFM6S-3 provides a fixed terminal block design with field-side terminals arranged in screw rows A and B for secure, vibration-resistant connections.
The ALLEN BRADLEY 1492-AIFM6S-3 features a D-Sub 25-pin connector for direct connection to PLC analog modules. The 1492-AIFM6S-3 pinout maps D-Sub pins 1-25 to field-side terminals A1-A12 and B1-B12, with the shield (SH) connection tied to terminals A1-A8. The 1492-AIFM6S-3 includes an adhesive label card that provides terminal wiring identification for simplified installation and maintenance.
The ALLEN BRADLEY 1492-AIFM6S-3 features a D-Sub 25-pin connector for direct connection to PLC analog modules. The 1492-AIFM6S-3 pinout maps D-Sub pins 1-25 to field-side terminals A1-A12 and B1-B12, with the shield (SH) connection tied to terminals A1-A8. The 1492-AIFM6S-3 includes an adhesive label card that provides terminal wiring identification for simplified installation and maintenance.
Alternative Names
1492-A1FM6S-3
I492-AIFM6S-3
1492 AIFM6S 3
1492 A1FM6S 3
I492 AIFM6S 3
1492AIFM6S3
I492A1FM6S3
Information
Overview
Manuals
Application Notes
Product Applications
D-Shell Cable Connection
Features:
- 6-Channel Analog Interface with Fixed Terminal Block
- D-Sub 25-Pin Connector for PLC Connection
- Shield Connection for Cable Shield Grounding
- Wide Wire Gauge Support
The module provides six analog connection channels with two field-side terminals per I/O connection, enabling individual wire termination for each PLC analog input or output point. The analog interface module style provides signal conditioning and organized wiring for voltage or current analog signals.
The fixed terminal block construction eliminates loose wiring and reduces installation time and wiring errors compared to traditional point-to-point terminal block assemblies. The module mounts on standard 35 mm DIN rail per EN 60715.
The 1492-AIFM6S-3 ALLEN BRADLEY ANALOG INTERFACE MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ALLEN BRADLEY 1492-AIFM6S-3 ANALOG INTERFACE MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1492-AIFM6S-3 is part of the Allen-Bradley 1492 pre-wired cable system, connecting to PLC analog I/O modules via factory-pre-wired cables that reduce panel wiring time and improve wiring consistency. It is applicable in industrial control panels, process control systems, and machine automation installations requiring organized analog I/O interfacing for temperature transmitters, pressure transducers, flow sensors, valve positioners, and other 4-20 mA or 0-10 V field devices.
- Process Automation: Routes analog signals from sensors to control layers in water, oil/gas, and chemical plants
- Factory Automation: Saves enclosure space, improves DIN rail density, and eliminates messy wiring in manufacturing cells
- Power Generation: Tracks real-time status with channel isolation to block faults alongside heavy drives and thermal instruments
- Machine Building: Reduces engineering labor and wiring errors in packaged OEM equipment designs
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cable Selection: The module connects to your controller's I/O module (such as a 1756 analog card) using a standard 1492 pre-wired D-shell cable (available in lengths like 0.5m, 1.0m, 2.5m, and 5.0m).
Connection: Align the 25-pin D-shell connector of your pre-wired cable with the mating connector on the 1492-AIFM6S-3. Push straight in and tighten the retaining screws to ensure a secure and vibration-resistant data link.
Technical notes
The ALLEN BRADLEY 1492-AIFM6S-3 includes a shield connection for cable shield grounding. The 1492-AIFM6S-3 is compatible with 1492-ACABLE and 1492-ACAB shielded cables, with cable shield grounding achieved via a 10-32 x .312 Thread Roll Type TT screw included with the cable. The 1492-AIFM6S-3 supports proper shield grounding practices as referenced in Publication 1770-4.1 for generally recommended wiring and shield grounding guidelines.
FAQs
-
What is the 1492-AIFM6S-3?
+The Allen-Bradley 1492-AIFM6S-3 is a 6-channel, feed-through, isolated Analog Interface Module used with Allen-Bradley Bulletin 1492 wiring systems. -
Does the module provide its own loop power?
+No. The 1492-AIFM device is a passive terminal block and does not contain its own internal power source. Power must be supplied either via the PLC module or an external power supply. -
What cables are compatible with this module?
+It connects to the PLC I/O using standard pre-wired cables. Depending on your specific analog card (e.g., 1756-IF6I, 1756-IF6CIS), you will use specific Bulletin 1492 cable assemblies. -
What does the 6S in the part number stand for?
+The
