1771-A4B
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe

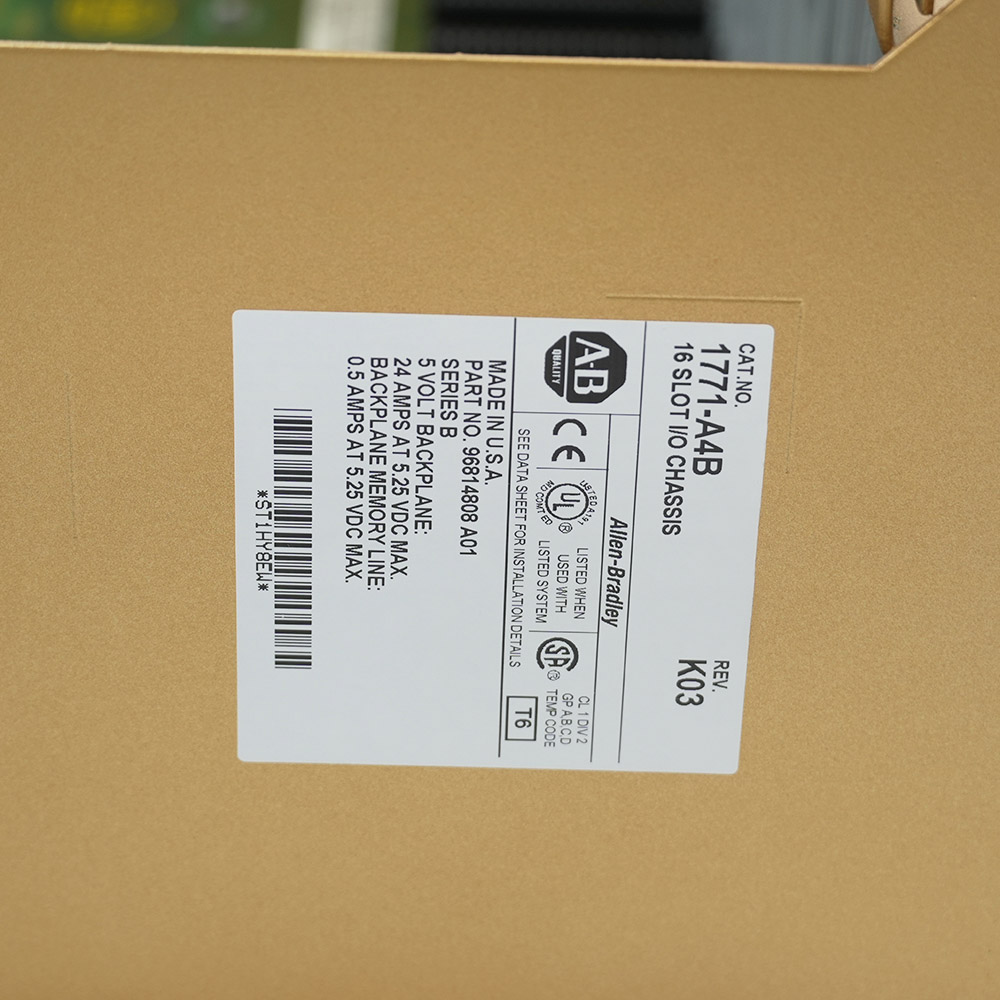

1771A4B
PLC RACK
UNIVERSAL INPUT/OUTPUT CHASSIS
16 SLOT
24 AMP
5.25 VDC
PLC RACK
UNIVERSAL INPUT/OUTPUT CHASSIS
16 SLOT
24 AMP
5.25 VDC
Technical specifications for 1771-A4B
-
Product Model1771-A4B
-
Spare Model1771A4B
-
Product ParametersUNIVERSAL INPUT/OUTPUT CHASSIS
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size61x17x31cm
-
ManufacturerAllen-Bradley
-
Weight6.24 kg
-
I/O Module Slots16
-
Maximum Backplane Current @5V dc24A
-
Operating Temperature0–60°C (32–140°F)
-
Storage Temperature−40–85°C (−40–185°F)
-
Humidity5–95% RH, non-condensing
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 1771-A4B?+The Allen-Bradley 1771-A4B is a 16-slot, universal I/O chassis for the PLC-5 control system, intended for back-panel mounting in industrial environments.
-
What is the backplane rated current of the 1771-A4B?+The maximum backplane current is 24 Amps.
-
Which power supplies are compatible with the 1771-A4B?+It can be powered by the 1771 processor with built-in power (2-4 A), an external power module (3-8 A), or a dedicated external power supply (6.5-16 A).
-
Can I use both a power module and external supply?+No, it is not recommended to use both simultaneously as this can cause electrical conflicts.
-
Does the 1771-A4B Series B work with a 1771-SDN module?+Yes, it is compatible with the 1771-SDN module
Get a quick price fo 1771-A4B
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Grounding Procedures
Features:
- 16-Slots for 1771 Series I/O Modules
- Back-Panel Mounting
- Units Available With and Without Power Supply
The 1771-A4B I/O chassis from Allen Bradley is engineered for robust performance within the PLC 5 system architecture. This configuration allows for a total of 16 slots, accommodating several modular components essential for your application. Notably, it can manage up to four I/O racks, employing 1/2-slot addressing for optimal space utilization. Installation of this chassis requires 36 keying bands made of plastic, ensuring secure setup.
The 1771-A4B Allen Bradley 16-Slot I/O Chassis may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 1771-A4B 16-Slot I/O Chassis Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Compatibility is versatile with various processors, particularly those rated between 2 and 4 amps that possess integral power supplies. Additionally, you can utilize power supply modules with ratings from 3 to 8 amps. External power supplies intended for this chassis must be rated between 6.5 and 16 amps. Furthermore, the leftmost slot is dedicated for processor module installation as well as the I/O adapter module. Communication modules and I/O modules can occupy any slot but are restricted from the leftmost slot, similar to power supply module installations. All these features combine to make the 1771-A4B an adaptable and essential component for performance-driven industrial setups.
- Material Handling & Conveyors:Large-scale sorters, palletizers & assembly lines with many I/O points
- Paper & Pulp Machines:Hydraulic positioning/force control on wet/dry ends to optimize fluid/power
- Oil, Gas & Chemical Processing:Batch/continuous control: butterfly valves, pumps & flow switches
- Metal & CNC Fabrication:Drill presses, welders & CNC motor control with motion/high-speed modules
- Water & Wastewater Treatment:Complex logic for pump stations, filtration & chemical dosing
- HVAC & Large Utilities:Controls industrial-scale ACs & expansion tanks in large facilities
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Central Ground Bus: Each enclosure must have a central ground bus as a common connection for the chassis and the enclosure itself.
Conductor Specs: Use 1-inch (2.54 cm) copper braid or 8 AWG copper wire to connect the chassis to the ground bus.
Connection: Scrape paint from the panel to ensure electrical contact. Do not stack ground lugs directly on top of each other; separate them with nuts and star washers.
