1771-ASB
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

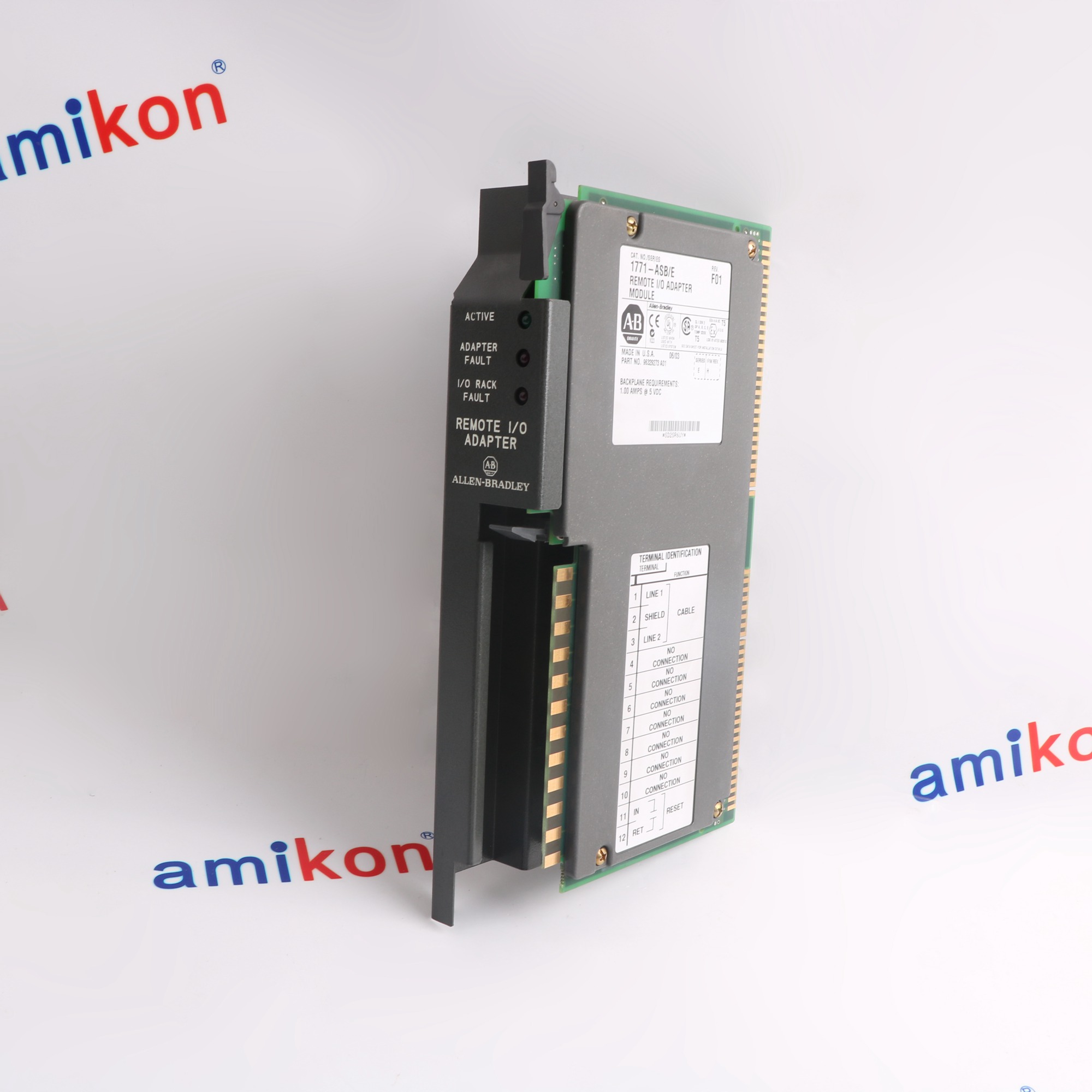

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
1771ASB
INPUT/OUTPUT ADAPTER MODULE
REMOTE I/O
UNIVERSAL REMOTE PLC
1.2 AMP
5 VDC
INPUT/OUTPUT ADAPTER MODULE
REMOTE I/O
UNIVERSAL REMOTE PLC
1.2 AMP
5 VDC
Technical specifications for 1771-ASB
-
Product Model1771-ASB
-
Spare Model1771ASB
-
Product ParametersINPUT/OUTPUT ADAPTER MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.5x14.5x27.5cm
-
ManufacturerAllen-Bradley
-
Weight0.74 kg
-
Module Location1771 I/O chassis, leftmost slot
-
Power Dissipation5 Watts
-
Thermal Dissipation17.06 BTU/hr
-
Backplane Current1.0A @ 5V
-
Operational Temperature0°C to 60°C (32°F to 140°F)
-
Storage Temperature-40°C to 85°CC (-40°F to 185°F)
-
Relative Humidity5% to 95% (without condensation)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 1771-ASB?+The Allen-Bradley 1771-ASB is a Remote I/O (RIO) Adapter Module for 1771-series I/O chassis, primarily designed to interface remote racks with PLC-5 processors
-
What are the key features of the 1771-ASB?+It supports up to 10,000 feet of cable (at 57.6K baud), 1-slot and 2-slot addressing modes, and diagnostics via LEDs (Active, Adapter Fault, I/O Rack Fault).
-
What is the difference between Series A and Series B?+Series B increased troubleshooting LEDs from 5 to 10 and increased internal RAM from 13K to 24K bytes.
-
What is the 1771-ASB power dissipation?+The 1771-ASB power dissipation is 5.2W.
-
What is the 1771-ASB backplane current?+The 1771-ASB backplane current is 1 Amp at 5 Volts DC.
Get a quick price fo 1771-ASB
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Hardware Preparation & Mounting
Features:
- Safety, Dielectric Withstand
- Electrostatic Discharge
- Noise Susceptibility
- Surge Transient Susceptibility
- Conducted Electromagnetic Susceptibility,Temperature, Humidity
- Flammability, Resistance to Ignition
The 1771-ASB Allen Bradley Remote I/O Adapter Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 1771-ASB Remote I/O Adapter Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This remote I/O device is designed for use with cables that can reach lengths of up to 10,000 feet, making it suitable for extensive facilities. When configured at this maximum cable distance, the device can sustain a baud rate of 57.6K, ensuring effective data communication over significant distances. The configuration allows for multiple I/O addressing options, including 1/2-slot, 1-slot, or 2-slot methods.Users can configure the system to handle up to 32 points in various I/O combinations. Additional features include enhanced diagnostic indicators, which help in monitoring system performance and troubleshooting. The product also comes with a field wiring arm and configuration jumpers included, providing necessary components for setup. The backplane current requirement is 1 amp at 5 volts DC, ensuring efficient power usage during operation.
- Power Generation & Utilities:Turbine control & BOP: generator protection & aux monitoring
- Material Handling & Logistics:Servo I/O for grinders/transfer lines: near-machinery, central control
- Process Manufacturing:Distributed I/O clusters (8/16/32-point) for chemical/refinery plants.
- Automotive Production:Real-time monitoring of sensors/starters up to 10,000 ft
- Remote Connectivity:Central PLC-5 to remote racks via Belden 9463 twinaxial
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Down: Always remove power from the 1771 I/O chassis backplane and field wiring arm before installing or removing the module to prevent equipment damage or injury.
Slot Placement: The 1771-ASB must be installed in the leftmost slot of the 1771 I/O chassis. This slot is specifically reserved for adapter or processor modules.
Keying the Chassis: Use plastic keying bands on the backplane connector to ensure only the correct module can be inserted. For the 1771-ASB, place bands between pins 54 and 56 on the upper connector and 16 and 18 on the lower connector.
