1771-IBD
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

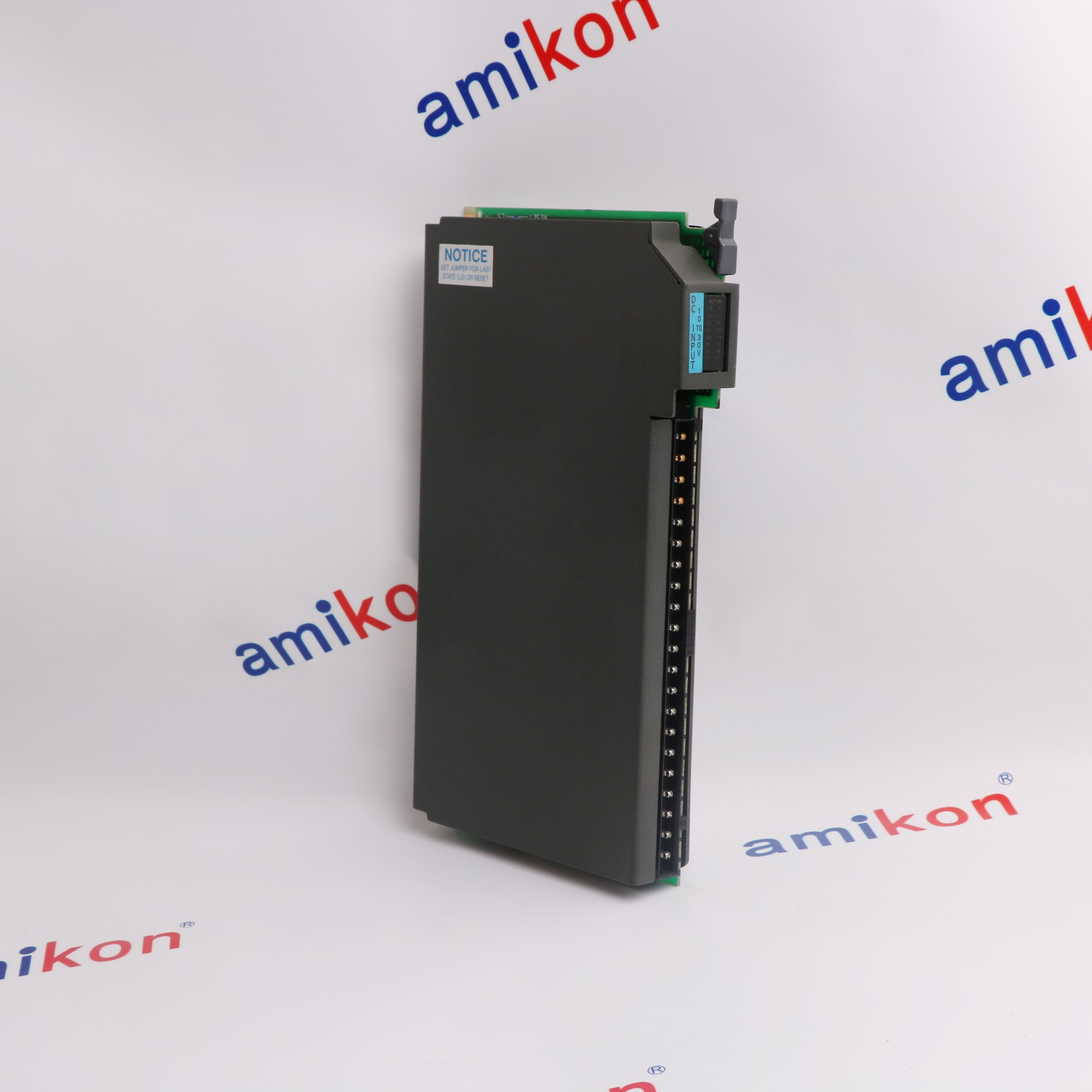

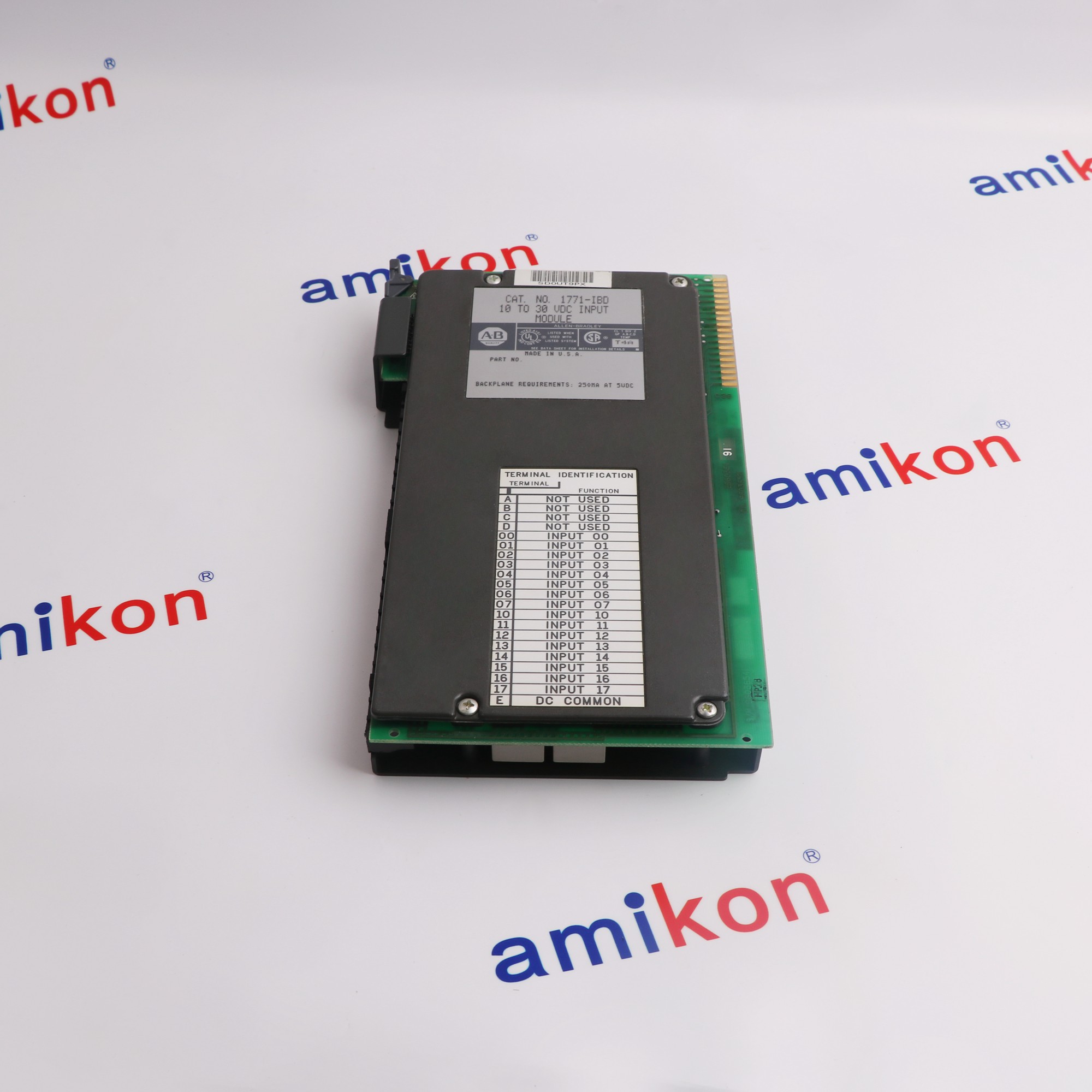

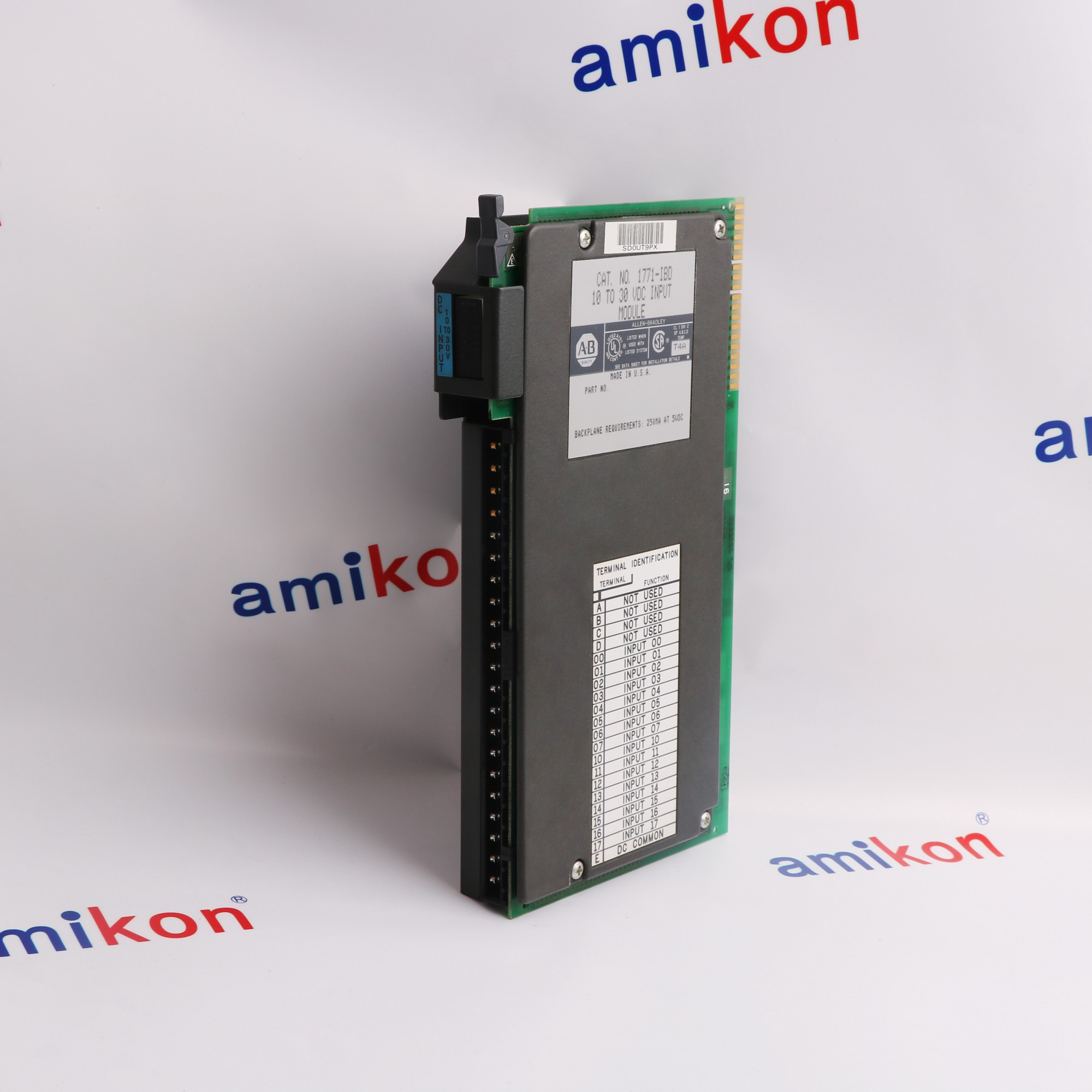

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
1771IBD
INPUT MODULE
SERIES B
16 POINT
DIGITAL
10-30 V DC
PLC-5
SINK (SOURCE LOAD)
WIRING ARM 1771-WH
BACKPLANE CURRENT LOAD - 130 MA
INPUT MODULE
SERIES B
16 POINT
DIGITAL
10-30 V DC
PLC-5
SINK (SOURCE LOAD)
WIRING ARM 1771-WH
BACKPLANE CURRENT LOAD - 130 MA
Technical specifications for 1771-IBD
-
Product Model1771-IBD
-
Spare Model1771IBD 1771-IBD/A, 1771-IBD/B
-
Product Parameters1771 16 Point Digital Input Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2.8x15x25.5cm
-
ManufacturerAllen-Bradley
-
Weight0.5 kg
-
Inputs per Module16
-
Input Voltage Range10 to 30V dc
-
Minimum Input Current4.5mA at 10V dc15mA at 30V dc
-
Minimum Off-state Current2.0mA @ 5V dc
-
Maximum Off-state Voltage5V dc
-
Minimum On-state Voltage10V dc
-
Input Impedance2.2K ohms maximum
-
Power Dissipation7.3 Watts (max.), 1.0 Watts (min.)
-
Thermal Dissipation24.7 BTU/hr (max.), 3.4 BTU/hr (min.)
-
Backplane Current130mA @ 5V dc +5%
-
Wiring Arm Screw Torque7-9 inch-pounds
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 1771-IBD?+The Allen-Bradley 1771-IBD is a 16-channel, 10–30V DC input module from the 1771 Universal I/O family. It is typically used for sensing signals from DC ON/OFF devices like pushbuttons, limit switches, and motor starters.
-
How many inputs does the 1771-IBD have?+Each module has 16 inputs and 18 LED indicators (16 for channel status, 1 for module health, and 1 for communication status).
-
Is it compatible with all 1771 chassis?+The 1771-IBD (specifically Series B) is compatible with most 1771 chassis but is NOT compatible with the 1771-A1, 1771-A2, or 1771-A4 series A chassis.
-
What are the keying requirements?+Keys should be placed between 10 and 12, and between 16 and 18, on the chassis backplane connector.
-
Does it work with PLC-5?+Yes, it is designed for use in the 1771 I/O family often used with PLC-5 controllers.
Get a quick price fo 1771-IBD
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Revisions
Revision Part #
Also known as
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Hardware Installation
Features:
- Digital DC Input Module
- Sixteen (16) Inputs
- All 1771 I/O chassis except 1771-A1, -A2, and -A4
- Between 10 and 12; Between 16 and 18
Discrete input modules such as 1771-IBD are typically used to interface field signaling devices such as switches, sensors, auxiliary contacts that represent the state of the process. It is especially compatible for use with ON/OFF; 1 or 0 or binary operating devices.
The 1771-IBD comes with Eighteen (18) LED status indicators that provides information regarding the module status and the signal status present at each input channel of the module. It also comes with a Field Wiring Arm with compatible replacement part number of 1771-WH. Field Wiring Arms are used to provide modular wiring method as they can be removed from the module when terminating signals. Additionally, they contribute to ease of maintenance as they can be removed and installed to compatible modules without the need of disconnecting the attached wires.
The 1771-IBD Allen-Bradley Discrete input module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1771-IBD Discrete input module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1771-IBD comes with a 1771-WH wiring arm for ease of wiring and simplified replacing of the module in case of module malfunction, thus eliminating the need to disconnect the wiring first. It supports ½, 1, and 2-slot I/O addressing. It is compatible with source-switching devices such as dry-contact switches, electro-mechanical transmitters, and panel-switching devices like selector switches and pushbutton. The 1771-IBD module has 16 inputs with a 10 to 30 Volts DC Sink (Source load) voltage category. It has an operating voltage range of 10 to 30 Volts DC. It has a typical signal delay of 1.3 milliseconds (±0.1) at an on-DC state and 1.3 milliseconds (±0.1) at an off-DC state. It has a maximum off-state current of 2mA and a backplane current load of 130 mA. It has a maximum power dissipation of 6W and a thermal dissipation of 20.3 BTU/hour. It is installed in a 1771 I/O chassis containing a PLC processor. Keying bands for putting it in the right slot are found between pins 16 and 18 for the upper connector and between pins 10 and 12 for the lower connector. The 1771-IBD module has 1 green status indicator and 16 red status indicators for customer-side indication at the front panel. It contains optoelectrical isolation to protect the system circuits from electrical transients. It also contains an input filtering feature to reduce electrical noise.
- Industrial Automation & Process Control:Monitors/processes field device inputs for PLC-5 systems
- Sensor & Switch Monitoring:Interfaces ON/OFF devices (sensors, limit switches, pushbuttons) to PLC
- Motion Control Systems:Used in high-speed industrial control applications
- Material Handling:Frequently used in conveyor systems
- Machine Monitoring:Data acquisition for machine status in manufacturing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Chassis Preparation: Power off the I/O chassis. Verify the module's keying; use plastic keying bands to ensure only the 1771-IBD can be inserted into the specific slot.
Module Insertion: Align the module with the card guides and slide it into the chassis. Apply firm, even pressure until it seats into the backplane.
Locking: Secure the module using the chassis latch or locking bar to prevent accidental disconnection during operation.
Wiring Arm: Attach the 1771-WH wiring arm to the pivot bar at the bottom of the chassis. This allows for module replacement without disconnecting field wiring.
