Technical specifications for 1771-NC6
-

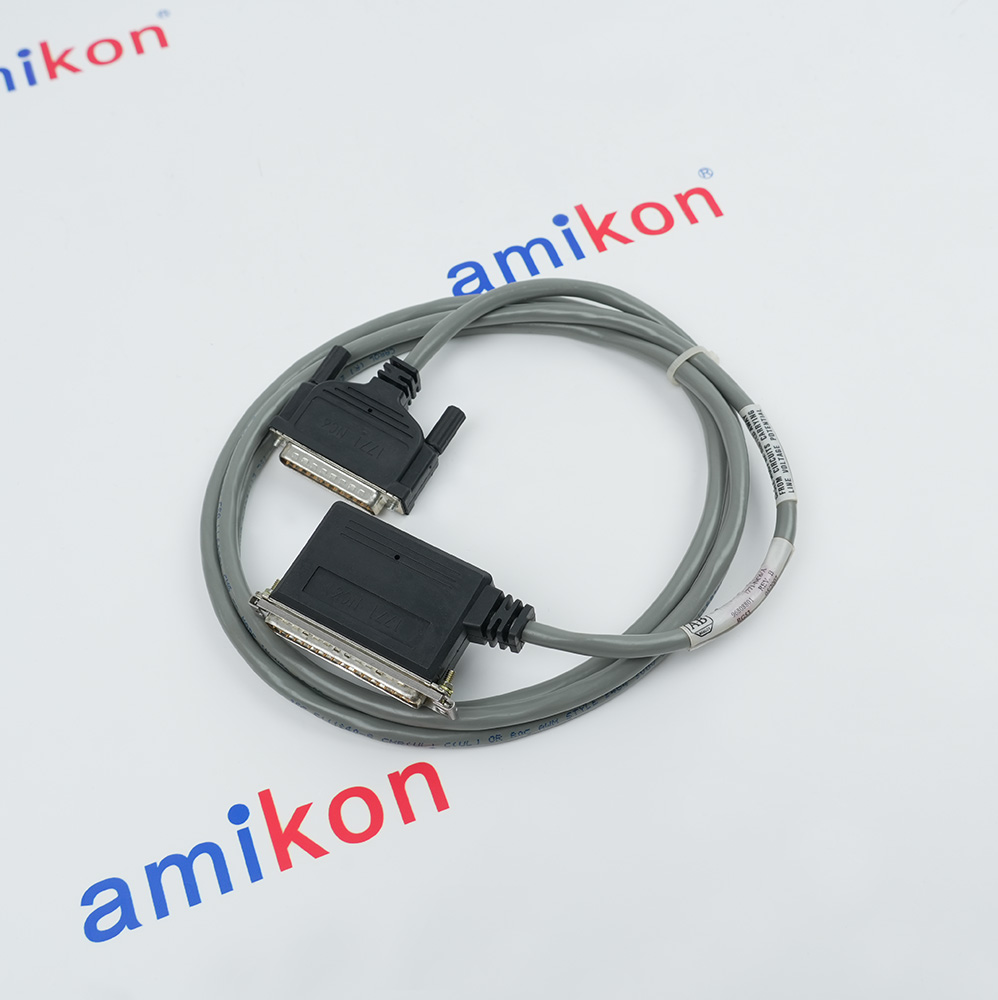

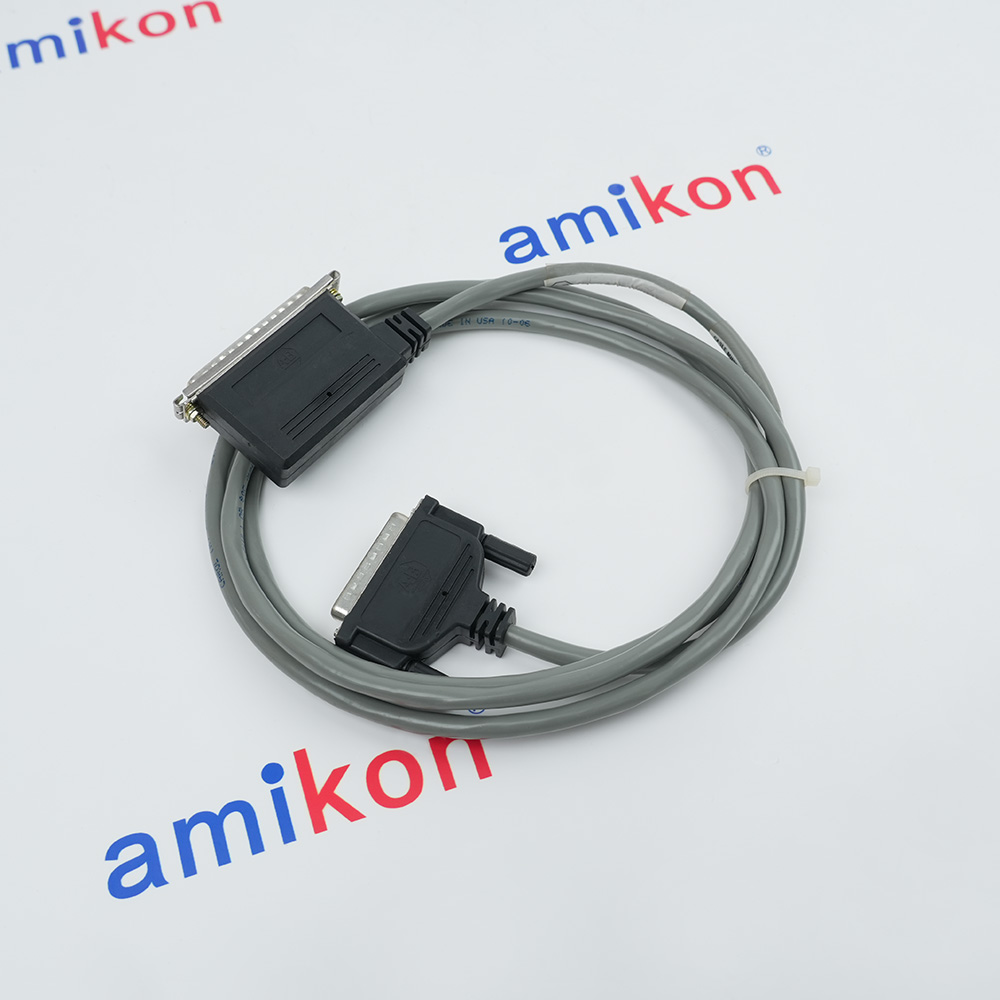

Product Model1771-NC6
-
Product ParametersPLC 5 connector cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size22.9x12.7x22.9cm
-
ManufacturerAllen-Bradley
-
Weight1 lbs (0.25 kg)
-
Product LinePLC 5
-
Length6 ft (1.8 m)
-
Number of Outputs2 Outputs
-
Output TypeCurrent
-
Backplane Current1.8 Amperes
-
Data FormatBDC or Natural Binary
-
Typical AC Signal Delay (Off)45 (+/- 15) ms
-
Typical DC Signal Delay (Off)50 ms
Description
The Allen-Bradley 1771-NC6 is a cable used for connecting Remote Terminal Panels or RTPs to Allen-Bradley 1771-N series analog modules. The Allen-Bradley 1771-N modules are made to work with Allen-Bradley PLC-3, PLC-5, and Allen-Bradley PLC-5/250 programmable controllers when the modules and the programmable controllers are connected with a cable like the 1771-NC6 cable.
The 1771-N modules are purpose-built for applications where high resolution and good noise immunity are required. These modules make use of 16-bit analog-to-digital converters and of 14-bit digital-to-analog converters for achieving the desired resolution and precision. The N-series modules are designed and tested to provide 1000V isolation between all the channels, which ensures that noise signals, voltage transients, or shorts/overloads on one channel will not affect any other channel. Calibration is required once a year and can be done from the PLC processor.
The 1771-N modules are purpose-built for applications where high resolution and good noise immunity are required. These modules make use of 16-bit analog-to-digital converters and of 14-bit digital-to-analog converters for achieving the desired resolution and precision. The N-series modules are designed and tested to provide 1000V isolation between all the channels, which ensures that noise signals, voltage transients, or shorts/overloads on one channel will not affect any other channel. Calibration is required once a year and can be done from the PLC processor.
Alternative Names
1771 NC6
177I-NC6
I771-NC6
1771NC6
I77I-NC6
177I NC6
I771 NC6
Information
Overview
Manuals
Application Notes
Product Applications
Installation & Wiring Process
Features:
- 6-Foot Cable Length for Standard Installations
- Connects I/O Modules to Remote Termination Panels
- Two-Cable Configuration (Cable A and Cable B)
- Compatible with 1771-N Series High Resolution Isolated Analog I/O
- DIN Rail Mountable RTP Compatibility
The cable features industrial-grade construction with shielded multi-conductor wiring for reliable signal transmission in electrically noisy industrial environments. It is compatible with all PLC-5 processor models and 1771 series I/O chassis.
The 1771-NC6 Allen-Bradley PLC 5 connector cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1771-NC6 PLC 5 connector cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The cable supports controller diagnostics, online monitoring, ladder logic modifications, program uploads, and downloads. Its industrial-grade shielding helps maintain communication reliability in electrically noisy environments commonly found in manufacturing plants and process facilities.
Designed specifically for the PLC-5 family, the 1771-NC6 is frequently used during system startup, commissioning, preventive maintenance, troubleshooting, and software updates. The factory-assembled connectors and durable cable construction ensure dependable operation throughout the lifecycle of industrial control systems.
- Process Control: Transmits 16-bit analog data for pressure, temperature, and flow in chemical, refining, and water treatment
- Factory Automation: Handles positioning, sensor feedback, and synchronized multi-axis machine movements
- Power Generation: Provides noise-immune isolated channels for grid telemetry and turbine metrics in substations
- Material Handling: Carries analog feedback from weight cells, sorting sensors, and VFDs in conveyor/packaging systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare the Chassis Slots: Key the backplane to prevent incorrect module insertion. Place the plastic keying bands in the chassis connector between 10 and 12 and 22 and 24.
Route the Cable: Connect the first 25-pin connector of the 1771-NC6 cable to the front of the isolated analog I/O module. Route the cable cleanly through the chassis wiring troughs.
Terminate: Connect the second 25-pin end of the cable directly to your compatible Remote Termination Panel (RTP).
Technical notes
The 1771-NC6 connects to remote termination panels that are designed for mounting on standard DIN 1 or DIN 3 mounting rails, facilitating organized and professional control cabinet installations. The 1771-NC6 is also available in a longer 15-foot variant (1771-NC15) for installations requiring extended cable runs between I/O modules and termination panels.
FAQs
-
What is the 1771-NC6?
+The Allen-Bradley 1771-NC6 is a 6-foot, 25-pin to 25-pin analog series cable used to connect PLC-5 system modules (such as the 1897-NOV) to remote termination panels. -
What is the length of the 1771-NC6 cable?
+The 1771-NC6 is exactly 6 feet long and weighs approximately 0.6 pounds. -
What are the connectors on the 1771-NC6?
+This cable is equipped with a 25-pin connector on both of its ends. -
What devices does this cable connect?
+It is primarily used to connect an Allen-Bradley 1897-NOV fast isolated analog voltage output module to a remote termination panel.
