Technical specifications for 2711P-T6C20D8
-
Product Model2711P-T6C20D8
-
Spare Model2711PT6C20D8
-
Product ParametersPanelView Plus 6 Operator Interface
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size24.5x33.5x12.5cm
-
ManufacturerAllen-Bradley
-
Weight1.15 kg
-
Display Size5.7 in (145 mm)
-
Display TypeTFT Color Display
-
Display Resolution320 × 240 Pixels (QVGA)
-
Color Depth18-bit Color Graphics
-
Display Brightness440 cd/m² (Nits)
-
Backlight Life25,000 Hours Minimum at 25°C
-
RAM Memory256 MB
-
Non-Volatile Memory512 MB Flash
-
Supply Voltage18–30 VDC
-
Nominal Supply Voltage24 VDC
Description

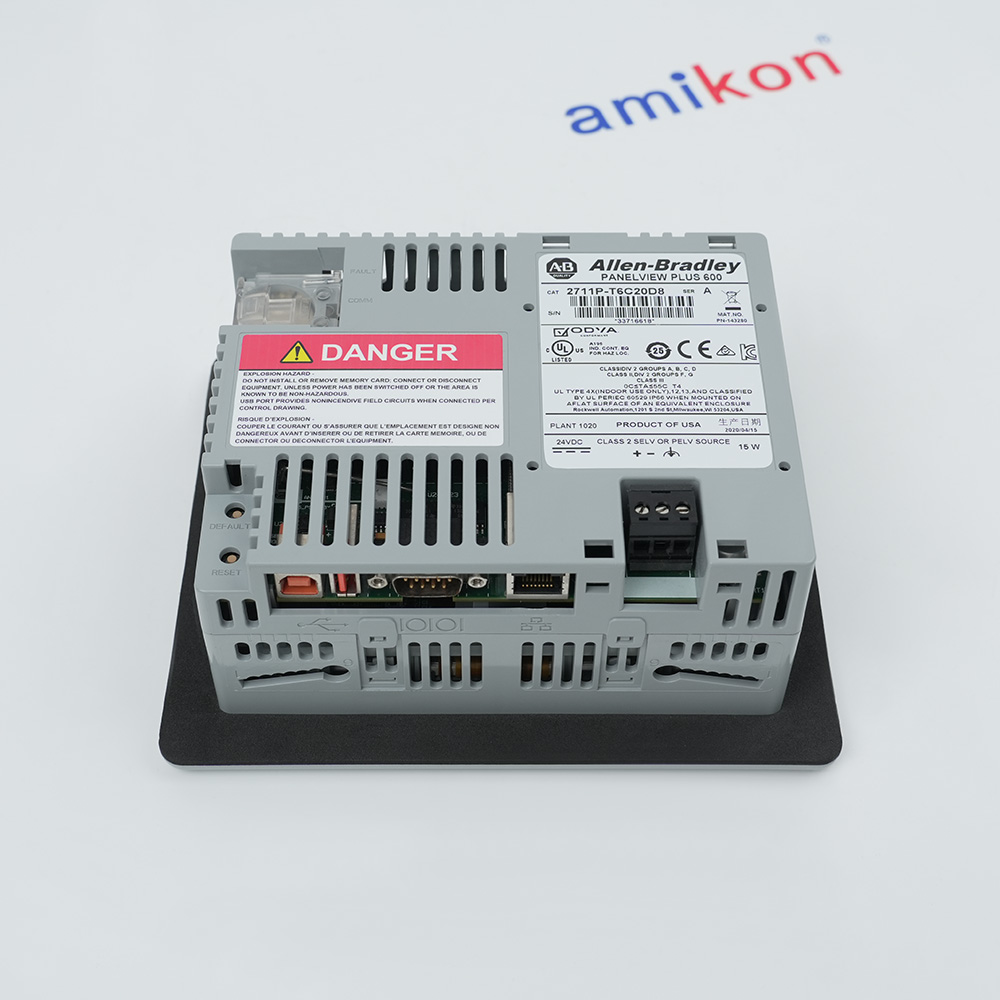

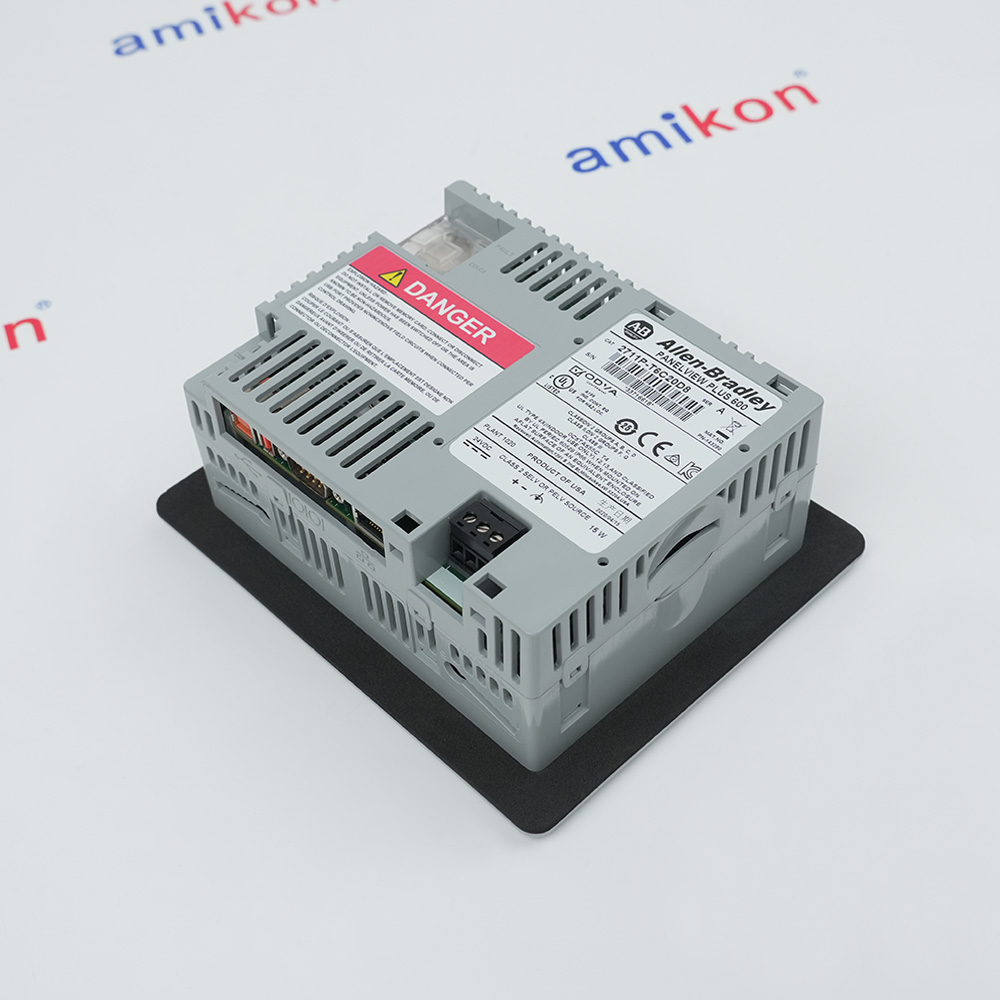

The 2711P-T6C20D8 from Allen Bradley serves as an operator interface within the PanelView Plus 6 series. This model features a 5.7-inch color touchscreen display, offering interactive control for various applications. It operates on DC voltage and provides substantial memory capacity for user applications.
The Allen Bradley 2711P-T6C20D8 is designed as a reliable operator interface within the PanelView Plus 6 line. It is equipped with a vivid 5.7-inch color graphics touchscreen, facilitating easy interaction and operation. The unit is powered by DC voltage, making it suitable for a myriad of applications within industrial environments.
This model hosts both device and host USB ports, enabling versatile connectivity options. Additionally, it supports RS-232 and Ethernet communication protocols, ensuring compatibility with various systems and devices. With a RAM capacity of 256 MB, the unit efficiently handles multiple tasks while providing ample space for operational needs. Furthermore, the non-volatile memory capacity stands at 512 MB, of which about 73 MB is available as free user memory, allowing for significant data storage and retrieval capabilities.
The Allen Bradley 2711P-T6C20D8 is designed as a reliable operator interface within the PanelView Plus 6 line. It is equipped with a vivid 5.7-inch color graphics touchscreen, facilitating easy interaction and operation. The unit is powered by DC voltage, making it suitable for a myriad of applications within industrial environments.
This model hosts both device and host USB ports, enabling versatile connectivity options. Additionally, it supports RS-232 and Ethernet communication protocols, ensuring compatibility with various systems and devices. With a RAM capacity of 256 MB, the unit efficiently handles multiple tasks while providing ample space for operational needs. Furthermore, the non-volatile memory capacity stands at 512 MB, of which about 73 MB is available as free user memory, allowing for significant data storage and retrieval capabilities.
Revisions
Revision Part #
Also known as
Alternative Names
2711P-T6C20DB
2711PT6C2OD8
27I1PT6C20D8
27IIPT6C2ODB
2711P-T6C2OD8
271IP-T6C20D8
27IIP-T6C20D8
2711PT6C20D8
271IPT6C20D8
27IIP-T6C2ODB
2711PT6C20DB
27I1P-T6C20D8
27IIPT6C20D8
Information
Overview
Manuals
Application Notes
Product Applications
Mounting the Unit
Features:
- Provides significant improvements over the PanelViewPlus 600 graphic terminals
- Processor speed increased from 350 MHzto 1 GHz
- System memory increased from 64MBRAM to 256MB RAM
- Flash storage space increased from 64MBto 512MB
- Supports remote connectivity (VNC and FTP)
The terminal is equipped with a 5.7-inch TFT color display featuring a resolution of 320 × 240 pixels and 18-bit color graphics. The analog resistive touchscreen provides reliable operation in industrial environments and supports direct interaction with machine processes, production data, alarms, and diagnostics.
The 2711P-T6C20D8 Allen-Bradley PanelView Plus 6 Operator Interface may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 2711P-T6C20D8 PanelView Plus 6 Operator Interface Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Powered by a 1 GHz processor with 256 MB RAM and 512 MB flash memory, the PanelView Plus 6 delivers significantly improved application performance, faster screen transitions, and enhanced data handling capabilities compared to earlier PanelView generations. The platform supports FactoryTalk View Machine Edition applications and provides sufficient memory resources for complex graphical interfaces and data logging functions.
- Food and Beverage Processing:washdown/dust-shielded packaging & sorting lines
- Water and Wastewater Treatment:Real-time tank levels, valve states & pressures
- Material Handling and Conveyors:Diagnose motor faults, manage recipes & clear bottlenecks
- Automated Assembly Lines:Step-by-step diagnostics & cycle tracking for auto/electronics
- Hazardous Industrial Zones:Class I Div2: oil/gas, chemical mixers & paint booths
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Verify that the sealing gasket is correctly seated in the channel around the front bezel. Do not use additional sealing adhesives or compounds.Insert the terminal through the front of the panel cutout.Insert the mounting levers (slotted clips) into the mounting slots located on the top and bottom of the HMI chassis.
Technical notes
Environmental specifications include an operating temperature range of 0°C to +55°C and nonoperating storage temperature from –25°C to +70°C. Relative humidity tolerance is 5% to 95% non-condensing. The terminal withstands vibration of 0.012 in peak-to-peak displacement from 10 to 57 Hz and 2 G peak acceleration from 57 to 500 Hz. Shock resistance is 15 G at 11 ms during operation and 30 G at 11 ms during nonoperation. Maximum operating altitude is 2000 m.
FAQs
-
What is the enclosure type for the 2711P-T6C20D8?
+The 2711P-T6C20D8 has enclosure ratings of NEMA/UL Type 12.13 4X (indoor only), and IEC IP66. -
What is the 2711P-T6C20D8's memory capacity?
+The 2711P-T6C20D8's memory capacity is 256 MB of RAM. -
What is the operating temperature requirement of the 2711P-T6C20D8?
+The operator terminal’s operating temperature is 0…55 °C (32…131 °F). -
Is the backlight replaceable?
+No. The white LED backlight on the 2711P-T6C20D8 is non-replaceable and rated for approximately 25,000 hours. If the backlight or display fails, the unit will need to be repaired or replaced.
