Technical specifications for 80173-006-01/81001-355-71-R
-
Product Model80173-006-01/81001-355-71-R
-
Product ParametersSCR THYRISTOR INTERFACE BOARD
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size7.5x5.8x2.8cm
-
ManufacturerAllen-Bradley
-
Weight0.25 kg
-
Voltage Rating1200V
-
Current Rating355A
-
Surge Current6500A
-
Gate Trigger Current50mA
-
Junction Temperature-40°C to +125°C
-
Thermal Resistance0.12°C/W (Junction-to-Case)
Description

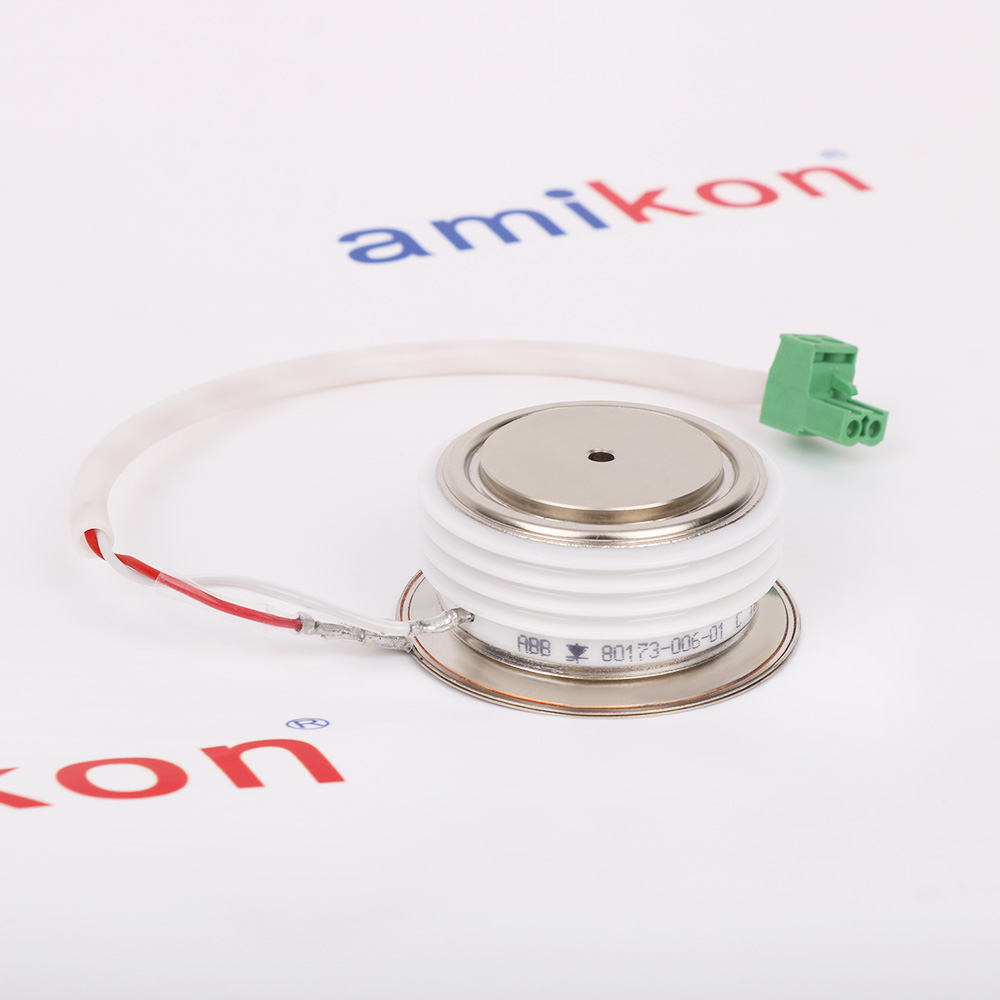

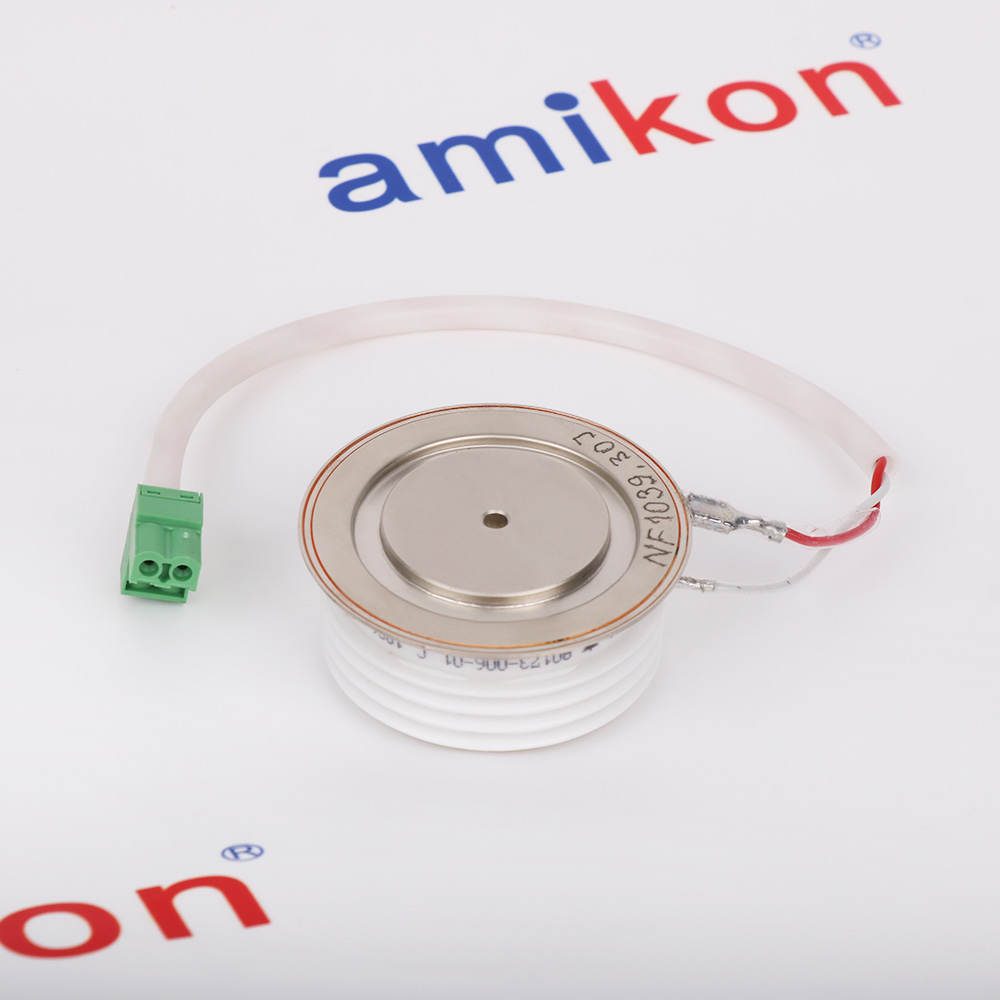

The Allen-Bradley 80173-006-01-R /A is an SCR (Silicon-Controlled Rectifier) Thyristor Interface Board manufactured by Rockwell Automation / Allen-Bradley. It serves as a critical interface and control component within the PowerFlex 7000 series medium voltage AC drive systems. The related component 81001-355-71-R is the actual SCR thyristor power module (350A, 6.5kV) that works in conjunction with this interface board.
Alternative Names
80173-006-01 81001-355-71-R
80173-006-01
81001-355-71-R
80I73-006-01 8100I-355-7I-R
8O173-OO6-O1 81OO1-355-71-R
80173-006-0I
Information
Overview
Manuals
Engineering Considerations
Product Applications
Wiring & Gating Signal Grounding
Features:
- SCR THYRISTOR INTERFACE
- PowerFlex 7000
- AC Drive platform
These components are core elements of the PowerFlex 7000 Medium Voltage AC Drive platform, which operates at input voltages from 2400V to 6600V and serves heavy-industrial applications such as petrochemical processing, cement manufacturing, mining, metals, water treatment, and power generation. The PowerFlex 7000 employs a PWM Current Source Inverter (CSI) topology with either 18-pulse SCR rectifiers or Active Front-End (AFE) SGCT rectifiers, depending on the configuration. The 80173-006-01/81001-355-71-R assembly is specifically associated with the 18-pulse SCR rectifier line converter section.
The 80173-006-01/81001-355-71-R Allen-Bradley SCR THYRISTOR INTERFACE BOARD may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 80173-006-01/81001-355-71-R SCR THYRISTOR INTERFACE BOARD Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This board serves as a crucial signal/power conditioning interface, typically bridging a programmable logic controller (PLC) processor and high-power thyristor/SCR control circuits (such as variable speed drives or industrial heating elements).
Thyristor switching generates high levels of electrical noise (EMI). Proper grounding, shielded cable termination, and physical separation from low-voltage logic lines are critical to prevent erroneous triggering.
- Industrial Crushers:Gating signals for jaw/cone crushers (mining/aggregate)
- Reciprocating Plate Feeders:High-torque variable-speed motors under hoppers.
- Conveyor Networks:Soft-start/current control for long-distance lines
- Metal-Rolling Mills & Slitters:Power flow for motor drives: feed/press/shape
- Paper-Making Machines:Motor sync for wire/press/dryer sectionse
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Conduit Segregation: Run low-voltage logic/control signals (from the PLC or drive controller) through separate physical conduits or wire ducts away from high-power AC line lines or DC motor cables.
Shield Grounding: Use high-quality shielded cables for all SCR gating pulses and pulse transformer interfaces. Ensure the cable shields are grounded only at one end (typically the controller/chassis ground end) to eliminate hazardous ground loops.
Technical notes
The board functions as a localized signal amplifier and isolation layer. It takes low-power control signals from the drive’s main processor and converts them into high-current gate-firing pulses needed to trigger heavy-duty SCR thyristors.
