Technical specifications for 80190-240-02-R
-
Product Model80190-240-02-R
-
Product ParametersPowerFlex Control Board
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size30.2x25.3x3cm
-
ManufacturerAllen-Bradley
-
Weight0.45 kg
-
Operating Temp0°C to 40°C (32°F to 104°F)
-
Storage Temp-40°C to 85°C (-40°F to 185°F)
-
Humidity5% to 95% non-condensing
-
Input Voltage240 V AC
-
No-Load Power Draw2.16 W @ 24 V DC
-
Full-Load Power Draw2.88 W @ 24 V DC
-
Frequency Tolerance47–63 Hz
-
Operating Temperature0°C to +40°C
-
Storage Temperature−40°C to +85°C
-
Relative Humidity5% to 95% RH (non-condensing)
Description

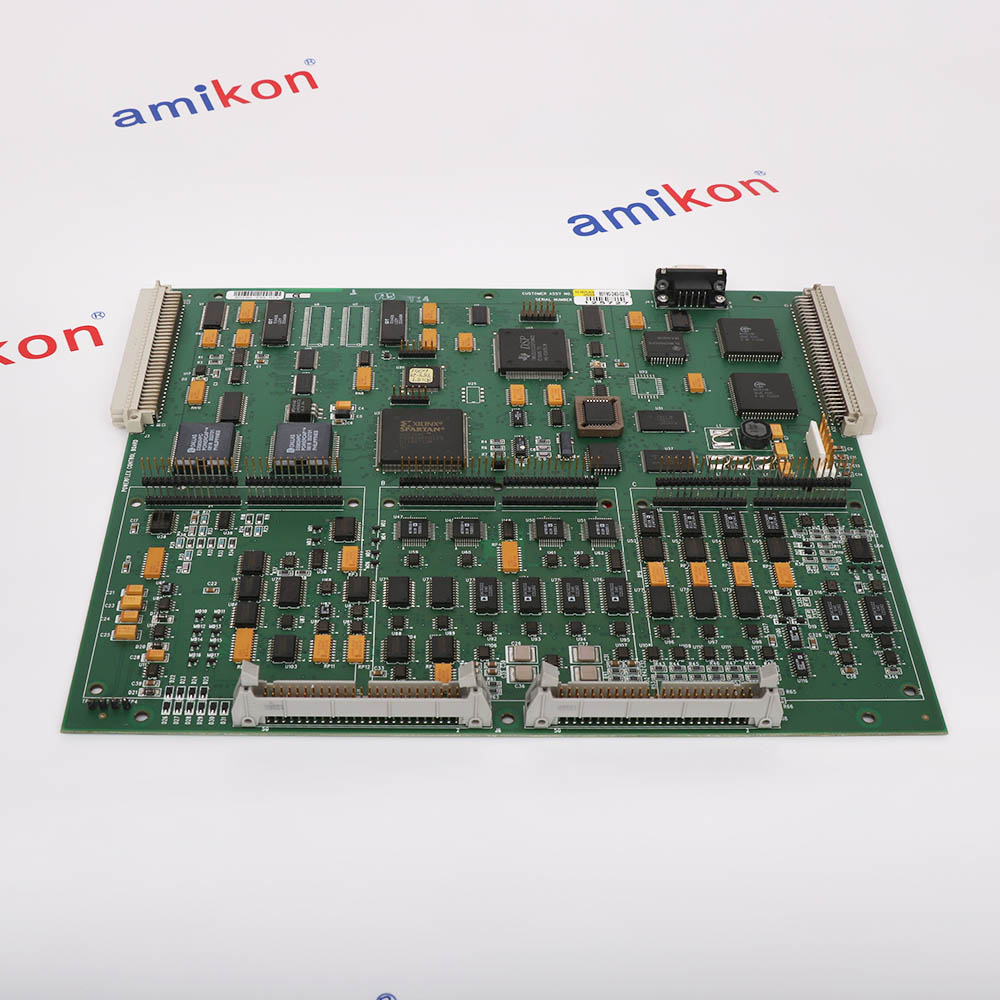

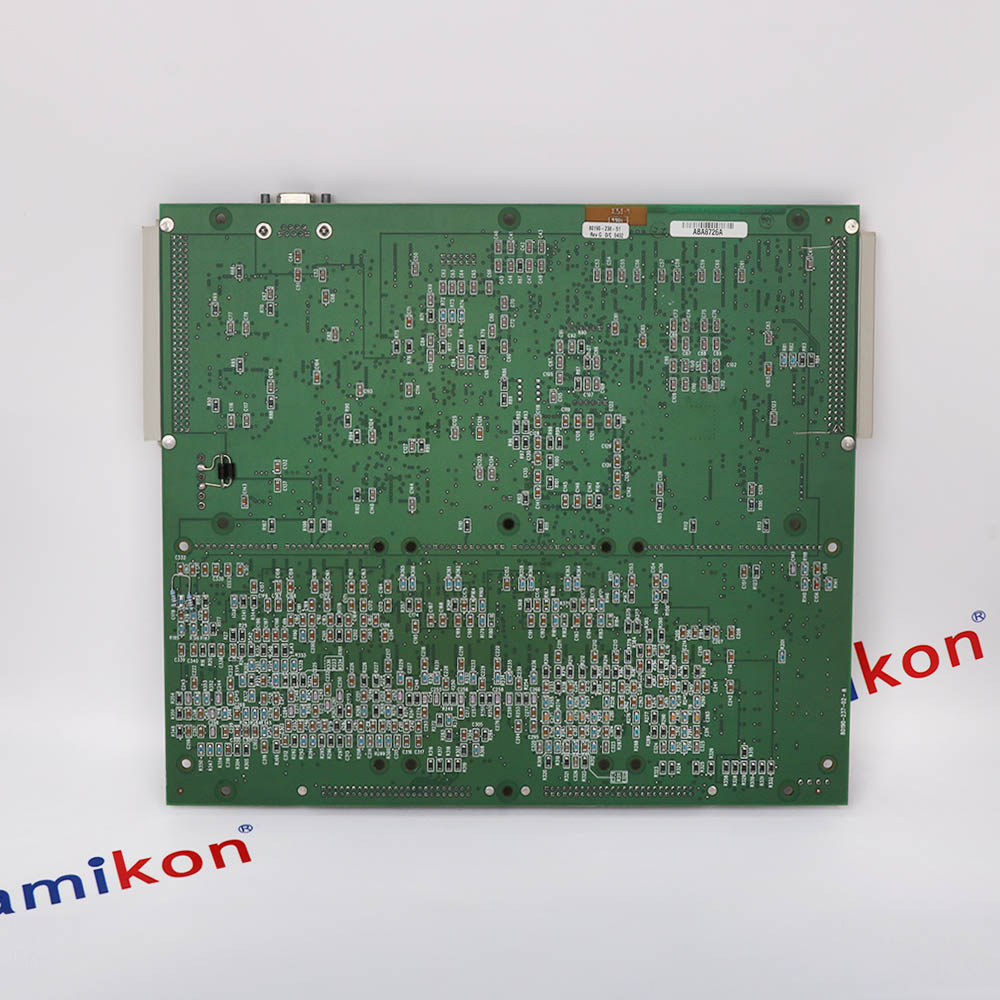

The Allen-Bradley 80190-240-02-R is a PowerFlex Control Board used in Rockwell Automation PowerFlex variable frequency drive (VFD) systems. The board functions as the primary control and processing module within the drive, managing motor control algorithms, input/output processing, communication functions, system diagnostics, and protective operations.
Installed within the drive control section, the board coordinates the operation of the power conversion stage, monitors system parameters, and processes commands from local and remote control sources. It is designed for continuous industrial operation and is commonly used in applications requiring precise motor speed, torque, and process control.
Installed within the drive control section, the board coordinates the operation of the power conversion stage, monitors system parameters, and processes commands from local and remote control sources. It is designed for continuous industrial operation and is commonly used in applications requiring precise motor speed, torque, and process control.
Alternative Names
80190 240 02 R
8019024002R
8019O-24O-O2-R
80I90-240-02-R
8O19O-24O-O2-R
8O19O 24O O2 R
Information
Overview
Manuals
Application Notes
Product Applications
Installation Guidelines
Features:
- Main control board for PowerFlex drive systems
- Real-time motor control processing
- Integrated fault monitoring and diagnostics
- Programmable I/O handling
The board integrates a digital signal processor (DSP) and field-programmable gate array (FPGA) architecture, enabling high-speed computation for advanced motor control algorithms. This processing capability supports field-oriented control (FOC), where the stator current is decomposed into independent flux-producing and torque-producing components, allowing rapid torque response without affecting motor flux. The control platform also accommodates permanent magnet motor control when equipped with compatible hi-resolution encoders or resolver feedback devices.
The 80190-240-02-R Allen-Bradley Main control board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 80190-240-02-R Main control board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
For applications requiring continuous operation above 6 Hz with less than 100% starting torque, the board operates in sensorless direct vector control mode without tachometer feedback. Full vector control with tachometer feedback is available for applications demanding continuous operation down to 0.2 Hz with up to 150% starting torque. The speed bandwidth ranges from 1 to 15 radians per second, while the torque bandwidth spans 20 to 100 radians per second, delivering superior dynamic performance compared to conventional volts/hertz drives.
- Oil & Gas:High-capacity pumps, compressors & pipelines
- Mining & Minerals:Heavy conveyors, grinding mills & fans
- Water & Wastewater:Large municipal pumps & distribution
- Power Generation:ID/FD boiler fans in utility plants
- Marine:Electric propulsion & heavy thrusters
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Remove Existing Board: Carefully disconnect any cables, fiber optics, or plug-in connectors attached to the old board. Unscrew the mounting hardware and gently slide the old control board out of the chassis.Install Replacement Board: Align the replacement 80190-240-02-R Board in the designated rack slot and push firmly but evenly. Fasten the retaining screws.
Technical notes
The 80190-240-02-R board accepts a 240 V AC control power input and features a compact 9-pin connector for streamlined installation within industrial control panels. It provides multiple communication interfaces including isolated RS-232 and RS-485/422 serial ports, plus 10/100 Mbps Ethernet with auto-MDIX and Modbus-TCP readiness. The Drive Peripheral Interface (DPI) enables connection to external Human Interface Modules (HIMs), communication adapters, and remote I/O modules.
FAQs
-
Is it compatible with the 80190-480-21-R control board?
+Yes, these two boards are compatible and share the 2.005 boot prom assembly. You can use the newer replacement board (80190-480-21-R) as a direct swap. -
Is the 80190-240-02-R compatible with the 80190-480-21-R control board?
+Yes. According to Rockwell Automation Support, the 80190-240-02-R and 80190-480-21-R are completely compatible. Both boards utilize the same 2.005 boot PROM assembly architecture, allowing them to interface properly within PowerFlex 7000 Classic control structures. -
Does the replacement control board include the DSP chip and firmware?
+The replacement board (such as the 80190-480-21-R) will come with the DSP chip, but it does not include the drive firmware.
