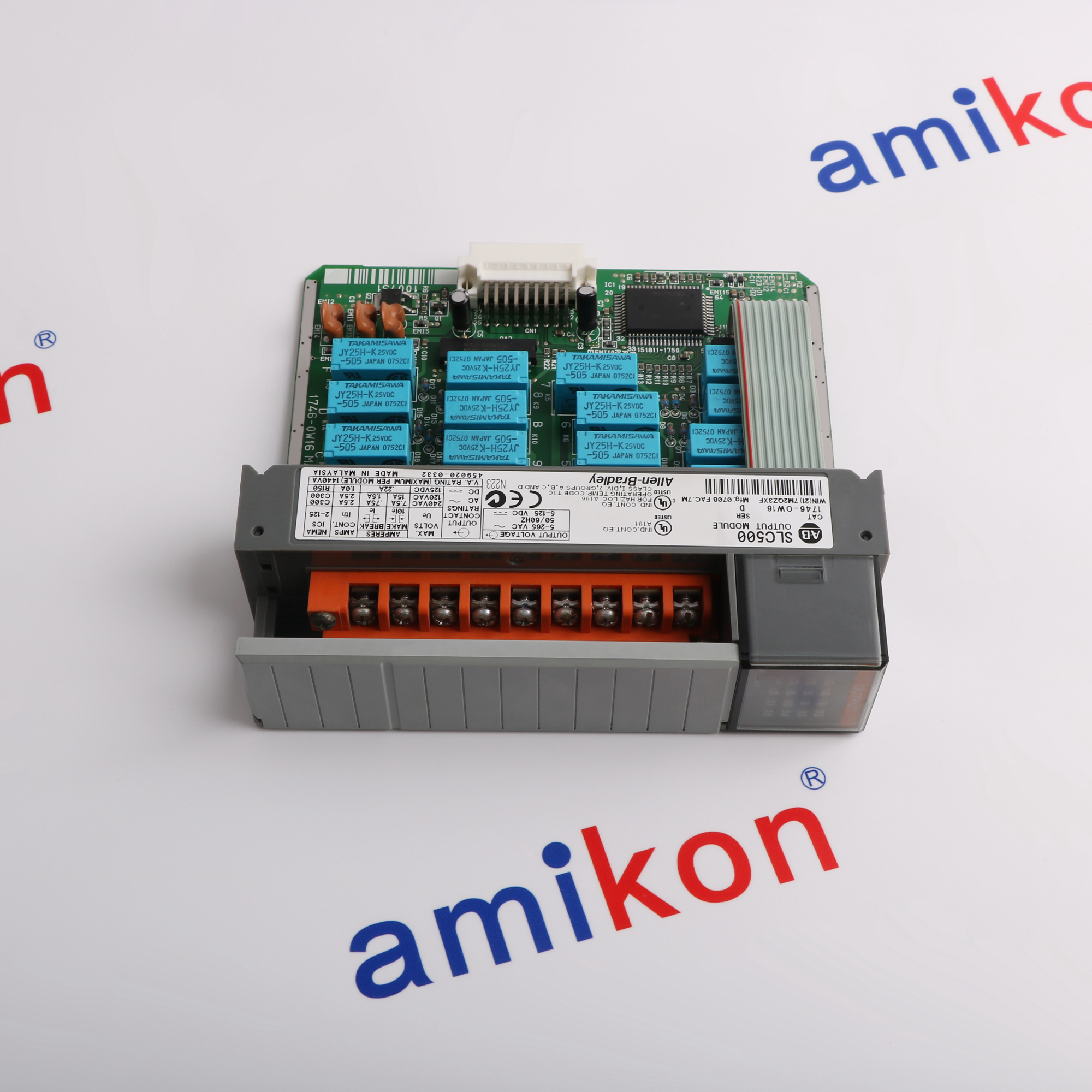

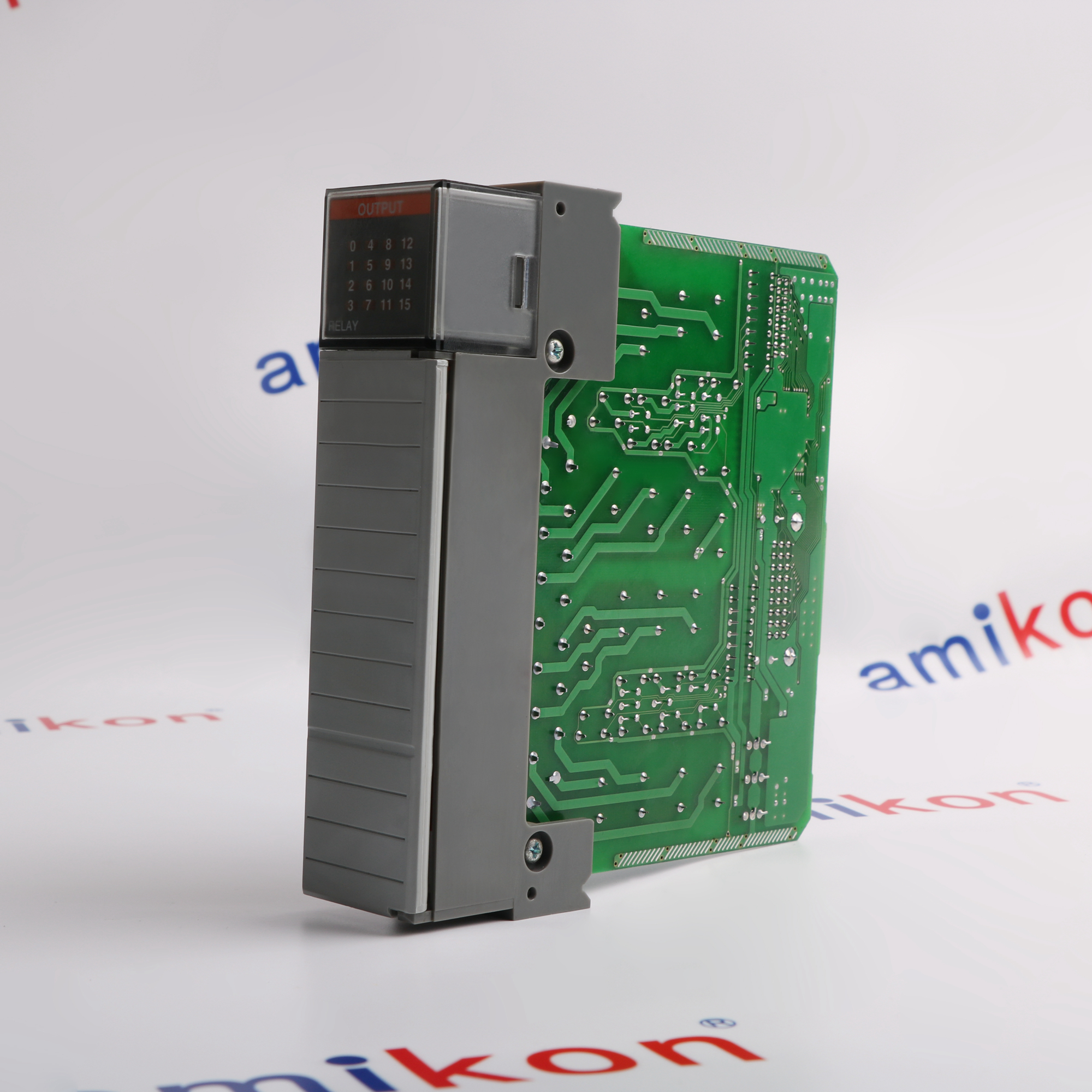

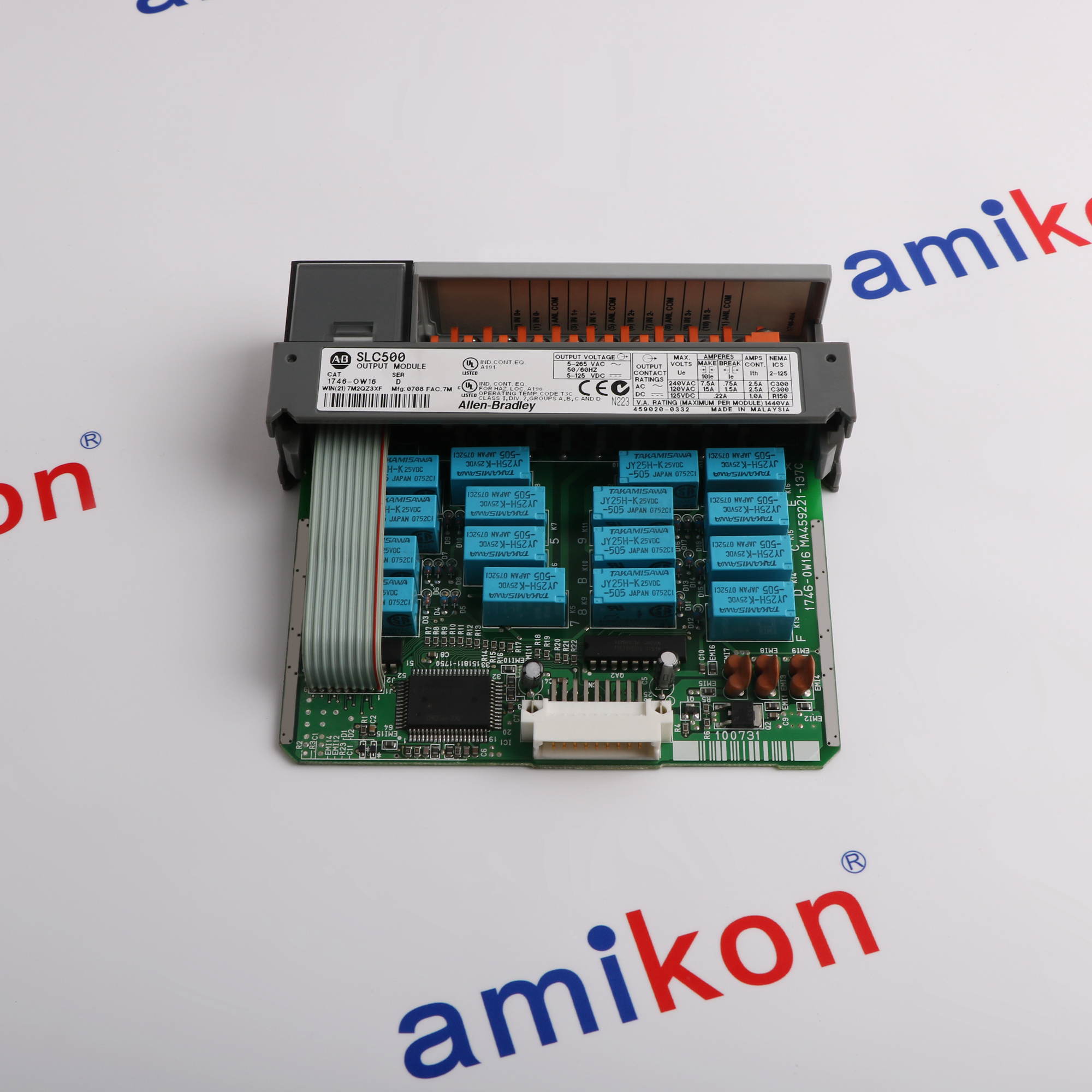

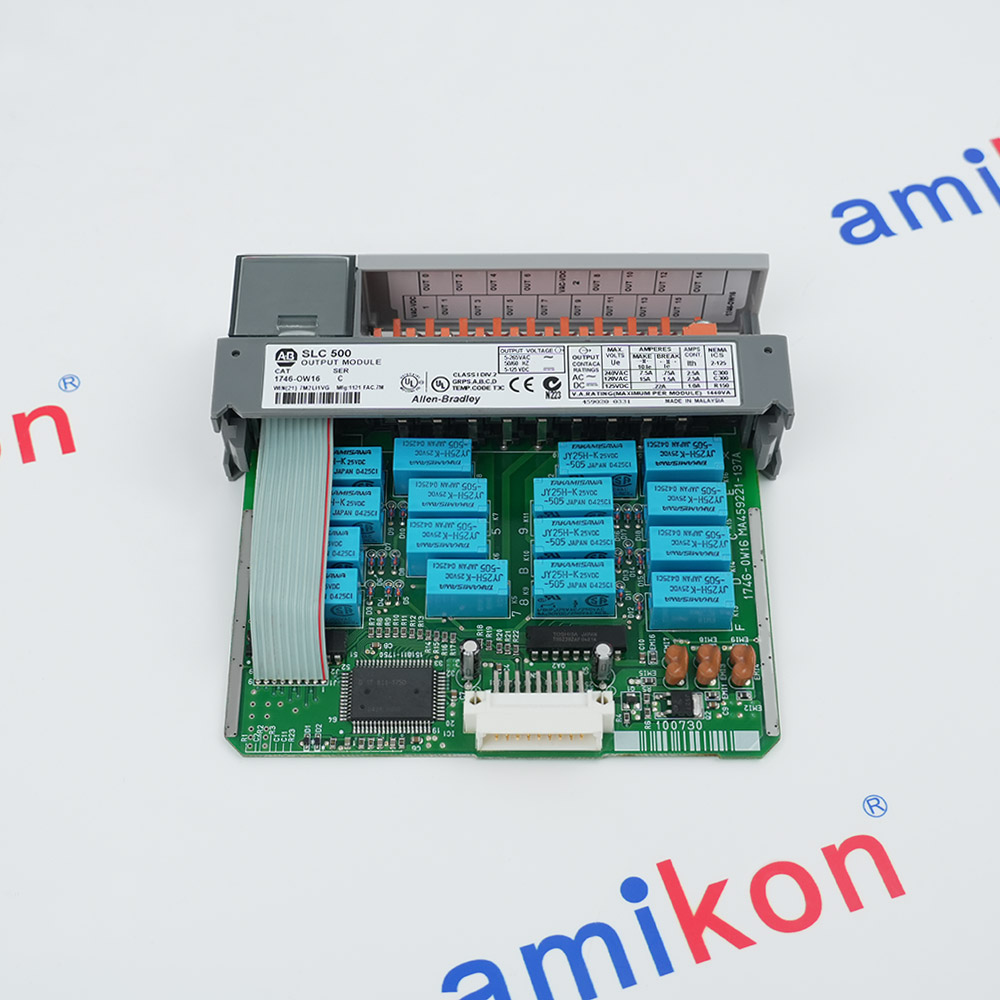

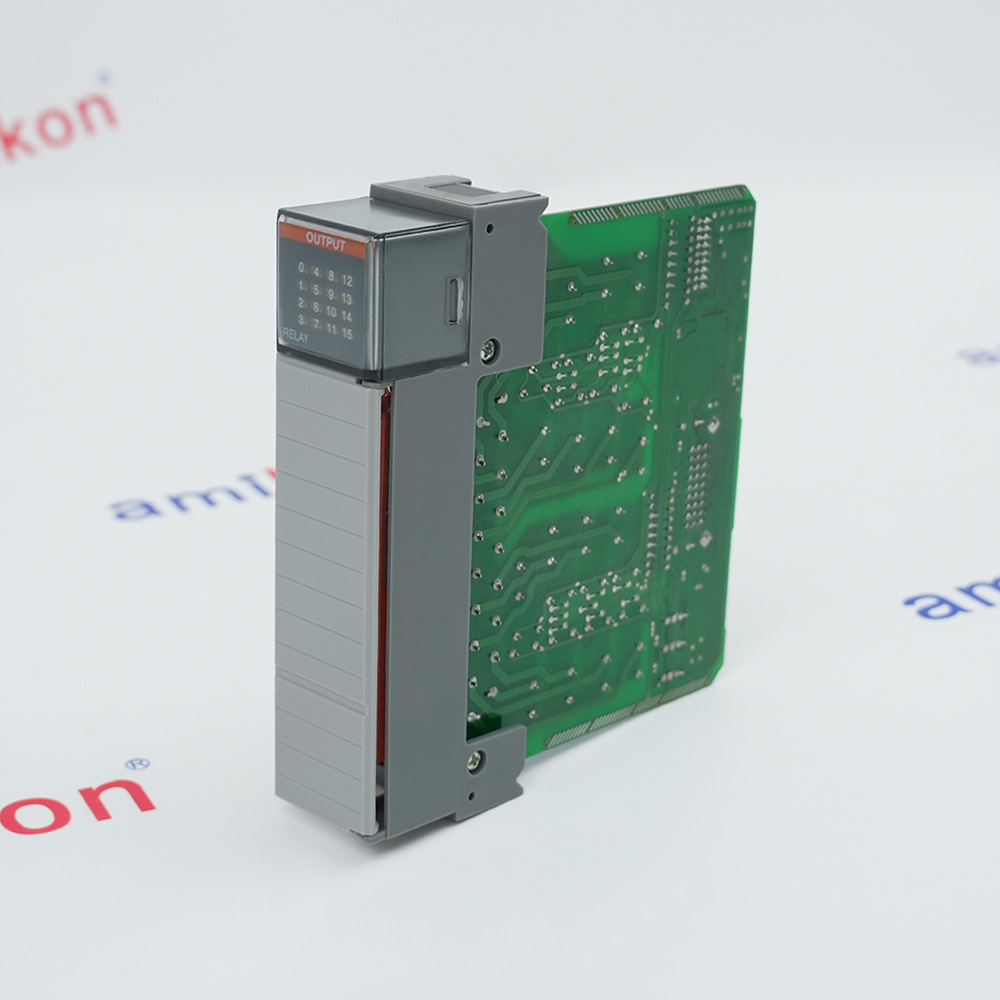

Technical specifications for 1746-OW16
-
Product Model1746-OW16
-
Spare Model1746OW16
-
Product ParametersSLC 16 Point Digital Output Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.5x13x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.32 kg
-
Voltage categoryAC/DC Relay
-
Number of outputs16
-
Points per common8
-
Voltage, operating5...265
-
Load current, min10 mA @ 5V DC
-
Temperature, operating0...60 °C (32...140 °F)
-
Temperature, nonoperating-40...85 °C (-40...185 °F)
-
Operating humidity5...95% (noncondensing)
Description
The Allen Bradley part 1746-OW16 is classified as a digital output module within the SLC 500 series, providing essential capabilities for automation and control tasks. It supports a total of 16 outputs, with each section divided into groups of 8 points for common connections. This configuration allows for efficient use in control strategies involving multiple devices. Operating under Normally Open conditions, the module is versatile in creating desired circuit configurations.
The module operates with a voltage range at 5 volts DC from 5 to 125 volts, while it can manage a voltage range of 5 to 265 volts DC under 24 volts, which enables broad compatibility with various systems.
The module operates with a voltage range at 5 volts DC from 5 to 125 volts, while it can manage a voltage range of 5 to 265 volts DC under 24 volts, which enables broad compatibility with various systems.
Revisions
Revision Part #
Also known as
Alternative Names
1746-0W16
1746OWI6
I746-OW16
I7A6-0WI6
1746-OWI6
1747-OW16
I746-OWI6
I7A60WI6
17460W16
17A6-OW16
I746OW16
1746OW16
Information
Overview
Manuals
Application Notes
Product Applications
Physical Module Insertion
Features:
- 16 relay contact outputs
- Wide operating voltage range
- Removable terminal block
- LED indicators on the front panel
The module operates with a voltage range of 5 to 125 Volts DC and 5 to 265 Volts AC. The two groups allow one group to operate with DC voltage while the other operates with AC voltage. Both groups may also operate with DC voltage or both with AC voltage. This mixed voltage capability eliminates the need for interposing circuitry.
The 1746-OW16 Allen Bradley Digital Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 1746-OW16 Digital Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Mixed Voltages: Because the 16 channels are split into two groups of 8 with separate commons, you can use Group A to switch a DC load and Group B to switch an AC load simultaneously.
No Interposing Relays: Since the relay contacts are dry, this card eliminates the need to install intermediary relays to switch external devices, saving space and wiring.
Overcurrent Protection: The module does not feature internal fusing. You must install external fusing sized for your individual load to protect the relay contacts from overload or short circuits.
- Manufacturing & Machine Automation:Assembly lines, conveyors & custom machinery
- Water & Wastewater Processing:Dosing pumps, valves & mixers
- Food, Beverage & Packaging:Sorting gates, bottling & sealers
- Building Automation:Lighting, dampers & HVAC
- Metals, Mining, Oil & Gas:Relay isolation for heavy industrial loops
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Identify Slot Constraints: The first slot (Slot 0) of any SLC 500 chassis is strictly reserved for the central processor module or a 1747-ASB remote adapter. Insert the 1746-OW16 into any remaining open I/O slot.
Align and Slide: Align the top and bottom edges of the module's green circuit board with the plastic card guides inside the chassis. Slide the module straight into the slot.
Lock in Place: Press firmly on the front of the module until the top and bottom self-locking tabs snap and lock securely onto the chassis frame. Do not force it; if you feel resistance, check the card alignment.
Technical notes
The Allen-Bradley 1746-OW16 features 16 normally open (N.O.) electromechanical relay contacts divided into two isolated groups of eight outputs sharing a common terminal. This configuration makes it highly versatile for switching different, independent control voltages without needing external interposing relays.
FAQs
-
What is the 1746-OW16？
+The Allen-Bradley 1746-OW16 is a 16-point discrete relay output module used with the SLC 500 programmable logic controller (PLC) family. -
Can I mix AC and DC voltages on the same module?
+Yes. The 1746-OW16 has two separate groups, each with its own common terminal. You can use DC voltage for the first 8 points and AC voltage for the remaining 8 points (or vice versa), as long as the points share a common within their respective group. -
What is the minimum load current?
+The module requires a minimum load current of 10 mA at 5V DC. If your connected field device draws less than this, the relay may fail to reliably switch or register a connection -
What are the supported operational voltages?
+The module switches both AC and DC voltages. It operates across 5 to 125V DC and 5 to 265V AC
