Technical specifications for MVTP31V1CB0751E
-
Product ModelMVTP31V1CB0751E
-
Product ParametersBUSWIRE SUPERVISION RELAY
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size15.3x25.5x17.8cm
-
ManufacturerAlstom
-
Weight2.5 kg
-
Setting Range (Vs)1–16 V rms
-
Continuous Rating600 V rms per phase
-
Short-time Rating2 kV rms per phase for 3 seconds
-
Rated Frequency50/60 Hz
-
Operative Range47–61 Hz
Description

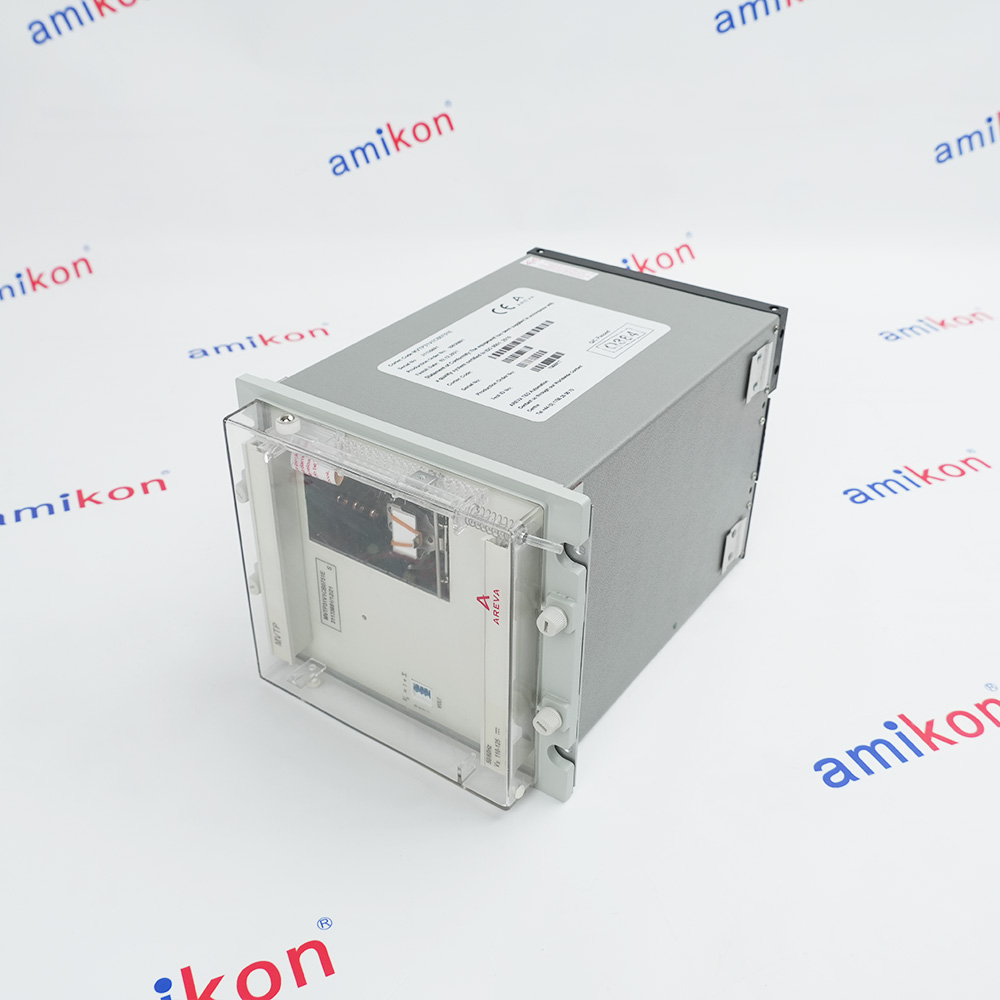

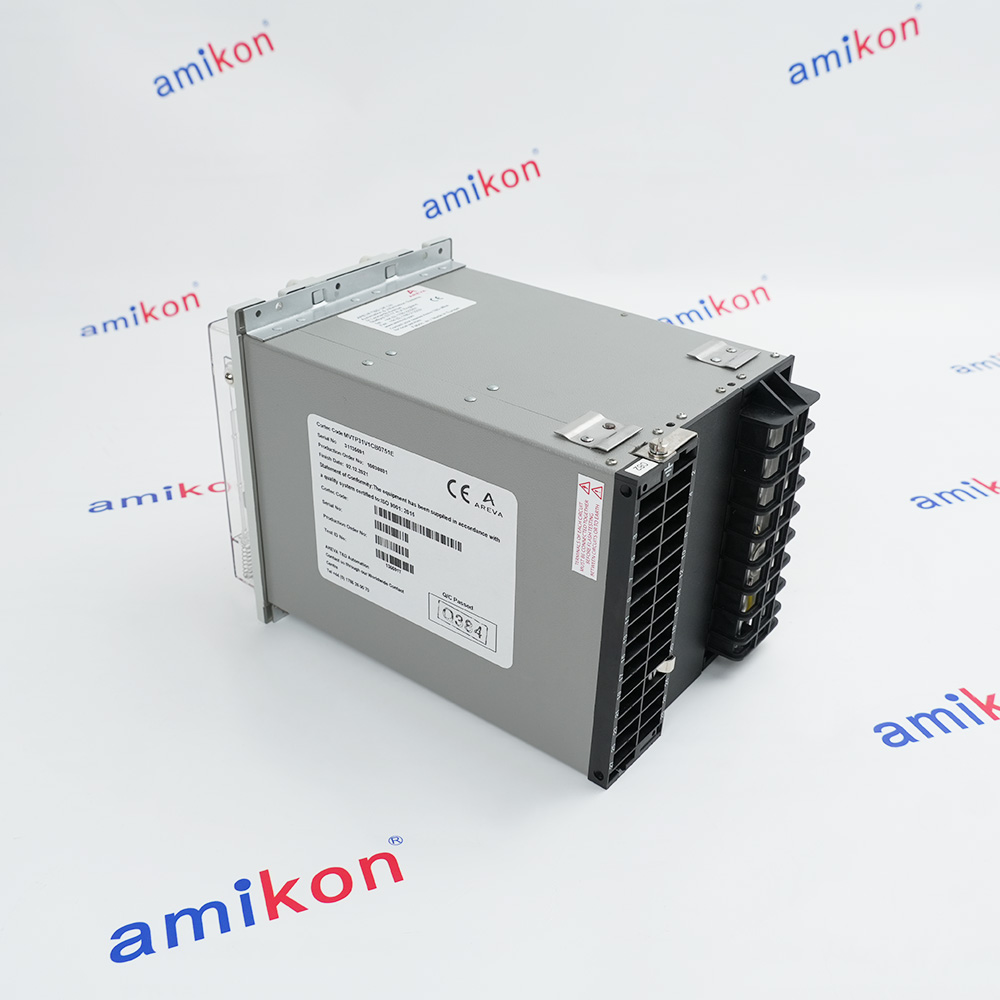

MVTP31V1CB0751E
BUSWIRE SUPERVISION RELAY
BUSBAR AND EARTH FAULT MONITOR
1-16 V ADJUSTABLE
3-10 SECOND TRIP DELAY
BUSWIRE SUPERVISION RELAY
BUSBAR AND EARTH FAULT MONITOR
1-16 V ADJUSTABLE
3-10 SECOND TRIP DELAY
Information
Overview
Manuals
Technical notes
Product Applications
Mounting & Wiring
Features:
- Integral buswire shorting facility
- Low AC burden
- No external resistors required
- Hand-reset mechanical flag
- Self-monitoring capability
- Continuous AC voltage input monitoring
- Type MVTP 31 - three phase relay
The AC voltage input is continuously monitored and when it exceeds the level pre-set by means of the plug setting, the output relay is actuated after a three or ten second delay.
The hand reset contacts of the output relay are normally connected across the buswires of the busbar protection thus short-circuiting the busbar protection relay and rendering the protection of the zone concerned inoperative.
The MVTP31V1CB0751E ALSTOM BUSWIRE SUPERVISION RELAY may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ALSTOM MVTP31V1CB0751E BUSWIRE SUPERVISION RELAY Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The AC voltage input is continuously monitored; when the input voltage exceeds the preset value on the plug, the output relay will activate after a 3-second or 10-second delay.
The manual reset contact of the output relay is typically connected to the busbar of the bus protection device, thereby short-circuiting the busbar protection relay,and disabling protection in the affected area.
A manual reset contact for alarm purposes is also provided on the same output relay.
The relay's operating status is indicated by a manual reset mechanical indicator.
- Power Generators: Monitors restricted earth fault (REF) for large generators.
- Industrial Motors:Protects high-capacity motors by rapidly clearing high-magnitude fault currents.
- Traction Transformers: Monitors power systems feeding locomotives and regional trains.
- Point Machines:Integrated into wayside systems controlling track switching.
- Track Circuits & Detection Devices:Supports fail-safe axle counters & track occupancy detection.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Orientation: Mount the relay vertically on a standard 19-inch rack or a dedicated protection panel.
Terminal Connections: Wire the main Current Transformer (CT) secondary leads to the relay's high-impedance buswires.
Shorting Contacts: Ensure the buswire shorting contacts are wired to the main protection relay’s "block" or "inhibit" input. If the MVTP detects a fault in the wiring, it must "freeze" the protection to prevent a false trip.
