PRODUCT DESCRIPTION

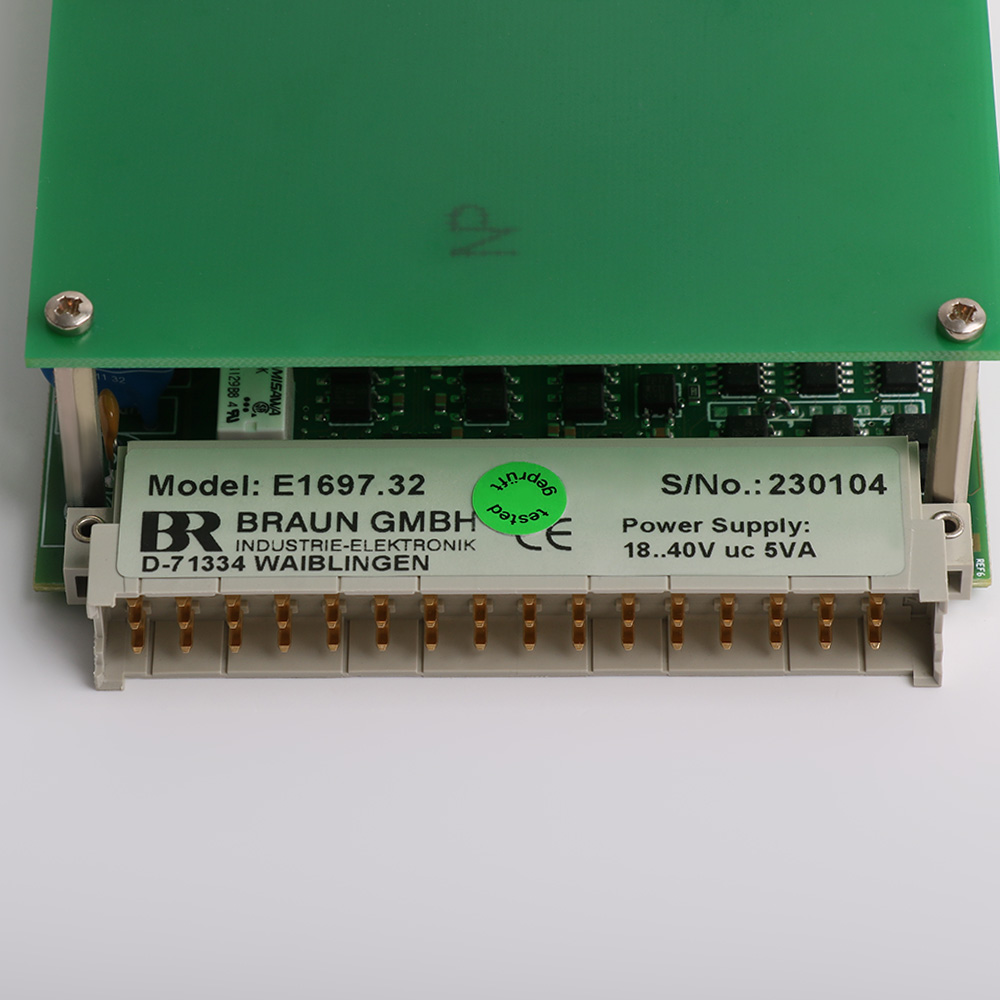

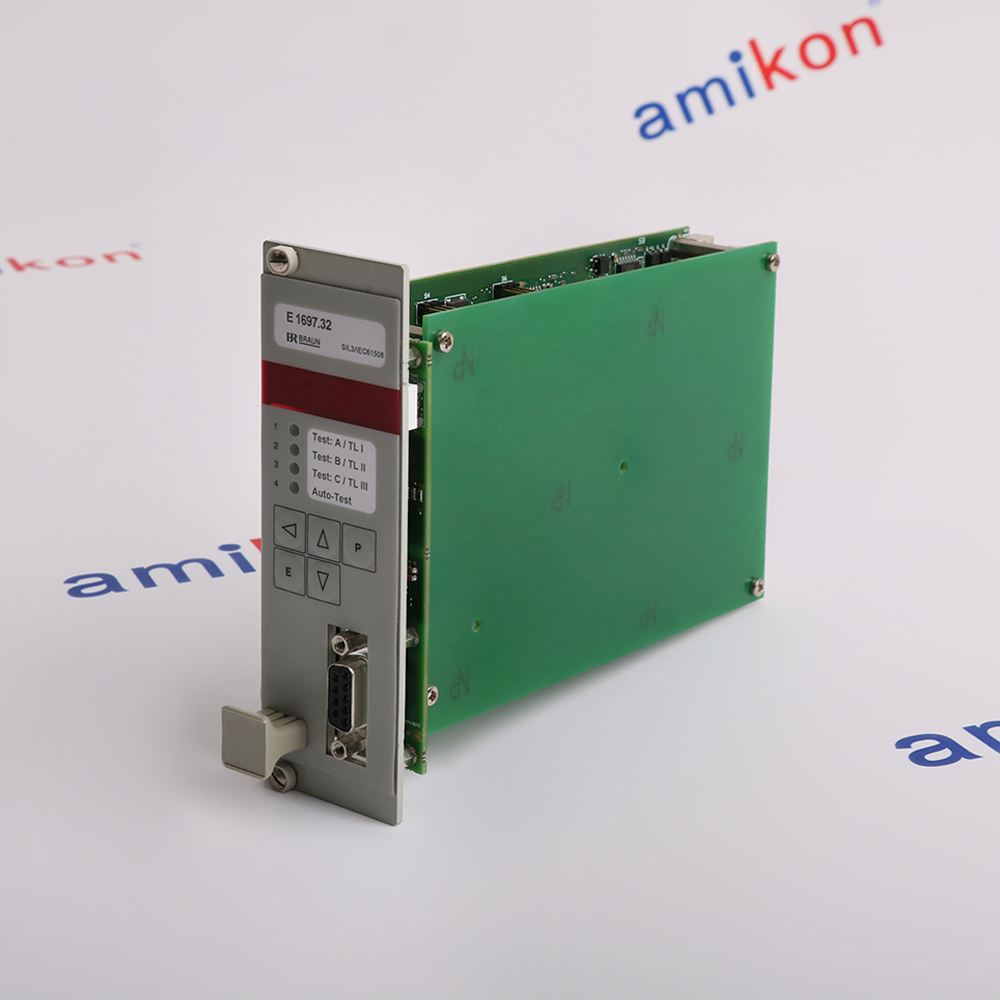

E1697.32 Test Generator Module
Brown E1697.32 is the test-generator module used in the E16x346 overspeed protection system. It continuously checks monitor and trip-line feedback states and releases the documented system fault outputs when an incorrect response is detected.
The module sequentially applies simulated speeds and Forced Trip commands to the three monitors, tests Trip-Lines I through III for a 2oo3 solenoid valve block, and uses two redundant CPUs that must agree before a test sequence is released.
The module sequentially applies simulated speeds and Forced Trip commands to the three monitors, tests Trip-Lines I through III for a 2oo3 solenoid valve block, and uses two redundant CPUs that must agree before a test sequence is released.
BEFORE YOU BUY
Confirm the complete e1697.32 protection system module
ACTUAL APPLICATIONS
Application context for E1697.32
E1697.32 is a E1697.32 protection system module used within Brown industrial protection modules. Its documented module designation is E1697.32, while product role is Protection system module. It supports generator auxiliary control processing, compressor package control processing and mill drive protection processing across the listed industries.
-
01 · POWER GENERATION
Turbine Control Electronics and Protection Systems
Generator Auxiliary Control ProcessingTurbine Protection Signal Handling -
02 · OIL & GAS
Rotating Asset Control and Condition Monitoring
Compressor Package Control ProcessingPipeline Pump Protection Monitoring -
03 · HEAVY INDUSTRY
Industrial Drive Control and Process Protection
Mill Drive Protection ProcessingLarge Motor Control Coordination
Technical specifications for E1697.32
-
Product ModelE1697.32
-
Product ParametersE16x346 Test Generator Module
-
In stock9 units
-
ManufacturerBROWN
-
System familyE16x346 overspeed protection system
-
Processor architectureTwo redundant CPUs
-
Monitor test sequenceTwo simulated test speeds followed by Forced Trip
-
Trip-line test coverageTrip-Lines I, II and III for a 2oo3 solenoid valve block
-
Front display5-digit display
-
Status indicators4 front-panel LEDs
-
Data interface9-pin Sub-D for PROFIBUS and RS232
-
Nominal output frequency range1 to 99,999 Hz
-
Nominal test-speed range1 to 99,999 RPM
-
Monitor test interval range1 to 9,999 minutes; 1,440 minutes maximum for SIL3 applications
-
Trip-line test interval range1 to 65,000 minutes
-
Trip-line test modes0 to 3
-
Trip feedback level settingLow level or high level
-
Post-reset waiting time1 to 99 seconds
-
PROFIBUS device address range1 to 125
View all additional
Alternative Names
E1697.32
Brown industrial protection modules E1697.32 protection system module
industrial protection modules E1697.32 module designation
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate E1697.32 e1697.32 protection system module
E1697.32 is a E1697.32 protection system module for Brown industrial protection modules. Before connection, confirm the complete model identity and installed hardware position, then compare the documented module designation of E1697.32 with the existing configuration and connected circuits.
Plan the integration around the published product role of Protection system module. Preserve terminal assignments, addressing, communication settings and adjacent hardware relationships, and check every connection against the applicable drawing or product documentation before energising the assembly.
During commissioning, verify the stated operator interface of Front display and keypad together with status indications and controller diagnostics. Test each affected signal or communication path under controlled conditions and archive the verified model, configuration and functional-test results.
Features:
- Provides module designation: E1697.32
- Supports product role: Protection system module
- Uses the documented e1697.32 protection system module interface
The E1697.32 e1697.32 protection system module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify E1697.32 e1697.32 protection system module
Use the complete E1697.32 designation when selecting a replacement E1697.32 protection system module. Confirm that the replacement reproduces the documented module designation of E1697.32; visually similar assemblies can differ in revision, interface allocation or electrical limits.
Before removal, photograph the label, connector positions, terminal numbering and adjacent slot arrangement. Compare the published product role of Protection system module, and retain the installed addressing, scaling, network, safety and project records that apply to this exact article.
After fitting the verified replacement, restore the approved configuration and confirm the specified operator interface of Front display and keypad. Check power-up indications and every affected input, output or communication path before service, then document the final identity and test results.
Features:
- Retains the documented e1697.32 protection system module role
- Requires exact model and connector verification
- Supports controlled testing after exchange
The E1697.32 e1697.32 protection system module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Documents module designation for this article
- Records product role for configuration review
- Identifies operator interface for maintenance checks
Documentation for the E1697.32 e1697.32 protection system module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size4 × 19 × 12.8 cm
-
Shipping weight0.25 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about E1697.32
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is the E1697.32?
E1697.32 is the test-generator module used in the E16x346 overspeed protection system. It supervises feedbacks and controls monitor and trip-line test sequences. -
How does E1697.32 test the three monitors?
It applies two simulated test speeds and a Forced Trip signal to each monitor in sequence, then checks whether each monitor produces the expected response. -
Which trip lines can E1697.32 test?
The documented trip-line sequence covers Trip-Lines I, II and III associated with a 2oo3 solenoid valve block. -
What interfaces are available on E1697.32?
The front data connection is a 9-pin Sub-D interface used for PROFIBUS and RS232 communication. -
What is the permitted monitor-test interval?
The configurable range is 1 to 9,999 minutes. For SIL3 applications, the manufacturer specifies an absolute maximum interval of 1,440 minutes. -
What test-speed range can be configured?
The documented ranges for nominal test speed and the two monitor test speeds are 1 to 99,999 RPM. -
How does E1697.32 protect against an internal test-generator fault?
Two redundant CPUs must perform identically before a test sequence is released. A CPU disagreement inhibits testing and releases a system fault alarm. -
What is included in the E1697.32 CPU self-test?
The self-test checks CPU RAM, EEPROM, command execution and CPU registers after each monitor test sequence.
