PRODUCT DESCRIPTION

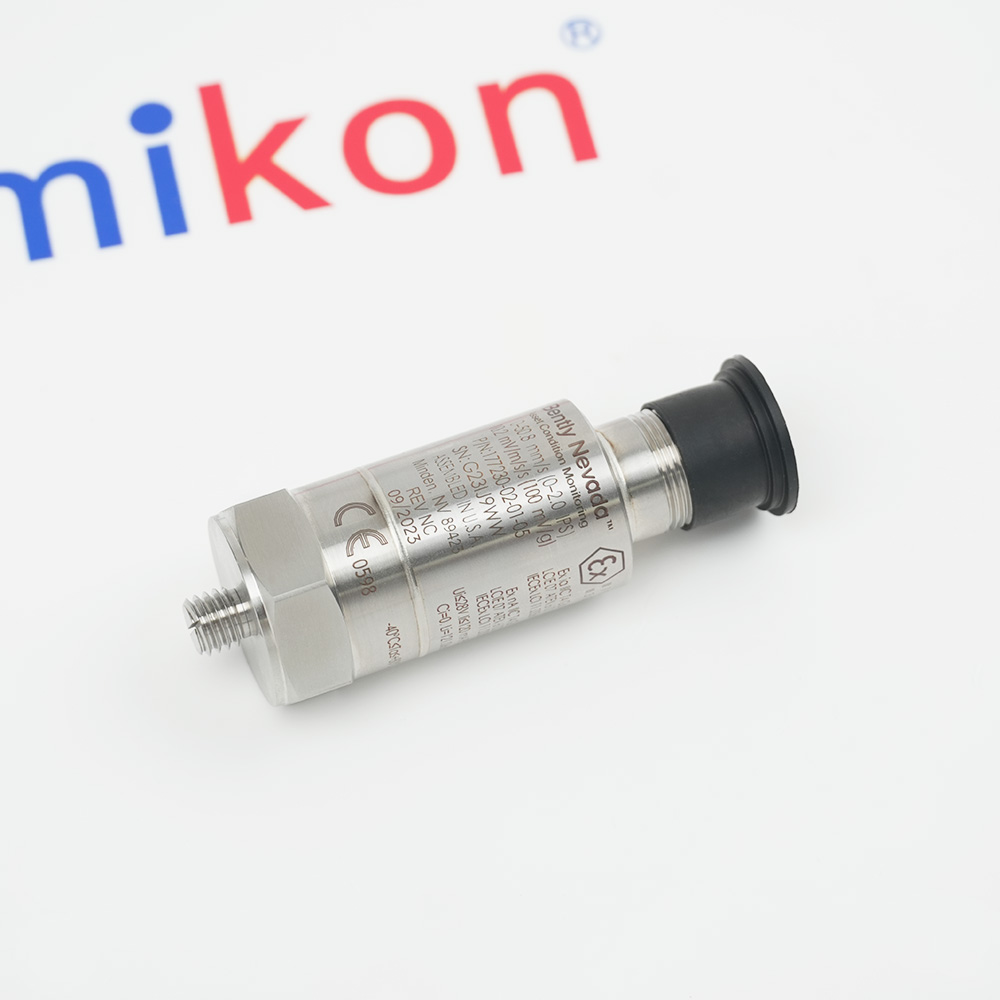

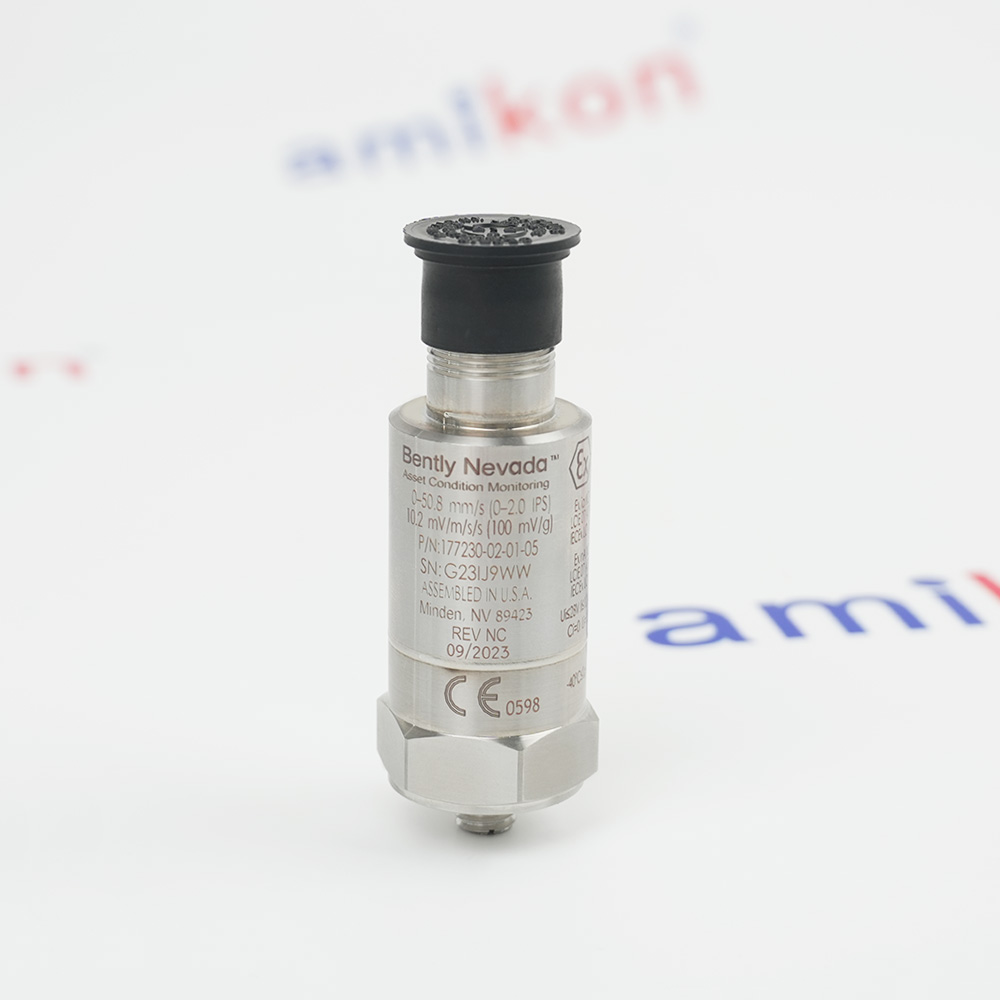

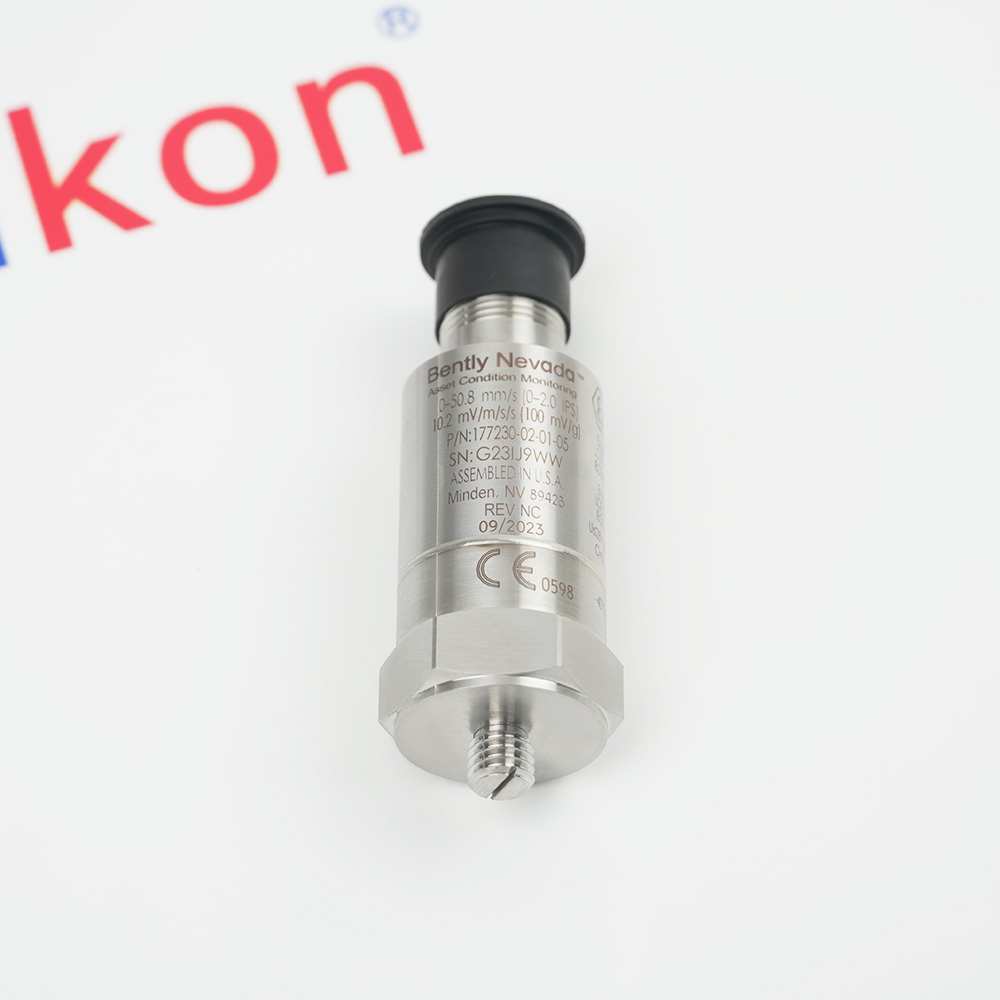

Loop powered seismic transmitter
Bently Nevada 177230-02-01-05 is a loop-powered seismic transmitter configured for a 0 to 50.8 millimeter per second velocity range. The frequency option specifies 10 Hz to 1 kHz RMS measurement, while the 05 suffix selects the documented multiple approvals option.
The transmitter interfaces with suitable PLC, DCS or SCADA inputs through a 4 to 20 mA loop. It also provides a separate unbuffered dynamic acceleration signal. Match the receiving scale and preserve the required signal isolation; grounding the dynamic signal return can disable the loop.
The transmitter interfaces with suitable PLC, DCS or SCADA inputs through a 4 to 20 mA loop. It also provides a separate unbuffered dynamic acceleration signal. Match the receiving scale and preserve the required signal isolation; grounding the dynamic signal return can disable the loop.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Documented application roles
These applications describe the compatible manufacturer series, not a claim that this exact order is installed in a named project.
-
01 · PLC MONITORING
Overall machine vibration input
The transmitter provides its selected velocity range as a 4 to 20 mA signal for a compatible PLC input. Configure the input for the exact measurement range and convention. -
02 · PROCESS CONTROL
DCS vibration trending
A suitable DCS input can acquire the overall loop signal for condition monitoring. Check power limits and maintain the documented wiring and isolation requirements. -
03 · DIAGNOSTIC ACCESS
Dynamic vibration verification
The separate acceleration signal supports verification and analysis in the documented installation. It is unbuffered and shares pin B, which must remain isolated from ground.
Technical specifications for 177230-02-01-05
-
Product Model177230-02-01-05
-
Product ParametersLoop powered seismic transmitter
-
ManufacturerBently Nevada
-
Velocity full scale0 to 50.8 mm/s
-
Velocity frequency band10 Hz to 1 kHz, plus or minus 10%
-
Velocity conventionRMS
-
Loop output4 to 20 mA, pin A to pin B
-
Excitation12 to 30 Vdc, current limited to 40 mA
-
Settling timeLess than 15 seconds to within 2%
-
Dynamic acceleration sensitivity100 mV/g, plus or minus 20%
-
Dynamic acceleration range15 g peak
-
Operating temperature-40 to +85 degrees C
-
Case material316L stainless steel
-
Mounting hole1/4-28 UNF
-
Mounting torque4 to 7 N-m
-
ConnectorThree-pin MIL-C-5015
-
Approval selection05: CSA/NRTL/C, ATEX/IECEx
View all additional
Alternative Names
177230 02 01 05
177230-02-01-05 loop powered seismic transmitter
Bently Nevada 177230-02-01-05
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
LOOP POWERED SEISMIC TRANSMITTER
Integrating 177230-02-01-05
Bently Nevada 177230-02-01-05 is a loop-powered seismic transmitter configured for a 0 to 50.8 millimeter per second velocity range. The frequency option specifies 10 Hz to 1 kHz RMS measurement, while the 05 suffix selects the documented multiple approvals option.
The transmitter interfaces with suitable PLC, DCS or SCADA inputs through a 4 to 20 mA loop. It also provides a separate unbuffered dynamic acceleration signal. Match the receiving scale and preserve the required signal isolation; grounding the dynamic signal return can disable the loop.
For this order, verify 0 to 50.8 mm/s; 10 Hz to 1 kHz, plus or minus 10%; RMS. Family specifications apply only to the documented component and installation. Check the complete supplied identity before selecting mating equipment.
Features:
- Match the complete ordered configuration
- Use the correct manufacturer documentation
- Keep component and system specifications distinct
The 177230-02-01-05 loop powered seismic transmitter requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match the complete 177230-02-01-05 identity and the documented installation before replacement. Similar appearance, connector size or a shared family name does not establish an unconditional substitute.
The manufacturer describes no field configuration or adjustments. Select the correct ordered range and frequency option, then configure the receiving equipment accordingly.
No exact-order hardware revision, discontinuation date or designated successor was established in the reviewed manufacturer materials. Publication revision T is not a product hardware revision; unverified lifecycle claims are not added.
Features:
- Confirm exact identity before replacement
- Check field wiring and mounting requirements
- Do not infer lifecycle facts from age
The 177230-02-01-05 loop powered seismic transmitter requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 177230-02-01-05 loop powered seismic transmitter must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size7.8 x 2.8 x 2.5 cm
-
Shipping weight0.1 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 177230-02-01-05
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What range should the receiver use for 177230-02-01-05?
Scale the 4 to 20 mA velocity signal from zero to 50.8 mm/s. The selected frequency band is 10 Hz to 1 kHz, using the RMS convention. -
Does frequency option 02 mean RMS velocity?
No. The manufacturer distinguishes option 01, 10 Hz to 1 kHz RMS, from option 02, 3 Hz to 1 kHz peak. Configure the receiver for the actual selected option. -
What happens if the dynamic signal return is grounded?
Pin B must be isolated from ground for dynamic measurements. The manufacturer warns that grounding it shorts the current loop and results in no output. -
How long should the transmitter settle after power is applied?
The specified settling time is less than fifteen seconds to within two percent of the final value. Do not interpret an unsettled initial reading as steady-state vibration. -
Can a magnetic base be snapped onto the machine?
The manufacturer cautions against snapping the magnetic base onto the machine because the resulting spike can damage the electronics. Roll it onto the surface when that mounting approach is appropriate. -
Does the device need field range adjustment?
The manufacturer describes no field configuration or adjustments. Select the correct ordered range and frequency option, then configure the receiving equipment accordingly.
