330704-00-030-50-02-00
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
This image is for reference only product style, specific date of manufacture and product version, please refer to the actual product delivery!
Product Information
Product Describe

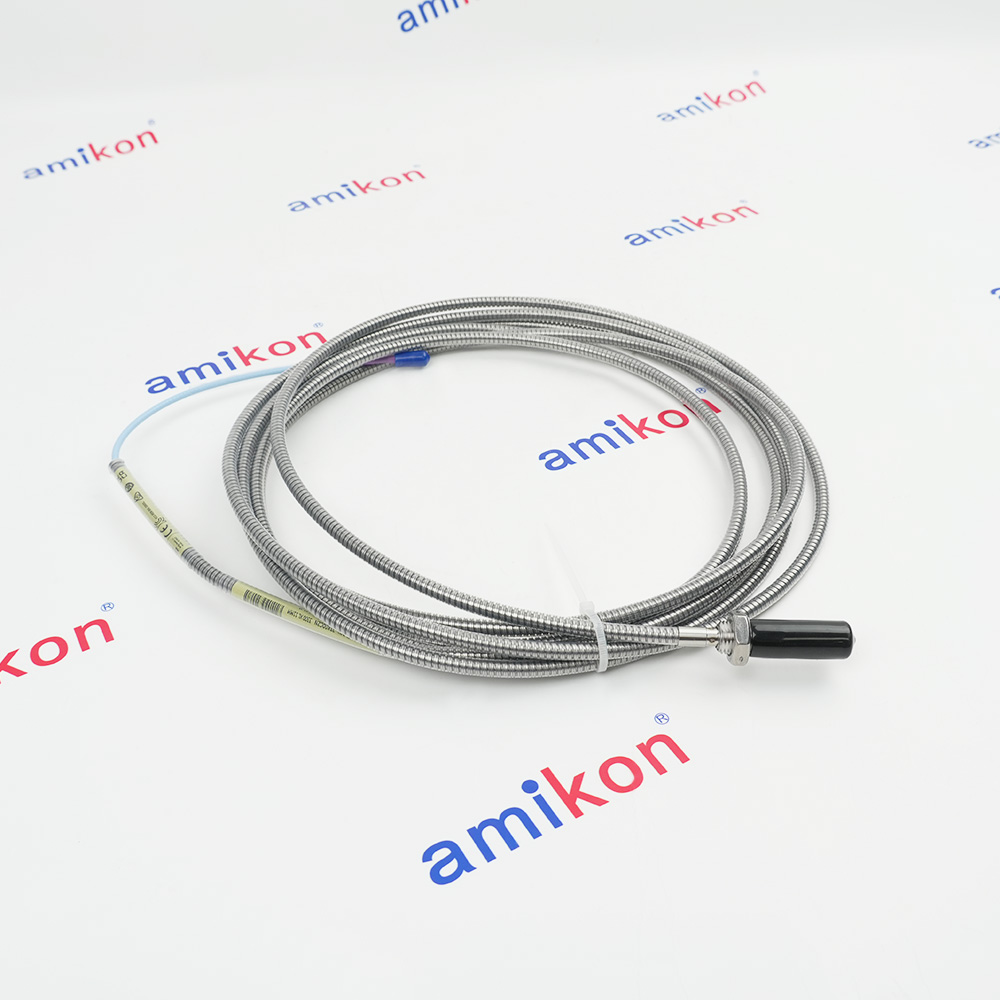

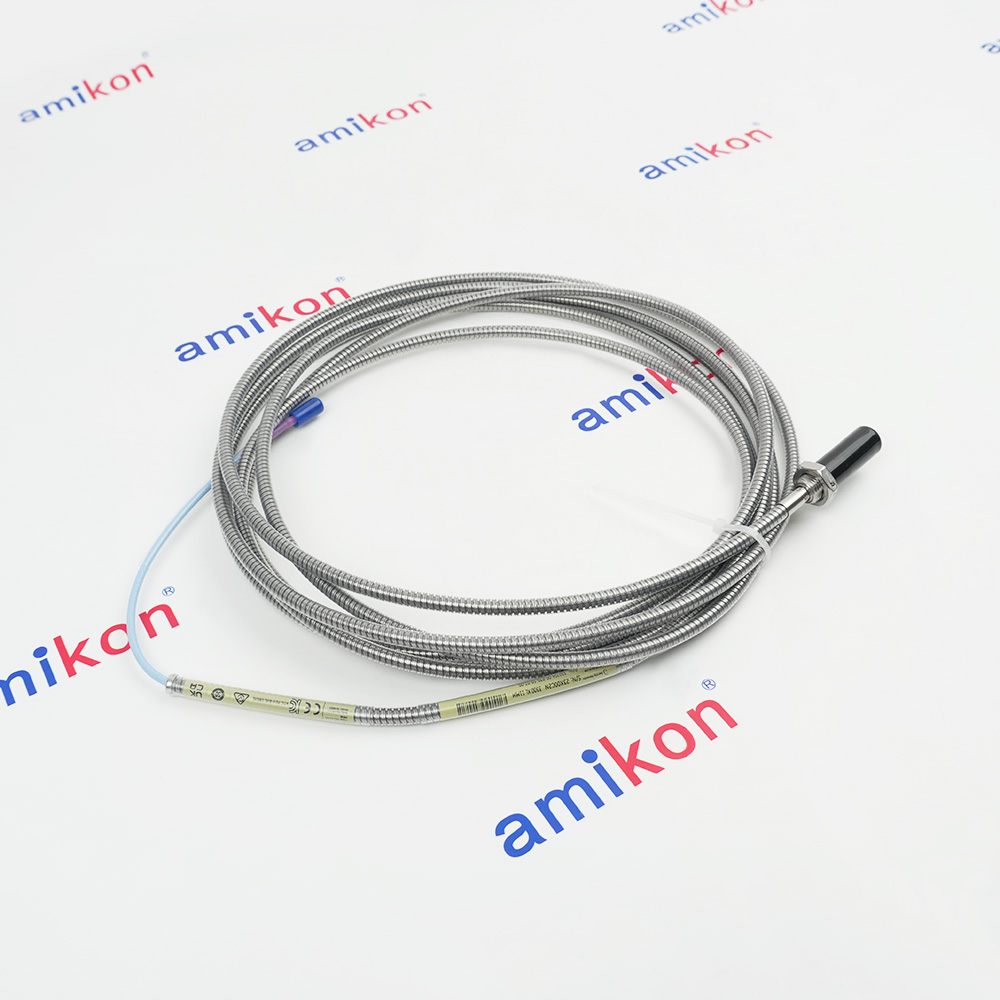

330704 3300 XL 11 mm Probe
M14 x 1.5 thread,with armor
Minimum unthreaded length:0 mm
Minimum length:30 mm
50 5.0 meters (16.4 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
M14 x 1.5 thread,with armor
Minimum unthreaded length:0 mm
Minimum length:30 mm
50 5.0 meters (16.4 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
Specifications
-
Product Model330704-00-030-50-02-00
-
Product Parameters3300 XL 11 mm Proximity Probe
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size31x30x3cm
-
ManufacturerBently Nevada
-
Weight0.55 kg
-
Unthreaded Length Option0 mm
-
Overall Case Length Option30 mm
-
Total Length Option5.0 meters (16.4 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionNot required
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is this product?+It is a Bently Nevada 3300 XL 11 mm Proximity Probe, typically used for measuring vibration and position in industrial rotating machinery.
-
What are the material specifications?+The probe tip is made of Polyphenylene sulfide (PPS), and the probe case is AISI 304 stainless steel (SST).
-
Do you provide warranty as standard?+We provide a full 12-month warranty for the 330704-00-030-50-02-00. So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.
-
How do I get the price of 330704-00-030-50-02-00?+Please contact our sales director Ms. Sandy for a discount exclusive quote, Email info@amikon.cn Mob/Whatsapp: +86-18020776786.
Get a quick price fo 330704-00-030-50-02-00
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
- What Happens Next
-
Get the quote now Write Email to: INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and Payment
-
Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
-
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting
Features:
- 3.94 V/mm (100 mV/mil) Output
- Long Linear Range
- Thin Design
The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.
The 330704-00-030-50-02-00 Bently Nevada 3300 XL 11 mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330704-00-030-50-02-00 3300 XL 11 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 11 mm Proximitor Sensor is designed to replacethe 7200-series 11 mm and 14 mm Transducer Systems. Whenupgrading from the 7200-series system to the 3300 XL 11 mmsystem, every component must be replaced with 3300 XL 11mm components. In addition, the monitoring system must beupdated. If using a 3500 Monitoring System, an updatedversion of the configuration software that lists the 3300 XL 11mm Transducer System as a compatible option is required.Existing 3300 Monitoring Systems may need amodification. Contact your local sales andservice representative for assistance
The 3300 XL 11 mm probe comes in varyingprobe case configurations, including armoredand unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16X 1.5 probe threads. The reverse mount 3300 XL11 mm probe comes standard with either 3⁄8-24or M10 X 1 threads. All components of thetransducer system have gold-plated brassClickLoc connectors. ClickLoc connectors lockinto place, preventing the connection frombecoming loose. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. The probe cable is securely attached to the probe tip utilizingour patented CableLoc design that provides330 N (75 lb) pull strength.
- Power Generation:Monitors turbines, generators & pumps in coal, combined-cycle & hydro plants
- Oil & Gas / Petrochemical:Refineries, offshore platforms & LNG plants for centrifugal & reciprocating compressors
- Manufacturing & Process Industries:Steel mills, pulp & paper factories, and chemical processing plants
- Water & Wastewater:Large-scale pumping stations and treatment facilities
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread & Torque: Use the M14 x 1.5 metric threads for mounting. Tighten the probe to a recommended torque of 21.1 N·m (187 in·lb).
Safety Wire: After setting the gap, use the holes in the supplied locknut (1.59 mm dia.) to install safety wire, preventing the probe from loosening due to machinery vibration.
Cable Radius: Ensure the cable has a minimum bend radius of 25.4 mm (1.0 in) to avoid internal damage.
