- 3300 XL 8mm Proximity Transducer
- 330101-00-11-20-02-05
In Stock
Ships by Sunday, July 19
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330101-00-11-20-02-05
-
Product Model330101-00-11-20-02-05
-
Product Parameters3300 XL 8 mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size112x1.2x1.5cm
-
ManufacturerBently Nevada
-
Weight0.06 kg
-
Metric thread configurations1.1 in
-
Total Length Option2.0 meters (6.6 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
-
ProbeCaseThread3/8-24 0.563 in
Description

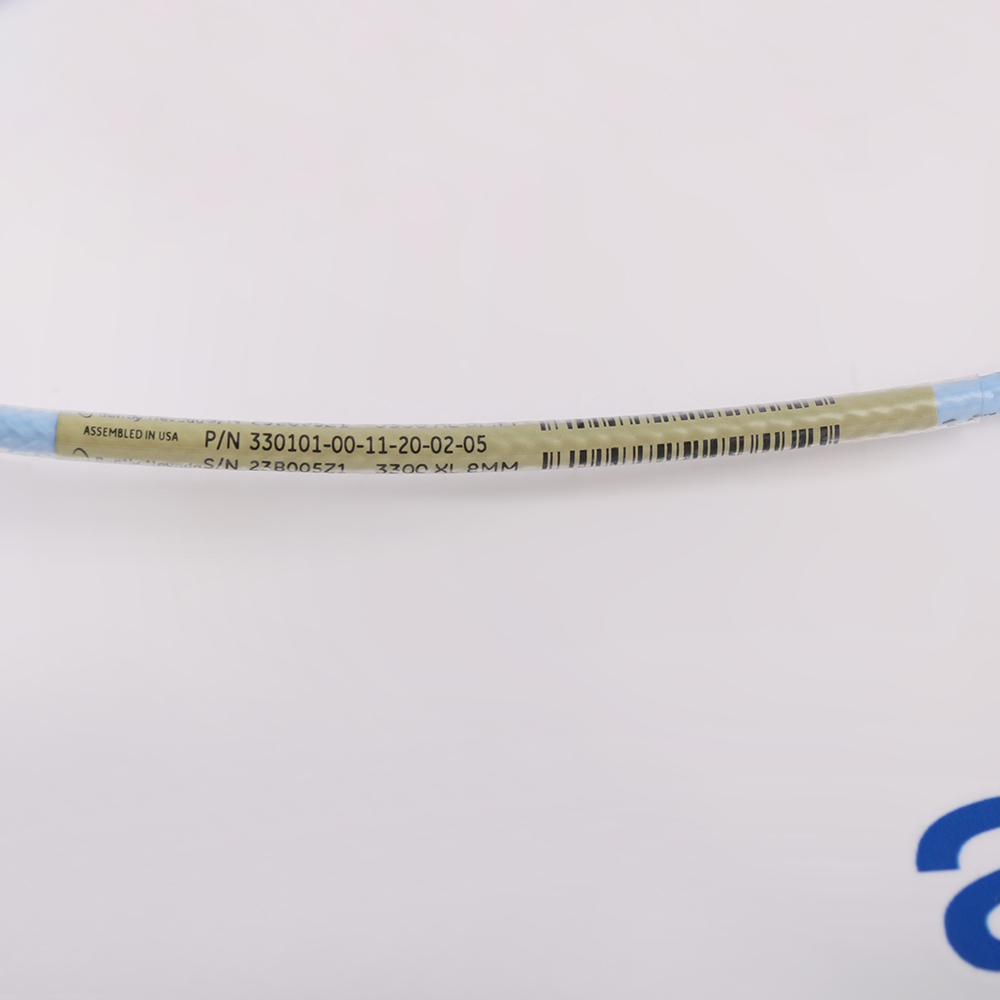

The Bently Nevada 330101-00-11-20-02-05 3300 XL 8 mm Proximity Probe is a precision proximity probe designed for the Bently Nevada 3300 XL 8mm Proximity Transducer System. 330101-00-11-20-02-05 serves as the sensing element that detects the distance between the probe tip and a conductive target surface, converting this mechanical gap into an electrical voltage signal proportional to the displacement for machinery condition monitoring applications.
330101-00-11-20-02-05 incorporates a patented TipLoc molding method that provides a more robust bond between the probe tip and the probe body. This TipLoc technology of 330101-00-11-20-02-05 improves mechanical durability and long-term reliability in harsh industrial environments where vibration, thermal cycling, and mechanical stress are present. The probe cable of 330101-00-11-20-02-05 also incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe body.
330101-00-11-20-02-05 incorporates a patented TipLoc molding method that provides a more robust bond between the probe tip and the probe body. This TipLoc technology of 330101-00-11-20-02-05 improves mechanical durability and long-term reliability in harsh industrial environments where vibration, thermal cycling, and mechanical stress are present. The probe cable of 330101-00-11-20-02-05 also incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe body.
Alternative Names
330101-00-11-20-02-O5
330101-00-11-20-0Z-05
330101-00-11-20-O2-05
330101-00-11-2O-02-05
330101-00-11-Z0-02-05
330101-00-II-20-02-05
330101-OO-11-20-02-05
33010I-00-11-20-02-05
3301O1-00-11-20-02-05
330I01-00-11-20-02-05
33O101-00-11-20-02-05
330101 00 11 20 02 05
330101 00 11 20 02 O5
330101 00 11 20 0Z 05
330101 00 11 20 O2 05
330101 00 11 ZO 02 05
330101 00 II 20 02 05
330101 OO 11 20 02 05
33010I 00 11 20 02 05
3301O1 00 11 20 02 05
330101-00-11-20-02-00
330101-00-11-20-02-CN
Information
Overview
Manuals
Application Notes
Product Applications
Electrical & Signal Connections
Features:
- 3/8-24 UNF Thread with 8 mm Tip Diameter
- Patented TipLoc Molding for Robust Probe Tip Bond
- 2.0 mm (80 mil) Linear Measuring Range
- Wide Temperature Range (-51°C to +177°C)
This probe features a 3/8-24 UNF imperial mounting thread with a 0.0-inch unthreaded length and an overall case length of 1.1 inches (27.94 mm). The probe tip diameter is 8.0 mm, constructed from Polyphenylene Sulfide (PPS), while the probe case is made from AISI 303 or 304 stainless steel. This variant is supplied without armor.
The probe is equipped with a 2.0-metre 75 Ω triaxial cable using Fluoroethylene Propylene (FEP) insulation. The cable terminates in a miniature coaxial ClickLoc connector with gold-plated brass contacts, providing a secure, vibration-resistant mechanical connection that requires no tools for installation or removal. The connector protects contact surfaces from contamination.
The 330101-00-11-20-02-05 Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-11-20-02-05 3300 XL 8 mm Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 8 mm system delivers an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. The linear range is 2.0 mm (80 mils), spanning from approximately 0.25 mm to 2.3 mm, with an output voltage range of approximately -1 Vdc to -17 Vdc. The Incremental Sensitivity Factor (ISF) is 7.87 V/mm (200 mV/mil) with a ±5% tolerance (including interchangeability error) from 0°C to +45°C. The recommended radial vibration gap setting is -9 Vdc, corresponding to approximately 1.27 mm (50 mils).
The nominal DC resistance for the 1.0-metre probe is 7.59 ± 0.50 Ω; for the 2.0-metre variant, the resistance is proportionally higher. The probe operates over a temperature range of -52°C to +177°C (-62°F to +350°F) and maintains humidity tolerance with less than 3% ISF change after 56 days of 93% relative humidity exposure. The probe tip-to-case seal uses a Viton® O-ring; probes are not pressure tested prior to shipment.
- Oil & Gas: Monitors dynamic wear and casing movement on compressors, pumps, and expanders
- Power Generation: Monitors shaft displacement/vibration in steam/gas turbines to prevent catastrophic failure
- Water/Wastewater/Petrochemical: Protects high-speed centrifugal pumps and large electric motors
- Manufacturing/Heavy Industry: Deployed on fluid-film bearing machines for early unbalance/misalignment detection
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Finger-Tighten Only: Connect the probe's integrated cable to your 3300 XL extension cable by turning the sleeve until it clicks.
No Tools: Do not use pliers or wrenches on ClickLoc connectors, as you can easily strip the gold plating or crush the internal pin.
Insulation: Wrap the connection in silicone self-fusing tape or use a connector protector sleeve to shield it from oil, moisture, and ground loops.
Technical notes
330101-00-11-20-02-05 operates over a wide temperature range from -51°C to +177°C (-60°F to +351°F) for standard probes. The probe temperature range of 330101 is -34°C to +177°C for the standard configuration, with the extension cable rated for -51°C to +177°C. Extended temperature range (ETR) probes are available for applications where the probe lead may exceed 177°C, with ETR probe tips rated up to 218°C (425°F) and ETR cables rated up to 260°C (500°F). When any ETR component is used as part of the system, the ETR component limits the system accuracy to the accuracy of the ETR component.
FAQs
-
What is the 330101-00-11-20-02-05 ?
+The Bently Nevada 330101-00-11-20-02-05 is an 8 mm proximity probe from the 3300 XL series. -
Does a 2.0-meter probe require an extension cable?
+Yes. To function properly, a standard 3300 XL Proximitor system must equal a total length of either 5.0 meters or 9.0 meters. A 2.0-meter probe requires a 3.0-meter or 7.0-meter extension cable respectively. -
What is the maximum thread engagement length for this probe?
+For standard 3/8-24 or M10 × 1 threads, the maximum recommended thread engagement is 0.563 inches (15 mm). Exceeding this length may cause binding and damage during installation. -
How does the 3300 XL probe work?
+The proximitor sensor transmits a radio frequency (RF) signal to a coil in the probe tip, which generates a magnetic field. When a conductive target (like a machine shaft) enters the field, eddy currents are induced, altering the voltage and providing precise gap measurements.
