Technical specifications for 330101-00-24-05-02-00
-
Product Model330101-00-24-05-02-00
-
Product Parameters3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size20.5x22.4x3.3cm
-
ManufacturerBently Nevada
-
Weight0.1 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option2.4 in
-
Total Length Option0.5 meter (1.6 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionNot required
Description

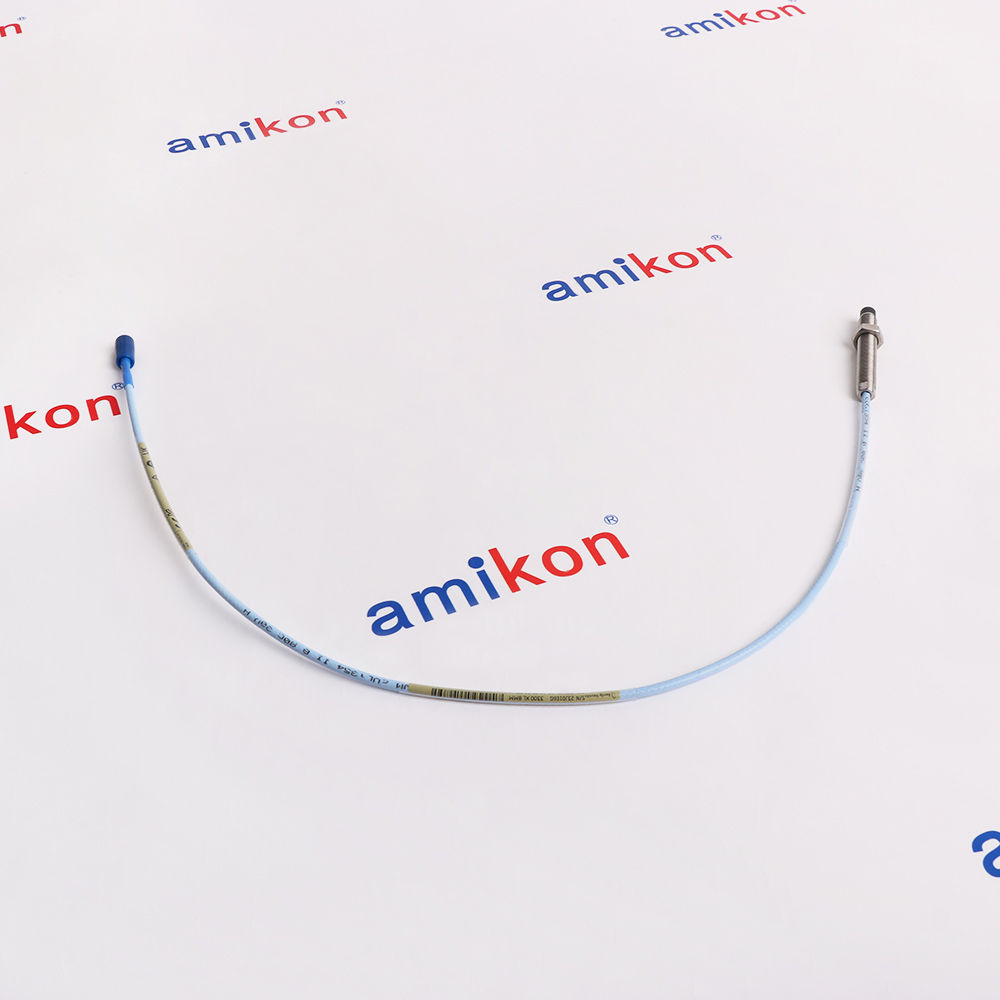

The Bently Nevada 330101-00-24-05-02-00 is a 3300XL 8mm proximity probe featuring a 3/8-24 UNF thread and without armor configuration. The 330101 probe is part of the 3300XL 8mm Proximity Transducer System, which delivers the most advanced performance in eddy current proximity transducer systems, and the 330101 supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Information
Overview
Manuals
Application Notes
Product Applications
Probe Insertion and Mounting
Features:
- 3/8-24 UNF threaded probe body
- Non-armored cable construction
- 8 mm probe tip diameter
- Non-contact eddy-current measurement technology
The 330101-00-24-05-02-00 is equipped with corrosion-resistant, gold-plated ClickLoc connectors featuring a connector protector and standard cable. The specially-engineered locking mechanism of the 330101-00-24-05-02-00 prevents connectors from loosening, and installation requires only finger-tight torque with no special tools, resulting in lower installation costs and faster field wiring connections.
The 330101-00-24-05-02-00 BENTLY NEVADA 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
BENTLY NEVADA 330101-00-24-05-02-00 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The BENTLY NEVADA 330101-00-24-05-02-00 utilizes proven eddy-current sensing technology to generate an output voltage proportional to the distance between the probe tip and the conductive target surface. This allows precise monitoring of shaft vibration, shaft radial position, thrust position, eccentricity, differential expansion, and Keyphasor® reference signals on critical rotating equipment.
The BENTLY NEVADA 330101-00-24-05-02-00 incorporates the rugged design features of the 3300 XL 8 mm series, including TipLoc® molded probe construction for improved probe tip retention, CableLoc® technology providing increased cable pull strength, and corrosion-resistant materials suitable for demanding industrial environments.
- Oil & Gas: Monitors high-speed compressors, turbines, and expanders
- Power Generation: Tracks generator shaft vibration, bearing clearance, and axial position
- Water/Wastewater: Guards heavy-duty pumps, aerators, and large motors
- Mining/Heavy Processing: Monitors crushers, gearboxes, and mills in harsh environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread matching: Screw the 3/8-24 UNF threaded probe case into the machine mounting hole or bracket carefully to avoid damaging the 8 mm polyphenylensulfid probe tip.
Depth positioning: Adjust the physical insertion depth so the probe tip sits at the correct starting distance from the target shaft or conductive surface.
Locking the position: Thread the locknut down against the mounting hole using proper wrench torque to lock the probe in place without shifting the depth.
Alternative Names
330101-00-24-05-02-OO
330101-00-24-05-0Z-00
330101-00-24-05-O2-00
330101-00-24-O5-02-00
330101-00-Z4-05-02-00
330101-OO-24-05-02-00
33010I-00-24-05-02-00
3301O1-00-24-05-02-00
330I01-00-24-05-02-00
33O101-00-24-05-02-00
330101-00-24-05-02-CN
330101-00-24-05-02-BR
330101-00-24-05-02-RU
330101-00-24-05-02-05
Technical notes
The 330101-00-24-05-02-00 is backward compatible and electrically and physically interchangeable with other non-XL 3300 series 5mm and 8mm transducer system components, providing complete flexibility for system integration and maintenance. The 330101 provides a thicker encapsulation of the probe coil in the molded PPS plastic probe tip, resulting in a more rugged probe with a stronger, more robust case.
FAQs
-
Can a 0.5-meter probe be used with any extension cable length?
+No. Total system electrical length (probe plus extension cable) must match the Proximitor sensor calibration—typically configured for a combined total of either 1.0 meter or 5.0 meters depending on the specific system setup. -
Does this specific part number include armor protection?
+No. The -00 suffix at the end indicates that standard-style cable without stainless steel armor is provided. -
What is the maximum recommended thread engagement?
+The industry and manufacturer limit is 1.5 times the nominal thread diameter to prevent binding during installation. -
What extension cable and sensor must be paired with this probe?
+The 0.5-meter total length probe must be connected to an extension cable and Proximitor Sensor to match the required total system electrical length (typically 5-meter or 9-meter systems). For a 5-meter system, use a 4.5-meter extension cable; for a 9-meter system, use an 8.5-meter extension cable.
