Technical specifications for 330101-00-36-10-02-05
-

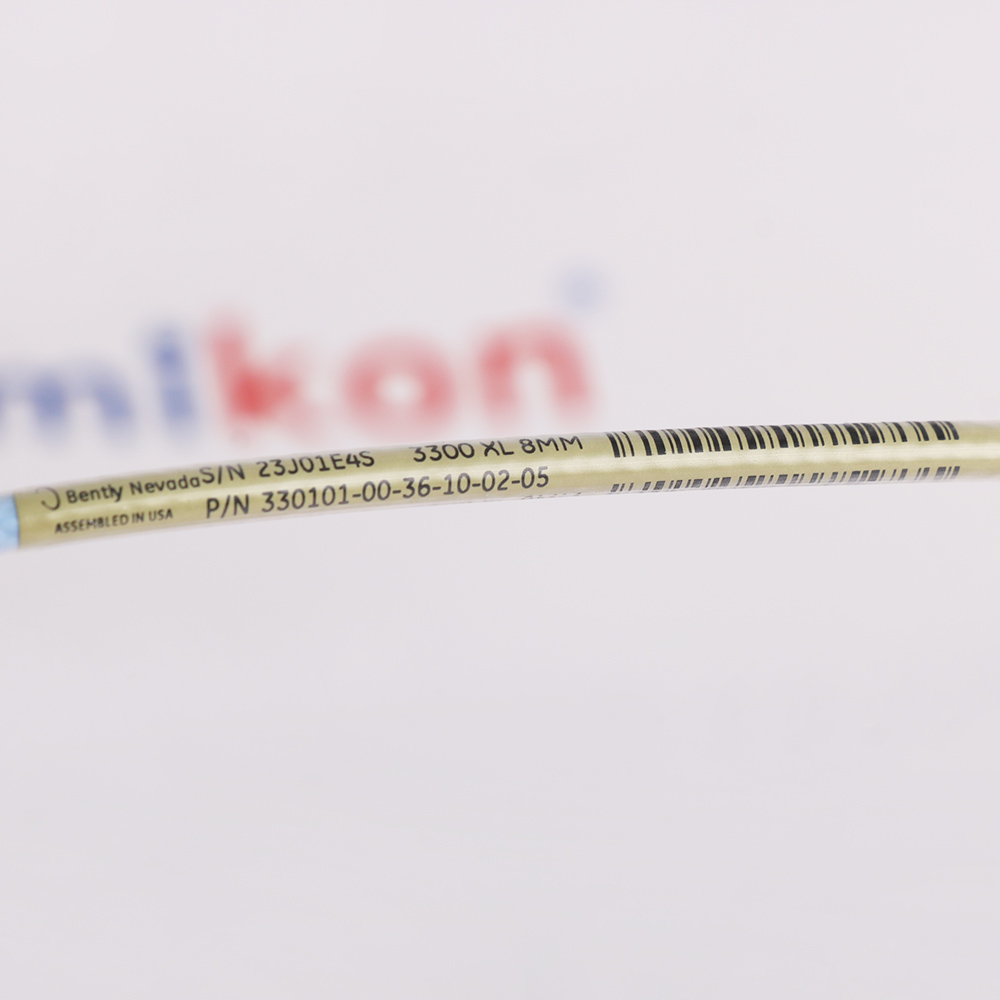

Product Model330101-00-36-10-02-05
-
Product Parameters3300 XL 8 mm Probe
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size20.5x22.4x3.3cm
-
ManufacturerBently Nevada
-
Weight0.1 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option3.6 in
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description
330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 3.6 in
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx Approvals
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 3.6 in
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx Approvals
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Installation & Mounting
Features:
- Armored and Unarmored Options
- Multiple Connector Options
- Complete Interchangeability of Units and Cabling
The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components
The 330101-00-36-10-02-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-36-10-02-05 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 330105-02-12-05-12-05 is a high-precision proximity probe used primarily for monitoring vibration and position in industrial machinery. Technical notes for this specific configuration highlight its environmental resilience and interchangeability features. The probe tip is made of Polyphenylene sulfide (PPS). While robust, it can be eroded by solutions with extremely high or low pH values, which may cause media leakage.
- Centrifugal Air Compressors: High-speed rotating equipment where space for sensors is limited
- Refrigeration Compressors: Specialized industrial cooling units
- Process Gas Compressors: Systems handling various industrial gases; the probe's chemical resistance makes it ideal for these environments
- Turbo Expanders: High-speed turbines used in gas processing
- Electric Motors & Generators: Specifically those with tight internal clearances or small fluid-film bearings
- Pumps & Fans: Centrifugal or positive displacement pumps where mounting between bearing pads is required
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Hole Preparation: The probe uses 3/8-24 UNF threads. Prepare the mounting hole using a 0.332 in (Drill Size) and a Q (Tap Drill Size).
Reverse Mounting: Thread the probe into the machine case or a probe adapter. Note that the maximum thread engagement should not exceed 0.562 inches to prevent the tip from bottoming out.
Gapping: For standard AISI 4140 steel targets, the probe should be gapped at 1.27 mm (50 mils), which is the center of its linear range.
Tightening Torque: The recommended torque for the 3/8-24 probe case is 11.3 N·m (100 in·lb)
FAQs
-
What is 330101-00-36-10-02-05?+The Bently Nevada 330101-00-36-10-02-05 is a 3300 XL 8mm Proximity Probe (3.6m length) designed for non-contact vibration and position monitoring in harsh, rotating machinery environments
-
Is it interchangeable with older systems?+Yes. 3300 XL 8 mm components are both electrically and physically interchangeable with older, non-XL 3300 5 mm and 8 mm components. However, if you mix XL and non-XL parts, the entire system's performance will be limited to the lower specifications of the non-XL components.
-
What target material is it calibrated for?+By default, these sensors are calibrated at the factory to AISI 4140 steel. Calibration for other materials can be requested from the manufacturer.
-
Does it require a separate extension cable?+Because this specific model (option -10) is a 1.0-meter system, it does not use an extension cable; it connects directly to the Proximitor Sensor.
