- 3300 XL 8mm Proximity Transducer
- 330101-00-24-10-02-05
In Stock
Ships by Thursday, September 3
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330101-00-24-10-02-05
-
Product Model330101-00-24-10-02-05
-
Product Parameters3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.5x1.3x118cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option2.4 in
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description

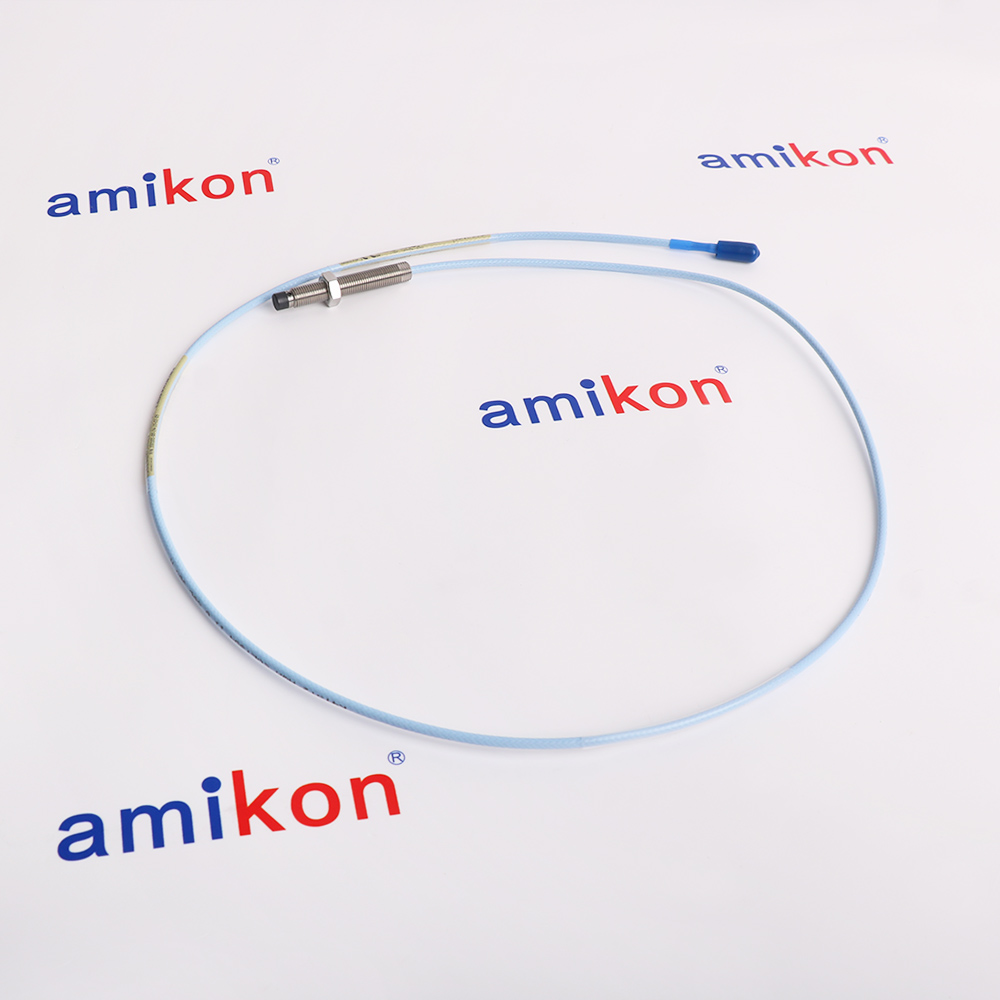

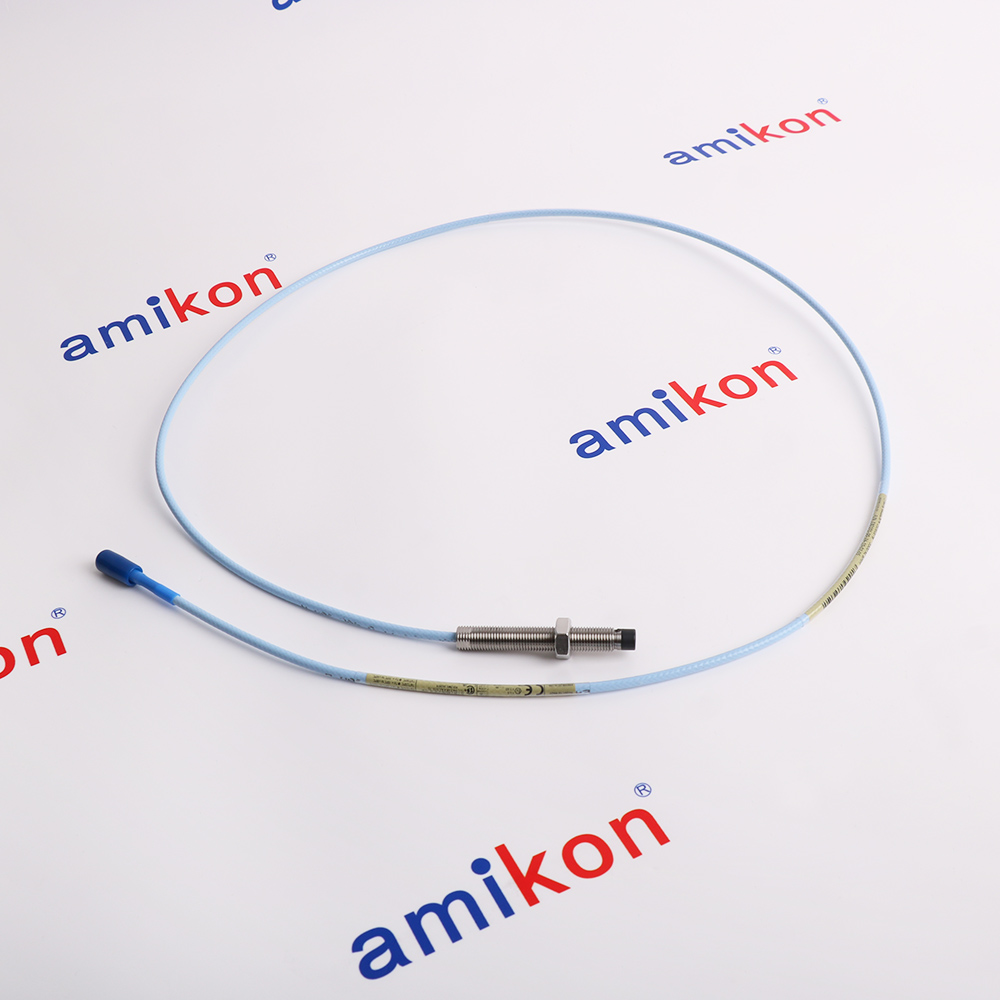

The Bently Nevada 330101-00-24-10-02-05 is a 3300XL 8mm proximity probe featuring a 3/8-24 UNF thread and without armor configuration. The 330101 probe is part of the 3300XL 8mm Proximity Transducer System, which delivers the most advanced performance in eddy current proximity transducer systems and fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion Guidelines
Features:
- 3/8-24 UNF threaded probe body
- Non-armored cable construction
- 8 mm probe tip diameter
- Non-contact eddy-current measurement technology
The BENTLY NEVADA 330101-00-24-10-02-05 features a 3/8-24 UNF stainless-steel threaded probe body with 0.0-inch unthreaded length, an overall case length of 2.4 inches, and an integrated 1.0-meter (3.3 ft) standard cable. The cable terminates with a miniature ClickLoc® coaxial connector, providing secure electrical connection while simplifying installation and maintenance in industrial environments.
The 330101-00-24-10-02-05 BENTLY NEVADA 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
BENTLY NEVADA 330101-00-24-10-02-05 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The BENTLY NEVADA 330101-00-24-10-02-05 utilizes proven eddy-current sensing technology to produce an output proportional to the distance between the probe tip and the conductive target surface. As part of the 3300 XL system, it offers excellent linearity, repeatability, temperature stability, and interchangeability, making it suitable for continuous machinery protection and predictive maintenance applications.
The BENTLY NEVADA 330101-00-24-10-02-05 includes Agency Approval Option 05, providing CSA, ATEX, and IECEx certifications for approved hazardous-area installations. This configuration allows the probe to be used in applications requiring internationally recognized hazardous-location approvals while maintaining the performance characteristics of the standard 3300 XL 8 mm system.
- Oil & Gas: Monitors high-speed compressors, turbines, and expanders
- Power Generation: Tracks generator shaft vibration, bearing clearance, and axial position
- Water/Wastewater: Guards heavy-duty pumps, aerators, and large motors
- Mining/Heavy Processing: Monitors crushers, gearboxes, and mills in harsh environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread Engagement: Screw the probe into the 3/8-24 UNF mounting hole with at least five full threads of contact.
Gap Setting: Adjust the distance between the probe tip and the target shaft using a digital multimeter to read the Proximitor sensor output voltage (typically set to -10.0 VDC or mid-scale gap voltage).
Clearance Check: Ensure the probe tip has free clearance to avoid mechanical preloading or rubbing during thermal growth of the machine.
Locking: Tighten the locknut firmly once the target linear gap voltage is reached to prevent shifting from machine vibration.
Alternative Names
330101-00-24-10-02-O5
330101-00-24-10-0Z-05
330101-00-24-10-O2-05
330101-00-24-1O-02-05
330101-00-24-I0-02-05
330101-00-Z4-10-02-05
330101-OO-24-10-02-05
33010I-00-24-10-02-05
3301O1-00-24-10-02-05
330I01-00-24-10-02-05
33O101-00-24-10-02-05
330101-00-24-10-02-00
330101-00-24-10-02-CN
330101-00-24-10-02-BR
330101-00-24-10-02-RU
Technical notes
The 330101 is backward compatible and electrically and physically interchangeable with other non-XL 3300 series 5mm and 8mm transducer system components, eliminating the need to match or bench calibrate individual components and providing complete flexibility for system integration and maintenance. The 330101 also carries CSA, ATEX, and IECEx approvals, making the 330101 suitable for hazardous area installations.
FAQs
-
What is the proper gap voltage setting during installation?
+The target gap should be set using a calibrated voltmeter tied to the monitor common, typically targeting around -10 Vdc to -12 Vdc (or roughly a 1.27 mm or 50 mil gap depending on the linear range). -
What is the minimum bend radius allowed for the coaxial cable?
+Do not bend the miniature coaxial cable below a 25.4 mm (1.0 inch) radius, as tighter bends damage the internal impedance and degrade signal quality. -
Does this model carry hazardous area certifications?
+Yes. The -05 suffix at the end of the part number indicates multi-agency approvals including ATEX, IECEx, and CSA for explosive atmospheres. -
What is the minimum cable bend radius?
+Do not bend the coaxial cable tighter than a 25.4 mm (1-inch) radius to prevent signal loss.
