- 3300 XL 8mm Proximity Transducer
- 330102-00-10-10-01-05
In Stock
Ships by Wednesday, July 15
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330102-00-10-10-01-05
-
Product Model330102-00-10-10-01-05
-
Product Parameters3300 XL 8 mm Probe, 3/8-24 UNFthread, with armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size20.4x22.2x3.7cm
-
ManufacturerBently Nevada
-
Weight0.2 kg
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector with connectorprotector, standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
-
Probe Tip MaterialPolyphenylene Sulfide (PPS)
-
Probe Housing MaterialAISI 303/304 Stainless Steel
-
Operating Temperature-51°C to +177°C (-60°F to +351°F)
Description

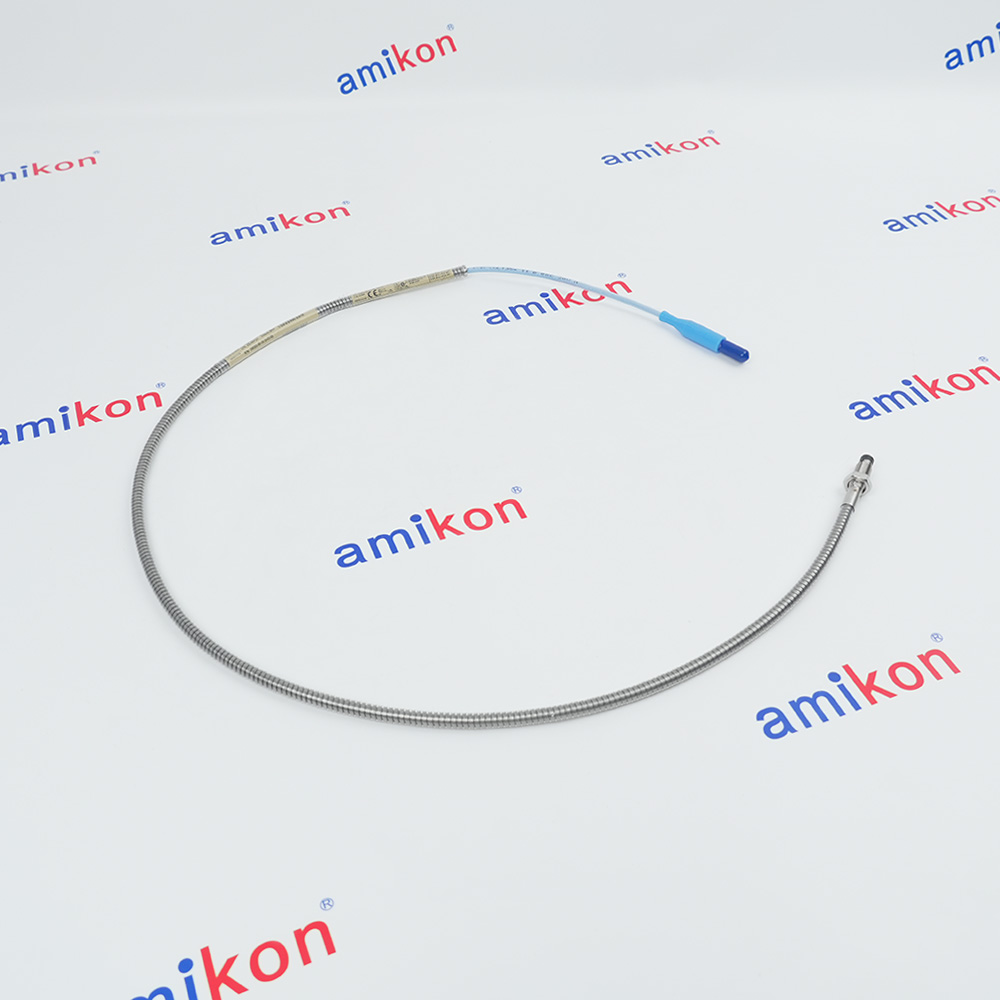

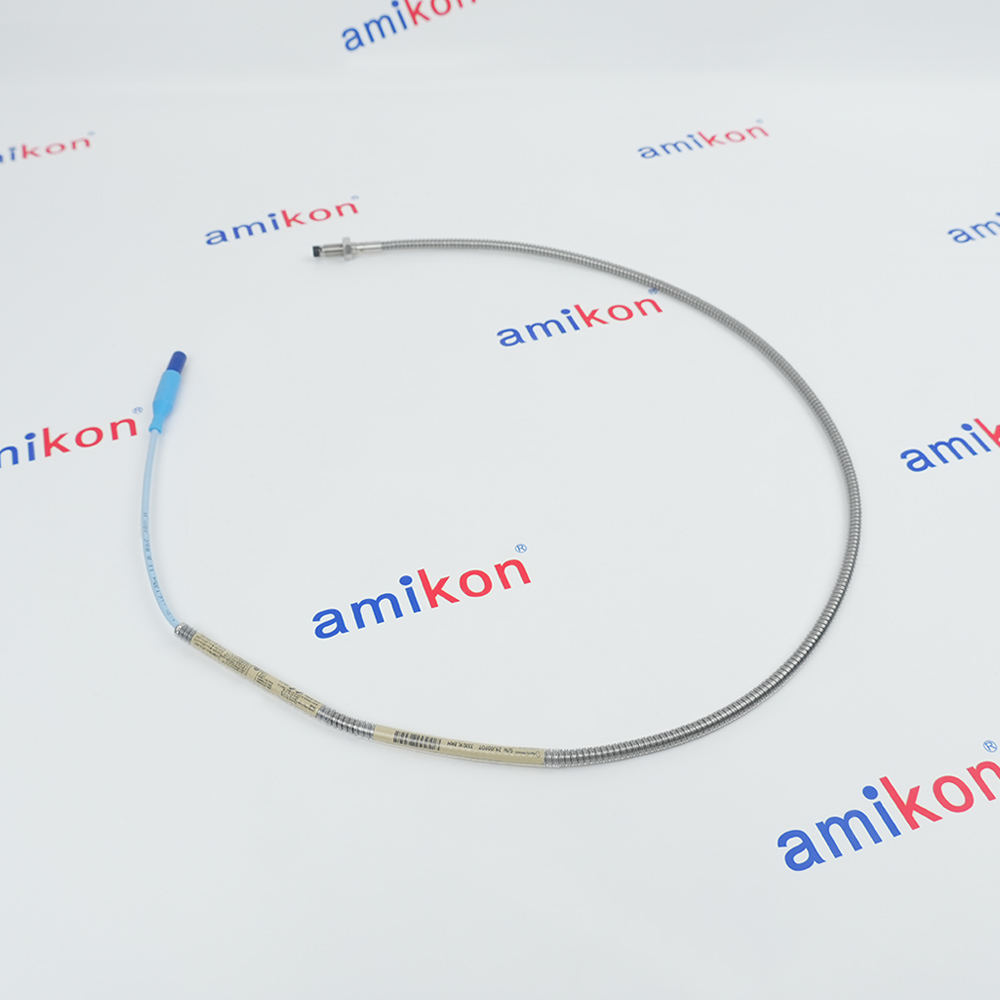

Bently Nevada 330102-00-10-10-01-05 is a 3300XL 8mm Proximity Probe with 3/8-24UNF thread and armor, providing an output voltage directly proportional to the distance between the probe tip and the observed conductive surface to measure both static (position) and dynamic (vibration) values for critical machinery condition monitoring applications.
Bently Nevada 330102-00-10-10-01-05 features a compact mechanical configuration with 0.0 inch unthreaded length and 1.0 inch overall case length, combined with a 1.0 meter total cable length that designates it as a one-meter system which does not use an extension cable, simplifying installation and reducing connection points in the field.
Bently Nevada 330102-00-10-10-01-05 incorporates a patented TipLoc molding method that provides a more robust bond between the probe tip and the probe body, and the probe cable incorporates a patented CableLoc design delivering 330N (75 lbf) pull strength to more securely attach the probe cable and probe body.
Bently Nevada 330102-00-10-10-01-05 features a compact mechanical configuration with 0.0 inch unthreaded length and 1.0 inch overall case length, combined with a 1.0 meter total cable length that designates it as a one-meter system which does not use an extension cable, simplifying installation and reducing connection points in the field.
Bently Nevada 330102-00-10-10-01-05 incorporates a patented TipLoc molding method that provides a more robust bond between the probe tip and the probe body, and the probe cable incorporates a patented CableLoc design delivering 330N (75 lbf) pull strength to more securely attach the probe cable and probe body.
Alternative Names
330102 00 10 10 01 05
33O1O2-OO-1O-1O-O1-O5
330I02-00-I0-I0-0I-05
330102-00-10-10-01-00
330102-00-10-10-01-BR
330102-00-10-10-01-CN
330102-00-10-10-01-RU
Information
Overview
Manuals
Engineering Considerations
Product Applications
Mechanical Installation & Gapping
Features:
- API 670 Standard Compliance
- Complete Interchangeability & Backward Compatibility
- Improved RFI/EMI Immunity
- SpringLoc Terminal Strips
- Patented TipLoc & CableLoc Design
Featuring an 8 mm sensing tip with a nominal 2 mm (80 mils) linear measurement range, the probe delivers exceptional accuracy with a scale factor of 7.87 V/mm (200 mV/mil) and ±5% system accuracy. The eddy-current sensing principle generates a voltage output precisely proportional to the gap distance between the probe tip and a conductive target surface, enabling both static position tracking and dynamic vibration analysis with 0.1 micron resolution and a frequency response of 0 to 10 kHz. The probe is factory-calibrated for standard AISI 4140 steel targets and requires an initial gap setting of approximately 1.27 mm (50 mils) to achieve the nominal -9 VDC output reference point.
The 330102-00-10-10-01-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330102-00-10-10-01-05 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 330102-00-10-10-01-05 configuration features a compact 1.0-inch overall case length with 0.0-inch unthreaded length (fully threaded), secured via a robust 3/8-24 UNF reverse-mount thread with maximum engagement of 0.563 inches. It includes a 1.0-meter (3.3-foot) integral triaxial cable with FEP insulation, terminated with Bently Nevada's proprietary Miniature ClickLoc™ coaxial connector with connector protector—a design that ensures secure, vibration-resistant connections with 330 N (75 lbf) pull strength via the patented CableLoc™ design. The -02 suffix (330102 base) indicates the presence of a metal armor sleeve on the probe shaft, providing enhanced mechanical protection against abrasion, impact, and harsh installation environments compared to the standard unarmored 330101 series.
- Power Generation: Used on heavy steam turbine shafts, gas turbines, and large generator sets
- Hydroelectric Facilities: Monitors wide-clearance water and hydroelectric turbine setups
- Oil & Gas Processing: Applied to high-load centrifugal process gas compressors, large multi-stage pumps, and expanders
- Steam and Gas Turbines:Housing temps, fuel valves & oil pressures
- Heavy Manufacturing: Tracks industrial assets like steel rolling mill drives, paper mill rollers, and mining machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread & Mounting: Use the appropriate mounting bracket to secure the probe, ensuring it is positioned to slide relative to the shaft rotor. For axial position, maintain a minimum physical tip separation of 40 mm (1.6 inches) from adjacent transducers to prevent cross-talk.
Setting the Gap: The linear range is centered at 1.27 mm (50 mils). Use a feeler gauge to gap the probe tip to this distance from the target, as this optimizes system interchangeability and accuracy.
Target Material: The system is factory-calibrated for an AISI 4140 steel target. Using a different target material will significantly alter the scale factor.
Technical notes
The Bently Nevada 330102-00-10-10-01-05 3300 XL 8 mm Proximity Probe is a non-contact eddy-current displacement sensor used for continuous monitoring of shaft vibration, axial position, eccentricity, differential expansion, and speed measurements in rotating machinery. It belongs to the 3300 XL Series, a widely deployed proximity transducer platform for machinery protection and condition monitoring systems.
FAQs
-
What is this product?
+It's a Bently Nevada 3300 XL 8mm Proximity Probe, a high-quality sensor for vibration and position monitoring in industrial rotating equipment, according to the Baker Hughes website. -
What is the primary application for this probe?
+It is used for condition monitoring and fault diagnosis in high-speed rotating equipment, such as turbines and compressors. It measures vibration and position relative to fluid-film bearings. -
What is the sensitivity of this sensor?
+The 3300 XL series typically features a scale factor (sensitivity) of 7.87 V/mm (200 mV/mil) when used with a standard 3300 XL Proximitor Sensor and calibrated to AISI 4140 steel.
