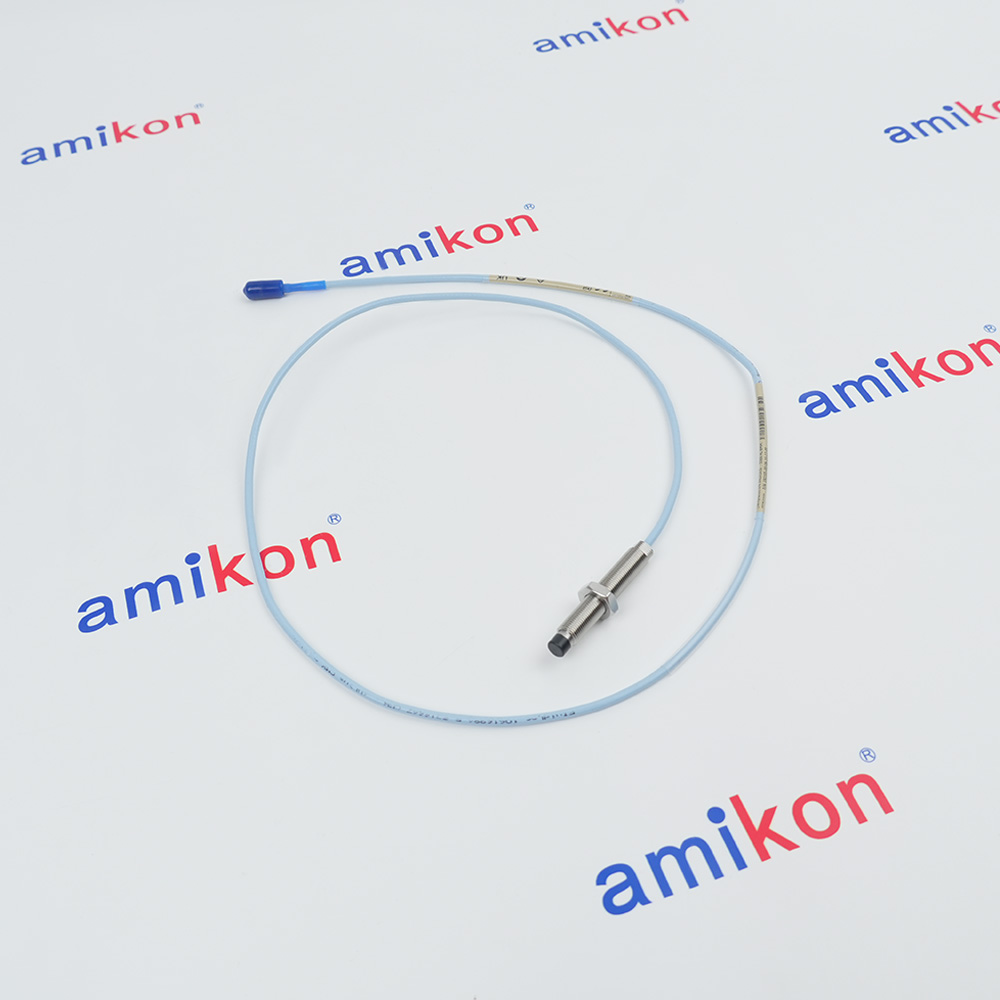

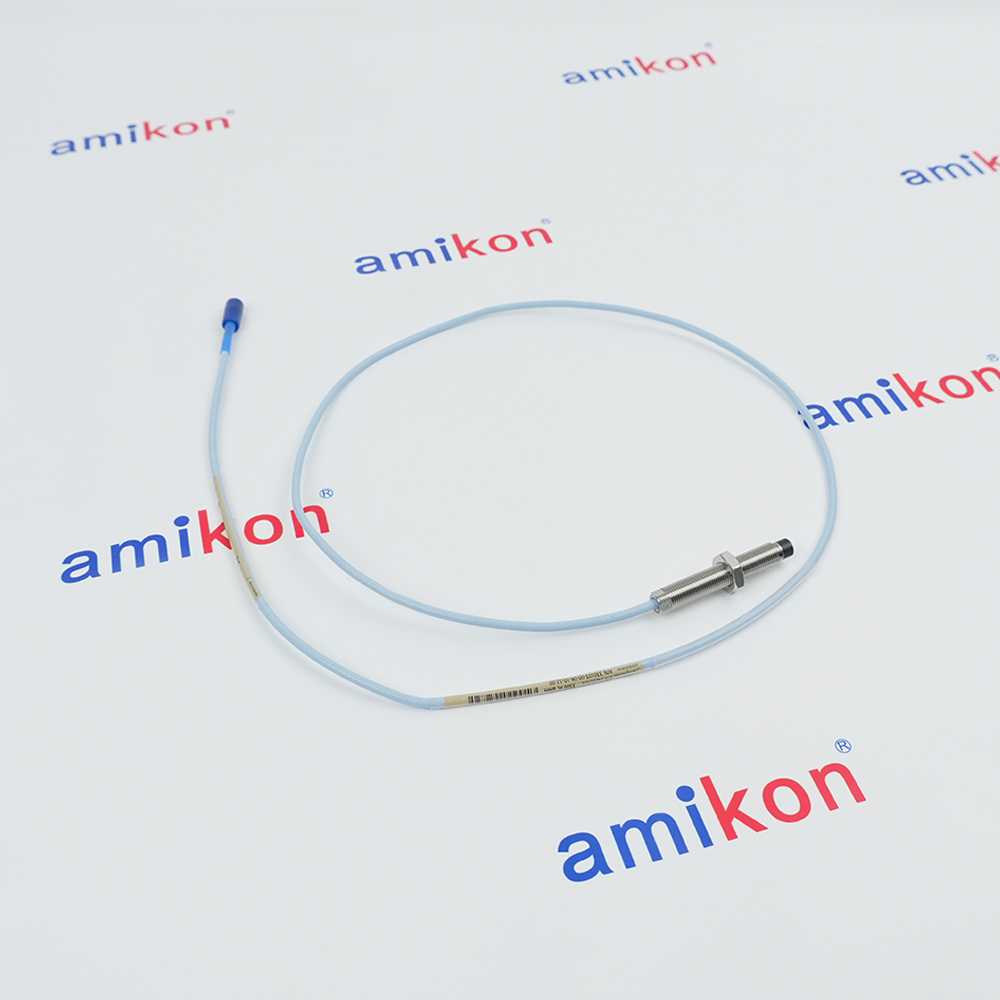

Technical specifications for 330103-00-06-10-12-00
-
Product Model330103-00-06-10-12-00
-
Product Parameters3300 XL 8 mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size20.5x22.4x3.3cm
-
ManufacturerBently Nevada
-
Weight0.15 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option0.6 in
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector FluidLoc cable
-
Agency Approval OptionNot required
Description
330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 0.6 in
10 1.0 meter (3.3 feet)
12 Miniature coaxial ClickLocconnector
FluidLoc cable
00 Not required
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 0.6 in
10 1.0 meter (3.3 feet)
12 Miniature coaxial ClickLocconnector
FluidLoc cable
00 Not required
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Setup Instructions
Features:
- Armored and Unarmored Options
- Multiple Connector Options
- Complete Interchangeability of Units and Cabling
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 330103-00-06-10-12-00 Bently Nevada 3300 XL 8 mm Proximity Probe may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330103-00-06-10-12-00 3300 XL 8 mm Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL Proximitor Sensor incorporatesnumerous improvements over previousdesigns. Its physical packaging allows you touse it in high-density DIN-rail installations. Youcan also mount the sensor in a traditionalpanel mount configuration, where it shares anidentical 4-hole mounting “footprint” with olderProximitor Sensor designs. The mounting basefor either option provides electrical isolationand eliminates the need for separate isolatorplates. The 3300 XL Proximitor Sensor is highlyimmune to radio frequency interference,allowing you to install it in fiberglass housingswithout adverse effects from nearby radiofrequency signals. The 3300 XL ProximitorSensor’s improved RFI/EMI immunity satisfiesEuropean CE mark approvals without requiringspecial shielded conduit or metallic housings,resulting in lower installation costs andcomplexity.
- Vibration and Position Monitoring:Dynamic vibration & static displacement for fluid-film bearing machines
- Turbomachinery Protection:Monitors turbines, compressors, fans, motors & generators
- Keyphasor and Speed Measurements:Shaft rotation speed & phase reference
- Industrial Processes:Oil/gas, petrochemical, hydroelectric, mining & power generations
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Gapping: For standard AISI 4140 steel targets, the probe should typically be gapped at 1.27 mm (50 mils) to reach the center of its linear range.
Gap Voltage: When properly gapped, the output voltage (gap voltage) should be approximately -10.0 VDC (normal range is -9 to -11 VDC).
Wiring: Use a 3-conductor shielded triad cable for field wiring between the Proximitor sensor and the monitor.
Mounting: The probe can be installed using a variety of brackets or through-hole mounting. Ensure the minimum cable bend radius of 25.4 mm (1.0 in) is maintained to avoid signal degradation.
FAQs
-
What is the 330103-00-06-10-12-00?+The Bently Nevada 330103-00-06-10-12-00 is a 3300 XL 8 mm Proximity Probe used for industrial vibration and position monitoring in rotating machinery
-
What is the primary function of this probe?+It measures both static (position) and dynamic (vibration) values on fluid-film bearing machines, making it essential for assessing the structural health of heavy industrial turbines, pumps, and compressors
-
What are the FluidLoc cable and ClickLoc connector?+The FluidLoc cable design prevents oil, moisture, and other industrial liquids from wicking or leaking through the internal gap spaces of the cable jacket. The ClickLoc coaxial connector provides a secure, vibration-resistant connection point that does not easily loosen during standard operations but requires no specialized tools to connect or disconnect.
-
Does this probe require calibration upon replacement?+No calibration is necessary. The 3300 XL series elements offer total interchangeability across matching system total lengths, altogether removing the requirement for individual tool bench calibration or component manual matching.
