- 3300 XL 8mm Proximity Transducer
- 330103-00-25-05-02-BR
In Stock
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330103-00-25-05-02-BR
-
Product Model330103-00-25-05-02-BR
-
In stock1 unit
-
ManufacturerBently Nevada
Description
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space6,7.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space6,7.
Information
Overview
Manuals
Application Notes
Product Applications
Insertion & Gap Mechanical Alignment
Features:
- M10 × 1 Metric Thread Configuration
- Without Armor Construction
- Patented TipLoc and CableLoc Design

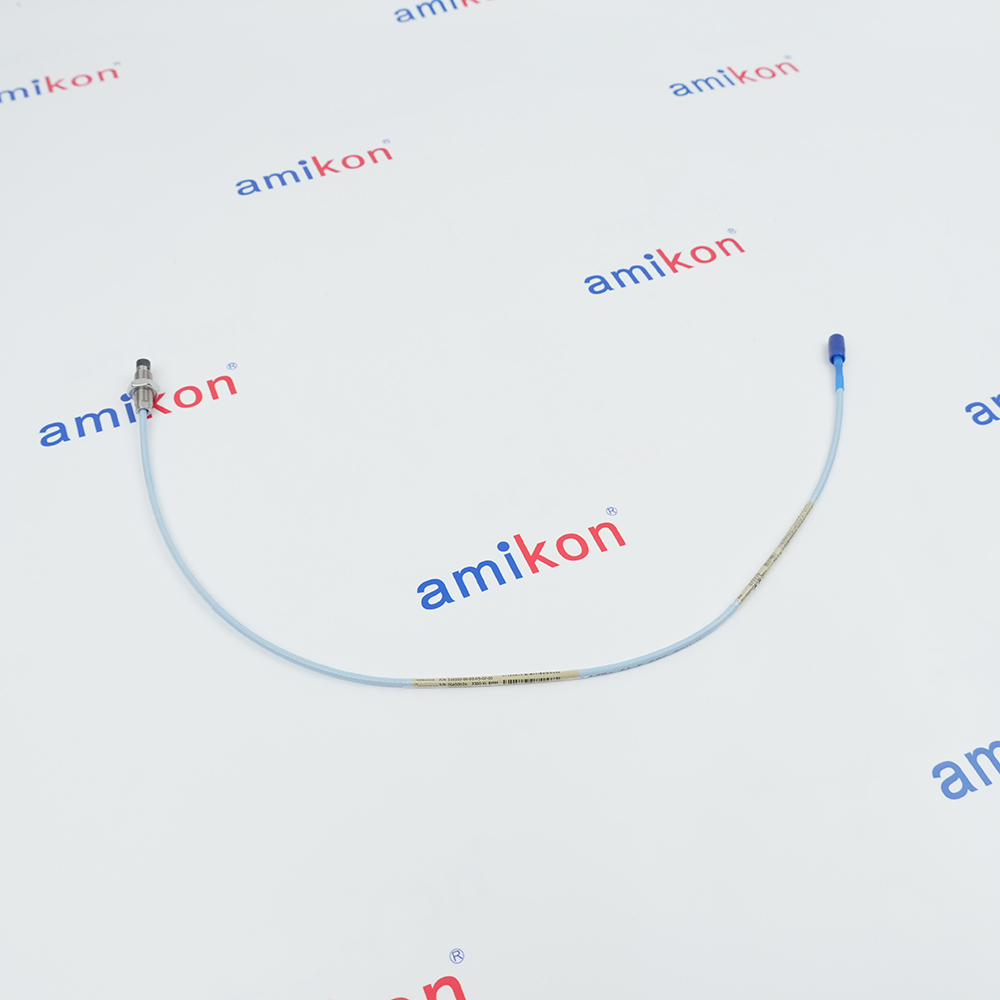

The Bently Nevada 330103-00-25-05-02-BR features a 250 mm stainless-steel case, 0 mm unthreaded length, and a 0.5 m standard coaxial cable terminated with a Miniature ClickLoc™ connector. The metric threaded housing provides secure installation in equipment designed for M10 × 1 mounting, while the compact cable length is suitable for installations where the extension cable connection is located close to the probe mounting point. The standard cable construction offers dependable signal transmission in general industrial environments.
The 330103 -00-25-05-02-BR Bently Nevada 3300 XL 8 mm Probe, M10 x 1 thread,without armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330103 -00-25-05-02-BR 3300 XL 8 mm Probe, M10 x 1 thread,without armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 330103-00-25-05-02-BR is widely used for monitoring steam turbines, gas turbines, centrifugal compressors, pumps, generators, motors, and other critical rotating equipment in power generation, oil and gas, petrochemical, mining, and process industries. Its M10 × 1 metric thread, 250 mm probe body, and compatibility with the 3300 XL 8 mm Proximity Transducer System make it a reliable replacement probe for machinery protection and long-term condition monitoring applications. The BR suffix identifies a specific regional ordering version while maintaining compatibility with the corresponding 3300 XL system components.
- Oil and Gas: Covers upstream extraction, midstream compression, and downstream refining
- Power Generation: Steam, gas, and hydro turbine-generators
- Petrochemical: Large pumps, centrifugal compressors, and electric motors
- Radial Vibration: Monitors dynamic shaft motion in fluid-film journal bearings
- Axial Position (Thrust): Tracks axial shaft displacement to prevent internal rubbing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare Target: Clean the shaft observation area to prevent false eddy-current readings.
Mounting: Thread the probe into its bracket or housing until the tip gently touches the target surface (do not overtighten).
Back-off Method: Back the probe out approximately 4 to 5 full turns. One full turn of a 3/8-24 thread equals 0.0417 inches (1.06 mm). Backing off 4 to 5 turns provides an initial mechanical clearance gap of roughly 0.16 to 0.20 inches (4.2 to 5.3 mm).
Locking: Once aligned with final voltage checks, lock the probe position using the external hex nut.
