- 3300 XL 8mm Proximity Transducer
- 330105-02-12-02-05-00
In Stock
Ships by Saturday, June 27
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330105-02-12-02-05-00
-
Product Model330105-02-12-02-05-00
-
Product Parameters3300 XL 8 mm Reverse Mount Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.2x1x66cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Extended Temperature Range cable75Ω triaxial, perfluoroalkoxy(PFA) insulated
-
Standard cable75 Q triaxial, fluoroethylenepropylene (FEP) insulated
-
Connector MaterialGold-plated brass or goldplated beryllium copper
-
Standard Probe-52°C to +177°C (-62°F to+350°F)
-
Proximitor Sensor MaterialA308 aluminum
Description

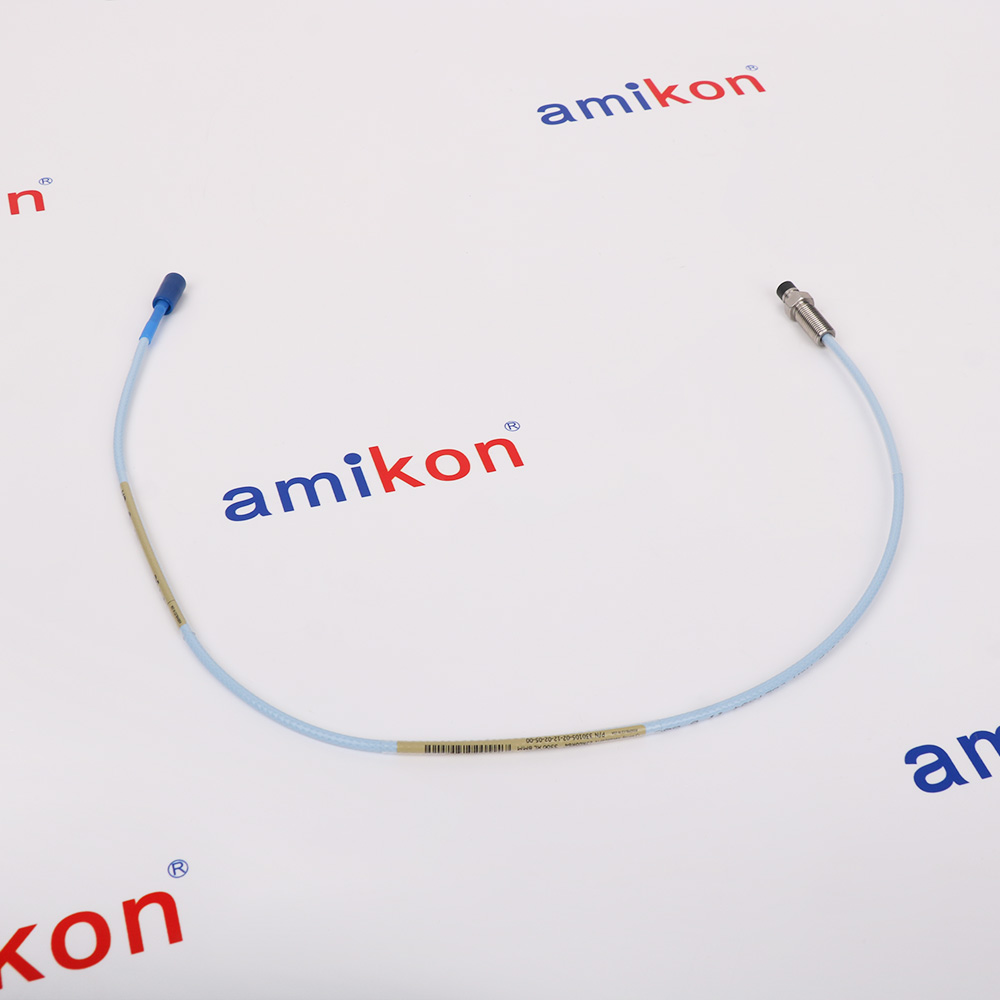

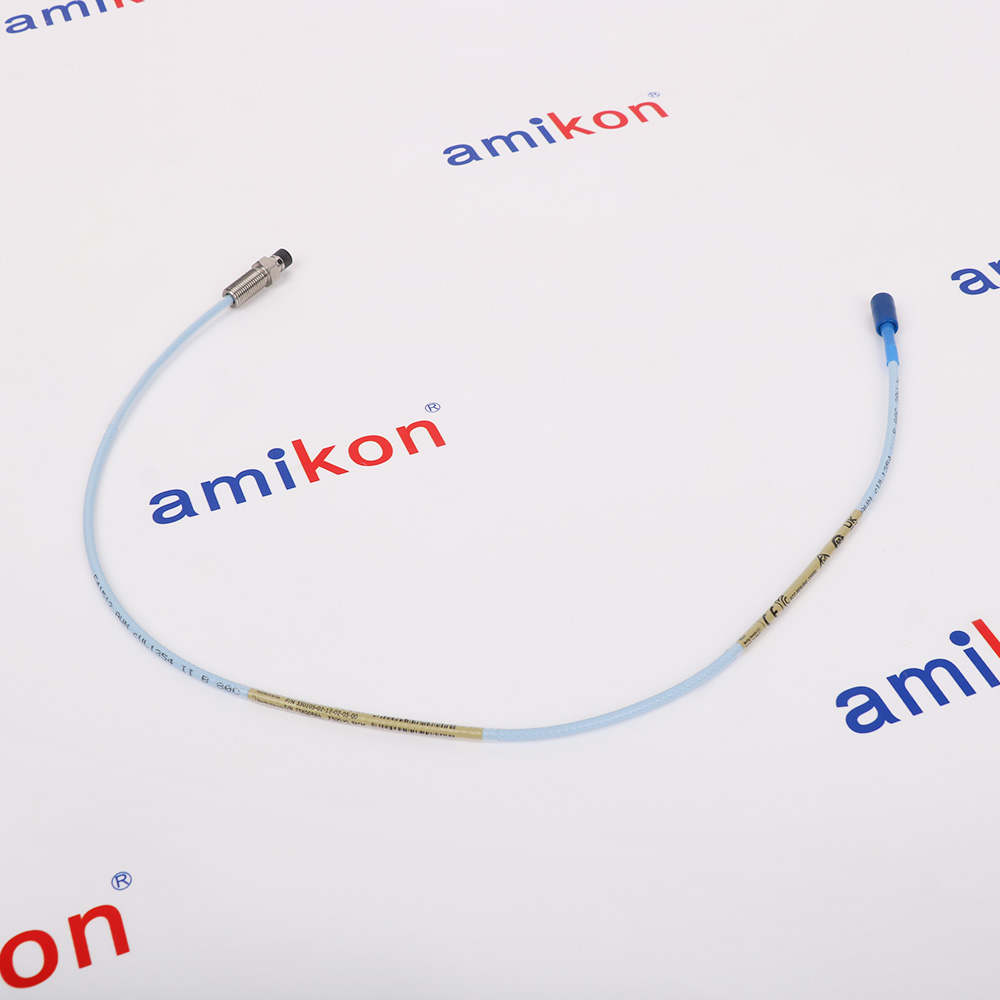

The Bently Nevada 330105-02-12-02-05-00 is a 3300XL 8mm reverse mount proximity probe with 3/8-24 UNF thread. The Bently Nevada 330105-02-12-02-05-00 is part of the 3300XL 8mm Proximity Transducer System. The Bently Nevada 330105-02-12-02-05-00 measures absolute vibration and position by providing an output voltage directly proportional to the distance between the probe tip and the observed conductive surface.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Alternative Names
330105 02 12 02 05 00
330I05-02-I2-02-05-00
33O1O5-O2-12-O2-O5-OO
330105-02-12-02-05-05
330105-02-12-02-05-CN
330105-02-12-02-05-RU
330105-02-12-02-05-BR
Information
Overview
Manuals
Extended Temperature Range Applications
Product Applications
Mechanical Preparation & Clearances
Features:
- Reverse Mount 8mm Probe with 3/8-24 UNF Thread
- 2.0 Inch (50mm) Unthreaded Length
- 1.2 Inch (30mm) Overall Case Length
- Miniature Coaxial ClickLoc Connector with Armor
The Bently Nevada 330105-02-12-02-05-00 has an unthreaded length of 2.0 inches (50mm). The unthreaded length on the Bently Nevada 330105-02-12-02-05-00 is specified by the AA option in the part number.
The Bently Nevada 330105-02-12-02-05-00 has an overall case length of 1.2 inches (30mm). The overall case length on the Bently Nevada 330105-02-12-02-05-00 is specified by the BB option in the part number. The Bently Nevada 330105-02-12-02-05-00 has a total length of 2.0 meters. The total length on the Bently Nevada 330105-02-12-02-05-00 is specified by the CC option in the part number. The Bently Nevada 330105-02-12-02-05-00 has armor. The armor on the Bently Nevada 330105-02-12-02-05-00 provides mechanical protection for the probe cable.
The 330105-02-12-02-05-00 Bently Nevada 3300 XL 8 mm Reverse Mount Probesmay still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330105-02-12-02-05-00 3300 XL 8 mm Reverse Mount Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
An extended temperature range (ETR) probeand ETR extension cable are available forapplications in which either the probe lead orextension cable may exceed the standard 177˚C(350˚F) temperature specification. The ETRprobe has an extended temperature rating forup to 218˚C (425˚F). The ETR extension cablerating is up to 260˚C (500˚F). Both the ETR probeand cable are compatible with standardtemperature probes and cables, for example,you can utilize an ETR probe with the 330130extension cable. The ETR system uses thestandard 3300 XL Proximitor Sensor. Note thatwhen you use any ETR component as part ofyour system, the ETR component limits thesystem accuracy to the accuracy of the ETRsystem.
- Steam and Gas Turbines:Radial vibration & axial thrust for turbine rotors
- Generator Bearings:Fluid-film journal: oil whirl/friction/misalignment
- Cooling Water Pumps & Forced Draft Fans:Safeguards high-capacity auxiliary equipment
- Centrifugal Compressors:High-speed rotors: gas transport & reinjection
- Turbo-Expanders:Shaft stability under cryogenic temp differentials
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Target Side Clearance (Counterbore): Maintain a counterbore diameter of at least 22.2 mm (0.875 inches) around the probe tip. If the housing walls are closer than this, the eddy current field will bleed into the surrounding casing metal instead of tracking the shaft.
Axial Cross-Talk Prevention: If mounting multiple 8 mm probes in parallel (such as a dual-redundant thrust configuration), keep the probe tips separated by a minimum of 25 mm (1.0 inch).
Technical notes
The 3300 XL probe and extension cable alsoreflect improvements over previous designs. Apatented TipLoc molding method provides amore robust bond between the probe tip andthe probe body. The probe’s cable incorporatesa patented CableLoc design that provides 330N (75 lbf) pull strength to more securely attachthe probe cable and probe tip.
FAQs
-
What is the 330105-02-12-02-05-00？
+The Bently Nevada 330105-02-12-02-05-00 is part of the 3300 XL 8 mm Proximity Transducer System. -
What is the primary function of this probe?
+It measures the exact distance between the probe tip and a conductive surface (like a machine shaft) to monitor radial vibration, axial position, and rotor speed in rotating industrial machinery. -
Does this probe require an extension cable?
+No, because the 1-meter system (total length) includes the probe and integrated cable. Extension cables are typically reserved for 5-meter or 9-meter systems. -
Can I mix XL components with older non-XL 3300-series parts?
+Yes, but system performance and measurement tolerances will be limited to the specifications of the older, non-XL hardware
