Product Information
Product Describe
12 1.0 meter (3.3 feet) system length
nomounting hardware
05 CSA, ATEX, IECEx Approvals

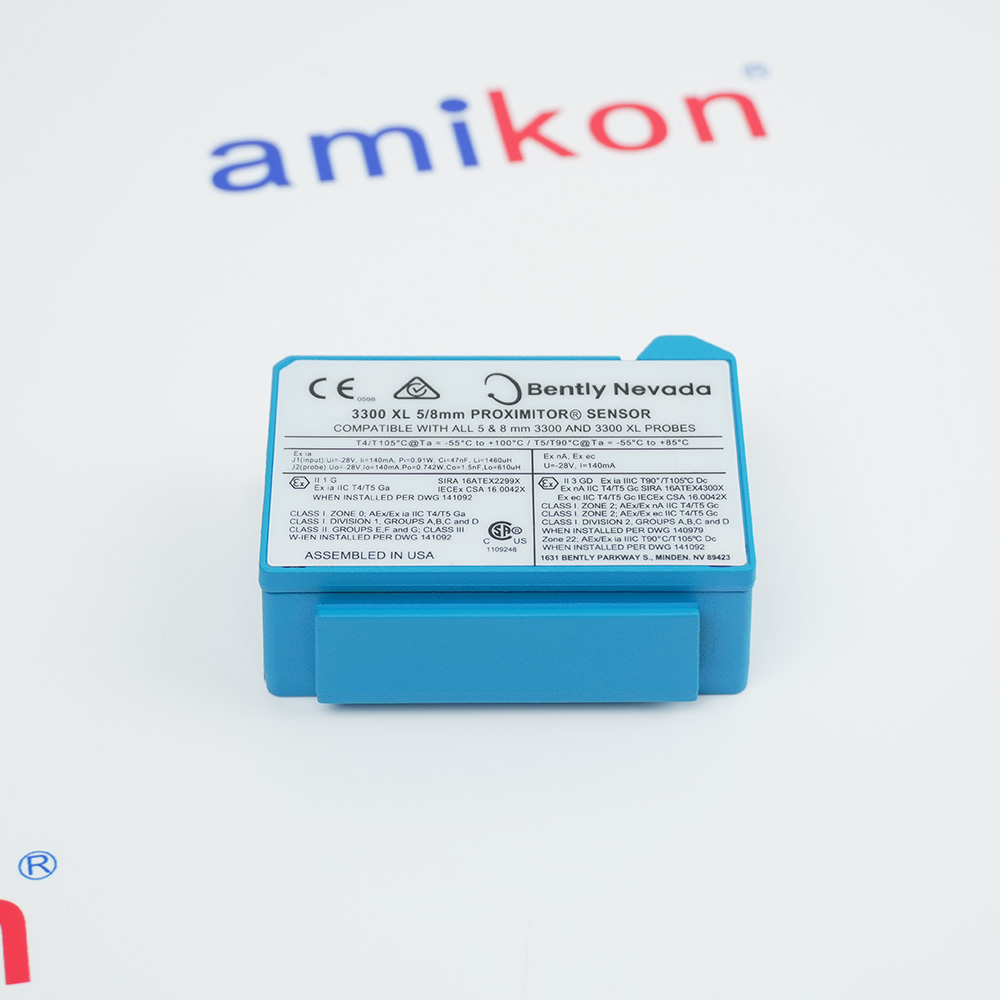

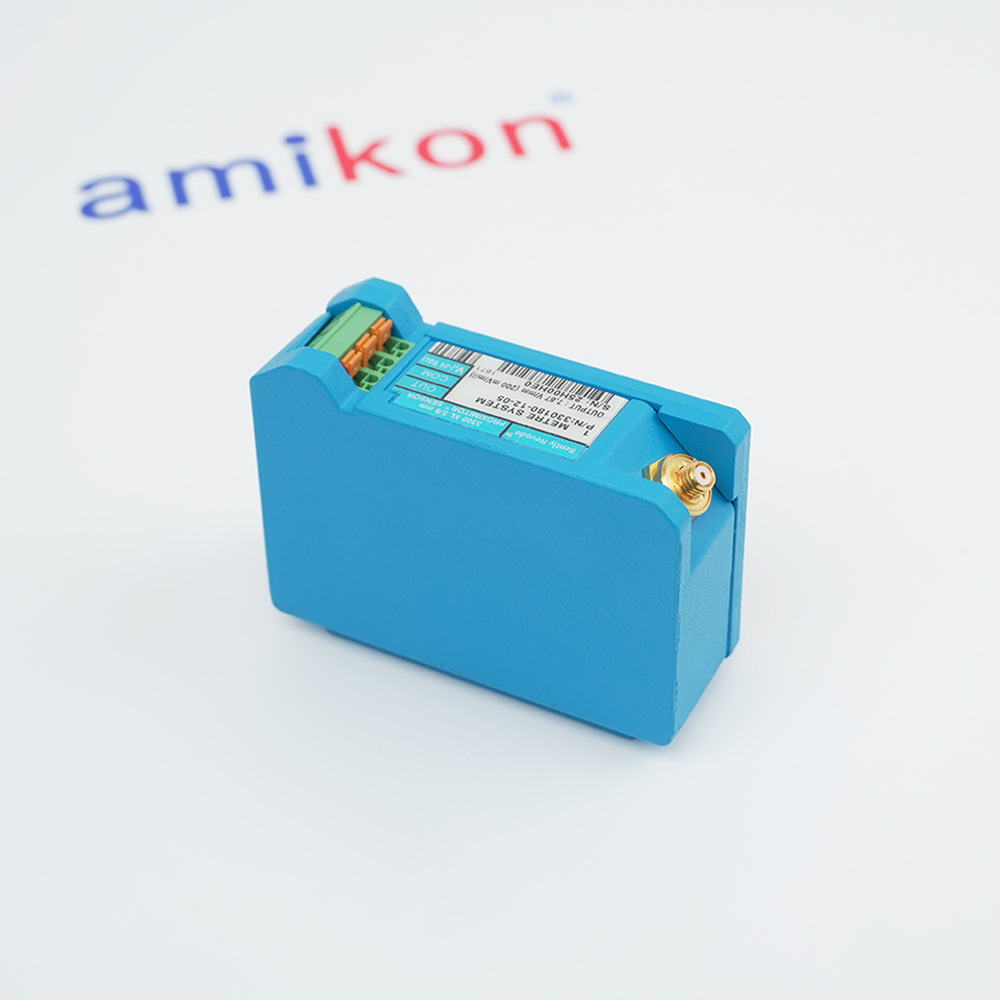

3300 XL Proximitor Sensor
nomounting hardware
05 CSA, ATEX, IECEx Approvals
3300 XL Proximitor Sensor
Technical specifications for 330180-12-05
-
Product Model330180-12-05
-
Product Parameters3300 XL Proximitor Sensor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size8.8x3.5x7cm
-
ManufacturerBently Nevada
-
Weight0.22 kg
-
Operating Temperature-52°C to +100°C (-62°F to+212°F)
-
Storage Temperature-52°C to +105°C (-62°F to+221°F)
-
Total Length and Mounting Option1.0 meter (3.3 feet)
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
-
Output Resistance50 Ω
-
Probe CaseMaterialAISI 303 or 304 stainless steel(SST)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 330180-12-05?+The Bently Nevada 330180-12-05 is a 3300 XL Proximitor Sensor for precise vibration and position measurement in industrial machinery.
-
What is the function of the 330180-12-05?+It is a Proximitor Sensor used to measure vibration and position in fluid-film bearing machines, speed, and compression systems.
-
What do the 330180-12-05 suffix numbers mean?+The "-12" indicates a 1.0-meter (3.3 feet) total system length with no mounting hardware, and the "-05" indicates agency approvals (CSA, ATEX, IECEx).
-
Is it compatible with older systems?+Yes, it is backward-compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components.
-
What are the environmental features?+The sensor provides high immunity to radio frequency interference (RFI/EMI), allowing it to be mounted in high-density DIN-rail installations or fiberglass housings.
Get a quick price fo 330180-12-05
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
- Extended Temperature Range Applications
- Complete Interchangeability of Units and Cabling
- Backwards Compatible with Other Non-3300 XL Series Transducer System Components
The 330180-12-05 Bently Nevada 3300 XL Proximitor Sensor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330180-12-05 3300 XL Proximitor Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 330180-12-05 is a 3300 XL Proximitor Sensor for non-contacting vibration and position measurement on rotating machinery. It is part of the 3300 XL 8 mm Proximity Transducer System and operates using eddy current technology, offering high accuracy and immunity to radio frequency interference.Compatible with all 5 mm and 8 mm 3300-series probes and extension cables.
- Gas and Steam Turbines: Used to monitor thrust position, vibration, and differential expansion
- Centrifugal and Axial Compressors: Essential for monitoring axial (thrust) position and radial vibration
- Electric Motors and Generators: Used for shaft vibration and position measurements
- Pumps and Gearboxes: Often used in high-speed or critical service units to detect early signs of mechanical failure
- Power Generation: Ensures operational stability and efficiency in generators and large turbines.
- Marine Propulsion: Utilized in monitoring propulsion systems and key marine engine components.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The primary difference between the 330180-12-05 and the 330180-12-00 is the Agency Approval certification. While both sensors share identical mechanical and electrical performance specifications, the -05 model is certified for use in hazardous areas, whereas the -00 model is not.
Use the 330180-12-05 if your machinery is located in an environment where explosive gases or dust may be present. It is the safer choice for refineries, chemical plants, and offshore platforms.
Use the 330180-12-00 for standard indoor applications where hazardous area certification is not a regulatory requirement, often resulting in lower costs or faster availability.
