Technical specifications for 330190-040-01-00
-
Product Model330190-040-01-00
-
Product Parameters3300 XL Extended Temperature Range(ETR) Extension Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size28x26x3cm
-
ManufacturerBently Nevada
-
Weight0.4 kg
-
Cable Length Option4.0 meters (11.5 feet)
-
Cable OptionArmored cable
-
Agency Approval OptionNot required
-
Cable Construction75 Ω triaxial cable with FEP insulation
-
Operating Temperature (ETR Cable)-52°C to +260°C (-62°F to +500°F)
-
Storage Temperature-52°C to +260°C (-62°F to +500°F)
Description

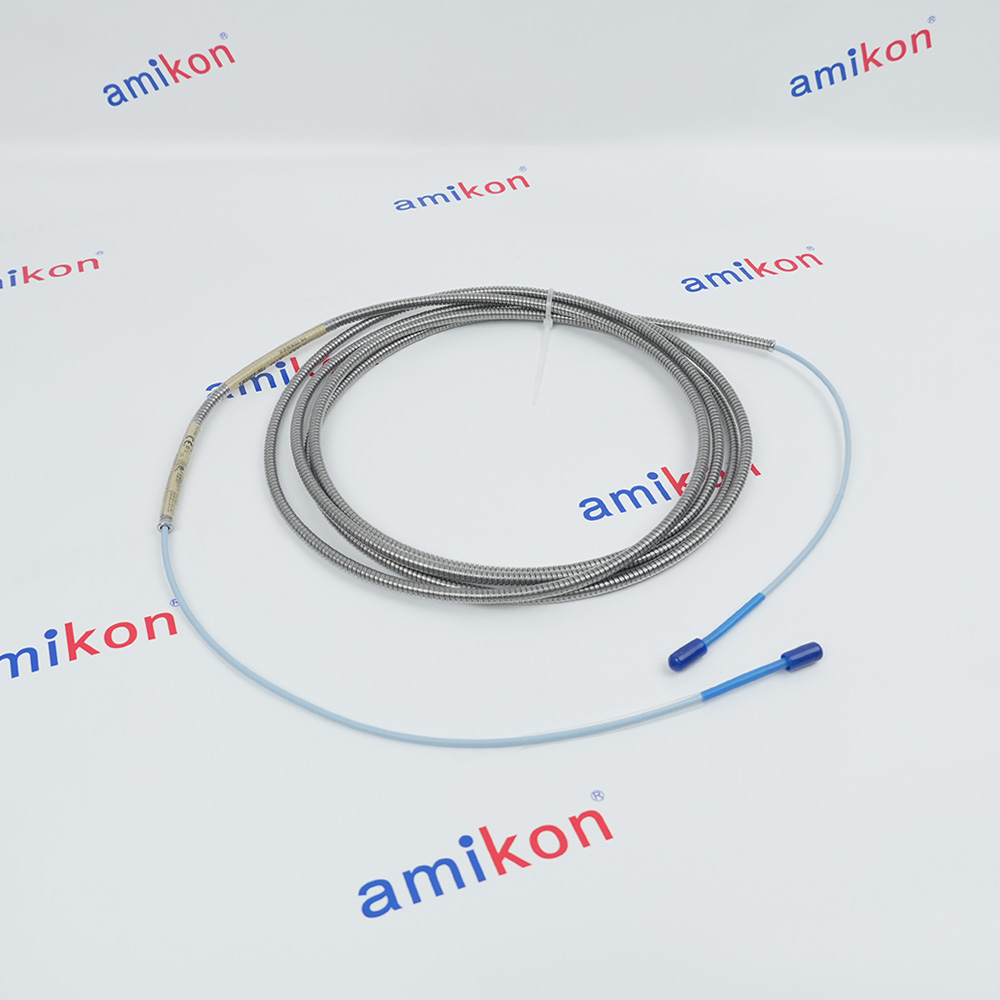

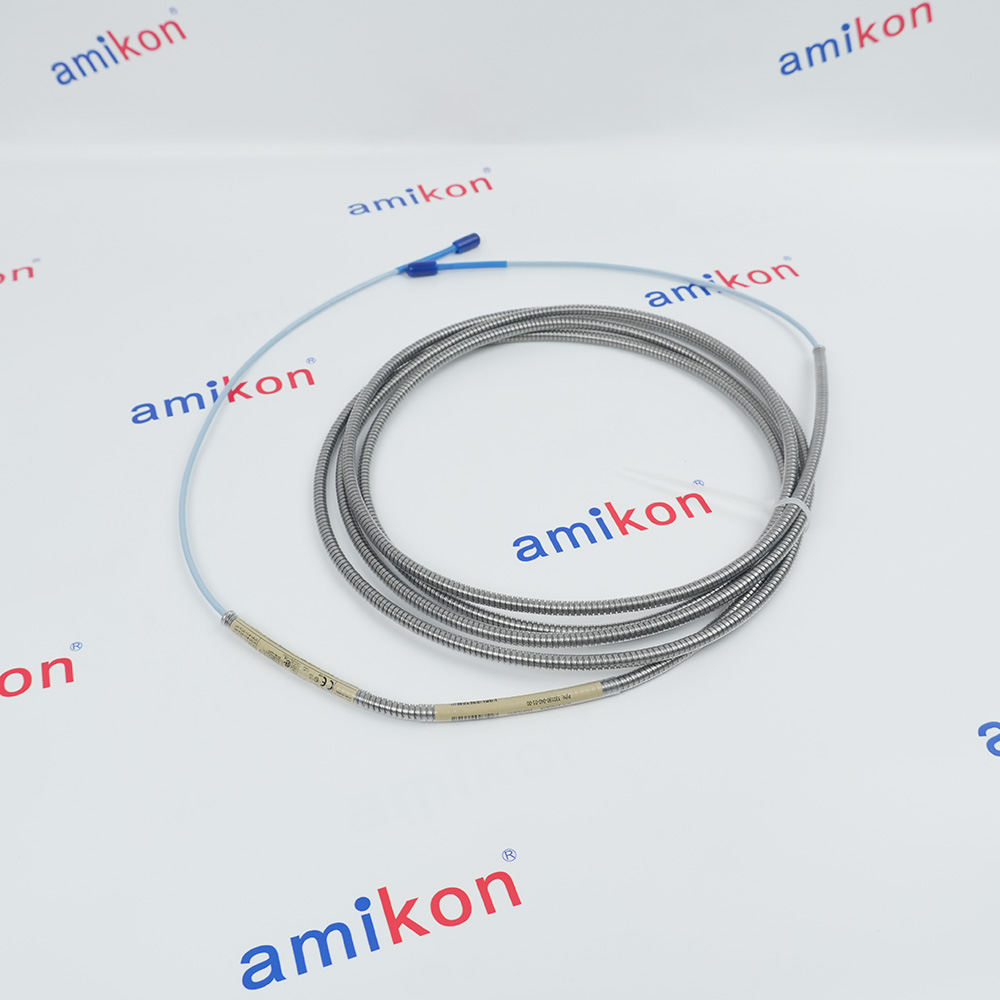

The Bently Nevada 330190-040-01-00 is a 3300 XL Extended Temperature Range (ETR) Extension Cable designed for use in machinery protection and condition monitoring systems operating under extreme temperature conditions. It forms one of the three primary components of the 3300 XL Proximity Transducer System, connecting the proximity probe to the Proximitor® sensor while maintaining high signal integrity over extended cable lengths.
The "-040" option specifies a 4.0-meter (13.1-foot) cable length, while the "-01" option indicates an armored cable that provides enhanced resistance to mechanical damage, abrasion, and harsh industrial environments. The "-00" approval code denotes the standard version without additional hazardous-area agency approvals.
Unlike standard extension cables, the ETR version is manufactured with specialized high-temperature materials that allow continuous operation from -52°C to +260°C (-62°F to +500°F). This makes it particularly suitable for applications near turbines, exhaust systems, high-temperature process equipment, and other demanding industrial installations where conventional cables cannot withstand the ambient conditions.
The "-040" option specifies a 4.0-meter (13.1-foot) cable length, while the "-01" option indicates an armored cable that provides enhanced resistance to mechanical damage, abrasion, and harsh industrial environments. The "-00" approval code denotes the standard version without additional hazardous-area agency approvals.
Unlike standard extension cables, the ETR version is manufactured with specialized high-temperature materials that allow continuous operation from -52°C to +260°C (-62°F to +500°F). This makes it particularly suitable for applications near turbines, exhaust systems, high-temperature process equipment, and other demanding industrial installations where conventional cables cannot withstand the ambient conditions.
Alternative Names
330190-040-01-0O
330190-040-0I-00
330190-04O-01-00
330190-0A0-01-00
33019O-040-01-00
330I90-040-01-00
330190-040-01-05
330190-040-01-CN
330190 040 01 0O
330190 040 0I 0O
330190 04O 01 0O
33019O 040 01 0O
330I90 040 01 0O
Information
Overview
Manuals
Application Notes
Product Applications
Physical Connector Mechanics
Features:
- Extended Temperature Range Capability
- Compatible with Standard 3300 XL System Components
- Corrosion-Resistant Gold-Plated ClickLoc Connectors
- ETR System Accuracy Limitation Note
The cable features a 75 Ω triaxial design with a typical capacitance of 69.9 pF/m and nominal DC resistances of 0.66 Ω (core) and 0.20 Ω (jacket) measured at a 3.0 m reference length. The armored construction provides mechanical protection in harsh industrial environments, with a mass of 103 g/m. Both ends terminate in corrosion-resistant, gold-plated ClickLoc™ connectors that lock with finger-tight torque (0.565 N·m maximum) and require no special tools. A minimum bend radius of 25.4 mm (1.0 in) must be observed during installation.
The 330190-040-01-00 Bently Nevada 3300 XL Extended Temperature Range(ETR) Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330190-040-01-00 3300 XL Extended Temperature Range(ETR) Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The cable utilizes a 75 Ω triaxial construction with fluoroethylene propylene (FEP) insulation, providing excellent electrical shielding, low capacitance, and stable transmission characteristics. When combined with compatible 3300 XL probes and Proximitor® sensors, the complete transducer system delivers accurate measurements of shaft vibration, axial position, differential expansion, eccentricity, Keyphasor® reference, and rotational speed while meeting API 670 performance requirements.
- Oil & Gas: Monitors compressors, turbo-expanders, and multi-stage pumps across upstream/midstream/downstream
- Power Generation: Deployed in gas/steam/hydro plants for turbine generators and auxiliary equipment
- Chemical/Petrochemical: Monitors heavy-duty rotating assets under continuous high-stress processing
- Heavy Manufacturing/R&D: Gathers lateral mode shape data for shaft balancing during turbine research/troubleshooting
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Tool-Free Locking: Align the male and female connectors, push them together, and turn the outer sleeve clockwise.
The "Click": Rotate until you feel and hear a physical click. This confirms the internal locking mechanism has engaged to prevent loosening from machine vibration.
Torque Rating: Connectors are designed for finger-tight operation.
If a torque wrench is mandatory for compliance, do not exceed the maximum rated torque of 0.565 N·m (5 in·lb). Over-tightening deforms the gold-plated contacts and degrades signal fidelity.
Technical notes
The 3300 XL system delivers an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, supporting both static (position) and dynamic (vibration) measurements. The standard 5 m system complies with API 670 requirements. The ETR variant maintains an incremental scale factor of 7.87 V/mm (200 mV/mil) with an interchangeability tolerance of ±6.5% and a linear range of 2.0 mm (80 mils). Over the extended temperature range, the ISF remains within ±18% and DSL within ±0.152 mm when the Proximitor Sensor is maintained between 0°C and +45°C.
FAQs
-
What is the 330190-040-01-00?
+The Bently Nevada 330190-040-01-00 is a 4.0-meter 3300 XL Extended Temperature Range (ETR) Extension Cable used in eddy-current proximity transducer systems -
What is the primary function of this extension cable?
+It connects the Bently Nevada proximity probe to the Proximitor sensor. It carries a radio frequency (RF) signal to the probe tip and returns the signal that measures shaft vibration and displacement. -
What material is the cable made of?
+The cable is constructed with a tri-axial design and FEP insulation, wrapped in protective armor to withstand harsh operational conditions. -
What systems are compatible with this cable?
+It is primarily used as part of the Bently Nevada 3300 XL Proximity Transducer System, frequently paired with 11 mm proximity probes or specific 8 mm setups requiring ETR performance.
