What is the Bently Nevada 330901-00-90-10-02-05?

Bently Nevada 330901-00-90-10-02-05 is a 3300 NSv Proximity Probe designed for measuring radial vibration and position on fluid-lubricated bearing machines.

What is the difference between the 3300 NSv and 3300 XL Probes?

The 3300 NSv (Near-field) probe is designed specifically for small target applications where standard 3300 XL probes cannot be used due to their larger side-view characteristics. The NSv offers superior accuracy in tight, space-constrained installations, such as small turbomachinery, pumps, and compressors

Where is this 330901-00-90-10-02-05 probe typically used?

It is ideal for monitoring vibration and position in tight spaces where standard probes won't fit. It is widely used in industries like oil and gas, power generation, and mining.

330901-00-90-10-02-05 compatible with older systems?

The 3300 NSv series is mechanically and electrically compatible with Bently Nevada’s older 3300 RAM probes and extension cables. However, if upgrading from 3000 or 7000 series, you must replace the probe, cable, and Proximitor sensor together.

What are 330901-00-90-10-02-05 environmental limits?

The probe operates in temperatures ranging from -34°C to +177°C (-30°F to +351°F). It features increased chemical resistance, making it suitable for process compressor applications.

Get Parts Quote

Name

Company *

Phone *

Email *

Address

City

State / Province / Region

Zipcode

Country

Quantity *

Part Number *

Manufacturer

Preferred Condition

Additional Information

Cancel

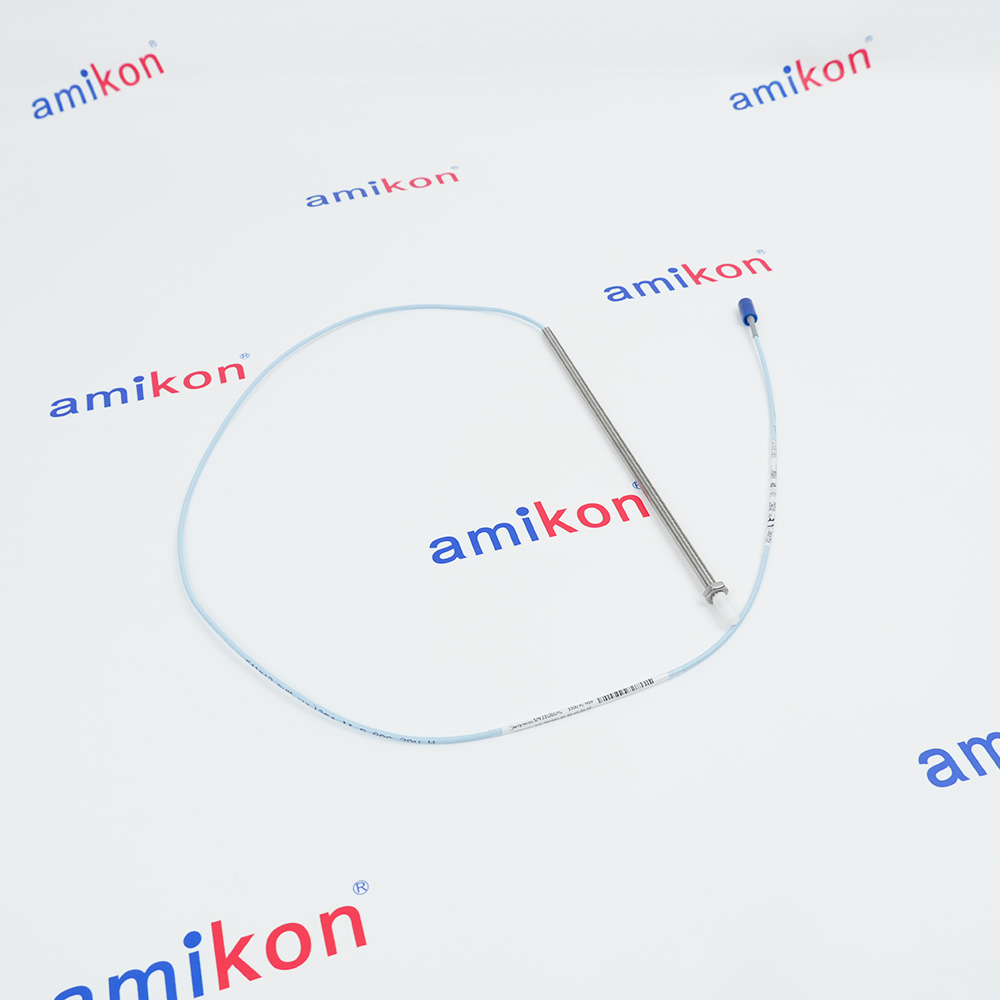

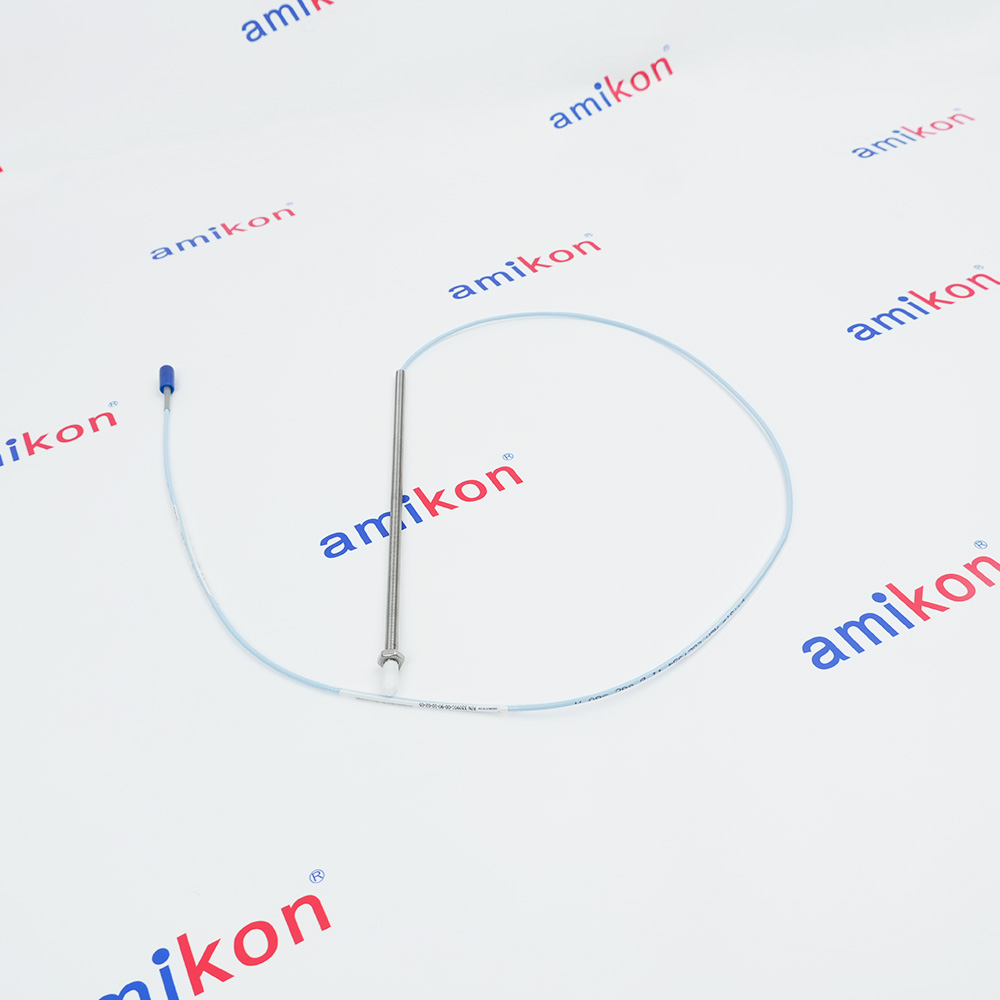

330901-00-90-10-02-05

Name: 330901-00-90-10-02-05
Brand: Bently Nevada
Price: 999.00 USD
Availability: InStock

Call us: +86-18020776786

Delivery time
Please indicate your delivery time

Product Information

Product Describe

330901 3300 NSv Probe
1/4-28 UNF thread,without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 9.0 in
10 1.0 meter (39 in)
02 Miniature coaxial ClickLoc connector
standard cable
05 Multiple Approvals

Technical specifications for 330901-00-90-10-02-05

Product Model

330901-00-90-10-02-05
Product Parameters

3300 NSv Proximity Probes
Tariff Code

8537101190
Country of origin

USA
Place of shipment

Xiamen, China
Estimated Shipping Size

1.5x1.3x117cm
Manufacturer

Bently Nevada
Weight

0.14 kg
Unthreaded Length Option

0.0 in
Overall Case Length Option

9.0 in
Total Length Option

1.0 meter (39 in)
Connector and Cable-Type Option

Miniature coaxial ClickLoc connector standard cable
Agency Approval Option

Multiple Approvals

Factory New

These are new and current items that are procured from the manufacturer.
New No Package

These parts are new. They have not been used, but their original packaging is no longer available.
New In Opened Package

These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.
New In Sealed Package

Parts are new. They have not been used and still have their original package seal intact.
New in Original Package

These parts are new. The packages were not originally sealed by their original manufacturer.

Warranty Period & Disclaimer

Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

FAQs

What is the Bently Nevada 330901-00-90-10-02-05?+

Bently Nevada 330901-00-90-10-02-05 is a 3300 NSv Proximity Probe designed for measuring radial vibration and position on fluid-lubricated bearing machines.
What is the difference between the 3300 NSv and 3300 XL Probes?+

The 3300 NSv (Near-field) probe is designed specifically for small target applications where standard 3300 XL probes cannot be used due to their larger side-view characteristics. The NSv offers superior accuracy in tight, space-constrained installations, such as small turbomachinery, pumps, and compressors
Where is this 330901-00-90-10-02-05 probe typically used?+

It is ideal for monitoring vibration and position in tight spaces where standard probes won't fit. It is widely used in industries like oil and gas, power generation, and mining.
330901-00-90-10-02-05 compatible with older systems?+

The 3300 NSv series is mechanically and electrically compatible with Bently Nevada’s older 3300 RAM probes and extension cables. However, if upgrading from 3000 or 7000 series, you must replace the probe, cable, and Proximitor sensor together.
What are 330901-00-90-10-02-05 environmental limits?+

The probe operates in temperatures ranging from -34°C to +177°C (-30°F to +351°F). It features increased chemical resistance, making it suitable for process compressor applications.

Get a quick price fo 330901-00-90-10-02-05

*Quantity

*E-mail

Company

*Mobile

*Content

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Amikong please read our privacy policy.

Inquiry

Control system parts

Required delivery time

ask

Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

Product

MORE INFORMATION

Overview Manuals Technical notes Product Applications Gapping and Calibration

Features:

Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)

The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the3000-series or 7000-series 190 Transducer System. Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring3300 XL NSv Proximity Transducer SystemDatasheet147385 Rev. Rsystem with 3300 XL NSv ProximitorSensor. Upgrades from the 3000-series or7000-series Transducer System must replacethe probe, extension cable, and ProximitorSensor with NSv components.

The 330901-00-90-10-02-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).

Bently Nevada 330901-00-90-10-02-05 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced sideview and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.

Centrifugal Air Compressors:Radial vibration & axial position in compact compressor designs
Refrigeration Compressors:Ideal for restricted internal clearances typical of these units
Process Gas Compressors:Increased chemical resistance for shafts in harsh process gas environments
Small Fluid-Film Bearing Machines:For shafts <51 mm where standard probes lack linear range
Gearboxes and Turbines:Shaft displacement & alignment in smaller rotating assets

This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.

Linear Range: The system has a linear range of 1.5 mm (60 mils), which typically begins 0.25 mm (10 mils) from the target surface.

Target Voltage: The recommended "cold" gap setting is 1.0 mm (40 mils), which should correspond to a gap voltage of approximately -9.0 Vdc to -11.0 Vdc when connected to a 3300 XL NSv Proximitor Sensor.

Verification: Use a multimeter to measure the DC voltage between the "OUT" and "COM" terminals on the Proximitor. The voltage should change by 7.87 V/mm (200 mV/mil) as the gap changes.
