- 3300 XL NSV Proximity Transducer
- 330902-00-38-05-02-05
In Stock
Ships by Thursday, July 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330902-00-38-05-02-05
-
Product Model330902-00-38-05-02-05
-
Product Parameters3300 NSv Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.2x1x72cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option3.8 in
-
Total Length Option0.5 meter (20 in)
-
Connector and Cable-Type OptionMiniature coaxial ClickLoc connector standard cable
-
Agency Approval OptionMultiple Approvals
Description

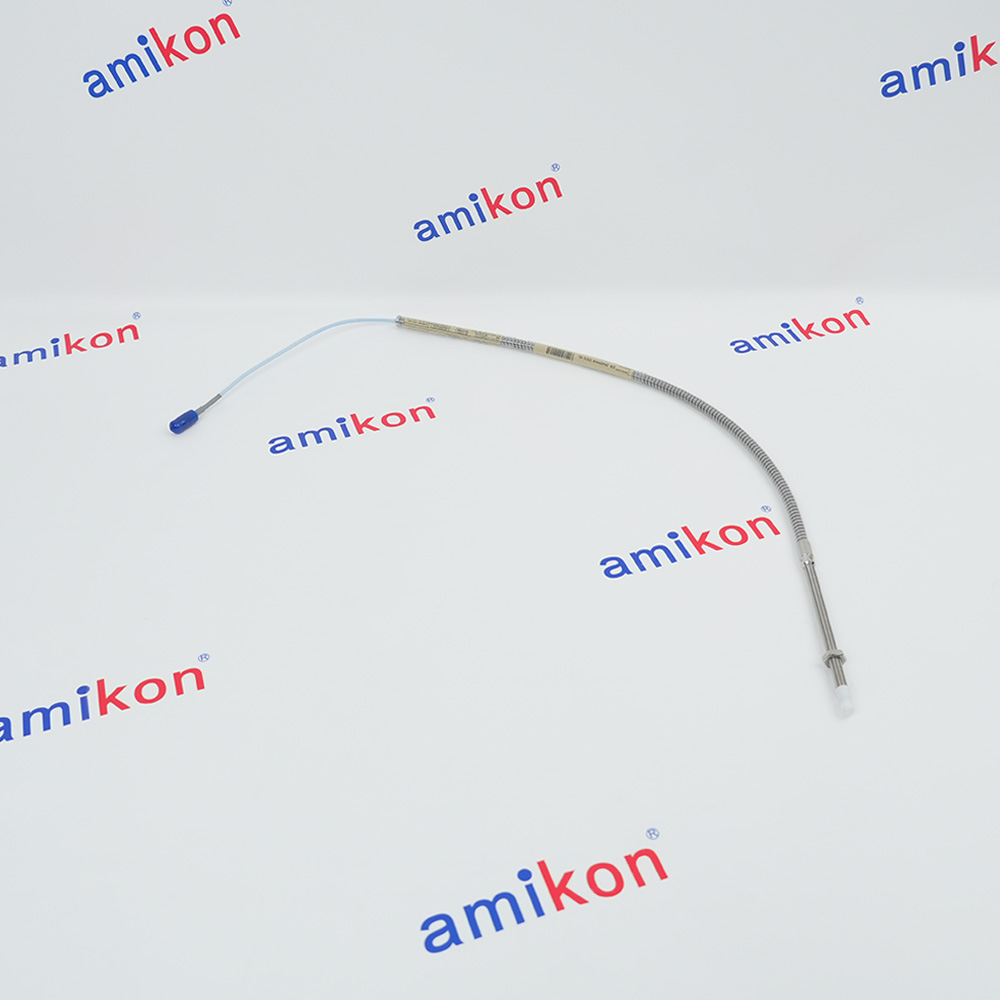

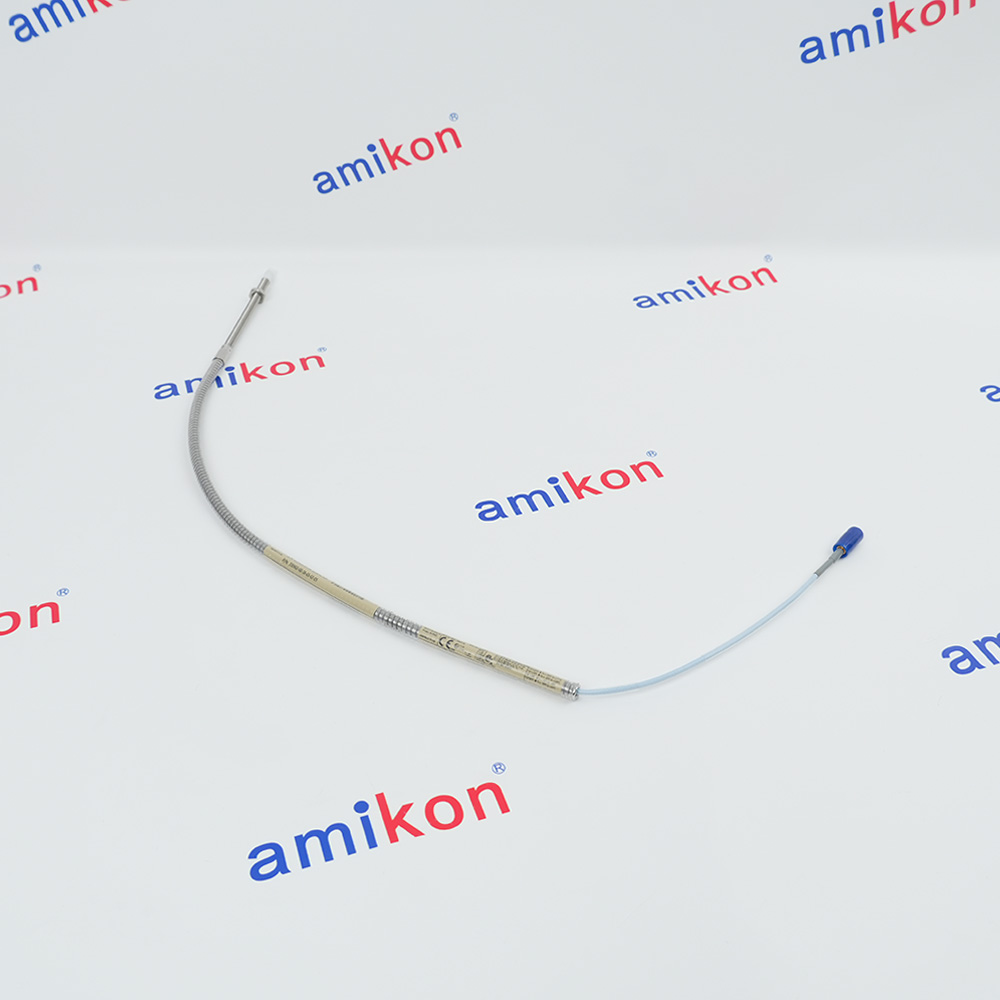

The Bently Nevada 330902-00-38-05-02-05 is a 3300 NSv proximity probe from Bently Nevada, designed as part of the 3300XL NSv Proximity Transducer System for machinery condition monitoring applications. The 330902-00-38-05-02-05 features a 1/4-28 UNF thread with armored cable protection, making it suitable for demanding industrial environments where mechanical durability and chemical resistance are required.
The 330902-00-38-05-02-05 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 330902 is specifically designed for areas where counter bore, side-view, or rear-view restrictions limit the use of standard Bently Nevada 3300 and 3300XL 5mm and 8mm Transducer Systems. The 330902-00-38-05-02-05 is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
The 330902-00-38-05-02-05 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 330902 is specifically designed for areas where counter bore, side-view, or rear-view restrictions limit the use of standard Bently Nevada 3300 and 3300XL 5mm and 8mm Transducer Systems. The 330902-00-38-05-02-05 is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Alternative Names
330902 00 38 05 02 05
33O9O2-OO-38-O5-O2-O5
33O9O2 OO 38 O5 O2 O5
330902-00-38-05-02-00
330902-00-38-05-02-CN
330902-00-38-05-02-BR
330902-00-38-05-02-RU
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Installation
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 330902-00-38-05-02-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330902-00-38-05-02-05 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 330902-00-38-05-02-05 has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give the 330902 a shorter linear range than the Bently Nevada 3300XL-series 5mm and 8mm Transducer System. The 1.5 mm (60 mils) of linear range of the 330902 exceeds the linear range of the 3000-series 190 Transducer System.
- Centrifugal Air Compressors: High-speed rotating equipment where space for sensors is limited
- Refrigeration Compressors: Specialized industrial cooling units
- Process Gas Compressors: Systems handling various industrial gases; the probe's chemical resistance makes it ideal for these environments
- Turbo Expanders: High-speed turbines used in gas processing
- Electric Motors & Generators: Specifically those with tight internal clearances or small fluid-film bearings
- Pumps & Fans: Centrifugal or positive displacement pumps where mounting between bearing pads is required
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Hole Preparation: Use a 0.332 in (Drill Size) and a Q (Tap Drill Size) for the 3/8-24 UNF threads.
Reverse Mounting: The probe is designed to be threaded into the machine case from the inside or via a specific probe adapter. Ensure thread engagement does not exceed 0.562 inches to prevent bottoming out.
Gapping: The probe must be gapped at the center of its linear range, typically 1.27 mm (50 mils) from the target for standard AISI 4140 steel.
Torque: For 3/8-24 probe cases, the recommended installation torque is 11.3 N·m (100 in·lb), with a maximum limit of 33.9 N·m (300 in·lb).
Technical notes
The 330902-00-38-05-02-05 is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present: radial vibration and radial position measurements, axial (thrust) position measurements, tachometer and zero speed measurements, and phase reference (Keyphasor signals). The 330902 design allows it to replace both the 3300RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.
FAQs
-
What is 330902-00-38-05-02-05 ?
+The Bently Nevada 330902-00-38-05-02-05 is a 3300 NSv (Near-surface) Proximity Probe, designed for 8mm vibration/position monitoring in tight spaces -
What is the application of the 330902-00-38-05-02-05?
+It is used for measuring shaft vibration and position on smaller rotating machinery, such as small turbines, pumps, and compressors. -
Does this probe require a specific extension cable?
+Yes, it operates with a 3300 NSv Proximitor and extension cable designed to match the 0.5-meter probe length. -
What is the linear range and sensitivity?
+The 3300 NSv system provides a linear range of 1.5 mm (60 mils) with a standard sensitivity of 200 mV/mil (7.87 V/mm). -
What is the recommended gap voltage for installation?
+For optimal linear output, the gap voltage should typically be set between -8 VDC and -12 VDC.
